2013-20911: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

2013-20911 Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle

2013-20911 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
Other features	TUBE & PAD PACKING
body width	0.217 inch
subject depth	0.299 inch
body length	0.866 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	4.8928 N
insulator material	NYLON
Manufacturer's serial number	2013
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
Evacuation force-minimum value	.7784 N
Base Number Matches	1

Preview

Download Datasheet

View All

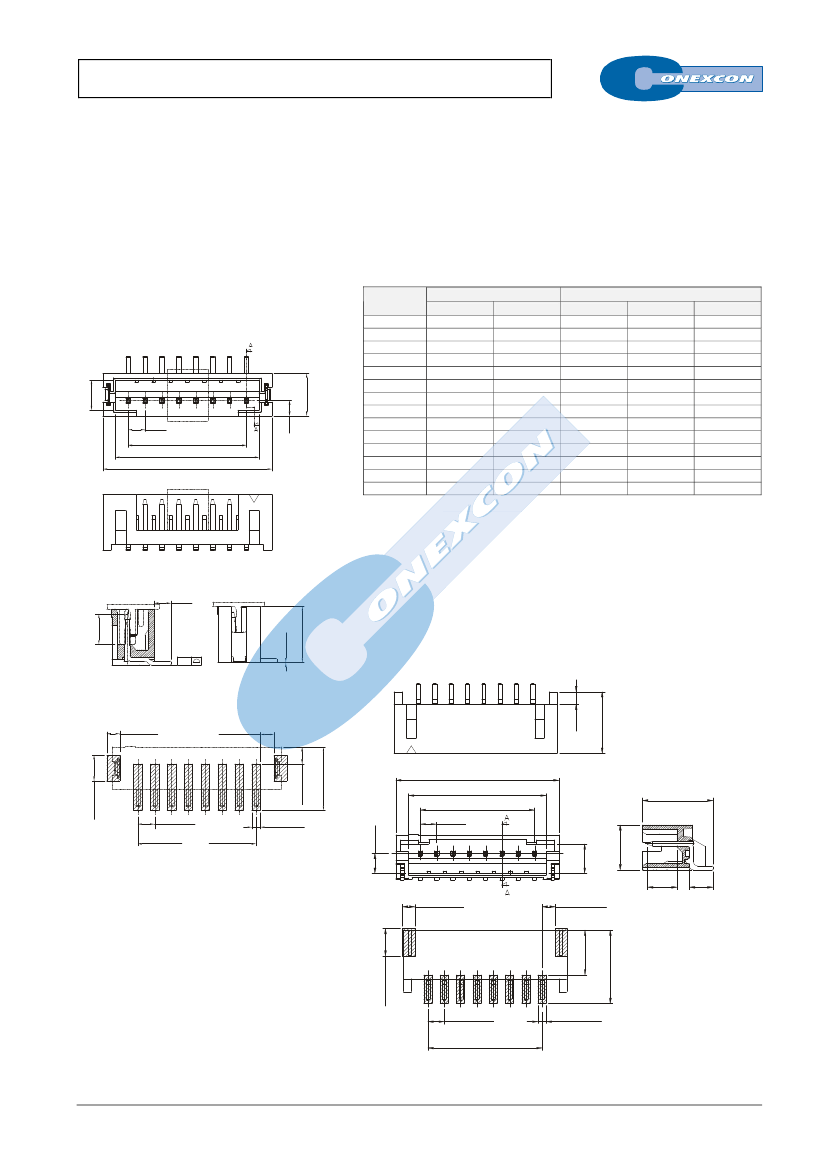

POLARISED SMT HEADER

2013 SERIES.

2.00mm(0.079”). For PCB Solder

Features

Available in 2 through 15 circuits

Insulator Material: Nylon 6T UL 94V-0

Contact: Brass

Fully shrouded. With polarised slot

Dimensional Information

Ordering Information

0.50mm(0.020”) square pin in tinned brass

Mates with 2010 series socket

Low profile

Straight Version

CIRCUITOS

02

03

04

05

06

5.0

.197

CÓDIGO

RECTO

2013-2020E

2013-2030E

2013-2040E

2013-2050E

2013-2060E

2013-2070E

2013-2080E

2013-2090E

2013-2100E

2013-2110E

2013-2120E

2013-2130E

2013-2140E

2013-2150E

ACODADO

2013-2021E

2013-2031E

2013-2041E

2013-2051E

2013-2061E

2013-2071E

2013-2081E

2013-2091E

2013-2101E

2013-2111E

2013-2121E

2013-2131E

2013-2141E

2013-2151E

A

2,00(0,079)

4,00(0,157)

6,00(0,236)

8,00(0,315)

10,00(0,394)

12,00(0,472)

14,00(0,551)

16,00(0,630)

18,00(0,709)

20,00(0,787)

22,00(0,866)

24,00(0,945)

26,00(1,024)

28,00(1,102)

DIMENSIONES

B

8,00(0,315)

10,00(0,394)

12,00(0,472)

14,00(0,551)

16,00(0,630)

18,00(0,709)

20,00(0,787)

22,00(0,866)

24,00(0,945)

26,00(1,024)

28,00(1,102)

30,00(1,181)

32,00(1,260)

34,00(1,339)

C

5,00(0,197)

7,00(0,276)

9,00(0,354)

11,00(0,433)

13,00(0,512)

15,00(0,591)

17,00(0,669)

19,00(0,748)

21,00(0,827)

23,00(0,906)

25,00(0,984)

27,00(1,063)

29,00(1,142)

31,00(1,220)

3.54±0.10

07

08

09

10

11

12

13

14

15

2.00

.079

A

C

±0.15

B

±0.20

1.80

.070

E = Packing Options

E =

1.

Tube + Pad

E =

2.

Reel + Pad

2.00

.079

3.60

.142

0~0.1

6.65

.262

Right Angle Version

0.1

A-A SEC.

1.6

2.00 max.

.079 max.

7.50 min.

.295 min.

.063

1.60±0.10

.063±.004

1.60±0.10

.063±.004

B

±0.20

C

±0.15

A

2.45

.096

2.00

.079

5.50

3.60

.217

8.60

.339

3.00±0.10

.118±.004

2.00±0.05

.079±0.02

A

±0.10

1.00±0.05

.039±0.02

MECANIZADO RECOMENDADO

1.50±0.10

.059±.004

.142

7.60

.299

3.60

1.60±0.10

.063±.004

.142

SEC. A-A

2.9

.114

5.50 min.

.217 min.

9.00 max.

3.40±0.10

.134±.004

2.00±0.05

.079±.002

1.00±0.05

.039±.002

A

±0.10

MECANIZADO RECOMENDADO

FULL LINE CATALOGUE

.354 max.

C-XX
