933636950652: DescriptionIC 4000/14000/40000 SERIES, 64-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP14, PLASTIC, DIP-14, Shift Register; Categorylogic logic; File Size49KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

933636950652 Overview

IC 4000/14000/40000 SERIES, 64-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDIP14, PLASTIC, DIP-14, Shift Register

933636950652 Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknow
Counting direction	RIGHT
series	4000/14000/40000
JESD-30 code	R-PDIP-T14
length	19.025 mm
Logic integrated circuit type	SERIAL IN SERIAL OUT
Number of digits	64
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	260 ns
Certification status	Not Qualified
Maximum seat height	4.2 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	7.62 mm
minfmax	9 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

INTEGRATED CIRCUITS

DATA SHEET

For a complete data sheet, please also download:

•

The IC04 LOCMOS HE4000B Logic

Family Specifications HEF, HEC

•

The IC04 LOCMOS HE4000B Logic

Package Outlines/Information HEF, HEC

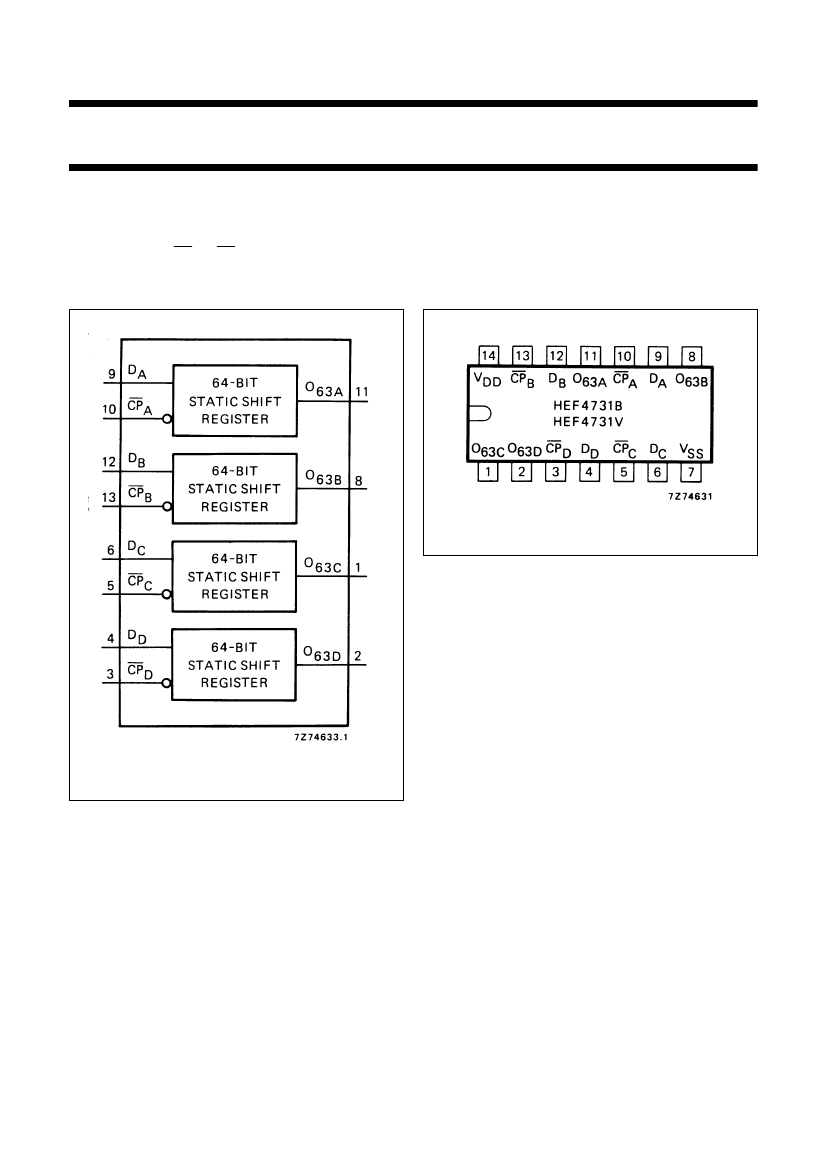

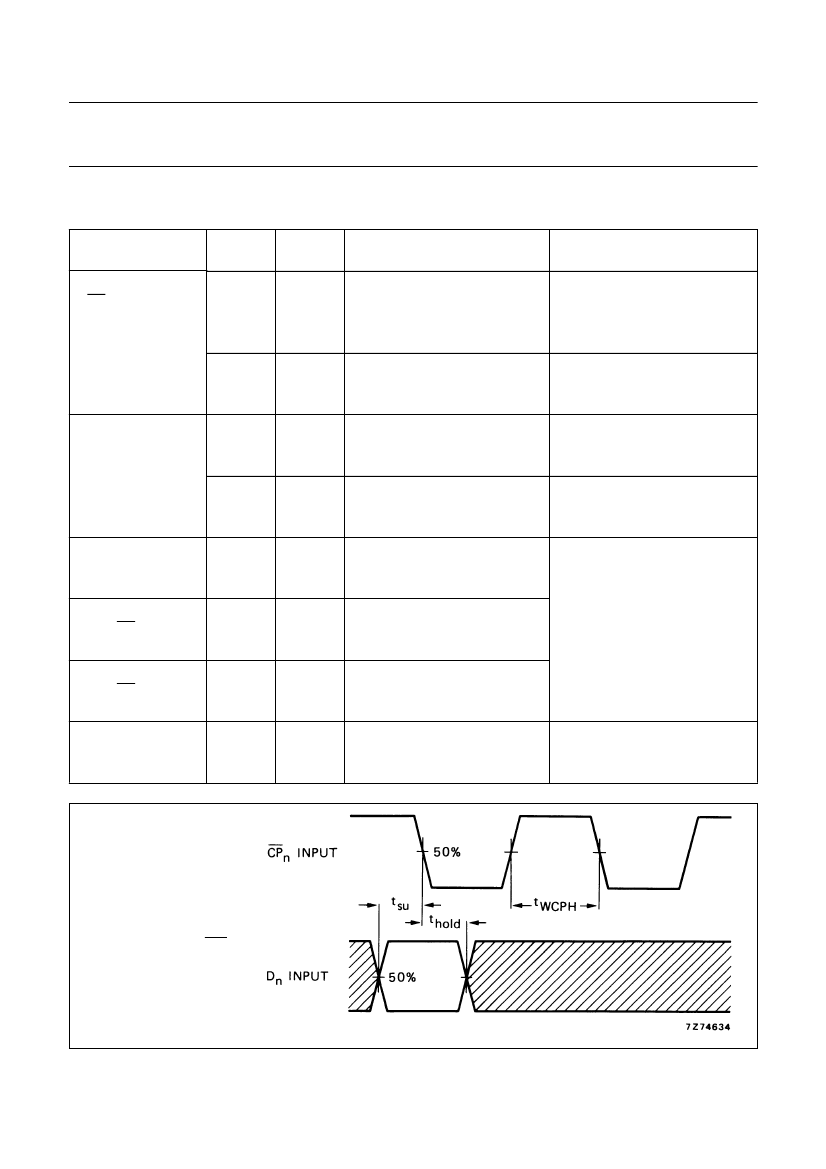

HEF4731B; HEF4731V

LSI

Quadruple 64-bit static shift register

Product speciﬁcation

File under Integrated Circuits, IC04

January 1995
