Data sheet
OMNIMATE Power - series LL
LLFS 7.50/06/180V 5.0SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

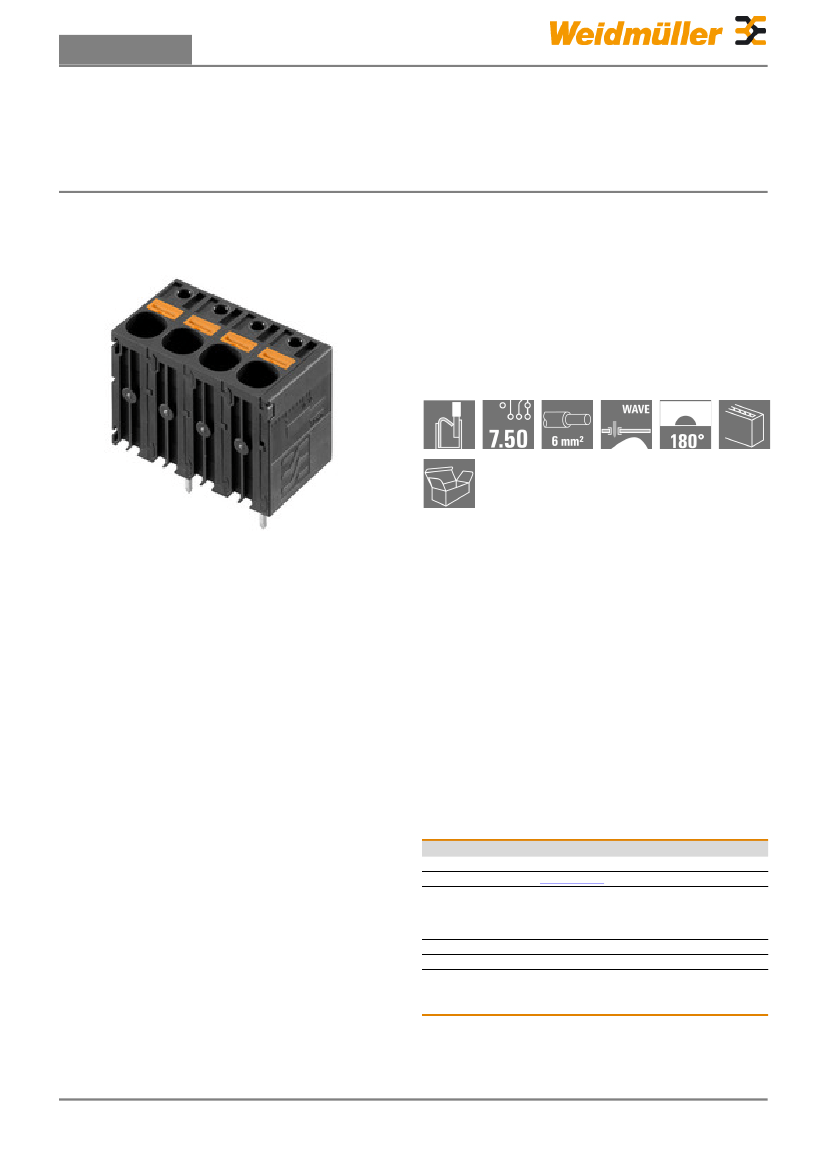

Product image
The sturdy, direct connection for extreme current
and voltage requirements in all power electronics
applications such as solar inverters, frequency
converters, servo-controllers and power supplies.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
Product data
Packaging
LLFS 7.50/06/180V 5.0SN BK BX
2491660000
Printed circuit board terminals, 7.50 mm, No. of
poles: 6, 180°, Solder pin length (l): 5 mm, tinned,
black, PUSH IN without actuator, Clamping range,
max. : 6 mm², Box
4050118607819
50 pc(s).
IEC: 1000 V / 41 A / 0.5 - 6 mm²
UL: 600 V / 37 A / AWG 24 - AWG 8
Box
Creation date October 11, 2019 6:13:15 AM CEST
Catalogue status 27.09.2019 / We reserve the right to make technical changes.
1
Data sheet
OMNIMATE Power - series LL
LLFS 7.50/06/180V 5.0SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
39.3 mm
29.15 mm
24.15 mm
0.728 inch
Width (inches)
Height (inches)
Depth
Net weight
Dimensions and weights
Width
Height
Height of lowest version
Depth (inches)
1.547 inch
1.148 inch
18.5 mm
21.61 g
System parameters
Product family
OMNIMATE Power - series
LL
THT solder connection
7.5 mm
6
5 mm
2 mm
1
30 mm
IP 20
Wire connection method
PUSH IN without actuator
Conductor outlet direction
180°
Pitch in inches (P)
0.295 inch
Fitted by customer
No
Solder pin dimensions
d = 1.5 mm
Solder eyelet hole diameter tolerance (D)+ 0,1 mm
Stripping length
12 mm
L1 in inches
1.181 inch
Touch-safe protection acc. to DIN VDE
57 106
Safe from finger touch
Mounting onto the PCB
Pitch in mm (P)
No. of poles
Solder pin length (l)
Solder eyelet hole diameter (D)
Number of solder pins per pole
L1 in mm
Touch-safe protection acc. to DIN VDE
0470
Material data
Insulating material
Colour chart (similar)
Insulation strength
Wemid (PA)
RAL 9011
Contact material
Layer structure of solder connection
Storage temperature, max.
Operating temperature, min.
≥ 10
8
Ω
E-Cu
4-10 µ Sn matt
85 °C
-40 °C
Colour
Insulating material group
UL 94 flammability rating
black
I
Contact surface
Storage temperature, min.
Max. relative humidity during storage
Operating temperature, max.
V-0
tinned
-40 °C
80 %
120 °C
Conductors suitable for connection
Clamping range, min.
0.25 mm²
Clamping range, max.
6 mm²
Wire connection cross section AWG,
AWG 24
min.
Wire connection cross section AWG,
AWG 8
max.
Solid, min. H05(07) V-U
0.5 mm²
Solid, max. H05(07) V-U
6 mm²
Flexible, min. H05(07) V-K
0.5 mm²
Flexible, max. H05(07) V-K
6 mm²
w. plastic collar ferrule, DIN 46228 pt 4, 0.25 mm²
min.
w. plastic collar ferrule, DIN 46228 pt 4, 6 mm²
max.
w. wire end ferrule, DIN 46228 pt 1,
0.25 mm²
min.
w. wire end ferrule, DIN 46228 pt 1,
6 mm²
max.
Creation date October 11, 2019 6:13:15 AM CEST
Catalogue status 27.09.2019 / We reserve the right to make technical changes.
2
Data sheet
OMNIMATE Power - series LL
LLFS 7.50/06/180V 5.0SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Type
nominal
Stripping length
Recommended wire-
end ferrule
Type
nominal
Stripping length
Recommended wire-
end ferrule
Type
nominal
Stripping length
Recommended wire-
end ferrule
Stripping length
Recommended wire-
end ferrule
Type
nominal
Stripping length
Recommended wire-
end ferrule
Type
nominal
Stripping length
Recommended wire-
end ferrule
Stripping length
Recommended wire-
end ferrule
Type
nominal
Stripping length
Recommended wire-
end ferrule
Stripping length
Recommended wire-
end ferrule
Type
nominal
Stripping length
Recommended wire-
end ferrule
Stripping length
Recommended wire-
end ferrule
Type
nominal
Stripping length
Recommended wire-
end ferrule
fine-wired
0.5 mm²
nominal 14 mm
H0.5/18 OR
fine-wired
1 mm²
nominal 15 mm
H1,0/18 GE
fine-wired
1.5 mm²
nominal 15 mm
H1,5/18D SW
nominal
H1,5/12
12 mm
Technical data
Cross-section for conductor connection
wire end ferrule
Cross-section for conductor connection
wire end ferrule
Cross-section for conductor connection
wire end ferrule
Clampable conductor
Cross-section for conductor connection
wire end ferrule
Cross-section for conductor connection
wire end ferrule
fine-wired
0.75 mm²
nominal 14 mm
H0,75/18 W
fine-wired
2.5 mm²
nominal 14 mm
H2,5/19D BL
nominal
H2,5/12
fine-wired
4 mm²
nominal
H4,0/12
12 mm
Cross-section for conductor connection
wire end ferrule
12 mm
nominal 14 mm
H4,0/20D GR
fine-wired
6 mm²
nominal 14 mm
H6,0/20 SW
nominal
H6,0/12
12 mm
Cross-section for conductor connection
wire end ferrule
Cross-section for conductor connection
wire end ferrule
Max. clamping range
fine-wired
10 mm²
nominal 12 mm
H10,0/12
6 mm²
Creation date October 11, 2019 6:13:15 AM CEST
Catalogue status 27.09.2019 / We reserve the right to make technical changes.
3
Data sheet
OMNIMATE Power - series LL
LLFS 7.50/06/180V 5.0SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
In accordance with IEC
60947-7-1
32 A
28 A
1,000 V
8 kV
8 kV
Rated data acc. to IEC
tested acc. to standard
Rated current, min. no. of poles
(Tu=20°C)
Rated current, min. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree II/2
Rated voltage for surge voltage class /
pollution degree III/3
Rated impulse voltage for surge voltage
class/ pollution degree III/2
41 A
38 A
1,000 V
1,000 V
8 kV
Rated current, max. no. of poles
(Tu=20°C)
Rated current, max. no. of poles
(Tu=40°C)
Rated voltage for surge voltage class /
pollution degree III/2
Rated impulse voltage for surge voltage
class/ pollution degree II/2
Rated impulse voltage for surge voltage
class/ contamination degree III/3
Rated data acc. to CSA
Rated voltage (Use group B / CSA)
Rated voltage (Use group D / CSA)
Rated current (Use group C / CSA)
600 V
600 V
37 A
Rated voltage (Use group C / CSA)
Rated current (Use group B / CSA)
Rated current (Use group D / CSA)
600 V
37 A
5A
Rated data acc. to UL 1059
Institute (cURus)
Certificate No. (cURus)
E60693
Rated voltage (Use group C / UL 1059) 600 V
Rated current (Use group B / UL 1059) 37 A
Rated current (Use group D / UL 1059) 5 A
Wire cross-section, AWG, max.
AWG 8
Rated voltage (Use group B / UL 1059)
Rated voltage (Use group D / UL 1059)
Rated current (Use group C / UL 1059)
Wire cross-section, AWG, min.
Reference to approval values
600 V
600 V
37 A
AWG 24
Specifications are
maximum values, details -
see approval certificate.
Packing
Packaging
VPE width
Box
0m
VPE length
VPE height
0m
0m
Classifications
ETIM 6.0
eClass 9.0
eClass 10.0
EC002643
27-44-04-01
27-44-04-01
ETIM 7.0
eClass 9.1
EC002643
27-44-04-01
Creation date October 11, 2019 6:13:15 AM CEST
Catalogue status 27.09.2019 / We reserve the right to make technical changes.
4
Data sheet
OMNIMATE Power - series LL
LLFS 7.50/06/180V 5.0SN BK BX
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 26
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
• Additional colours on request
Notes
Notes
• Rated current related to rated cross-section & min. No. of poles.
• Wire end ferrule without plastic collar to DIN 46228/1
• Wire end ferrule with plastic collar to DIN 46228/4
• P on drawing = pitch
• Rated data refer only to the component itself. Clearance and creepage distances to other components are to
be designed in accordance with the relevant application standards.
• The test point can only be used as potential-pickup point.
Conformity: The products are developed, manufactured and delivered according international recognized
standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties
in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
IPC conformity
Approvals
Approvals
Downloads
Approval/Certificate/Document of
Conformity
Engineering Data
Motion controllers white paper
White Paper UL 600 V
Declaration of the Manufacturer
STEP
Download Whitepaper
Download Whitepaper
Creation date October 11, 2019 6:13:15 AM CEST
Catalogue status 27.09.2019 / We reserve the right to make technical changes.
5
