ADT1-ED7439 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> ADT1-ED7439

Preview

ADT1-ED7439: DescriptionRF Transformer, 0.01MHz Min, 175MHz Max; CategoryPower management transformer; File Size96KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

ADT1-ED7439 Overview

RF Transformer, 0.01MHz Min, 175MHz Max

ADT1-ED7439 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	OHMS RATIO IS 1
maximum cutoff frequency	175 MHz
minimum cutoff frequency	0.01 MHz
high	2.845 mm
JESD-609 code	e0
length	7.874 mm
Manufacturer's serial number	ADT1-ED7439
Installation features	SURFACE MOUNT
method of packing	TAPE & REEL
physical size	7.874mm X 5.588mm X 2.845mm
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Transformer type	RF TRANSFORMER
width	5.588 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

RF Transformer

Impedance Ratio : 1

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

Please click "Back", and then click "Contact Us" for Applications support.

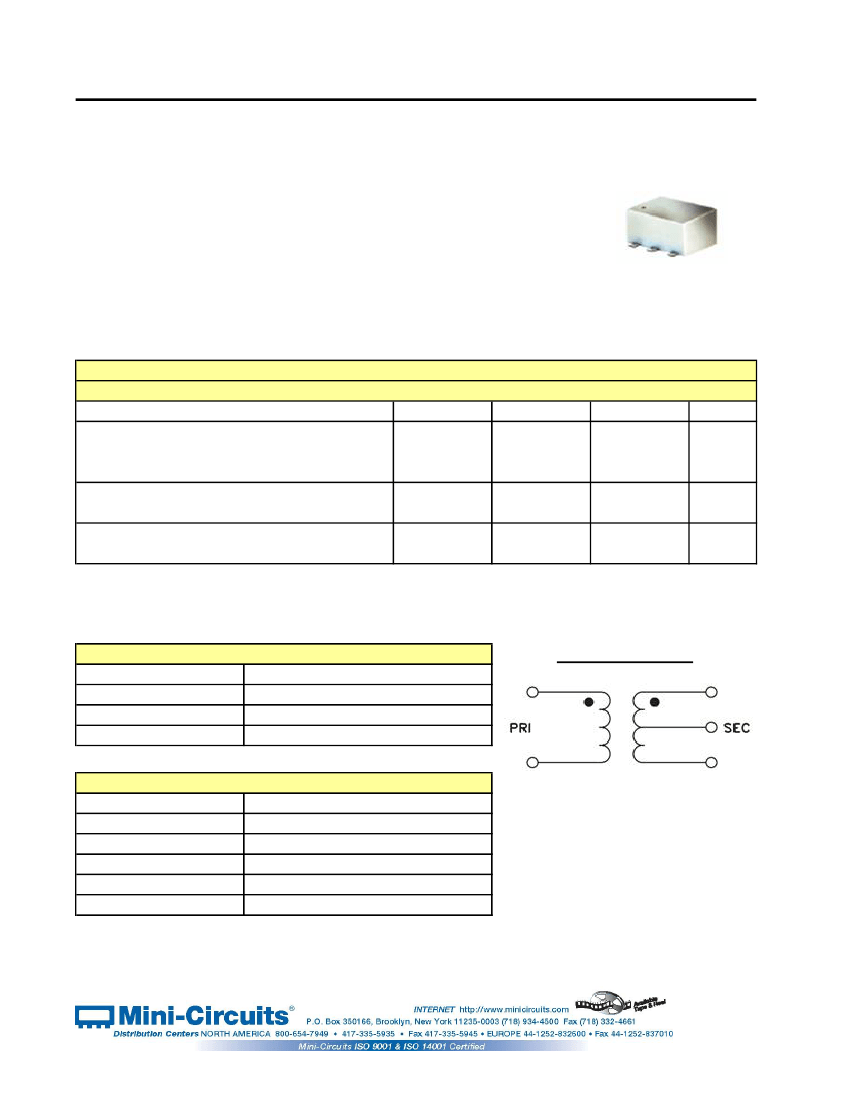

ADT1-ED7439

CASE STYLE : CD542

ELECTRICAL SPECIFICATIONS 50Ω @ +25°C

Parameter

Frequency

Insertion Loss *

Min.

0.01

3 dB Bandwidth

2 dB Bandwidth

1 dB Bandwidth

over 3dB Bandwidth

over 1dB Bandwidth

over 3dB Bandwidth

over 1dB Bandwidth

Typ.

0.01 - 175

0.02 - 150

0.03 - 90

0.5

0.1

5.0

1.00

Max.

175

Units

MHz

dB

deg.

Ampitude Unbalance

Phase Unbalance

Note:

* Insertion Loss is referenced to mid-band loss, 0.21dB typ.

MAXIMUM RATINGS

-20°C to 85°C

Operating Temperature

-55°C to 100°C

Storage Temperature

0.25 W

RF Power

30 mA

DC Current

PIN CONNECTIONS

PRIMARY DOT

PRIMARY

SECONDARY DOT

SECONDARY

SECONDARY CT

ISOLATE

3

1

4

6

5

2

Configuration : A

REV. X1

ADT1-ED7439

060808

Page 1 of 1
