LTC1436CGN-PLL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LTC1436CGN-PLL

LTC1436CGN-PLL: DescriptionIC reg ctrlr buck pwm CM 24-ssop; CategoryPower/power management The power supply circuit; File Size2MB，28 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1436CGN-PLL Overview

IC reg ctrlr buck pwm CM 24-ssop

LTC1436CGN-PLL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SSOP
package instruction	0.150 INCH, PLASTIC, SSOP-24
Contacts	24
Reach Compliance Code	_compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	3.5 V
Nominal input voltage	15 V
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	8.65 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	2 A
Nominal output voltage	1.19 V
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP24,.24
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
Switch configuration	PUSH-PULL
Maximum switching frequency	400 kHz
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	3.9116 mm

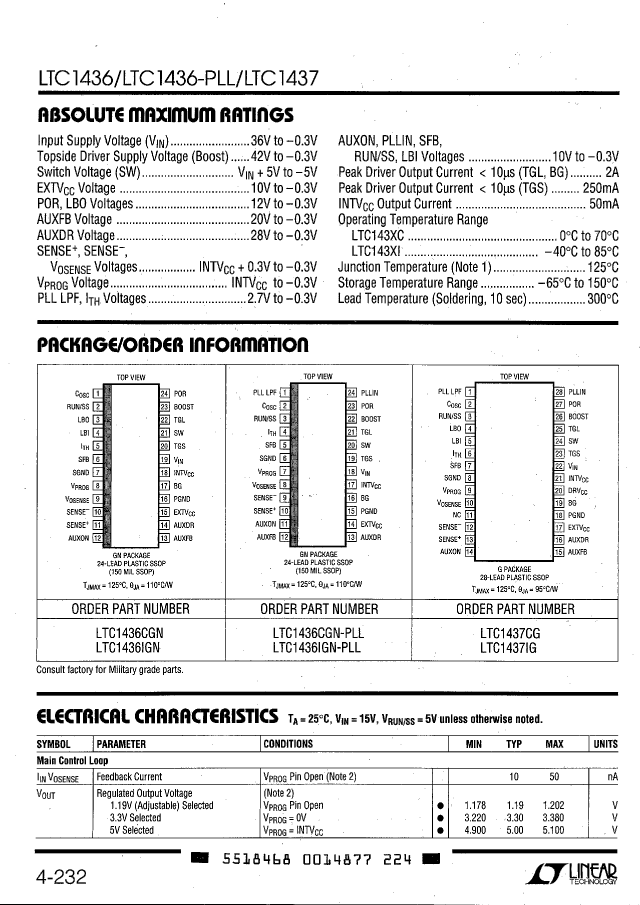

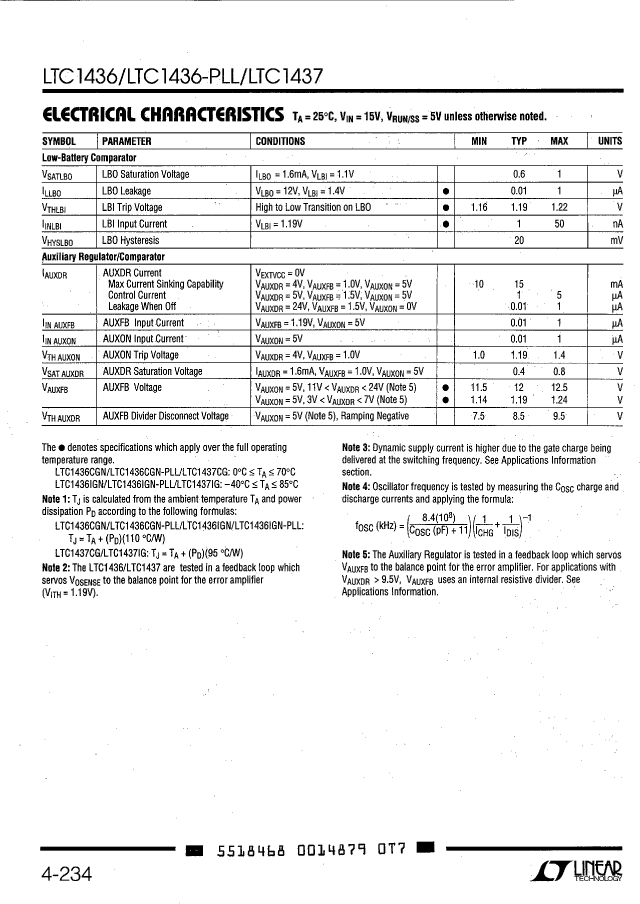

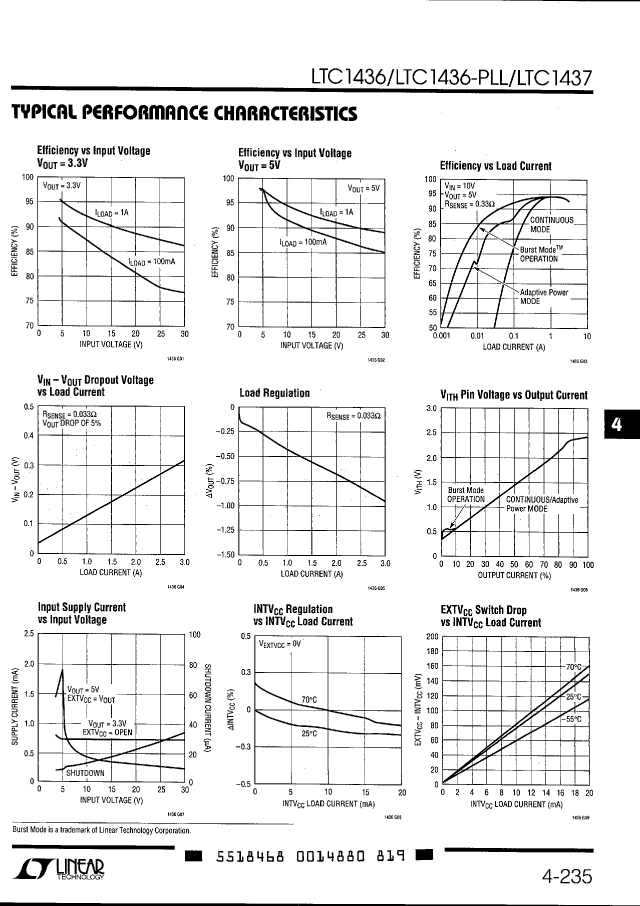

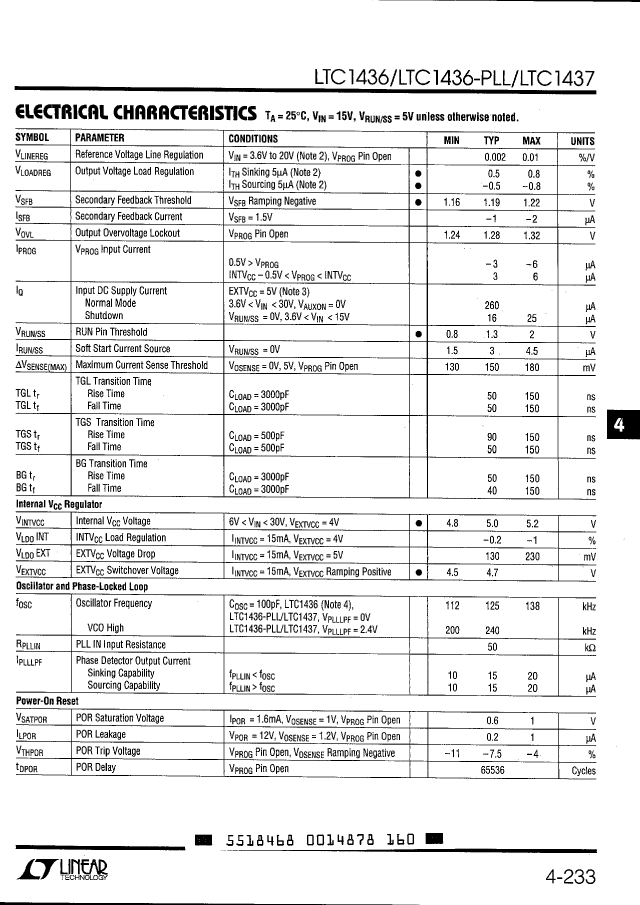

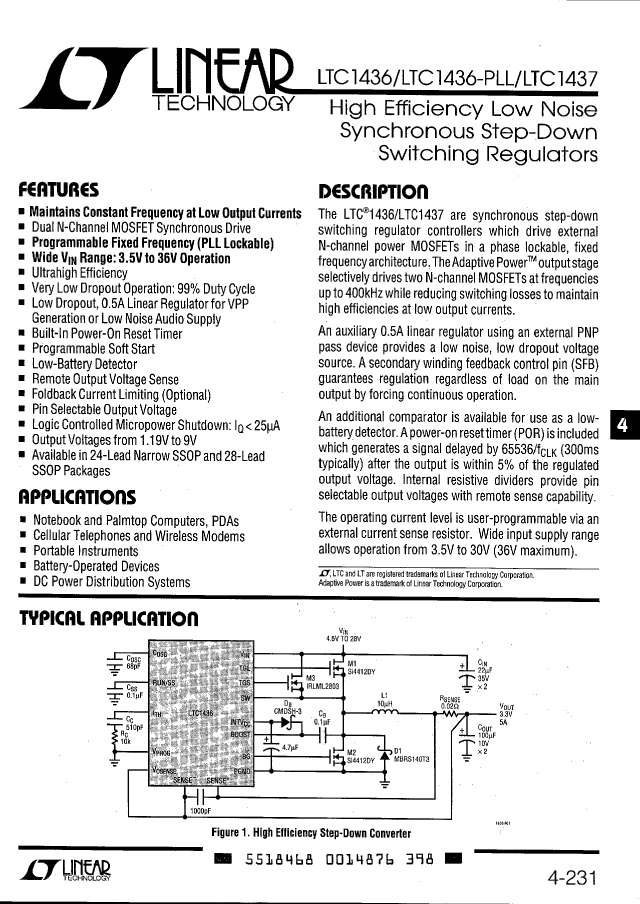

Preview

Download Datasheet

View All

LTC1436CGN-PLL Related Products

	LTC1436CGN-PLL	LTC1436CGN	LTC1437CG	LTC1437CG#TR	LTC1436IGN	106RN54S-3C6-18.0	P-2208H4223FGWP	LTC1437CG#PBF
Description	IC reg ctrlr buck pwm CM 24-ssop	IC reg ctrlr buck pwm CM 24-ssop	IC reg ctrlr buck pwm CM 28-ssop	IC reg ctrlr buck pwm CM 28-ssop	IC reg ctrlr buck pwm CM 24-ssop	D Type Connector, 54 Contact(s), Female, Crimp Terminal, Receptacle	Fixed Resistor, Thin Film, 0.8W, 422000ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2208, CHIP	IC REG CTRLR BUCK 28SSOP
Reach Compliance Code	_compli	_compli	_compli	compli	_compli	unknown	compliant	compliant
JESD-609 code	e0	e0	e0	e0	e0	e4	e4	e3
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	conform to	conform to
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	-	-	Linear ( ADI )
Parts packaging code	SSOP	SSOP	SSOP	SSOP	SSOP	-	-	SSOP
package instruction	0.150 INCH, PLASTIC, SSOP-24	0.150 INCH, PLASTIC, SSOP-24	SSOP, SSOP28,.3	SSOP,	0.150 INCH, PLASTIC, SSOP-24	-	SMT, 2208	SSOP,
Contacts	24	24	28	28	24	-	-	28
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	SWITCHING CONTROLLER	-	-	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	-	-	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	-	-	PULSE WIDTH MODULATION
Maximum input voltage	30 V	30 V	30 V	30 V	30 V	-	-	30 V
Minimum input voltage	3.5 V	3.5 V	3.5 V	3.5 V	3.5 V	-	-	3.5 V
Nominal input voltage	15 V	15 V	15 V	15 V	15 V	-	-	15 V
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G28	R-PDSO-G28	R-PDSO-G24	-	-	R-PDSO-G28
length	8.65 mm	8.65 mm	10.2 mm	10.2 mm	8.65 mm	-	-	10.2 mm
Number of functions	1	1	1	1	1	-	-	1
Number of terminals	24	24	28	28	24	-	2	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	85 °C	-	155 °C	70 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A	-	-	2 A
Nominal output voltage	1.19 V	1.19 V	1.19 V	1.19 V	1.19 V	-	-	1.19 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	SSOP	-	-	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	-	SMT	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	2 mm	2 mm	1.75 mm	-	-	2 mm
surface mount	YES	YES	YES	YES	YES	-	YES	YES
Switch configuration	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL	PUSH-PULL	-	-	PUSH-PULL
Maximum switching frequency	400 kHz	400 kHz	400 kHz	400 kHz	400 kHz	-	-	400 kHz
technology	CMOS	CMOS	CMOS	CMOS	CMOS	-	THIN FILM	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	-	-	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Gold (Au) - with Nickel (Ni) barrier	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-	-	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.65 mm	0.65 mm	0.635 mm	-	-	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	-	DUAL
width	3.9116 mm	3.9116 mm	5.3 mm	5.3 mm	3.9116 mm	-	-	5.3 mm
