35DBM10B2U-K datasheet, PDF - EEWORLD Datasheet

35DBM10B2U-K: Descriptionmotor linear act 12vdc unipolar; CategoryTopical application Mechanical and electrical/engineering/automation; File Size551KB，10 Pages; ManufacturerPortescap; Websitehttps://www.portescap.com/; Environmental Compliance

Download Datasheet Parametric View All

35DBM10B2U-K Overview

motor linear act 12vdc unipolar

Parameter Name	Attribute value
Datasheets

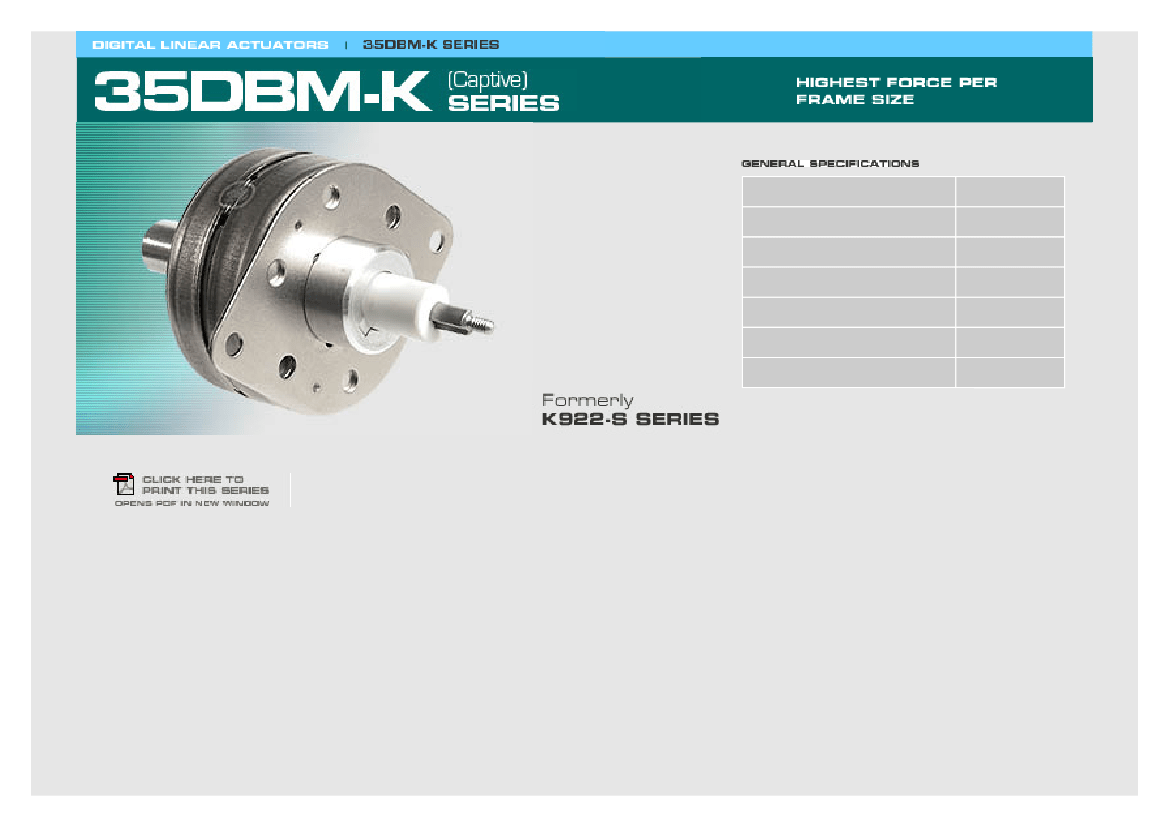

35DBM-K Series
Stepper DLA Technology
CanStack Vector Part Numbering

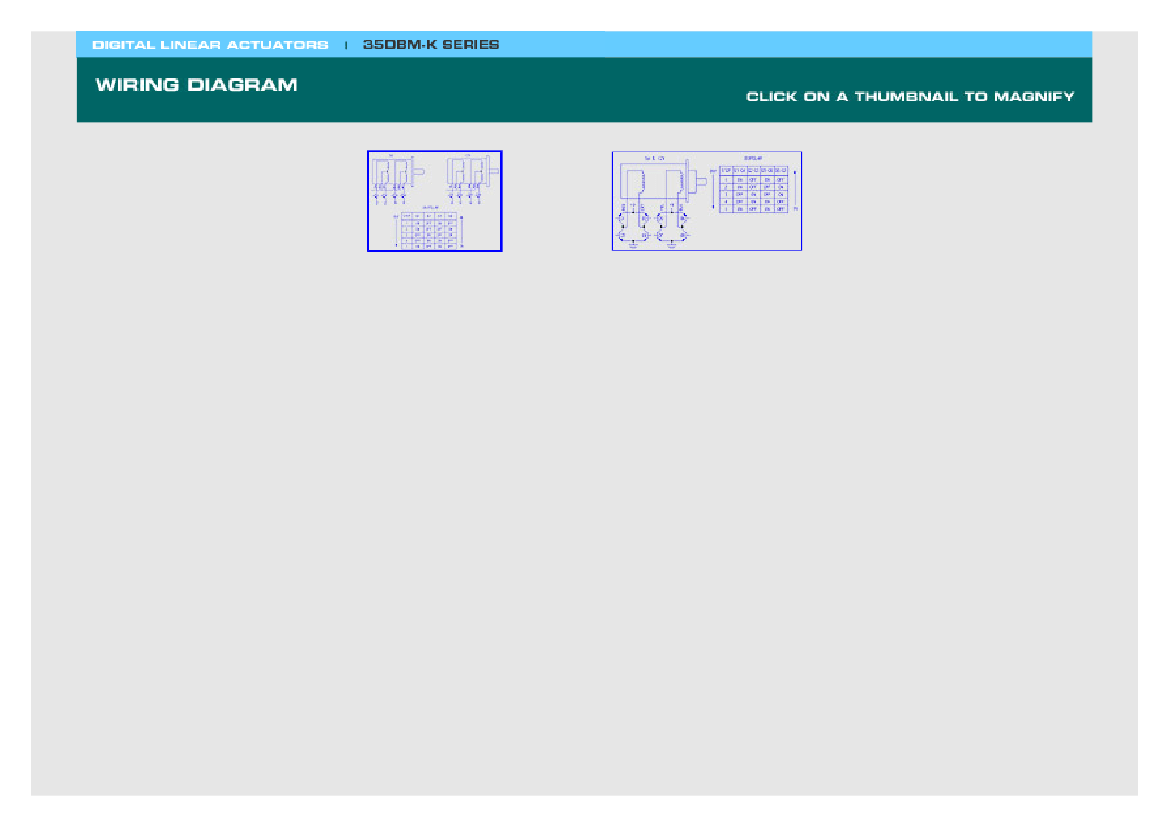

35DBM-K Series Wiring Diagram
Product Photos
35DBM10B2U-K
Product Training Modules
Stepper Fundamentals
Featured Produc
20DAM Series Digital Linear Actuators
Standard Package	100
Category	Motors, Solenoids, Driver Boards/Modules
Family	Stepper Motors
Type	Linear Actu
Coil Type	Unipol
Voltage - Rated	12VDC
Steps per Revoluti	48
Step Angle	7.5°
Torque - Holding (oz-in / mNm)	-

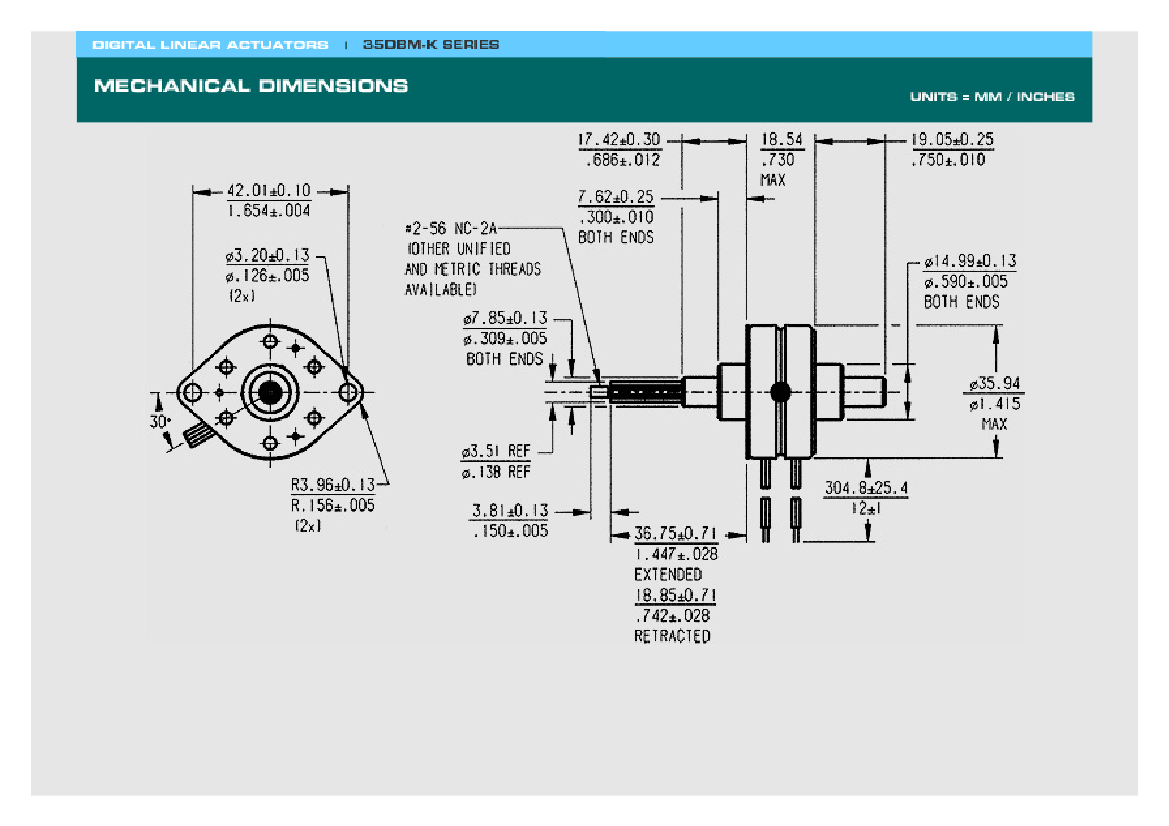

Diameter - Body	1.42" (35.94mm)
Diameter - Shaf	0.138" (3.51mm)
Length - Shaft and Bearing	1.60" (40.56mm)
Mounting Hole Spacing	1.65" (42.00mm)
Length - Lead Wire	12.00" (304.80mm)
Weigh	0.188 lb (85.28g)
Dynamic Catalog	35DBM-K Series
Other Names	35DBM10B2UK403-1035

Max Pull-in Rate* (Steps/Sec)

Power Consumption

Insulation Resistance

Bearings

Weight

Operating Temperature Range

Storage Temperature Range

425

5 Watts

20MΩ

Radial Ball

3 oz (85.2gm)

-20°C ~ 70°C

-40°C ~ 85°C

* Measured with 2 phases energized

The specifications in this publication are believed to be accurate and reliable. However, it is the

responsibility of the product user to determine the suitability of Portescap products for a specific

application. While defective products will be replaced without charge if promptly returned, no

liability is assumed beyond such replacement.

Portescap Danaher Motion motors will not be CE marked where the Low Voltage Directive, the

Electro-Magnetic Compatibility or other appropriate EU directives are not applicable - this is an

EU legal requirement.
