GMT21CG221J50XT-15 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> GMT21CG221J50XT-15

GMT21CG221J50XT-15: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size842KB，12 Pages; ManufacturerCal-Chip Electronics; Environmental Compliance

Download Datasheet Parametric View All

GMT21CG221J50XT-15 Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.00022uF, Surface Mount, 0805, CHIP

GMT21CG221J50XT-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145058625656
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7
capacitance	0.00022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.7 mm
JESD-609 code	e2
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
Guideline	AEC-Q200
size code	0805
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	TIN NICKEL
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

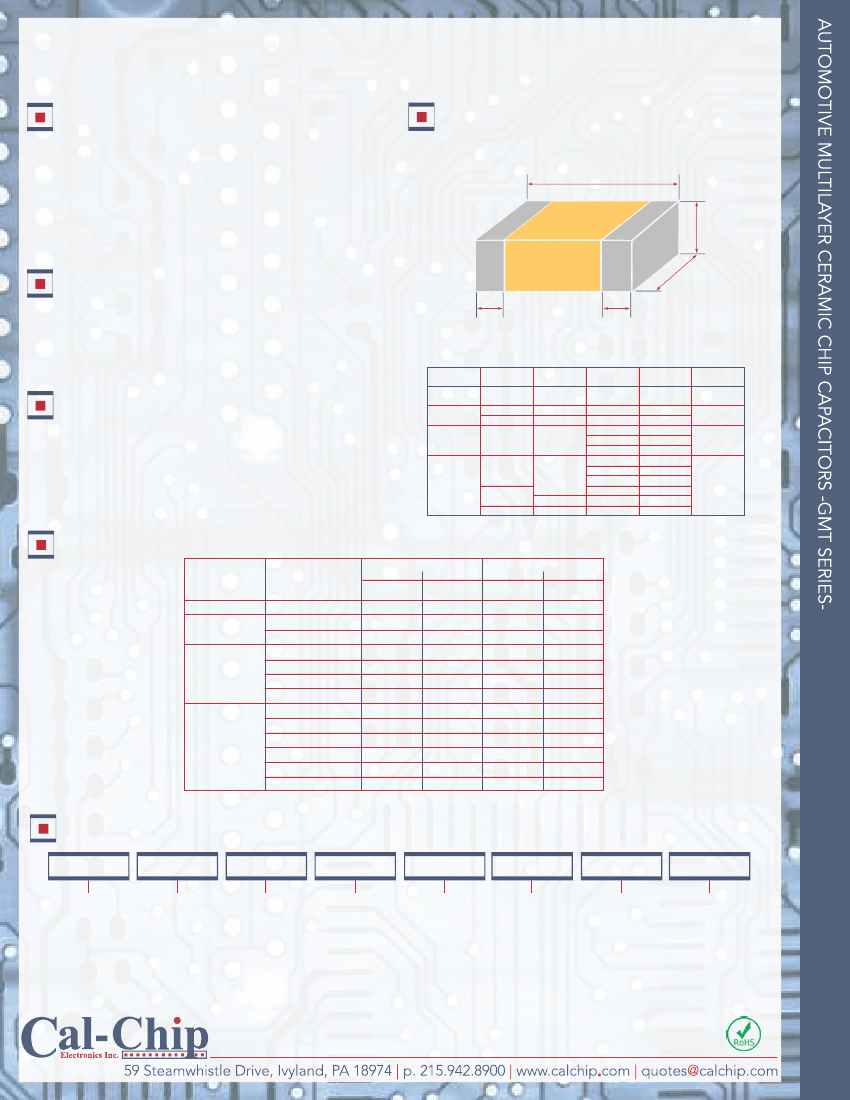

AUTOMOTIVE MULTILAYER CERAMIC CHIP CAPACITORS

GMT SERIES

SCOPE

Consists of conducting material and electrodes - to

achieve chip-type SMT and small size, high density and

high efficiency ceramic condensers are used

NPO/X7R dielectrics provides product with high electrical

precision, stability and reliability

Assured quality performance in automotive applications

qualified to AEC-Q200

CONSTRUCTION AND DIMENSIONS

FEATURES

Wide selection of sizes available

High capacitance in given case size

Lead free termination (pure Tin)

Meets AEC-Q200 requirement

SIZE

INCH

(MM)

0402 (1005)

0603 (1608)

(MM)

(MM) / SYMBOL

REMARK

(MM)

APPLICATIONS

For navigation and information equipment

For entertainment equipment

For comfortable equipment

For automotive electronic equipment

1.00±0.05

1.60±0.10

1.60±0.15/-0.10

2.00±0.15

0.50±0.05

0.80±0.10

0.80±0.15/-0.10

1.25±0.10

0.50±0.05

0.80±0.07

0.80±0.15/-0.10

0.60±0.10

0.80±0.10

1.25±0.10

0.80±0.10

0.25+0.05/-0.10

0.45±0.15

0805 (2012)

0.50±0.20

3.20±0.15

1206 (3216)

1.60±0.15

0.95±0.10

1.25±0.10

1.15±0.15

1.60±0.20

1.60+0.3/-0.10

0.60±0.20

1.60±0.20

3.20+0.3/-0.10

1.60+0.3/-0.1

#Reflow soldering only is recommended

3.20±0.20

PACKAGING STYLE AND QUANTITY

SIZE

0402 (1005)

0603 (1608)

THICKNESS

(mm)/SYMBOL

0.50±0.05

0.80±0.07

0.80+0.15/-0.10

0.60±0.10

0.80±0.10

1.25±0.10

1.25±0.20

0.80±0.10

0.95±0.10

1.15±0.15

1.25±0.10

1.60±0.20

1.60±0.30/-.010

PAPER TAPE

7” REEL

10k

PLASTIC TAPE

7” REEL

13” REEL

50K

15k

13” REEL

10k

0805 (2012)

1206 (3216)

ORDERING INFORMATION

GMT

PRODUCT TYPE

AECQ200

Qualified

DIMENSIONS

04 - 0402

10 - 0603

21 - 0805

31 - 1206

DIELECTRIC

CG - NPO / C0G

X7R - X7R

102

CAPACITANCE

0R5: 0.5pF

5R0: 5pF

100: 10pF

101: 10pF

102: 1000pF

103: .01uF

104: 1uF

105: 1.0uF

106: 10uF

TOLERANCE

A: ±0.05pF

B: ± 0.1pF

C: ± 0.25pF

D: ± 0.5pF

F: ± 1%

G: ± 2%

J: ± 5%

K: ± 10%

M: ± 20%

RATED VOLTAGE

6R3: 6.3 VDC

10: 10 VDC

16: 16 VDC

25: 25 VDC

50: 50 VDC

100: 100 VDC

200: 200 VDC

PACKAGING CODE

NT: Tape & Reel

XT: Soft Term

REEL SIZE

3: 3K reel

4: 4K reel

10: 10K reel

15: 15K reel

**See packaging quantity

on page 1 for more info
