EB16E2J2H-26.2144M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB16E2J2H-26.2144M

EB16E2J2H-26.2144M: DescriptionCRYSTAL OSCILLATOR, CLOCK, LVCMOS OUTPUT; CategoryPassive components oscillator; File Size123KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EB16E2J2H-26.2144M Overview

CRYSTAL OSCILLATOR, CLOCK, LVCMOS OUTPUT

EB16E2J2H-26.2144M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1220779921
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	26.2144 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	4 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

EB16E2

Series

• Crystal Clock Oscillators

• LVCMOS Output

• +1.8V Supply Voltage

• Tri-State Output Function

• 4 Pad Ceramic SMD Package

• Low Stand-by Current

• RoHS Compliant (Pb-Free)

ELECTRICAL SPECIFICATIONS

Frequency Range (MHz)

EB16E2

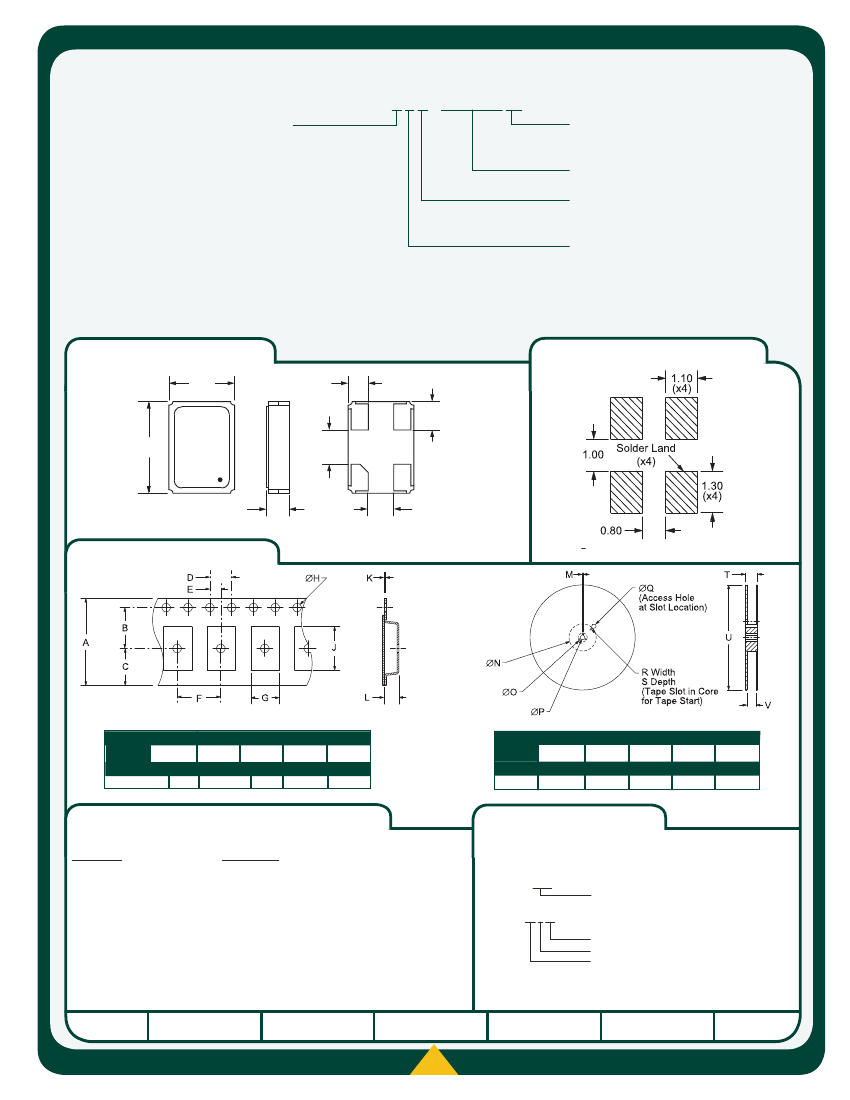

H 0.9

L 3.2

W 2.5

OSCILLATOR

Operating Temperature Range (OTR)

Storage Temperature Range (STR)

Supply Voltage (V

)

Input Current (I

)

Frequency Tolerance/Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time (T

)

Duty Cycle (SYM)

Load Drive Capability (C

LOAD

)

Tri-State Input Voltage

Standby Current

Start Up Time (T

)

RMS Phase Jitter

1.8463, 2.000, 2.048, 2.4576, 3.6864, 4.000, 4.800, 5.000, 6.000, 7.040, 7.159, 7.3728, 8.000,

8.192, 10.000, 11.0592, 12.000, 12.288, 13.000, 13.1072, 13.500, 14.3181, 14.31818, 14.7456,

15.000, 16.000, 16.384, 16.6666, 16.66667, 16.6667, 18.000, 18.432, 19.200, 19.440, 19.6608,

20.000, 22.1184, 22.400, 24.000, 24.5454, 24.576, 25.000, 26.000, 26.2144, 26.973, 27.000,

28.375, 28.63636, 28.636363, 29.4912, 29.500, 30.000, 32.000, 32.768, 33.000, 33.200, 33.330,

33.333, 33.3333, 36.000, 38.400, 40.000, 40.0908, 48.000, 49.0908, 49.152, 50.000, 54.000, or

100.000MHz

-20°C to +70°C

-40°C to +85°C

-55°C to +125°C

1.8V

±5%

3mA Maximum

1.8463MHz to 9.999MHz

4mA Maximum

10.000MHz to 39.999MHz

5mA Maximum

40.000MHz to 50.000MHz

6mA Maximum

50.001MHz to 54.000MHz

10mA Maximum

100.000MHz

±100ppm Maximum

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range, ±50ppm Maximum

±25ppm Maximum

Supply Voltage Change, Output Load Change, First Year

Aging at 25°C, Shock, and Vibration

90% of V

Minimum (I

= -4mA)

10% of V

Maximum (I

= +4mA)

5nSeconds Maximum

20% to 80% of Waveform, 1.8463MHz to 24MHz

4nSeconds Maximum

20% to 80% of Waveform, 24.001MHz to 50MHz

3nSeconds Maximum

20% to 80% of Waveform, 50.001MHz to 100MHz

50 ±5(%)

at 50% of Waveform

15pF Maximum

Enables Output

No Connection

Enables Output

: >80% of V

Disables Output: High Impedance

: <20% of V

10µA Maximum

Disabled Output: High Impedance

10mSeconds Maximum

1pSeconds Maximum

= 12kHz to 20MHz
