EB52E8
Series
• Temperature Compensated Crystal Oscillators (TCXO)
• LVCMOS Output
• +3.3V Supply Voltage
• External Voltage Control Option
• 10 Pad Ceramic SMD Package
• RoHS Compliant (Pb-Free)
EB52E8
H 2.0
L 7.0
W 5.0
OSCILLATOR
ELECTRICAL SPECIFICATIONS
6.000, 6.144, 6.400, 6.500, 8.000, 8.192, 9.216, 9.600, 9.720, 10.000, 12.000, 12.288, 12.800, 13.000,
14.400
vs. Operating Temperature Range (V
DD
= 3.3V
DC
, V
C
= 1.65V
DC
)
See Part Numbering Guide
Frequency Stability
vs. Frequency Tolerance (25°C ±2°C, V
DD
= 3.3V
DC
, V
C
= 1.65V
DC
)
±1.0ppm Maximum
vs. Input Voltage (±5%)
±0.3ppm Maximum
vs. Load (±10%)
±0.3ppm Maximum
vs. Aging (at 25°C)
±1ppm / Year Maximum
See Part Numbering Guide
Operating Temperature Range
3.3V
DC
±5%
Supply Voltage (V
DD
)
10mA Maximum
Input Current
I
OH
= -4mA
90% of V
DD
Minimum
Output Voltage Logic High (V
OH
)
I
OL
= +4mA
10% of V
DD
Maximum
Output Voltage Logic Low (V
OL
)
Measured at 20% to 80% of Waveform
5nSec Maximum
Rise/Fall Time
Measured at 50% of Waveform
50 ±5(%)
Duty Cycle
15pF Maximum
Load Drive Capability
±5ppm Minimum
External Trim (Control Voltage Option)
1.65V
DC
±1.65V
DC
; Positive Transfer Characteristic
0.0V
DC
to V
DD
Control Voltage Range
5% Maximum
Linearity
100kOhms Minimum
Input Impedance
-80dBc/Hz
At offset of 10Hz
Typical Phase Noise (at
At offset of 100Hz
-115dBc/Hz
12.800MHz)
At offset of 1kHz
-135dBc/Hz
At offset of >10kHz
-145dBc/Hz
Enables Output
Tri-State Input Voltage (V
IH
and V
IL
)
No Connect
Enables Output
+0.9V
DD
Minimum
+0.1V
DD
Maximum
Disables Output: High Impedance
1pSec Maximum
F
J
= 12kHz to 20MHz
RMS Phase Jitter
5mSec Maximum
Start Up Time
-40°C to +125°C
Storage Temperature Range
Nominal Frequency (MHz)
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EB52E8
CERAMIC
3.3V
OS5P
09/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.

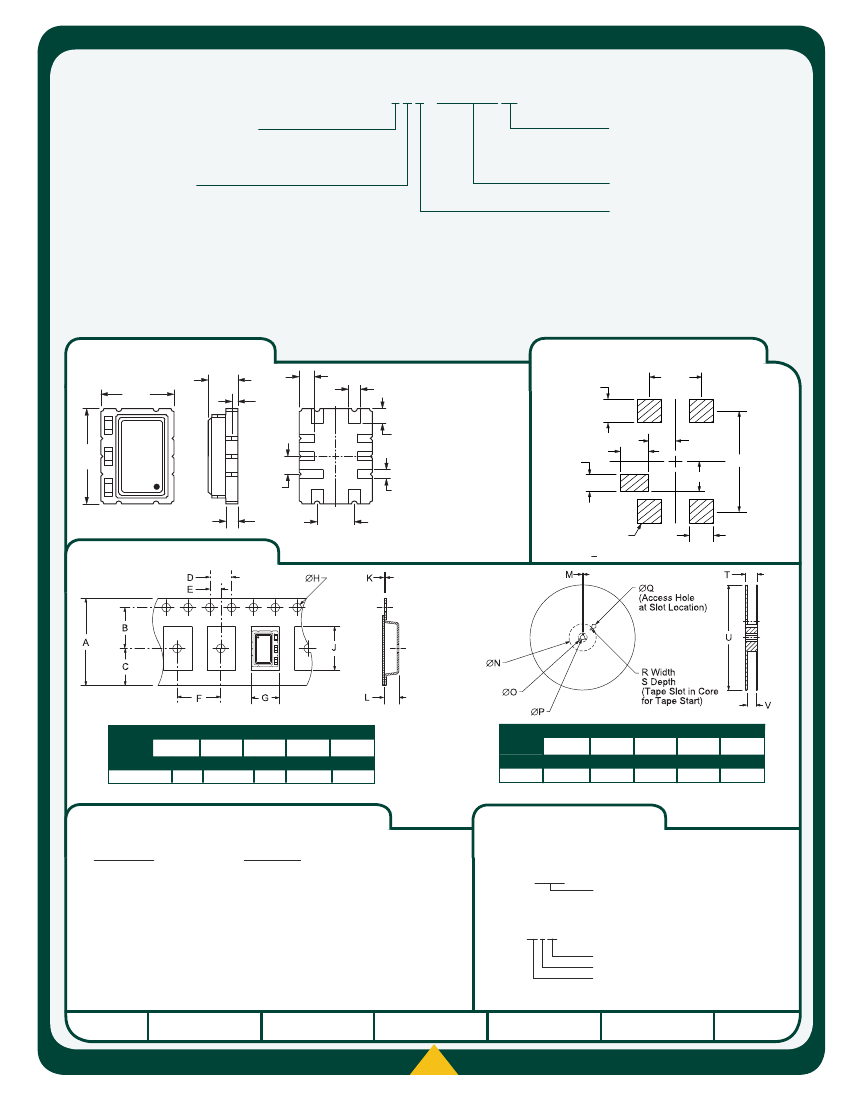

PART NUMBERING GUIDE
EB52E8 C 2 V - 13.000M TR
OPERATING TEMPERATURE RANGE
C=-20°C to +70°C
E=-40°C to +85°C
FREQUENCY STABILITY
2 = ±0.5ppm Maximum
3 = ±1.0ppm Maximum
4 = ±1.5ppm Maximum
5 = ±2.0ppm Maximum
6 = ±2.5ppm Maximum
PACKAGING OPTIONS
Blank=Bulk
TR=Tape & Reel
FREQUENCY
EXTERNAL TRIM
N=None (No Connection on Pad 10)
V=Voltage Control
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
5.00
±0.10
2.00
MAX
0.40
±0.10
1.00 ±0.10 (x5)
0.80 ±0.10 (x4)
4
3
2
1
1.27
±0.10
(x4)
0.80
±0.10
10
2.54
±0.10
(x2)
5
6
7
8
9
0.60
±0.10
(x6)
1.00
±0.10
(x4)
2.54
1.4 (x4)
7.00
±0.10
Pin 1-3: Do Not Connect
Pin 4: Ground
Pin 5: Output
Pin 6-7: Do Not Connect
Pin 8: Tri-State
Pin 9: Supply Voltage
Pin 10: No Connect or
Voltage Control
MARKING
ORIENTATION
1.3
1.4
1.0
1.8
6.0
Solder Land (x5)
1.2 (x4)
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Tolerances= +0.1
MARKING
ORIENTATION
TAPE
A
16.0±0.2
B
7.5±0.1
C
6.75±0.1
D
4.0±0.1
E
2.0±0.1
F
REEL
M
1.5 MIN
N
50 MIN
O
U
360 MAX
P
V
16.4+2-0
Q
40 MIN
QTY/REEL
1,000
20.2 MIN 13.0±0.2
F
8.0±0.1
G
H
J
A0*
K
0.32 ±0.05
L
K0*
R
2.5 MIN
S
10 MIN
T
22.4 MAX
B0* 1.5 +0.1-0.0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
MARKING SPECIFICATIONS
Line 1: E XX.XXX
Frequency in MHz (5 Digits Maximum + Decimal)
Line 2: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EB52E8
CERAMIC
3.3V
OS5P
09/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
