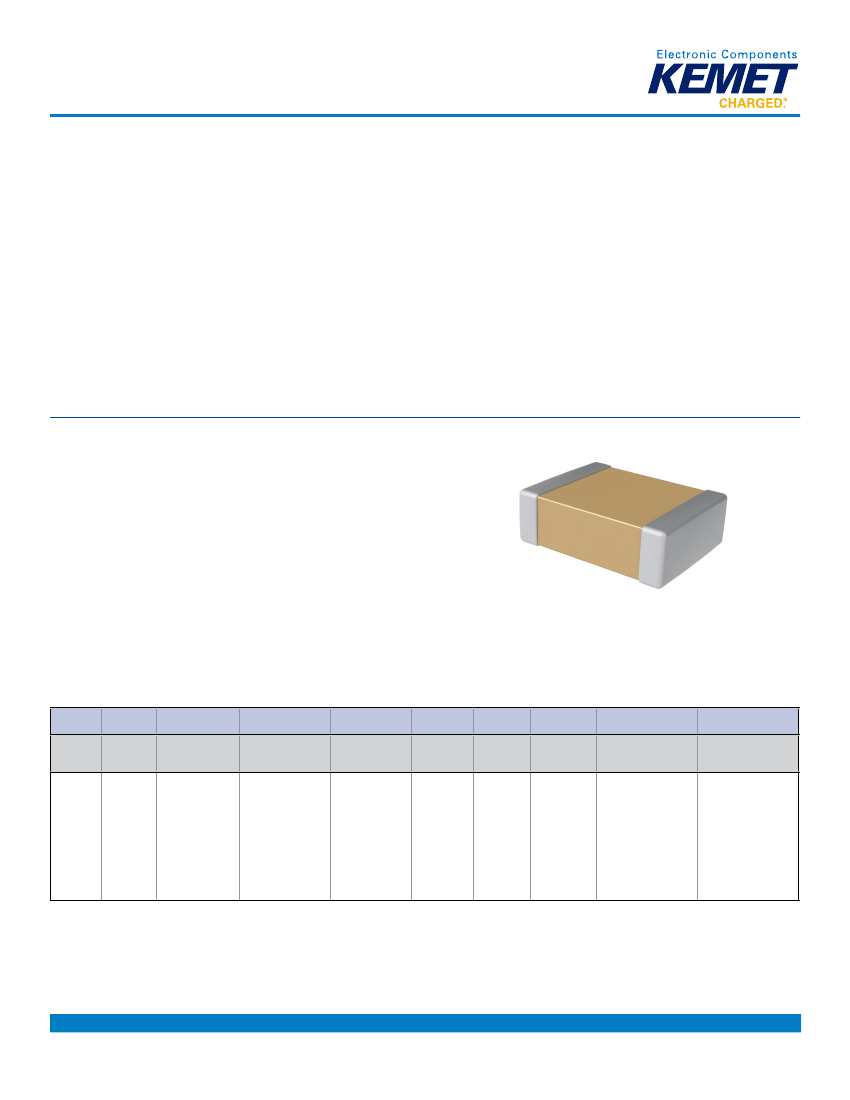

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
C0G Dielectric, 10 – 250 VDC (Automotive Grade)
Overview
KEMET’s Automotive Grade Series surface mount capacitors
in C0G dielectric are suited for a variety of applications
requiring proven, reliable performance in harsh environments.
Whether under-hood or in-cabin, these devices emphasize
the vital and robust nature of capacitors required for mission
and safety critical automotive circuits. Stricter testing protocol
and inspection criteria have been established for automotive
grade products in recognition of potentially harsh environmental
conditions. KEMET automotive grade series capacitors meet
the demanding Automotive Electronics Council's AEC–Q200
qualification requirements
C0G dielectric features a 125°C maximum operating temperature
and is considered “stable.” The Electronics Industries Alliance
(EIA) characterizes C0G dielectric as a Class I material.
Components of this classification are temperature compensating
and are suited for resonant circuit applications or those where
Q and stability of capacitance characteristics are required. C0G
exhibits no change in capacitance with respect to time and voltage
and boasts a negligible change in capacitance with reference to
ambient temperature. Capacitance change is limited to ±30 ppm/
ºC from -55°C to +125°C.
Benefits
•
•
•
•
•
•
•
AEC–Q200 automotive qualified
-55°C to +125°C operating temperature range
Lead (Pb)-Free, RoHS and REACH compliant
EIA 0402, 0603, 0805, 1206, 1210, 1812, and 2220 case sizes
DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, 200 V and 250 V
Capacitance offerings ranging from 0.5 pF up to 0.47 μF
Available capacitance tolerances of ±0.10 pF, ±0.25 pF, ±0.5 pF,
±1%, ±2%, ±5%, ±10%, and ±20%
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Ordering Information
C
Ceramic
1206
C
104
Capacitance
Code (pF)
2 significant digits
+ number of zeros
Use 9 for
1.0 – 9.9 pF
Use 8 for
0.5 – .99 pF
ex. 2.2 pF = 229
ex. 0.5 pF = 508
J
Capacitance
Tolerance
1
B = ±0.10 pF
C = ±0.25 pF
D = ±0.5 pF
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
3
Voltage
8 = 10 V
4 = 16 V
3 = 25 V
5 = 50 V
1 = 100 V
2 = 200 V
A = 250 V
G
Dielectric
G = C0G
A
C
AUTO
Packaging/Grade
(C-Spec)
3
Case Size Specification/
(L" x W")
Series
0402
0603
0805
1206
1210
1812
2220
C = Standard
Failure Rate/
Termination Finish
2
Design
A = N/A
C = 100% Matte Sn AUTO = 7" Reel
AUTO 7411 = 13"
Reel/Punched
Paper
AUTO 7210 = 13"
Reel/Embossed
Plastic
Additional capacitance tolerance offerings may be available. Contact KEMET for details.
Additional termination finish options may be available. Contact KEMET for details
3
Additional reeling or packaging options may be available. Contact KEMET for details.
3
Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L"x W") and thickness dimension . See "Chip Thickness/Packaging Quantities" and
"Tape & Reel Packaging Information" sections of this document.
3
For additional Information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information" section of this document.
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
0.1%
1,000 megohm microfarads or 100 GΩ
(Rated voltage applied for 120 ±5 seconds @ 25°C)
Parameters/Characteristics
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 MHz ±100 kHz and 1.0 Vrms ±0.2 V if capacitance ≤ 1,000 pF
1 kHz ±50 Hz and 1.0 Vrms ±0.2 V if capacitance > 1,000 pF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as
Automatic Level Control (ALC). The ALC feature should be switched to "ON."
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
KEMET reserves the right to substitute product with an improved temperature characteristic, tighter capacitance tolerance and/or higher voltage capability within
the same form factor (configuration and dimensions).
These products are protected under US Patents 7,172,985 & 7,670,981, other patents pending, and any foreign counterparts.
