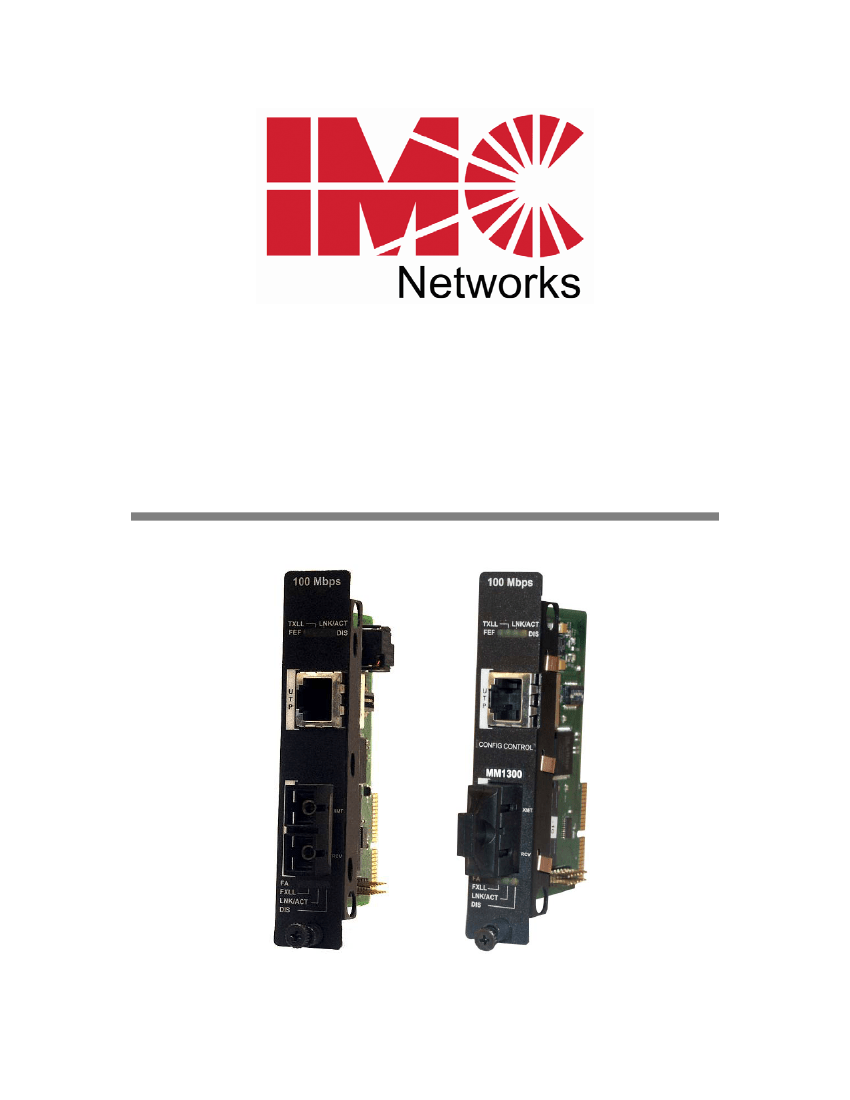

iMcV-LIM

Operation Manual

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which the user will be required to correct the interference at his own expense.

Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does not exceed the Class B

limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de classe B

prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.

Warranty

IMC Networks warrants to the original end-user purchaser that this product, EXCLUSIVE OF SOFTWARE, shall be free

from defects in materials and workmanship under normal and proper use in accordance with IMC Networks' instructions

and directions for a period of six (6) years after the original date of purchase. This warranty is subject to the limitations set

forth below.

At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such

warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable

use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician

or by any other causes unrelated to defective materials or workmanship. Any replaced or repaired products or parts carry

a ninety (90) day warranty or the remainder of the initial warranty period, whichever is longer.

To receive in-warranty service, the defective product must be received at IMC Networks no later than the end of the

warranty period. The product must be accompanied by proof of purchase, satisfactory to IMC Networks, denoting

product serial number and purchase date, a written description of the defect and a Return Merchandise Authorization

(RMA) number issued by IMC Networks. No products will be accepted by IMC Networks which do not have an RMA

number. For an RMA number, contact IMC Networks at PHONE: (800) 624-1070 (in the U.S and Canada) or (949) 465-

3000 or FAX: (949) 465-3020. The end-user shall return the defective product to IMC Networks, freight, customs and

handling charges prepaid. End-user agrees to accept all liability for loss of or damages to the returned product during

shipment. IMC Networks shall repair or replace the returned product, at its option, and return the repaired or new

product to the end-user, freight prepaid, via method to be determined by IMC Networks. IMC Networks shall not be

liable for any costs of procurement of substitute goods, loss of profits, or any incidental, consequential, and/or special

damages of any kind resulting from a breach of any applicable express or implied warranty, breach of any obligation

arising from breach of warranty, or otherwise with respect to the manufacture and sale of any IMC Networks product,

whether or not IMC Networks has been advised of the possibility of such loss or damage.

EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, IMC NETWORKS MAKES NO OTHER WARRANTIES,

WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THIS IMC NETWORKS PRODUCT, INCLUDING WITHOUT

LIMITATION ANY SOFTWARE ASSOCIATED OR INCLUDED. IMC NETWORKS SHALL DISREGARD AND NOT BE

BOUND BY ANY REPRESENTATIONS OR WARRANTIES MADE BY ANY OTHER PERSON, INCLUDING EMPLOYEES,

DISTRIBUTORS, RESELLERS OR DEALERS OF IMC NETWORKS, WHICH ARE

INCONSISTENT WITH THE WARRANTY SET FORTH ABOVE. ALL IMPLIED WARRANTIES INCLUDING THOSE OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY LIMITED TO THE DURATION OF THE

EXPRESS WARRANTY STATED ABOVE.

Every reasonable effort has been made to ensure that IMC Networks product manuals and promotional materials

accurately describe IMC Networks product specifications and capabilities at the time of publication. However, because of

ongoing improvements and updating of IMC Networks products, IMC Networks cannot guarantee the accuracy of printed

materials after the date of publication and disclaims liability for changes, errors or omissions.

Managed Modules

To manage one or more iMcV-LIM(s), an SNMP agent must be present in the chassis.

To configure Managed Modules, install the module first, and then configure using the

management software.

Fiber type, serial number and date code are now loaded into the NVRAM during

manufacturing. This is viewed only via iView² software, within the modules details.

Requirements:

•

SNMP Firmware version C2

iView² 1.8.6 or higher

NOTE

For iMcV-LIM modules without Configuration Control, management software overrides any

hardware settings (e.g., jumper, switch, etc.); a module must be configured so that it will be

managed via the software.

iMcV-LIM and Configuration Control

The iMcV-LIM with SFP offers Configuration Control; a label on the front faceplate

identifies the unit as such. Configuration Control has been implemented to assist the

end user by retaining the latest configuration regardless of how that configuration was

implemented (via DIP Switch settings or SNMP).

Historically, SNMP would override DIP Switch settings. If changes are made via DIP

Switch settings, then hardware settings determine the configuration of the board. If

changes are made to the module via iView

, the SNMP settings determine the

configuration of the board.

Utilizing Configuration Control, the end user has three conditions under which the

configuration of the iMcV-Module may be impacted:

•

Installing an iMcV-LIM into a chassis already loaded with iMcV-Modules or

replacing an iMcV-LIM

The iMcV-Module will transfer its saved configurations. The iMcV-LIM will

not override the module’s configuration.

•

Replacing the same type of iMcV-Module

If the DIP Switch settings are the same as the settings on the removed iMcV-

Module, the iMcV-LIM determines the configuration settings.

If the DIP Switch settings are different, then the configuration of the module

is determined by the DIP Switch settings. (The settings are forwarded to the

iMcV-LIM and the value is saved.)

•

Installing a new model of iMcV-Module
