LCD Module Specification
Final Revision
Checked by
Design Engineering Div.
*******
Type No.
DMF5010NBU−FW
Prepared by
Production Div.
Table of Contents
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
General Specifications ........................................................................................ 2
Electrical Specifications...................................................................................... 3
Optical Specifications......................................................................................... 8
I/O Terminal........................................................................................................ 10
Test....................................................................................................................... 13
Appearance Standards..................................................................................... 14
Code System of Production Lot................................................................... 17
Type Number...................................................................................................... 17
Applying Precautions....................................................................................... 17
Precautions Relating Product Handling....................................................... 18
Warranty.............................................................................................................. 19
Revision History
Rev.
Date
Page
Comment
DMF5010NBU-FW (AB)
No.2000-00153
OPTREX
OPTREX CORPORATION
Page 1/19
1.General Specifications
Operating Temp.
Storage Temp.
Dot Pixels
Dot Size
Dot Pitch
Viewing Area
Outline Dimensions
:
min. 10
℃ ∼
max. 40
℃
:
min. -20
℃ ∼
max. 60
℃
:
240 (W)
×
64 (H) dots
:
0.49 (W)
×
0.49 (H) mm
:
0.53 (W)
×
0.53 (H) mm
:
132.0 (W)
×
39.0 (H) mm
:
200.0
*
(W)
×
81.0 (H)
×
23.0 max. (D) mm
* Without CFL Cable
:
250g max.
:
NTD-7580
( STN / Blue-mode / Transmissive )
:
12:00
:
T6963C-0101 (Produced by TOSHIBA)
:
8-bit parallel data transfer
:
Cold Cathode Fluorescent Lamp (CFL)
×
1
:
Holder and PWB ground are connected by soldering.
CFL light unit is replaceable.
:
Dimensional Outline
UE-32421C
Weight
LCD Type
Viewing Angle
Control LSI
Data Transfer
Backlight
Additional Spec.
Drawings
DMF5010NBU-FW (AB)
No.2000-00153
OPTREX
OPTREX CORPORATION
Page 2/19

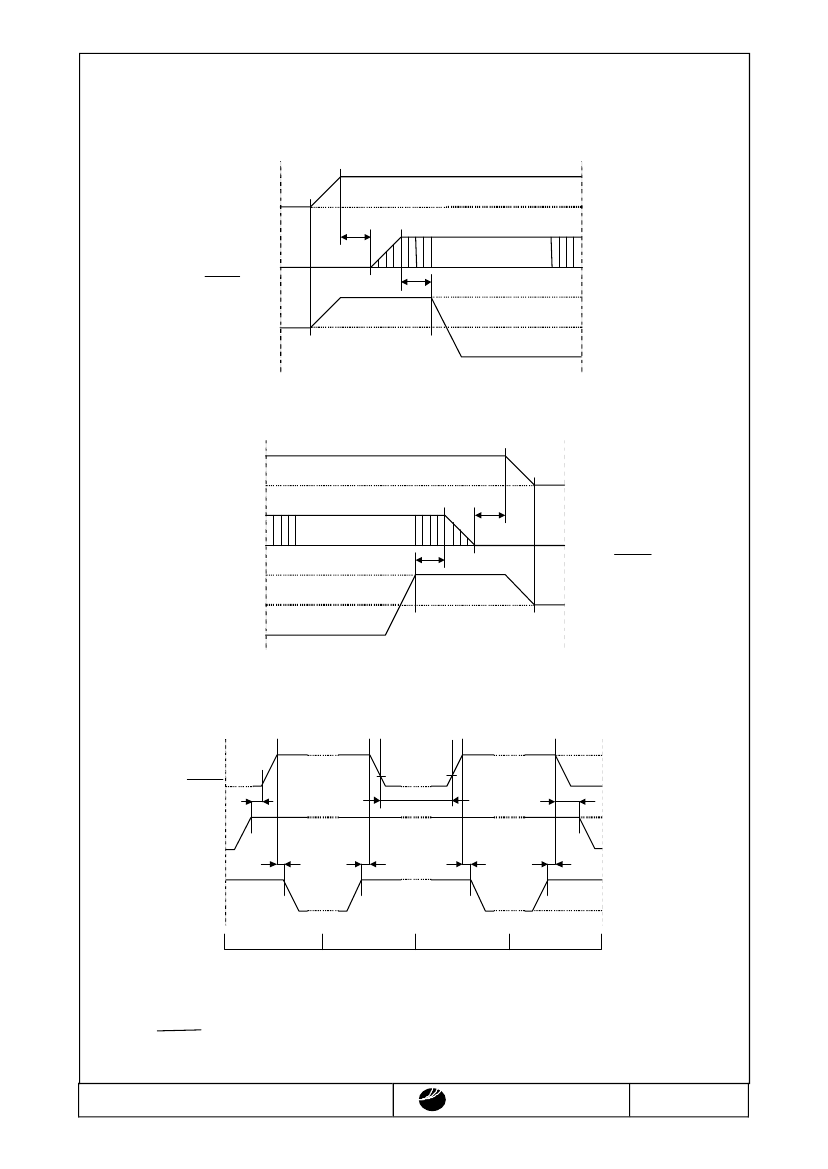

2.4.Power Supply ON/OFF Sequence
2.4.1.ON Sequence
SIGNAL
LEVEL
VCC
VCC
0≦t
VSS
VCC
VSS
VCC
SIGNAL
(Without RESET Signal)
0
≦
t
VEE
VSS
VEE
2.4.2.OFF Sequence
LEVEL
VCC
VSS
VCC
VSS
VCC
VSS
VEE
VEE
0
≦
t
SIGNAL
VCC
0
≦
t
SIGNAL
(Without RESET Signal)
2.4.3.Reset Sequence
SIGNAL
LEVEL
H Level
RESET
L Level
VCC
VCC
VEE
VSS
VCC
VEE
Power On
Reset
Reset Cancellation
Power Off
T >250
μ
s
T≧0
T≧10 ms
T
≧
50ms
T
≧
0
T
≧
50ms
T
≧
0
Please maintain the above sequence when turning on and off the power supply of the module.
If V
EE
is supplied to the module while internal alternate signal for LCD driving (M) is unstable or
RESET is active, DC component will be supplied to the LCD panel. This may cause damage to the
LCD module.
DMF5010NBU-FW (AB)
No.2000-00153
OPTREX CORPORATION
Page 5/19
