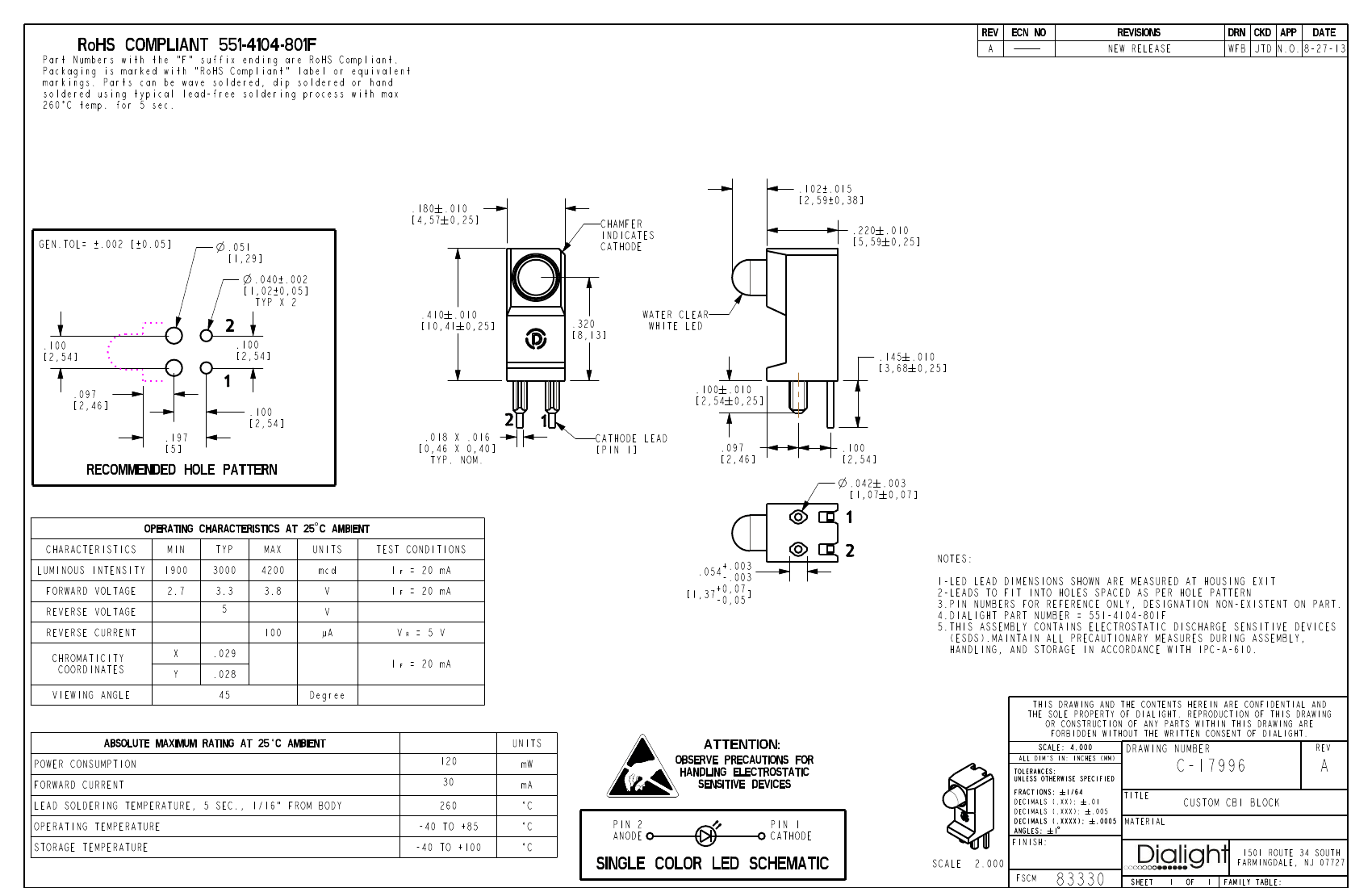

RoHS COMPLIANT 551-4104-801F
Part Numbers with the "F" suffix ending are RoHS Compliant.
Packaging is marked with "RoHS Compliant" label or equivalent
markings. Parts can be wave soldered, dip soldered or hand
soldered using typical lead-free soldering process with max
260°C temp. for 5 sec.
REV
A
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
DATE
WFB JTD N.O. 8-27-13
.180 .010
[4,57 0,25 ]
GEN.TOL= ±.002 [±0.05]
.051
[1,29 ]
.040±.002
[1,02±0,05]
TYP X 2
.102±.015
[2,59±0,38]
CHAMFER
INDICATES
CATHODE
.220 .010
[5,59 0,25 ]
2
.100
[2,54]
.100
[2,54]
.410 .010
[10,41 0,25 ]
.320
[8,13]
WATER CLEAR
WHITE LED
.145 .010
[3,68 0,25 ]
.100 .010
[2,54 0,25 ]
.097
[2,46]
.197
[5]
1
.100
[2,54]
.018 X .016
[0,46 X 0,40]
TYP. NOM.
2
1
CATHODE LEAD
[PIN 1]
.097
[2,46]
.100
[2,54]
.042 .003
[1,07 0,07 ]
RECOMMENDED HOLE PATTERN
OPERATING CHARACTERISTICS AT 25 AMBIENT
C
CHARACTERISTICS
LUMINOUS INTENSITY
FORWARD VOLTAGE
REVERSE VOLTAGE
REVERSE CURRENT
CHROMATICITY
COORDINATES
VIEWING ANGLE
X
Y
.029
.028
45
Degree
MIN
1900
2.7
TYP
3000
3.3
5
100
MAX
4200
3.8
UNITS
mcd
V
V
µA
I
V
F
R
1
TEST CONDITIONS
I
I
F
2
+.003
.054
-.003
+0,07
[1,37
]
-0,05
NOTES:
1-LED LEAD DIMENSIONS SHOWN ARE MEASURED AT HOUSING EXIT
2-LEADS TO FIT INTO HOLES SPACED AS PER HOLE PATTERN
3.PIN NUMBERS FOR REFERENCE ONLY, DESIGNATION NON-EXISTENT ON PART.
4.DIALIGHT PART NUMBER = 551-4104-801F
5.THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE DEVICES
(ESDS).MAINTAIN ALL PRECAUTIONARY MEASURES DURING ASSEMBLY,
HANDLING, AND STORAGE IN ACCORDANCE WITH IPC-A-610.
= 20 mA
= 20 mA
F
= 5 V
= 20 mA
ABSOLUTE MAXIMUM RATING AT 25°C AMBIENT
POWER CONSUMPTION
FORWARD CURRENT
LEAD SOLDERING TEMPERATURE, 5 SEC., 1/16" FROM BODY
OPERATING TEMPERATURE
STORAGE TEMPERATURE
120
30
260
-40 TO +85
-40 TO +100
UNITS
mW
mA
°C
°C
°C
PIN 2
ANODE
PIN 1
CATHODE
SCALE
2.000
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
SCALE: 4.000
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
DRAWING NUMBER
REV
C-17996
TITLE
MATERIAL
A
FRACTIONS:
1/64
DECIMALS (.XX):
.01
DECIMALS (.XXX):
.005
DECIMALS (.XXXX):
.0005
ANGLES:
1
CUSTOM CBI BLOCK
FINISH:
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
FSCM
SINGLE COLOR LED SCHEMATIC
83330
SHEET
1
OF
1
FAMILY TABLE:
