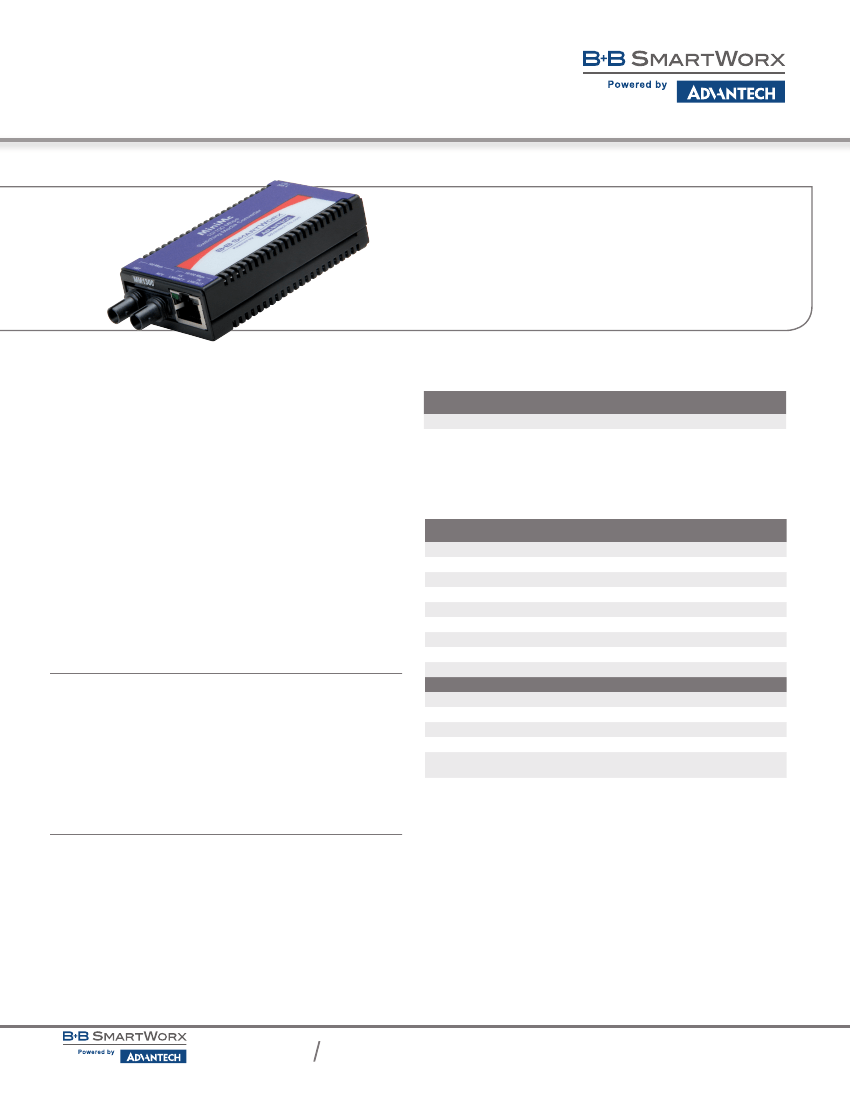

Smallest, Most Reliable
Switching Media Converter
MiniMc & MiniMc SFP
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
Fixed fiber version shown
One 100 Mbps fixed FDX fiber port or 1 SFP fiber port
One 10/100 Base-TX twisted pair port
AutoCross automatic selection between crossover or
straight-through connection
Status LEDs
18 connections in the 1.5U high IE-PowerTray/18 Chassis
Media conversion is the most cost-effective solution for extending the
productive life of legacy wiring plants and equipment while allowing
implementation of new technologies. Media conversion’s greatest benefits
are flexibility and cost savings.Designed and manufactured in the USA, the
MiniMc extends 10 and 100 Mbps twisted pair network segments up to 80
km over fiber. Both a media and data rate converter, the MiniMc features
10/100 Auto Negotiation on the copper port while the fiber port operates
at 100 Mbps full duplex. MiniMc 10/100 switching fiber converters are
ideal for all premises, FTTD, LAN-to-LAN or LAN-to-MAN fiber networking
applications.
Measuring less than 3.5 inches deep and 2 inches wide, the MiniMc
is the industry’s smallest unmanaged media converter with both data
connections on the same side of the unit, and at a fraction of the cost of
other alternatives. Plug-and-play operation with a variety of model types
and powering options make the MiniMc series easy and convenient to use.
The AC power adapter is included with all models listed. Other power
options are listed under Accessories.
ACCESSORIES
806-39105
- DIN Rail Clip
806-39628
- USB 36”(0.9m) Power Cable (for MiniMc only)
806-39629
- USB 12”(0.3m) Power Cable (for MiniMc only)
806-39650
- 12”/(0.3m) Barrel-Connector Power Cable
850-13086
- IE-PowerTray/18-AC (-20 to +70 °C), 18-slot AC powered chassis
895-39229
- Wall Mount Bracket
806-39720 - AC Power Adapter
ORDERING INFORMATION
MODEL
FIBER RANGE
FIBER TYPE
NUMBER
PORTS
MiniMc SFP* with LFPT
855-10619 SFP
1
Various
ETHERNET
PORTS
1
ETHERNET
CONNECTOR
RJ45
* Only Model 855-10619 offers LFPT (Link Fault Pass Through) diagnostic feature.
(SFP fiber sold separately and available through B+B SmartWorx.)
ORDERING INFORMATION
MODEL
FIBER
FIBER TYPE
NUMBER
PORTS RANGE
MiniMc TP-TX/FX
855-10620 MM850-ST
1
2 km
855-10621 MM850-SC
1
2 km
855-10622 MM1300-ST
1
5 km
855-10623 MM1300-SC
1
5 km
855-10624 SM1310/PLUS-ST 1
40 km
855-10625 SM1310/PLUS-SC 1
40 km
855-10626 SM1310/LONG-ST 1
80 km
855-10627 SM1310/LONG-SC 1
80 km
SINGLE STRAND FIBER *
855-10650 SSFX-MM1300-SC 1
2 km
855-10651 SSFX-MM1550-SC 1
2 km
855-10652 SSFX-SM1310-SC 1
20 km
855-10653 SSFX-SM1550-SC 1
20 km
SSFX-SM1310/
855-10654
1
40 km
PLUS-SC
SSFX-SM1550/
855-10655
1
40 km
PLUS-SC
ETHERNET
PORTS
1
1
1
1
1
1
1
1
1
1
1
1
1
1
ETHERNET
CONNECTOR
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B+B SmartWorx single-strand fiber product.
All product specifications are subject to change without notice.
MiniMc & MiniMc SFP_0317ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Smallest, Most Reliable
Switching Media Converter
MiniMc & MiniMc SFP
SPECIFICATIONS
TECHNICAL
IEEE 802.3 10Base-T twisted pair
IEEE 802.3u 100Base-TX twisted pair
Supports jumbo packets up to 1916 bytes
Plug-and-play operation
RJ45, ST or SC connectors and SFPs available
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Available with single-strand fiber support
Country-specific, high-reliability power adapter
Auto Negotiation
Auto-Cross for MDI/MDIX
Layer 2 packet switching, store and forward (forwarding rate: 14,881 pps for 10
Mbps, 148,100 pps for 100 Mbps)
Status LEDs
MECHANICAL
Dimensions
Shipping Weight
POWER
5 VDC, 500mA
AC Adapter: 32~122F (0~50C)
ENVIRONMENTAL
Operating Temperature:
Storage Temperature:
Operating Humidity
MTBF
REGULATORY APPROVALS
FCC Class B
UL/cUL, CSA, CE
0.84”H x 1.81”W x 3.35”D
(21.3 x 46.0 x 85.1 mm)
0.7 lbs (.317 kg)
32~122F (0~50C)
-31~167F (-35~75C)
5% to 95% (non-condensing)
796,650 hrs.

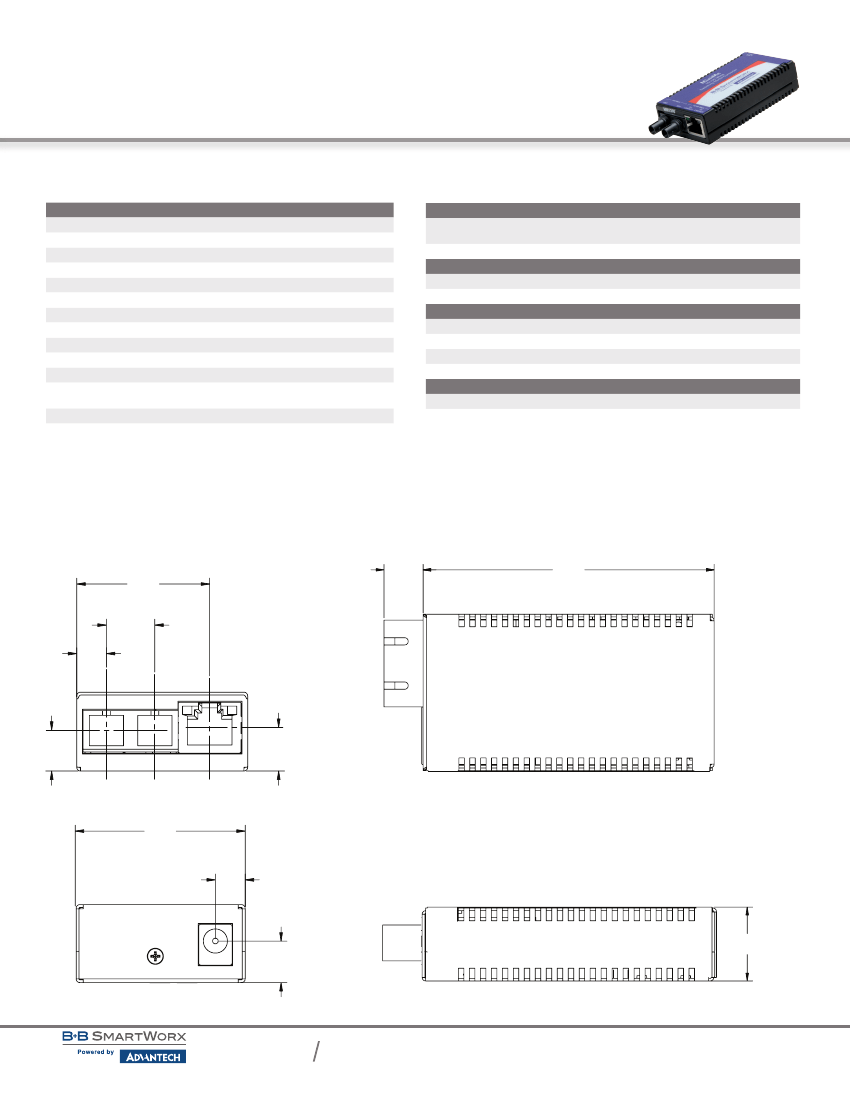

MECHANICAL DIAGRAM
(dimensions in inches & millimeters)
*1x9 Fixed Fiber version shown here
.45
(11.4)
3.35
(85.1)
1.40
(35.6)
.51
(12.9)
REF
.31
(7.9)
.43
(11.0)
.46
(11.7)
1.81
(46,0)
.32
(8,1)
.44
(11,2)
.84
(21,3)
