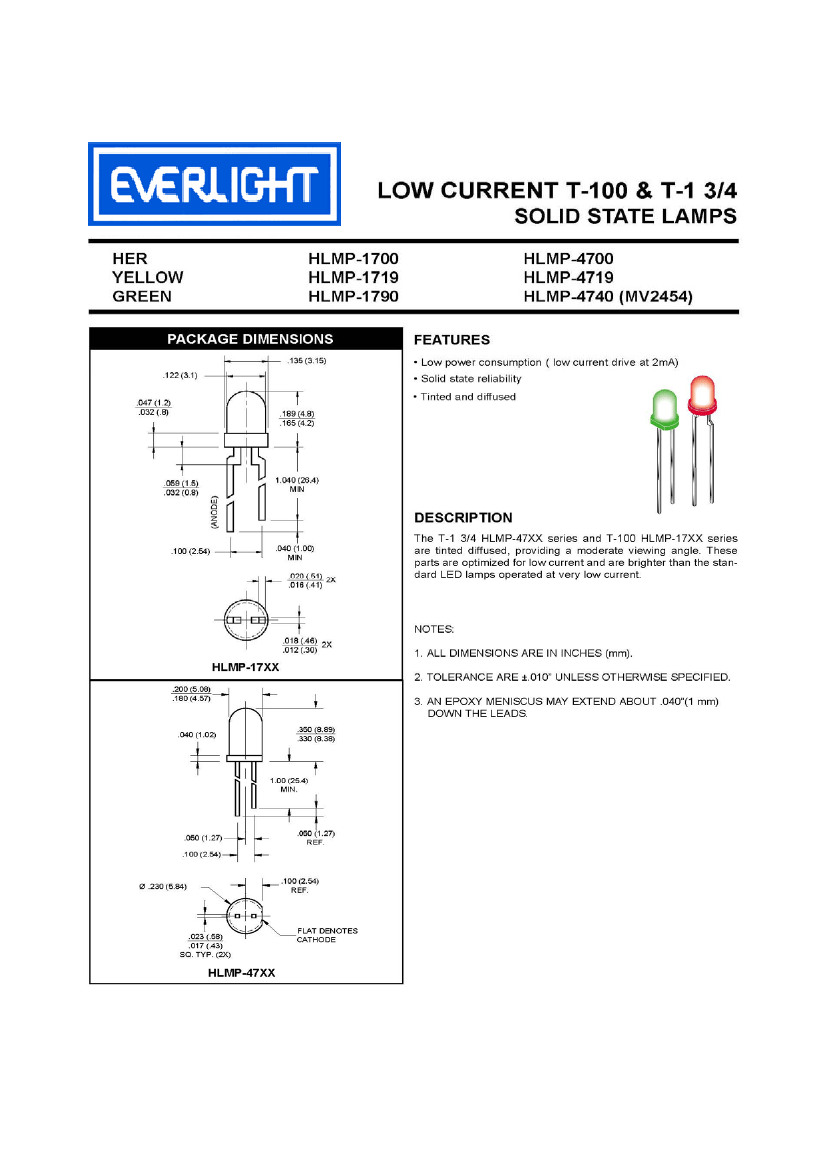

LOW CURRENT T-100 & T-1 3/4
SOLID STATE LAMPS
ABSOLUTE MAXIMUM RATING
(T
A
=25°C)
Parameter
Power Dissipation (derated from 92°C at 1mA/°C)
Peak Forward Current (PW
≤
1 ms, DF
≤
30 %)
Continuous Forward Current
Lead Soldering Time at 260° C
Reverse Breakdown Voltage (V)
Operating Temperature
Storage Temperature
HER
27
25
7.5
5
5
-55 to +100
-55 to +100
YELLOW
24
20
7.5
5
5
-55 to +100
-55 to +100
GREEN
27
25
7.5
5
5
-55 to +100
-55 to +100
UNITS
mW
mA
mA
sec
I
R
= 100µA
°C
°C
ELECTRICAL / OPTICAL CHARACTERISTICS
(T
A
=25°C)
HER YELLOW Parameter
HLMP-1700/4700HLMP-1719/4719Luminous
Intensity
(mcd) Minimum 1.0/1.2 1.0/1.2 Typical 2.0/2.0 2.0/2.0 Forward Voltage (V)
Maximum 2.2 2.7 Typical 1.8 1.9 Peak Wavelength (nm) 635 585 Spectral Line
Half Width 45 35 Viewing Angle (°) 50/35 50/35
GREEN
HLMP-1790/4740(MV2454)1.0/1.2
2.0/3.0 2.7 1.9 565 30 50/35
Condition
I
F
=
2mA I
F
= 2mA I
F
= 2mA I
F
= 2mA
I
F
= 2mA
LOW CURRENT T-100 & T-1 3/4
SOLID STATE LAMPS
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE
TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT
DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE
RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or
2. A critical component in any component of a life support systems
which, (a) are intended for surgical
device or system whose failure to perform can be implant into
the body,or (b) support or sustain life,
reasonably expected to cause the failure of the life and (c)
whose failure to perform when properly support
device or system, or to affect its safety or effectiveness.
used in accordance with instructions for use
provided in labeling, can be reasonably expected
to result in a significant injury of the user.
