Y6055200R000K0L datasheet, PDF

Datasheet> All Categories > Passive components> Y6055200R000K0L

Y6055200R000K0L: Descriptiontrimmer 200 ohm 0.5W leads; CategoryPassive components; File Size305KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

Y6055200R000K0L Overview

trimmer 200 ohm 0.5W leads

Y6055200R000K0L Parametric

Parameter Name	Attribute value
Datasheets
1208 Series
Standard Package	1,000
Category	Potentiometers, Variable Resistors
Family	Trimmer Potentiometers
Packaging	Bulk
Resistance (Ohms)	200
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficie	±20ppm/°C
Number of Turns	25
Adjustment Type	Side Adjustme
Resistive Material	Metal Foil
Mounting Type	Panel Mou
Termination Style	Wire Leads
Size / Dimensi	Rectangular - 0.300" x 0.235" Face x 1.250" L (7.62mm x 5.97mm x 31.75mm)

Preview

Download Datasheet

View All

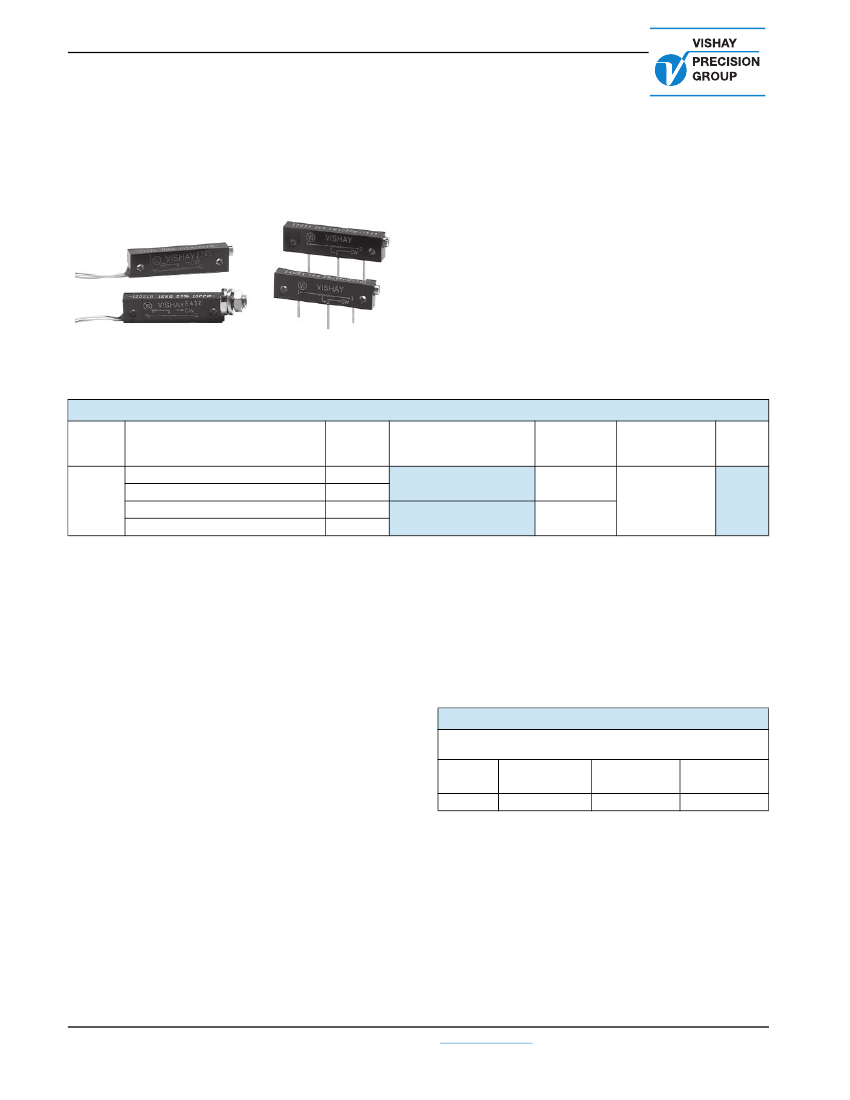

1208

Vishay Foil Resistors

Bulk Metal

Foil Technology

Precision Trimming Potentiometers,

1 1/4 Inch Rectilinear, RJ12 Style - Industrial Trimmer

FEATURES

•

Temperature Coefficient of Resistance (TCR):

± 20 ppm/°C Maximum

(- 55 °C to + 150 °C Ref. at + 25 °C);

Through the wiper

: ± 50 ppm/°C typical

•

Load Life Stability: 0.5 % Maximum

ΔR

under Full Rated

Power for 2000 hours at + 85 °C

•

Settability: 0.1 %

•

Setting Stability: 0.1 % Typical

; 0.5 % Maximum

ΔSS

•

Power Rating

: 0.5 watts at + 85 °C

•

Resistance Range: 20

to 10 kΩ

•

Tolerance: ± 20 %, ± 10 %

Product may not be to scale

TABLE 1 - MODEL SELECTION

†

MODEL

TERMINATION STYLE

P-In Line PC Pins

1208

RJ12

Style

Y-Staggered PC Pins

L-Flexible Wire Leads

LB-Flexible Wire Leads with bushings

NOTES:

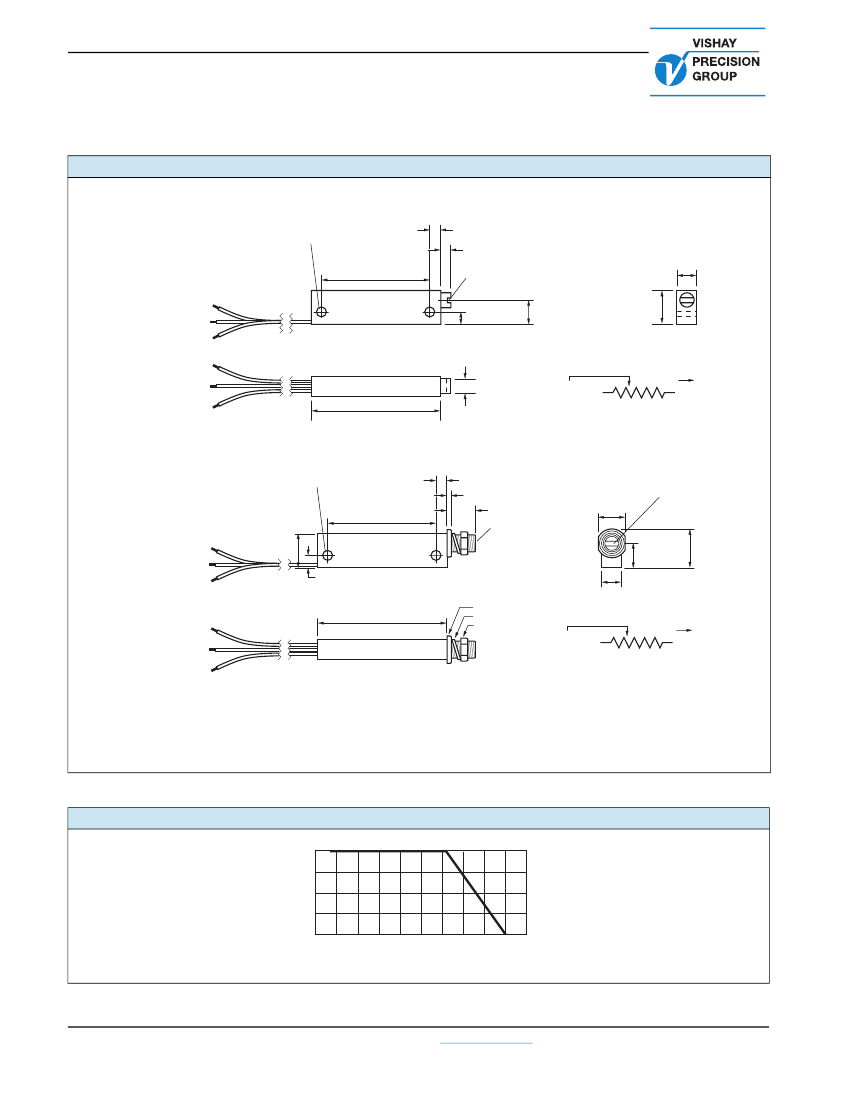

† See Figures 1 and 2 in this data sheet.

1. Preferred termination style for current 1-1/4 Inch rectilinear

trimmers (staggered PC pins present a sturdier mounting

arrangement for shock, vibration, and impact situations.)

2. Maximum is 1.0 % A.Q.L. standard for all specifications except

TCR. (For TCR information see notes 3 and 4). “Typical” is a

designers reference which represents that 85 % of the lots

supplied, over a long period of time, will be at least the figure

stated or better.

3. Maximum TCR applies to the 3 s (sigma) limit or 99.73 % of a

production lot. (Measured end-to-end with wiper off the element.)

4. Measurements of TCR through the wiper are influenced more by

setting stability and the percentage of the total resistance in use

(at the wiper) than by fundamental resistance change due to

temperature alone. The parameter shown is a 2 s distribution

typifying the behavior of the device when used with 40 % or more

of the total resistance in use.

5. Derated linearly from full power at + 85 °C to zero (0) watts at

+ 150 °C. See Figure 3 in this data sheet.

6. Independent of resistance value. 3 W maximum available on

special request.

Special Available Options:

Special Marking

Special lengths for lead wires (L, LB Style)

Hooked leads

Alternate bushing and PC combinations

Burn-in and screening operations

AVERAGE

STANDARD RESISTANCE

WEIGHT

VALUES (in

Ω)

(g)

2.5

3.3

5.1

20, 50, 100

200, 250, 500,

1K, 2K, 5K, 10K

STANDARD

TOLERANCE

± 20 %

0.5 W

± 10 %

25 ± 2

POWER RATING

at + 85 °C

AMBIENT

NO. OF

TURNS

ADDITIONAL SPECIFICATIONS:

•

Contact Resistance Variation - CRV (noise): 10

Maximum

•

Hop-off: 0.25 % Typical; 1.0 % Maximum

•

Operating Temperature Range: - 55 °C to + 150 °C

•

Adjustment Turns: 25 ± 2

•

Mechanical Stops: Wiper Idles - No Discontinuity

TABLE 2 - ORDERING INFORMATION - 1208 SERIES PARTS

Please specify Vishay Model 1208 Precision Trimming

Potentiometers as follows:

MODEL

NO.

1208

TERMINATION

STYLE

RESISTANCE

VALUE

100R

TOLERANCE

10 %

NOTES:

See Table 1 for Details.

See Figure 1, next page for Standard Marking Illustration.

www.foilresistors.com

For any questions, contact:

foil@vishaypg.com

Document Number: 63057

Revision: 24-Mar-10
