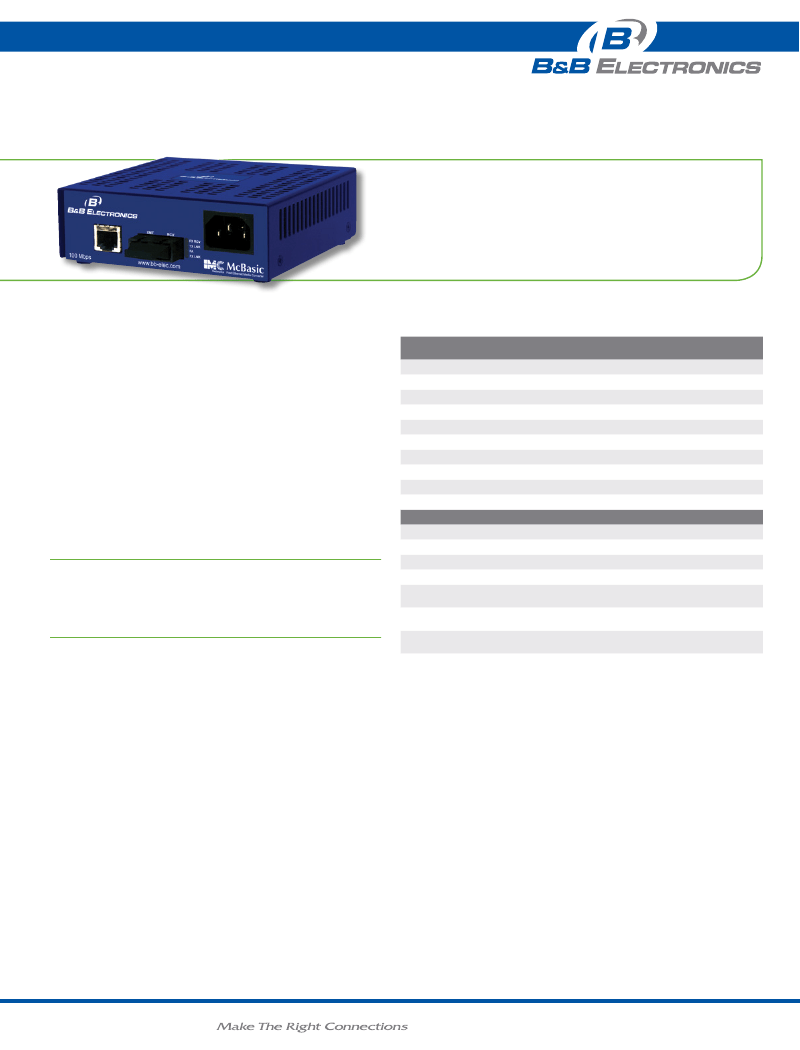

100 mbps compact media converter
McBasic TX/FX
product FEaturEs
•
•
•
•
Has a small, rugged design offering many advanced features
Available for multi-mode or single-mode fiber
LinkLoss and FiberAlert features, along with LEDs, assist in diagnosing
Convert 100 Mbps twisted pair to 100 Mbps fiber
The McBasic’s small, table-top design and durability make it perfect
for installation anywhere space is limited. Additionally, the McBasic
comes with an internal AC power supply. This feature significantly
increases reliability over products that use bulky, external AC/DC power
transformers. The McBasic series includes:
The McBasic includes troubleshooting features such as LinkLoss,
FiberAlert, Transparency and Link Fault Detection that make isolating
fiber breaks easier should they occur. The McBasic also features
AutoCross on twisted pair connections and diagnostic LEDs. Most
McBasic units are available with single-strand fiber which can
effectively double the capacity of fiber by allowing two individual
channels to share one strand of fiber; Full-Duplex data travels on
different wavelengths — 1310 nm and 1550 nm, for example.
accEssorIEs
895-39226
- Rackmount Bracket
895-39949
- Rackmount Shelf
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
McBasic tx/Fx
855-10929 MM850-ST
1
2 km
855-10930 MM850-SC
1
2 km
855-10927 MM1300-ST
1
5 km
855-10928 MM1300-SC
1
5 km
855-10931 SM1310/PLUS-ST 1
40 km
855-10932 SM1310/PLUS-SC 1
40 km
855-10933 SM1310/LONG-ST 1
80 km
855-10934 SM1310/LONG-SC 1
80 km
855-10937 SM1550/LONG-SC 1
80 km
single-strand FiBer *
855-10949
SSFX-MM1310-SC
1
2 km
855-10950
SSFX-MM1550-SC
1
2 km
855-10951
SSFX-SM1310-SC
1
20 km
855-10952
SSFX-SM1550-SC
1
20 km
SSFX-SM1310/
855-10953 PLUS-SC
1
40 km
SSFX-SM1550/
855-10954 PLUS-SC
1
40 km
855-10955
SSFX-SM1310/
1
60 km
LONG-SC
855-10957
SSFX-SM1550/
1
60 km
LONG-SC
ethernet
Ports
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
ethernet
ConneCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
www
.
bb
-
elec
.
com
|
McBasic TX/FX_3713ds
100 mbps compact
media converter
McBasic TX/FX
SpecificationS
Technical
Include MDI/MDIX switch
Includes fixed, internal AC power
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Includes diagnostic LEDs
IEEE 802.3u 100Base-TX twisted pair and 100Base-FX or -SX fiber
Features LinkLoss and FiberAlert
Features Auto Negotiation
connecTors
RJ45 and ST or SC
Supports Half- and Full-Duplex operation
Mechanical
Dimensions
Shipping Weight
Power rating
100-240 VAC, 50/60Hz, 1.0A
environMental
Operating Temperature
Storage Temperature:
Operating Humidity
regulatory aPProvals
FCC Class A
UL/cUL, CSA, CE
1.64”H x 4.75”W x 4.95”D
(4.2 cm x 12.17 cm x 11.64 cm)
1.3 lbs (0.58 kg)
+32° to +122° F (0° to +50° C)
0° to +160° F (-20° to +70° C)
5% to 95% (non-condensing)

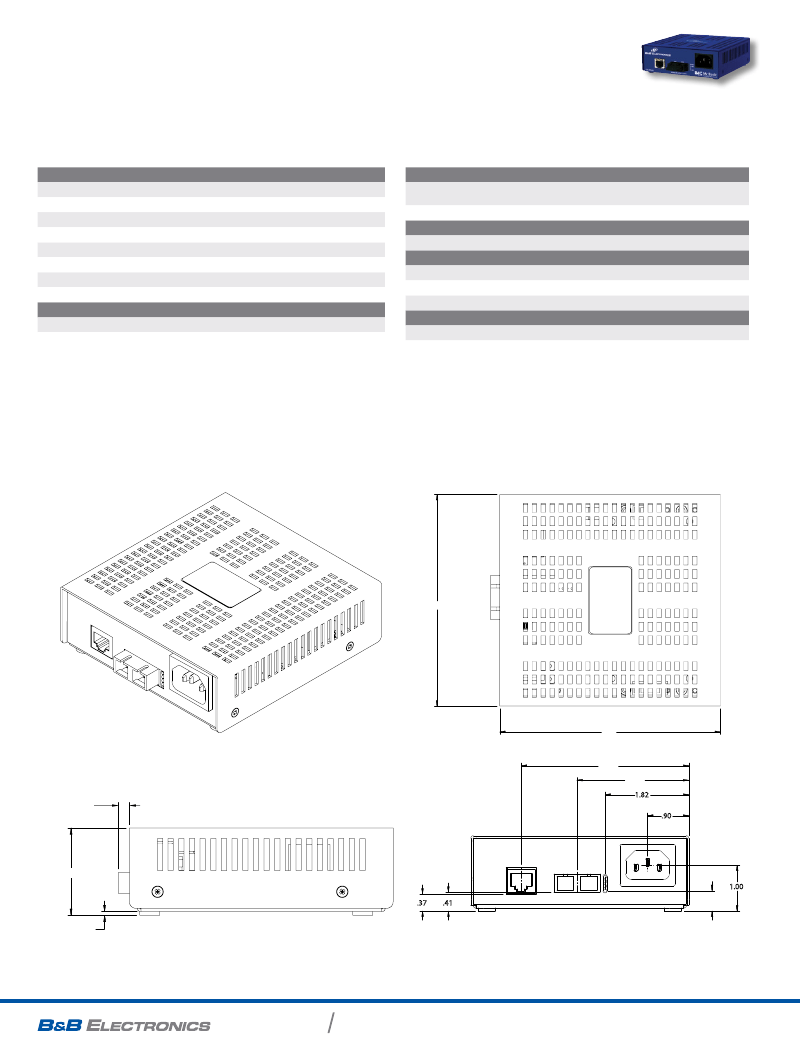

mEchanIcal dIagram
(dimensions in inches)
4.75
4.95
3.648
2.436
1.82
.20
.90
1.64
1.00
.37
.41
.45
.070
