High Frequency, Automotive AEC-Q100 SOT23 Oscillator
Features
Applications
AEC-Q100 with extended temperature range (-55°C to 125°C)
Frequencies between 115.2 MHz and 137 MHz accurate to
6 decimal points
100% pin-to-pin drop-in replacement to quartz-based XO
Excellent total frequency stability as low as ±20 ppm
Industry best G-sensitivity of 0.1 PPB/G
LVCMOS/LVTTL compatible output
5-pin SOT23-5 package: 2.9 x 2.8 mm x mm
RoHS and REACH compliant, Pb-free, Halogen-free and
Antimony-free
Automotive, extreme temperature and other high-rel
electronics
Infotainment systems, collision detection devices, and
in-vehicle networking
Powertrain control
Electrical Characteristics
Table 1. Electrical Characteristics
All Min and Max limits are specified over temperature and rated operating voltage with 15 pF output load unless otherwise
stated. Typical values are at 25°C and nominal supply voltage.
Parameters
Output Frequency Range
Frequency Stability
Symbol
f
F_stab
Min.
115.20
-20
-25
-30
-50
Operating Temperature
Range (ambient)
T_use
-40
-40
-40
-55
Supply Voltage
Current Consumption
Vdd
Idd
1.62
2.25
–
–
Duty Cycle
Rise/Fall Time
Output High Voltage
DC
Tr, Tf
VOH
45
–
–
90%
Typ.
–
–
–
–
–
–
–
–
–
1.8
–
6
4.9
–
1.5
1.5
–
Max.
137
Unit
MHz
Condition
Refer to
Tables 14 to 16
for the exact list of supported frequencies
Frequency Range
Frequency Stability and Aging
Inclusive of Initial tolerance at 25°C, 1st year aging at 25°C, and
+20
ppm
variations over operating temperature, rated power supply voltage
+25
ppm
and load (15 pF ± 10%).
+30
ppm
+50
+85
+105
+125
+125
1.98
3.63
8
6
55
3
2.5
–
ppm
°C
°C
°C
°C
V
V
mA
mA
%
ns
ns
Vdd
Vdd = 2.25V - 3.63V, 20% - 80%
Vdd = 1.8V, 20% - 80%
IOH = -4 mA (Vdd = 3.0V or 3.3V)
IOH = -3 mA (Vdd = 2.8V and Vdd = 2.5V)
IOH = -2 mA (Vdd = 1.8V)
IOL = 4 mA (Vdd = 3.0V or 3.3V)
IOL = 3 mA (Vdd = 2.8V and Vdd = 2.5V)
IOL = 2 mA (Vdd = 1.8V)
Pin 1, OE
Pin 1, OE
Pin 1, OE logic high or logic low
Measured from the time Vdd reaches its rated minimum value
f = 115.20 MHz. For other frequencies, T_oe = 100 ns + 3 * cycles
Vdd = 2.8V to 3.3V,
ST
= Low, Output is weakly pulled down
Vdd = 2.5V,
ST
= Low, Output is weakly pulled down
Vdd = 1.8V,
ST
= Low, Output is weakly pulled down
AEC-Q100 Grade 3
AEC-Q100 Grade 2
AEC-Q100 Grade 1
Extended cold, AEC-Q100 Grade1
All voltages between 2.25V and 3.63V including 2.5V, 2.8V, 3.0V and 3.3V
are supported. Contact
SiTime
for 1.5V support
No load condition, f = 125 MHz, Vdd = 2.25V to 3.63V
No load condition, f = 125 MHz, Vdd = 1.62V to 1.98V
Operating Temperature Range
Supply Voltage and Current Consumption
LVCMOS Output Characteristics
Output Low Voltage
VOL
–
–
10%
Vdd
Input Characteristics
Input High Voltage
Input Low Voltage
Input Pull-up Impedance
Startup Time
Enable/Disable Time
Standby Current
VIH
VIL
Z_in
T_start
T_oe
I_std
70%
–
–
–
–
–
–
–
–
–
100
–
–
2.6
1.4
0.6
–
30%
–
5.5
130
–
–
–
Vdd
Vdd
kΩ
ms
ns
µA
µA
µA
Startup and Resume Timing
Rev. 1.7
May 22, 2019
www.sitime.com
SiT2025B
High Frequency, Automotive AEC-Q100 SOT23 Oscillator
Table 1. Electrical Characteristics (continued)
Parameters
RMS Period Jitter
RMS Phase Jitter (random)
Symbol
T_jitt
T_phj
Min.
–
–
–
–
Typ.
1.6
1.8
0.7
1.5
Max.
2.5
3
–
–
Unit
Jitter
ps
ps
ps
ps
f = 125 MHz, 2.25V to 3.63V
f = 125 MHz, 1.8V
f = 125 MHz, Integration bandwidth = 900 kHz to 7.5 MHz
f = 125 MHz, Integration bandwidth = 12 kHz to 20 MHz
Condition
Table 2. Pin Description
Pin
1
2
Symbol
GND
NC
Power
No Connect
Output Enable
3
OE/NC
No Connect
4
5
VDD
OUT
Power
Output
Functionality
Electrical ground
[1]
No connect
H
[2]
: specified frequency output
L: output is high impedance. Only output driver is disabled.
Any voltage between 0 and Vdd or Open
[2]
: Specified
frequency output. Pin 3 has no function.
Power supply voltage
[1]
Oscillator output
NC
2
Top View
GND
1
5
OUT
YXXXX
OE/NC
3
4
VDD
Figure 1. Pin Assignments
Notes:
1. A capacitor of value 0.1 µF or higher between Vdd and GND is required.
2. In OE or ST mode, a pull-up resistor of 10 kΩ or less is recommended if pin 3 is not externally driven. If pin 3 needs to be left floating, use the NC option.
Table 3. Absolute Maximum Limits
Attempted operation outside the absolute maximum ratings may cause permanent damage to the part. Actual performance
of the IC is only guaranteed within the operational specifications, not at absolute maximum ratings.
Parameter
Storage Temperature
Vdd
Electrostatic Discharge
Soldering Temperature (follow standard Pb free soldering guidelines)
Junction Temperature
[3]
Note:
3. Exceeding this temperature for extended period of time may damage the device.
Min.
-65
-0.5
–
–
–
Max.
150
4
2000
260
150
Unit
°C
V
V
°C
°C
Table 4. Thermal Consideration
[4]
Package
SOT23-5
θ
JA, 4 Layer Board
(°C/W)
421
θ
JC, Bottom
(°C/W)
175
Note:
4. Refer to JESD51 for
θJA
and
θJC
definitions, and reference layout used to determine the
θJA
and
θJC
values in the above table.
Table 5. Maximum Operating Junction Temperature
[5]
Max Operating Temperature (ambient)
85°C
105°C
125°C
Maximum Operating Junction Temperature
95°C
115°C
135°C
Note:
5. Datasheet specifications are not guaranteed if junction temperature exceeds the maximum operating junction temperature.
Table 6. Environmental Compliance
Parameter
Mechanical Shock
Mechanical Vibration
Temperature Cycle
Solderability
Moisture Sensitivity Level
Condition/Test Method
MIL-STD-883F, Method 2002
MIL-STD-883F, Method 2007
JESD22, Method A104
MIL-STD-883F, Method 2003
MSL1 @ 260°C
Rev. 1.7
Page 2 of 15
www.sitime.com
SiT2025B
High Frequency, Automotive AEC-Q100 SOT23 Oscillator
Test Circuit and Waveform
Test
Point
Vout
Vdd
tr
5
4
0.1µF
Power
Supply
tf
80% Vdd
50%
20% Vdd
High Pulse
(TH)
Period
Low Pulse
(TL)
15 pF
(including probe
and fixture
capacitance)
1
2
3
Vdd
1k
OE/ST Function
Figure 2. Test Circuit
[6]
Note:
6. SiT2025 has “no runt” pulses and “no glitch” output during startup or resume.
Figure 3. Waveform
[6]
Timing Diagrams
Vdd
90% Vdd
Vdd
50% Vdd
T_oe
No Glitch
during start up
Pin 4 Voltage
T_start
OE Voltage
CLK Output
HZ
CLK Output
HZ
T_start: Time to start from power-off
T_oe: Time to re-enable the clock output
Figure 4. Startup Timing (OE Mode)
[7]
Figure 5. OE Enable Timing (OE Mode Only)
Vdd
OE Voltage
50% Vdd
T_oe
CLK Output
HZ
T_oe: Time to put the output in High Z mode
Figure 6. OE Disable Timing (OE Mode Only)
Note:
7. SiT2025 has “no runt” pulses and “no glitch” output during startup or resume.
Rev. 1.7
Page 3 of 15
www.sitime.com
SiT2025B
High Frequency, Automotive AEC-Q100 SOT23 Oscillator

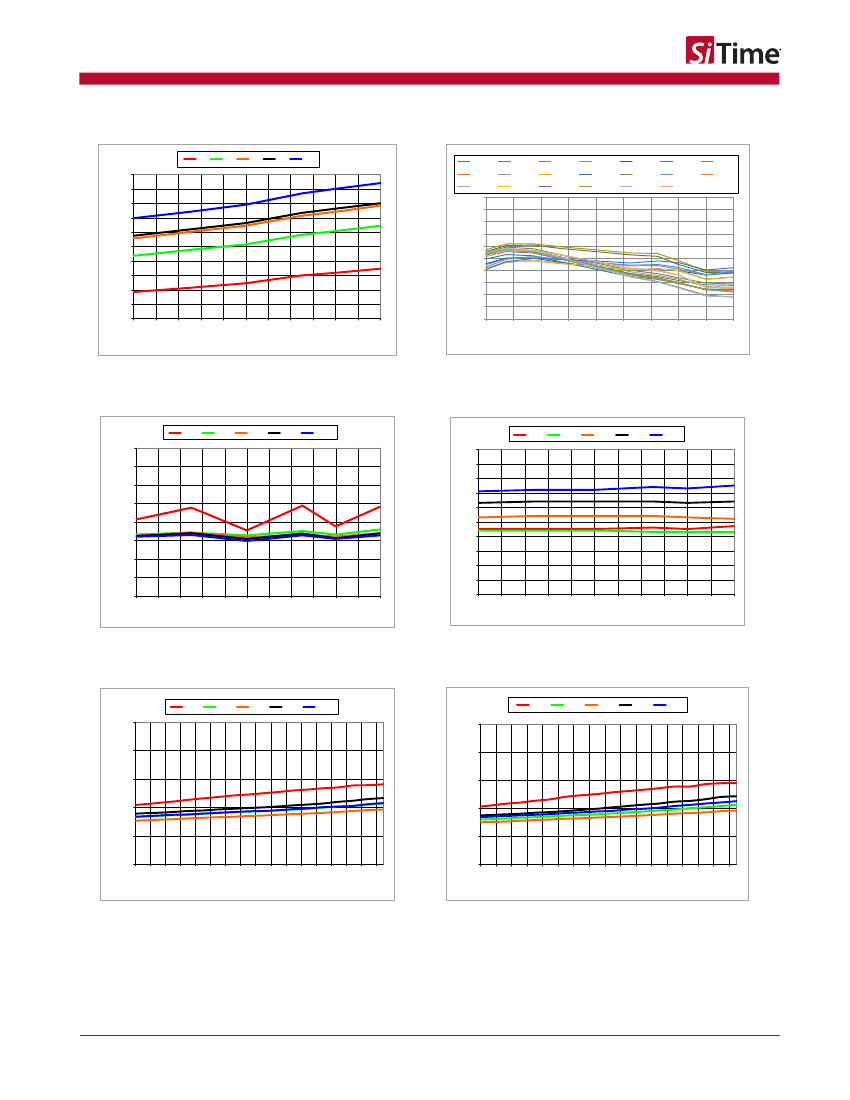

Performance Plots
[8]
1.8
6.5
6.3
6.1
2.5
2.8
3.0
3.3
DUT1
DUT8
DUT15
25
20
DUT2
DUT9
DUT16
DUT3
DUT10
DUT17
DUT4
DUT11
DUT18
DUT5
DUT12
DUT19
DUT6
DUT13
DUT20
DUT7
DUT14
5.7
5.5
5.3
5.1
4.9
4.7
4.5
115
117
119
121
123
125
127
129
131
133
135
137
Frequency (ppm)
5.9
15
10
5
0
-5
-10
-15
-20
-25
-55
-35
-15
5
25
45
65
85
105
125
Idd (mA)
Frequency (MHz)
Temperature (°C)
Figure 7. Idd vs Frequency
Figure 8. Frequency vs Temperature
1.8 V
4.0
3.5
2.5 V
2.8 V
3.0 V
3.3 V
55
54
53
1.8 V
2.5 V
2.8 V
3.0 V
3.3 V
RMS period jitter (ps)
Duty cycle (%)
3.0
2.5
2.0
1.5
1.0
52
51
50
49
48
47
0.5
0.0
115
117
119
121
123
125
127
129
131
133
135
137
46
45
115
117
119
121
123
125
127
129
131
133
135
137
Frequency (MHz)
Frequency (MHz)
Figure 9. RMS Period Jitter vs Frequency
Figure 10. Duty Cycle vs Frequency
1.8 V
2.5
2.5 V
2.8 V
3.0 V
3.3 V
1.8 V
2.5
2.5 V
2.8 V
3.0 V
3.3 V
2.0
2.0
Rise time (ns)
1.5
Fall time (ns)
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100 110 120
1.5
1.0
1.0
0.5
0.5
0.0
0.0
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100 110 120
Temperature (°C)
Temperature (°C)
Figure 11. 20%-80% Rise Time vs Temperature
Figure 12. 20%-80% Fall Time vs Temperature
Rev. 1.7
Page 4 of 15
www.sitime.com
SiT2025B
High Frequency, Automotive AEC-Q100 SOT23 Oscillator
Performance Plots
[8]
1.8 V
2.0
2.5 V
2.8 V
3.0 V
3.3 V
1.8 V
1.0
2.5 V
2.8 V
3.0 V
3.3 V
1.8
0.9
0.8
IPJ (ps)
1.6
IPJ (ps)
115
117
119
121
123
125
127
129
131
133
135
137
0.7
1.4
0.6
1.2
0.5
1.0
0.4
115
117
119
121
123
125
127
129
131
133
135
137
Frequency (MHz)
Frequency (MHz)
Figure 13. RMS Integrated Phase Jitter Random
(12 kHz to 20 MHz) vs Frequency
[9]
Notes:
8. All plots are measured with 15 pF load at room temperature, unless otherwise stated.
9. Phase noise plots are measured with Agilent E5052B signal source analyzer.
In Protel DXP, there are generally four types of component models: Footprint; Simulation; PCB 3D; Signal Integrity. I want to know how to create the last three models. The more detailed and operable t...
[i=s]This post was last edited by paulhyde on 2014-9-15 02:58[/i] I am using a qc1602a LCD screen, but the official program does not display it. Please help!...
From [url=http://mp.weixin.qq.com/s?timestamp=1465022244&src=3&ver=1&signature=K1hVRQIEY4ayRVl4q3MSIJNYap3JPwfqz45EDdrVujaAqQFL6azAQnb3QN6xZ1sfUi2LbugpVCwkgRCA2Z-POjjwXPA8bodA2h658R4jGul7HXPemyyI8AcnN...
As the title suggests, "Location of underground water pipe bursts"
What good ideas do you have? The water pipe is about two meters long. I want a practical method....
The delay function time I calculated is quite different from the actual time. I want to see the time obtained by software simulation. Can anyone tell me?...
Emergency hand-held lamps powered by 6V maintenance-free batteries are widely used in rural areas. The charger used is a transformer step-down and single diode half-wave rectifier, and the charging...[Details]
1. Introduction
RFID (radio frequency identification) is a non-contact automatic identification technology that emerged in the 1990s. It uses the characteristics of radio frequency signal prop...[Details]
0. Introduction
In daily life, we often see some special-purpose vehicles. When these vehicles pass through intersections, they often obtain the right of way at intersections by temporarily op...[Details]
All electronic design engineers and scientists have performed electrical signal analysis, or signal analysis for short. Through this basic measurement, they can gain insight into signal details and...[Details]
Abstract: In order to generate a stable excitation signal, the design of a digital frequency synthesizer is implemented on FPGA using Verilog hardware language. The design includes accumulator, wav...[Details]
Electronic systems are located at different points on the automotive power bus and therefore often need to operate under very stringent power requirements. These include load dump, cold crank, very lo...[Details]
1. Introduction
At present, most lighting equipment still uses traditional energy for lighting. Making full use of solar energy as the energy supply for lighting equipment is of great si...[Details]
Overview:
This paper introduces a method of connecting a CAN-bus network with Ethernet to form a medium-sized remote monitoring/data transmission network.
CAN (Controller Area Network) is ...[Details]
Since the No. 4 blast furnace of Handan Iron and Steel was put into operation in 1993, its external equipment has been seriously aged, and the original PLC control system TDC3000 of the hot blast furn...[Details]
1. Introduction to CIF Board
Fieldbus integration based on PC system
Whether it is a master or a slave, fieldbus has won unanimous praise in the field of PC-based automation. For more...[Details]
1. Introduction
Testing the temperature of steel billets before rolling is an important measure to ensure the quality of steel. Traditional manual testing is difficult to ensure product qu...[Details]
The automotive lighting and signal control system is responsible for controlling the vehicle's lighting, signal lights, electric horns, reversing and brake buzzers. Traditional automotive lighting...[Details]
The typical fault troubleshooting listed below is for reference of maintenance personnel.
When the computer is turned on, the indicator light is off and there is no screen display
Mainte...[Details]
Many battery-powered systems require a visual indicator to show when the battery needs to be replaced. LEDs are commonly used for this purpose, but they consume at least 10mA of current. This con...[Details]
This controller uses PIC16C54 single-chip microcomputer as the controller, and it is very easy to use: just connect a telephone line to the loudspeaker through the controller, and you can rem...[Details]
PCB Design
京公网安备 11010802033920号
EEWORLD
