DC3803X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DC3803X

DC3803X: Descriptionled blue-green clr 3mm HI bright; CategoryLED optoelectronic/LED photoelectric; File Size278KB，1 Pages; ManufacturerStanley Electric Co

Download Datasheet Parametric Compare View All

DC3803X Overview

led blue-green clr 3mm HI bright

DC3803X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Stanley Electric Co
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	BLUE GREEN
color@wavelength	Blue-Green
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	4 V
JESD-609 code	e0
Lens type	WATER CLEAR
Nominal luminous intensity	1200.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.7 mm
method of packing	BULK
peak wavelength	502 nm
Maximum reverse voltage	5 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.5 mm
perspective	25 deg
Base Number Matches	1

Preview

Download Datasheet

View All

SINGLE COLOR LED

H I G H

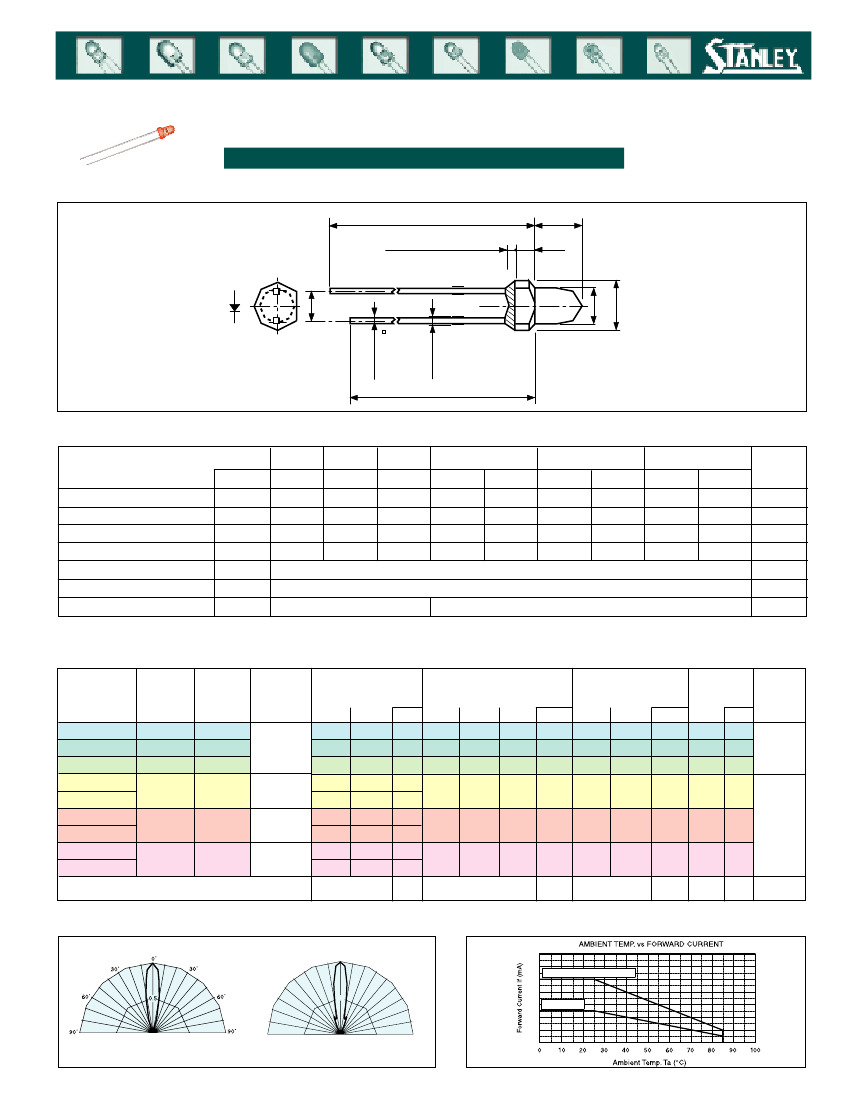

Outline Dimensions

30MIN.

Meniscus 0.5MAX.

3mm Flush Mount Round Shape

D_3803X / F_3863X Series

B R I G H T N E S S

C O L O R

0.2

(1.7)

4.2

0.1

3.1

0.1

(2.5)

0.4

0.1

28MIN.

0.6MAX.

Unit: mm

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Blue

Blue Green

Green

Yellow

Orange

Red

(Ta=25°C)

100

EFY

125

200

125

200

-40 to +85

-40 to +100

0.33

0.67

Symbol

Topr

Tstg

EFA

125

200

125

200

EFR

125

200

125

200

Units

°C

mA/°C

* Ta=25°C, I

applies for the pulse width

1msec. and duty cycle

£1/20.

The current derating for operation applies when the temperature is above 25°C

Electro-Optical Characteristics

Part No.

Material

Emitted

Color

Blue

Blue Green

Green

Yellow

Clear

Pastel Yellow

Clear

Pastel Orange

Clear

Pastel Red

Water Clear

*The viewing angle is an average and will vary by color

(Ta=25°C)

Lens

Color

Luminous

Intensity

MIN.

TYP

Spectral Line

Peak Dominant Half Width

TYP

Wavelength

Forward

Voltage

TYP

MAX.

Reverse Viewing

Current

Angle

MAX.

1/2)

DB3803X

DC3803X

DG3803X

EFY3863X

FY3863X

EFA3863X

FA3863X

EFR3863X

FR3863X

InGaN/Sic

AlInGaP

250

600

1,000

360

1,120

400

900

320

500

1,200

1,440

720

1,600

800

1,280

640

Orange

Red

467

502

522

592

609

635

470

505

525

590

605

626

3.5

1.9

4.0

2.4

100

µA

20°

Units

mcd

Deg.

Spatial Distribution (x)

0˚

30˚

Operation Current Derating Chart

60˚

0.5

60˚

EFY, FY, EFA, FA, EFR, FR

DB, DC, DG

90˚

D_3803X

F_3863X

*Spatial Distribution is viewed as a typical illustration and will vary by color

DC3803X Related Products

	DC3803X	DB3803X	DG3803X	EFY3863X	FY3863X
Description	led blue-green clr 3mm HI bright	led blue clear 3mm high bright	led green clear 3mm high bright	led yellow clear 3mm high bright	LED YELLOW CLEAR 3MM ROUND T/H
Maker	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant
color	BLUE GREEN	BLUE	GREEN	YELLOW	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.025 A	0.05 A	0.05 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	CLEAR PASTEL YELLOW	CLEAR PALE YELLOW
Nominal luminous intensity	1200.0 mcd	500.0 mcd	1200.0 mcd	1440.0 mcd	720.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.7 mm	5.7 mm	5.7 mm	5.7 mm	5.7 mm
method of packing	BULK	BULK	BULK	BULK	BULK
peak wavelength	502 nm	467 nm	522 nm	592 nm	592 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	25 deg	25 deg	25 deg	20 deg	20 deg
Is it Rohs certified?	incompatible	incompatible	incompatible	-	conform to
package instruction	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	-	ROHS COMPLIANT PACKAGE-2
color@wavelength	Blue-Green	Blue	Blue-Green	-	Amber
Maximum forward voltage	4 V	4 V	4 V	-	2.4 V
JESD-609 code	e0	e0	e0	-	-
Maximum reverse voltage	5 V	5 V	5 V	-	5 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Base Number Matches	1	1	1	-	1
Is it lead-free?	-	Contains lead	Contains lead	-	Lead free
