DC3804X datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DC3804X

Preview

DC3804X: Descriptionled blue-green clr 3mm HI bright; CategoryLED optoelectronic/LED photoelectric; File Size249KB，1 Pages; ManufacturerStanley Electric Co

Download Datasheet Parametric Compare View All

DC3804X Overview

led blue-green clr 3mm HI bright

DC3804X Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Stanley Electric Co
package instruction	PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	BLUE GREEN
color@wavelength	Blue-Green
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	4 V
JESD-609 code	e0
Lens type	WATER CLEAR
Nominal luminous intensity	480.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.2 mm
method of packing	BULK
peak wavelength	502 nm
Maximum reverse voltage	5 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.5 mm
perspective	55 deg
Base Number Matches	1

Preview

Download Datasheet

View All

SINGLE COLOR LED

H I G H

n

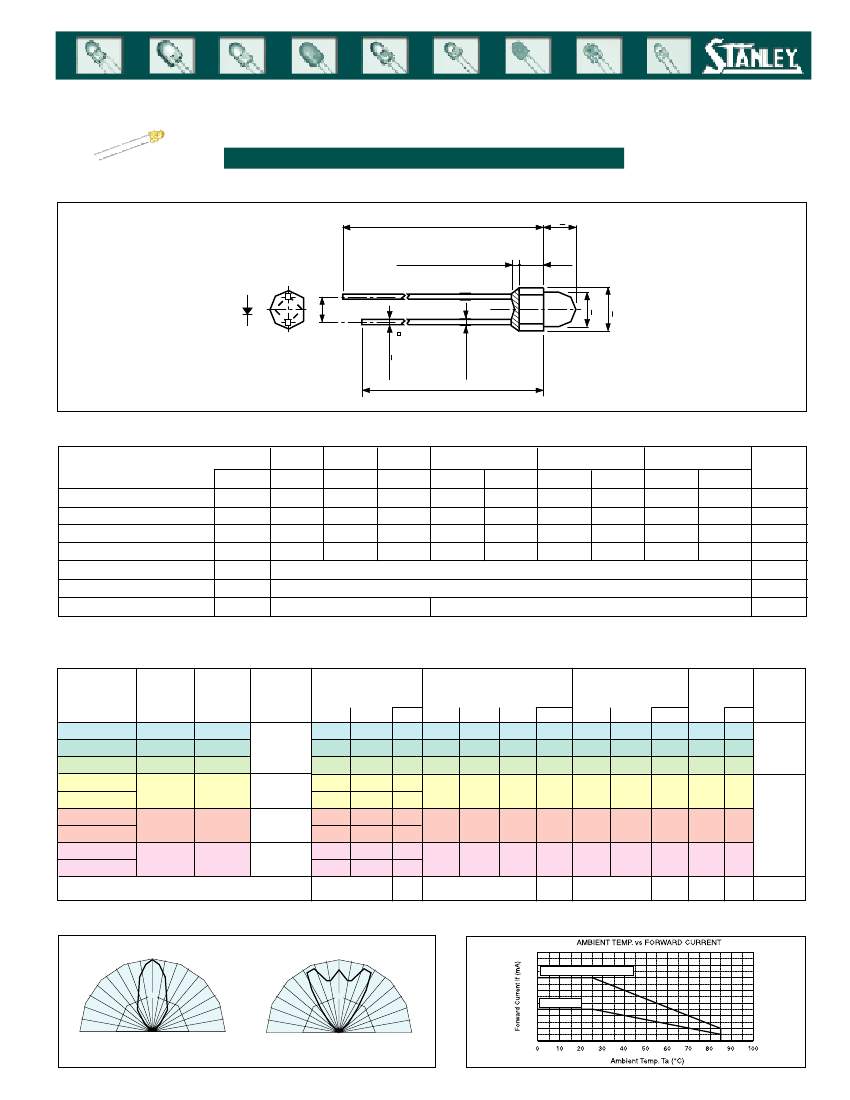

Outline Dimensions

31MIN.

Meniscus 0.5MAX.

f

3mm Flush Mount Round Shape

D_3804X / F_3864X Series

B R I G H T N E S S

C O L O R

2.9

+

0.2

(2.3)

o

4.2

+

0.2

/

o

3.1

+

0.1

/

(2.5)

0.6MAX.

0.4

+

0.1

29MIN.

Unit: mm

n

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Blue

Blue Green

Green

Yellow

Orange

Red

(Ta=25°C)

DB

100

25

60

5

DC

100

25

60

5

DG

100

25

60

5

EFY

125

50

200

5

FY

125

50

200

5

-40 to +85

-40 to +100

0.33

0.67

Symbol

Pd

I

F

I

FM

V

R

Topr

Tstg

DI

F

EFA

125

50

200

5

FA

125

50

200

5

EFR

125

50

200

5

FR

125

50

200

5

Units

mW

mA

V

°C

mA/°C

* Ta=25°C, I

FM

applies for the pulse width

£

1msec. and duty cycle

£1/20

The current derating for operation applies when the temperature is above 25°C

n

Electro-Optical Characteristics

Part No.

Material

Emitted

Color

Blue

Blue Green

Green

Yellow

Clear

Pastel Yellow

Clear

Pastel Orange

Clear

Pastel Red

Water Clear

*The viewing angle is an average and will vary by color

(Ta=25°C)

Lens

Color

60

Luminous

Intensity

IV

MIN.

TYP

.

I

F

Spectral Line

Peak Dominant Half Width

lp

ld

Dl

I

F

TYP

.

TYP

.

TYP

.

Wavelength

Forward

Voltage

V

F

TYP

.

MAX.

I

F

Reverse Viewing

Current

IR

Angle

MAX.

V

R

(2

q

1/2)

DB3804X

DC3804X

DG3804X

EFY3864X

FY3864X

EFA3864X

FA3864X

EFR3864X

FR3864X

InGaN/Sic

AlInGaP

120

480

500

250

560

280

440

220

20

467

502

522

592

609

635

470

505

525

590

605

626

26

30

15

20

3.5

1.9

4.0

2.4

20

100

5

240

350

125

400

140

300

110

50°

Orange

70°

Red

Units

mcd

mA

nm

mA

V

mA

µA

V

Deg.

n

Spatial Distribution (x)

0˚

30˚

0˚

30˚

n

Operation Current Derating Chart

70

60

50

EFY, FY, EFA, FA, EFR, FR

60˚

0.5

60˚

0.5

60˚

40

30

DB, DC, DG

20

90˚

10

0

D_3804X

F_3864X

*Spatial Distribution is viewed as a typical illustration and will vary by color

DC3804X Related Products

	DC3804X	DB3804X	DG3804X	EFR3864X	EFY3864X	EFA3864X	FA3864X
Description	led blue-green clr 3mm HI bright	led blue clear 3mm high bright	led green clear 3mm high bright	led red clear 3mm high bright	led yellow clear 3mm high bright	LED ORANGE CLEAR 3MM ROUND T/H	LED ORANGE CLEAR 3MM ROUND T/H
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknown	unknown
color	BLUE GREEN	BLUE	GREEN	RED	YELLOW	ORANGE	ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.025 A	0.05 A	0.05 A	0.05 A	0.05 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	CLEAR PASTEL RED	CLEAR PASTEL YELLOW	CLEAR PASTEL ORANGE	CLEAR PALE ORANGE
Nominal luminous intensity	480.0 mcd	120.0 mcd	480.0 mcd	440.0 mcd	500.0 mcd	560.0 mcd	280.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	502 nm	467 nm	522 nm	626 nm	590 nm	605 nm	609 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	55 deg	55 deg	55 deg	70 deg	70 deg	70 deg	70 deg
Is it lead-free?	Contains lead	Lead free	Contains lead	-	-	-	Lead free
Is it Rohs certified?	incompatible	conform to	incompatible	-	-	-	conform to
Maker	Stanley Electric Co	-	-	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co
package instruction	PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	PLASTIC PACKAGE-2	-	-	-	ROHS COMPLIANT PLASTIC PACKAGE-2
color@wavelength	Blue-Green	Blue	Blue-Gree	Orange-Red	-	Amber	-
Maximum forward voltage	4 V	4 V	4 V	2.4 V	-	2.4 V	-
Maximum reverse voltage	5 V	5 V	5 V	5 V	-	5 V	-
Base Number Matches	1	1	1	1	-	-	-
