LSV_040_CTP

Description
litepipe round 3mm clear
CategoryLED optoelectronic/LED
File Size64KB,1 Pages
ManufacturerCommunications
Environmental Compliance
Download Datasheet Parametric Compare View All

LSV_040_CTP Online Shopping

Suppliers Part Number Price MOQ In stock
LSV_040_CTP - - View Buy Now

LSV_040_CTP Overview

litepipe round 3mm clear

LSV_040_CTP Parametric

Parameter NameAttribute value
Datasheets
LSV Series
Product Photos
LSV_040_CTP
Standard Package1,000
CategoryOptoelectronics
FamilyOptics - LEDs - Light Pipes
Other NamesLSV 040 CTPLSV-040-CTPLSV040CTP
8
7
6
5
4
3
ECN #
2
REVISIONS
REV
DESCRIPTION
N/A INITIAL RELEASE
001 REVISED PER ECR111009AZ01
1
DATE
4/4/96
4/23/10
INITIALS
JS
KH
NOTES:

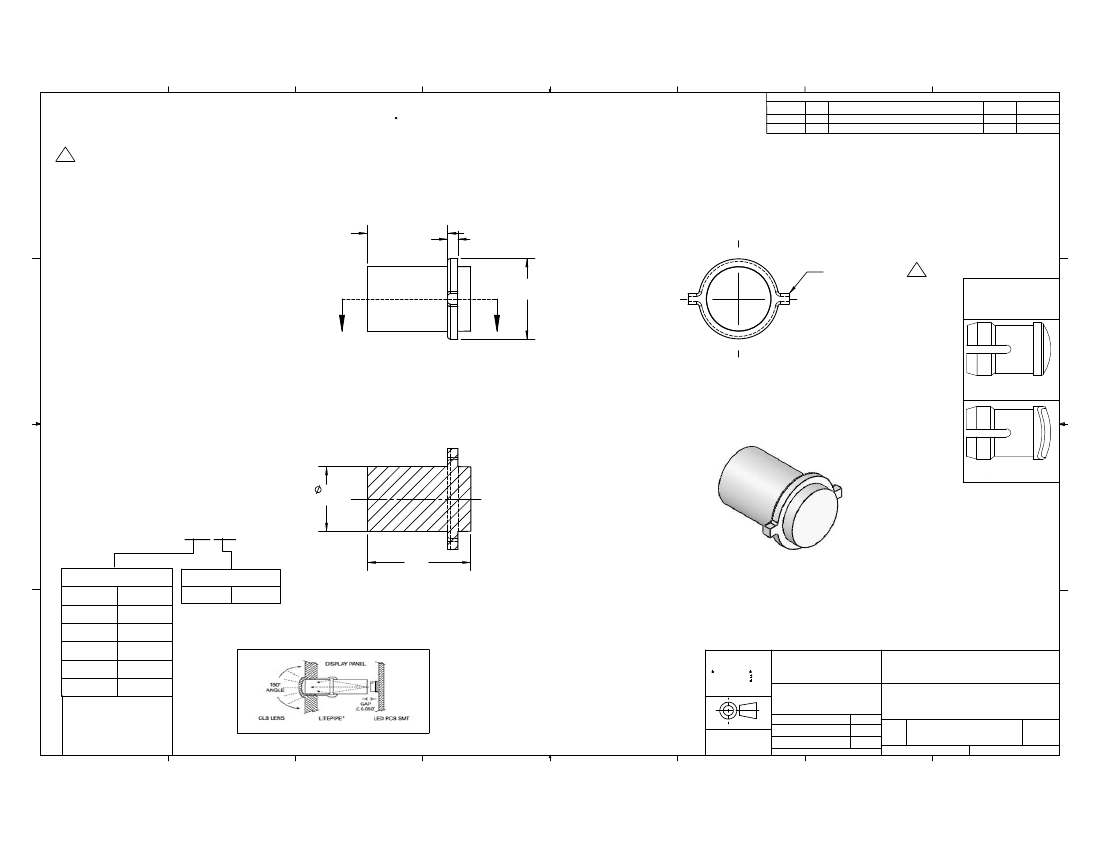

1. DESIGN: Lens mounts the Litepipe securely to display panel providing 180 viewing angle
2. MOUNTING: Panel mounting hole .171 (4.3mm)on 1/4" centers
3. PANEL THICKNESS: For SMB 200 & SMQ 250: 1/32" to 1/8"
4. LENS LOCK: Insert Litepipe into lens aligning the tabs with the lens slot
5. Standoff used to adjust the height of a standard LED above the PCB and maintain a maximum
.050" clearance between the Litepipe and LED.
6. Length is from front of panel to LED
7. Custom lengths available upon request (Minimum order quantity may apply)
8. U.S. & Foreign Pat. Issued & Pend.
.155
(3.937mm)
.020
(.508mm)
D
D
LENS LOCKING TAB 4
.155
(3.937mm)
LENSES
(ORDER SEPERATELY)
C
A
A
C
SMB 200
SMQ 250
B
.125
(3.175mm)
B
ORDERING CODE:
LSV XXX CTP
XXX
LENGTH CODE
020
040
060
080
A
COLOR
CTP
CLEAR
SECTION A-A
=.200"
.400
.600
.800
1.000
1.200
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES:
MATERIAL
100
120
VISUAL COMMUNICATIONS COMPANY, INC.
190 Bosstick Boulevard, Suite101 San Marcos, CA 92069 USA
Phone (760) 560-1300 Fax (760) 560-1301 email vccsales@vcclite.com
ANGLES
1'
FINISH
DECIMALS
.X
.020
.010
.XX
.XXX .005
ACRYLIC (OPTICAL GRADE)
U.L. 94-HB
FINISH
A
BREAK ALL CORNERS AND SHARP
EDGES .030 MAX
TITLE:
SEE NOTES
APPROVAL
DATE
CUSTOM LENGTHS
AVAILABLE UPON
REQUEST
(SEE NOTE 7)
8
7
6
5
4
3MM ROUND LITEPIPE
4/23/10
5/4/10
THIRD ANGLE PROJECTION
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
VISUAL COMMUNICATIONS COMPANY, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
VISUAL COMMUNICATIONS COMPANY, INC IS
PROHIBITED.
DRAWN
CHECKED
K.Howard
DPZ
SIZE
DWG. NO.
REV
B
SCALE: 8:1
LSV XXX CTP
1
001
DO NOT SCALE DRAWING
SHEET 1 OF 1
3
2

LSV_040_CTP Related Products

LSV_040_CTP LSV_080_CTP LSV_060_CTP LSV_120_CTP LSV_020_CTP LSV_100_CTP
Description litepipe round 3mm clear litepipe round 3mm clear litepipe round 3mm clear litepipe round 3mm clear litepipe round 3mm clear litepipe round 3mm clear
Standard Package 1,000 1,000 1,000 1,000 1,000 1,000
Category Optoelectronics Optoelectronics Optoelectronics Optoelectronics Optoelectronics Optoelectronics
Family Optics - LEDs - Light Pipes Optics - LEDs - Light Pipes Optics - LEDs - Light Pipes Optics - LEDs - Light Pipes Optics - LEDs - Light Pipes Optics - LEDs - Light Pipes
Other Names LSV 040 CTPLSV-040-CTPLSV040CTP LSV 080 CTPLSV-080-CTPLSV080CTP LSV 060 CTPLSV-060-CTPLSV060CTP LSV 120 CTPLSV-120-CTPLSV120CTP LSV 020 CTPLSV-020-CTPLSV020CTP LSV 100 CTPLSV-100-CTPLSV100CTP
