CMDA2AR7D1S

Description
led 637nm red wht diff 1206
CategoryLED optoelectronic/LED
File Size431KB,1 Pages
ManufacturerCommunications
Environmental Compliance
Download Datasheet Parametric View All

CMDA2AR7D1S Online Shopping

Suppliers Part Number Price MOQ In stock
CMDA2AR7D1S - - View Buy Now

CMDA2AR7D1S Overview

led 637nm red wht diff 1206

CMDA2AR7D1S Parametric

Parameter NameAttribute value
Datasheets
CMDA2 Series
Standard Package3,000
CategoryOptoelectronics
FamilyLED Indication - Discrete
PackagingTape & Reel (TR)
ColRed
Wavelength - Domi-
Wavelength - Peak637nm
Millicandela Rating90mcd
Voltage - Forward (Vf) (Typ)1.9V
Current - Tes20mA
Viewing Angle170°
Lens TypeDiffused
Lens Style/SizeRectangle with Flat Top, 2mm x 1.6mm
Package / Case1206 (3216 Metric)
Size / Dimensi3.20mm L x 1.60mm W
Heigh1.10mm
Mounting TypeSurface Mou
Luminous Flux @ Current - Tes-
engineered to light up your design
www.vcclite.com
1.800.522.5546

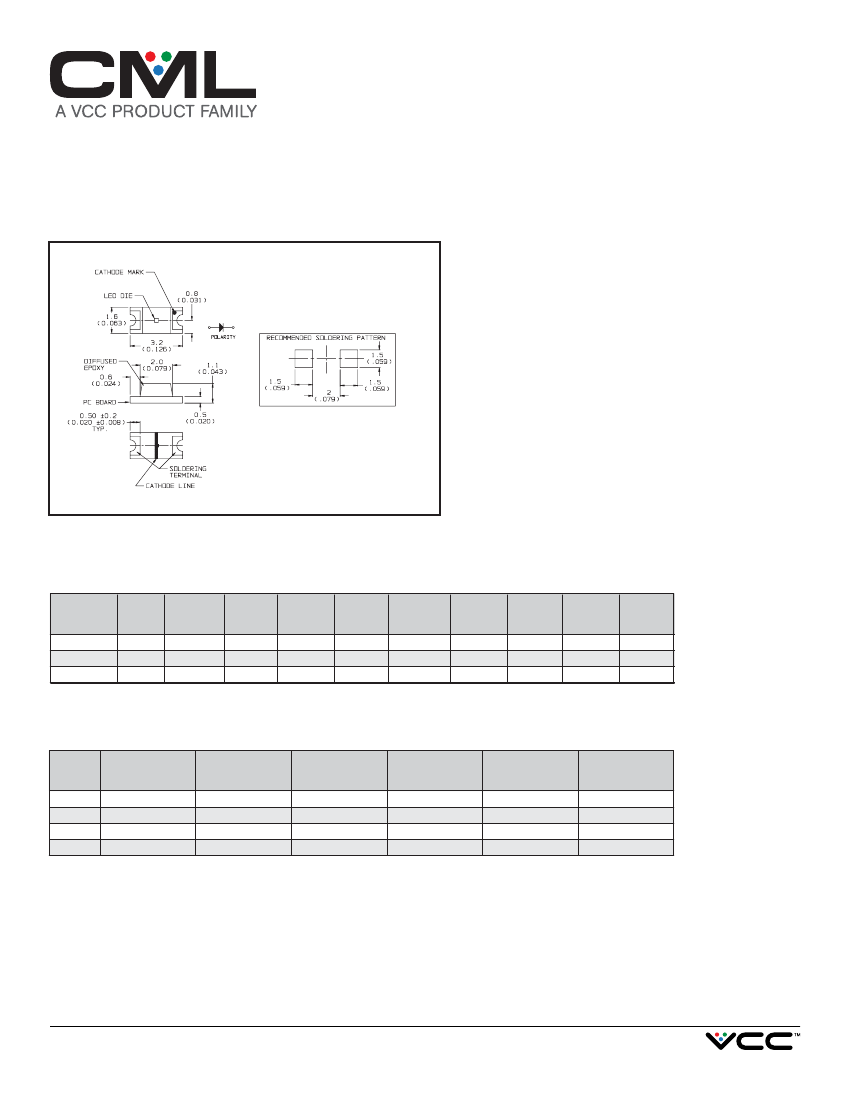

CMDA2 Series HIGH BRIGHTNESS 1206 Package Size Surface Mount LED
Description and Features
Features
• High brightness
• Small size
• Industry standard 1206
Footprint
• Diffused optics
• Top emitting
• Compatible with IR
solder profiles
• Ideal for use with Light
Pipes
• Available in 8 mm tape
on 7" diameter reel
• Packaged 3,000 pieces
per reel
RoHS Compliant
Applications
• LCD backlighting
• Push button
backlighting
• Front panel indicator
• Symbol indicator
• Microdisplays
• Small message panel
signage
NOTES:
1. All dimensions are in millimeters (in).
2. 1 micro second @ 10% duty cycle
Electro-Optical Characteristics and Ratings
Part
Number
CMDA2DY7D1S
CMDA2AR7D1S
CMDA2BA7D1S
Output
Color
Amber
Red
Orange
Diffusion
Package
Color
White
White
White
Test
Current
(mA)
20
20
20
Forward
Voltage
Typ. (V)
1.9
1.9
1.9
Forward
Luminous
Voltage
Intensity
Max. Typ. (V) Min. (mcd)
2.4
2.4
2.4
25
25
25
Luminous
Intensity
Typ. (mcd)
90
90
90
Peak
Wavelength
(nm)
595
637
609
Viewing
Angle
(Degrees)
170
170
170
Diffused
Diffused
Diffused
Absolute Maximum Ratings to = 25°C
Part
Number
Power
Dissipation
(mW)
75
75
75
Operating
Temperature
(°C)
-30 to +85
-30 to +85
-30 to +85
Storage
Temperature
(°C)
-40 to +85
-40 to +85
-40 to +85
Peak Forward
Current Max.
(See note 2) (mA)
100
100
100
Reverse Voltage
(IR = 100 mA)
(V)
5
5
5
Lead Solder Time
at 230°C
(Seconds)
10
10
10
DY
AR
BA
