REV
ECN NO
REVISIONS
NEW RELEASE
DRN CKD APP
TWC
DATE
PART NUMBER
564-0240-102F
564-0240-111F
564-0240-132F
564-0240-210F
564-0240-211F
564-0240-213F
564-0240-220F
564-0240-222F
564-0240-230F
564-0240-233F
564-0240-303F
564-0240-310F
564-0240-322F
564-0240-330F
564-0240-332F
POSITION 1
RED
RED
RED
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
GREEN
YELLOW
YELLOW
YELLOW
YELLOW
YELLOW
POSITION 2
** BLANK **
RED
YELLOW
RED
RED
RED
GREEN
GREEN
YELLOW
YELLOW
** BLANK **
RED
GREEN
YELLOW
YELLOW
POSITION 3
GREEN
RED
GREEN
** BLANK **
RED
YELLOW
** BLANK **
GREEN
** BLANK **
YELLOW
YELLOW
** BLANK **
GREEN
** BLANK **
GREEN
.170 MAX
VIEWING ANGLE
PEAK WAVELENGTH
REVERSE CURRENT
FORWARD VOLTAGE
LUMINOUS INTENSITY
CHARACTERISTICS
OPERATING CHARACTERISTICS AT 25 $ AMBIENT
C
COLOR
RED
GREEN
YELLOW
RED
GREEN
YELLOW
R-G-Y
RED
GREEN
YELLOW
R-G-Y
635
565
585
60
Degree
nm
MIN
1.0
1.0
1.0
TYP
1.6
1.6
1.6
1.7
1.9
1.8
2.2
2.2
2.7
10
µA
V
R
A
NO
TC
NO 7-21-09
MAX
UNITS
TEST CONDITIONS
B
ADDED P/N's 564-0240-211F,
-213F, -322F
AJF KLJ
mcd
I
F
= 2 mA
V
I
F
= 2 mA
NOTES:
= 5 V
1-
2-
3-
4-
LEADS TO FIT INTO HOLES SPACED AS PER HOLE PATTERN
LEADS TO BE FREE OF DEFORMATION AFTER BENDING AND CUTTING
LED LEAD DIMENSIONS SHOWN ARE MEASURED AT HOUSING EXIT
PACKAGING =
BLOCKS TO BE PLACED IN CLEAR ANTISTATIC BAGS
5- DIALIGHT PART NUMBER = 564-0240-XXXF
6- THIS ASSEMBLY CONTAINS ELECTROSTATIC DISCHARGE SENSITIVE
DEVICES (ESDS). MAINTAIN ALL PRECAUTIONARY MEASURES DURING
ASSEMBLY, HANDLING AND STORAGE IN ACCORDANCE WITH 1PC-A-610.
ATTENTION:
OBSERVE PRECAUTIONS FOR
HANDLING ELECTROSTATIC
SENSITIVE DEVICES
.132 ±.015
.550 REF
RoHS Compliant 564-0240-XXXF
POS 1
.200
.600
REF
.200
Part Numbers with the "F" suffix ending are RoHS Compliant.
Example: 564-0240-102F
Packaging is marked with "RoHS Compliant" label or
equivalent markings.
Parts can be wave soldered, dip soldered or hand soldered using
typical lead-free soldering process with max 260°C temp. for 5 sec.
POS 2
POS 3
.100
.126 ±.010
CATHODE
.200 ±.002
.100 ±.002
.270
REF
.018 x .016 TYP
.100 ±.010
PIN 1,3,5
ANODE
.270 ±.010
.100 ±.010
.200 ±.010
1
3
5
TOP LED
THIS DRAWING AND THE CONTENTS HEREIN ARE CONFIDENTIAL AND
THE SOLE PROPERTY OF DIALIGHT. REPRODUCTION OF THIS DRAWING
OR CONSTRUCTION OF ANY PARTS WITHIN THIS DRAWING ARE
FORBIDDEN WITHOUT THE WRITTEN CONSENT OF DIALIGHT.
SCALE: 4.000
ALL DIM'S IN: INCHES (MM)
TOLERANCES:
UNLESS OTHERWISE SPECIFIED
.040 ±.002
TYP
DRAWING NUMBER
REV
C-17365
TITLE
3mm CBI BLOCK - LOW CURRENT
B
.100 ±.002
PIN 1,3,5
ANODE
2
PIN 2,4,6
CATHODE
4
6
FRACTIONS: #
1/64
DECIMALS (.XX): #
.01
DECIMALS (.XXX): #
.005
DECIMALS (.XXXX): #
.0005
ANGLES: # $
1
RoHS COMPLIANT
MATERIAL
FINISH:
1501 ROUTE 34 SOUTH
FARMINGDALE, NJ 07727
FSCM

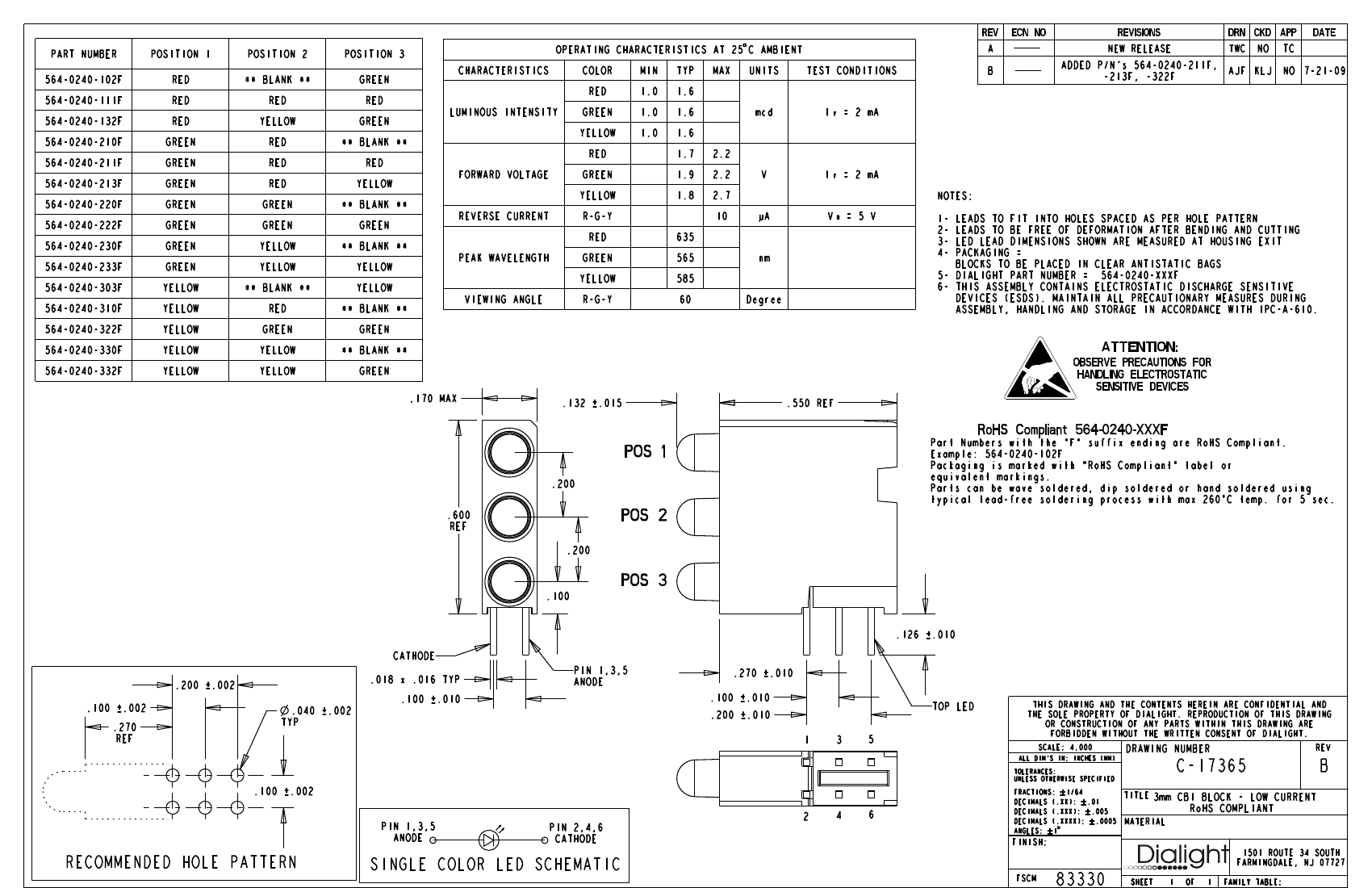

RECOMMENDED HOLE PATTERN
SINGLE COLOR LED SCHEMATIC
83330
SHEET
1
OF
1
FAMILY TABLE:
