Technical Data Sheet

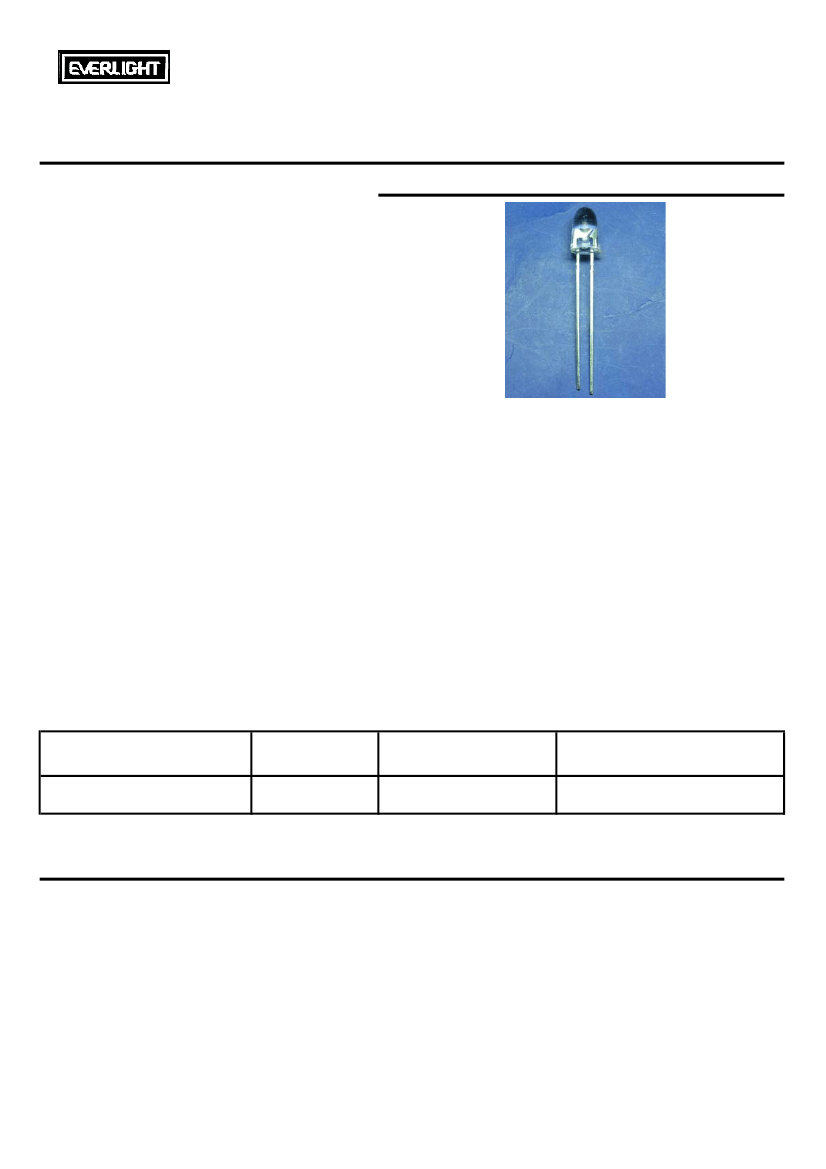

5.0mm Round Type LED Lamps
383-2UYC/S400-A7
█
Features :
●
●
●
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
Pb free
●
The product itself will remain within RoHS compliant version.
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities.
█
Applications :
●
●
●
●
TV set
Monitor
Telephone
Computer
PART NO.
383-2UYC/S400-A7
Material
AlGaInP
Emitted Color
Brillant Yellow
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-221
http : //www.everlight.com
Prepared date: 2005/6/25
Rev.:
1
Page: 1 of 6
Xiuzhen Feng
Prepared by:
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2UYC/S400-A7
Package Dimensions
Notes:
1. All dimensions are in millimetres
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Peak Forward Current
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
ESD
Pd
I
F
(Peak)
V
R
Rating
50
-40 to +85
-40 to +100
260
±
5
2000
120
100
5
Unit
mA
℃
℃
℃
V
mW
mA
V
Note: *1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-221
http : //www.everlight.com
Prepared date:
2005/6/25
Rev.:
1
Prepared by:
Page: 2 of 6
Xiuzhen Feng
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2UYC/S400-A7
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
VF
IR
Iv
2θ1/2
λp
λd
△λ
Condition
I
F
=
V
R
=
I
F
=
I
F
=
I
F
=
I
F
=
I
F
=
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
Min.
／
／
5000
／
／
／
／
Typ.
2.0
／
8500
6
591
589
15
Max.
2.4
10
／
／
／
／
／
Unit
V
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-038-221
http : //www.everlight.com
Prepared date:
2005/6/25
Rev.:
1
Page: 3 of 6
Prepared by: Xiuzhen Feng
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2UYC/S400-A7
█

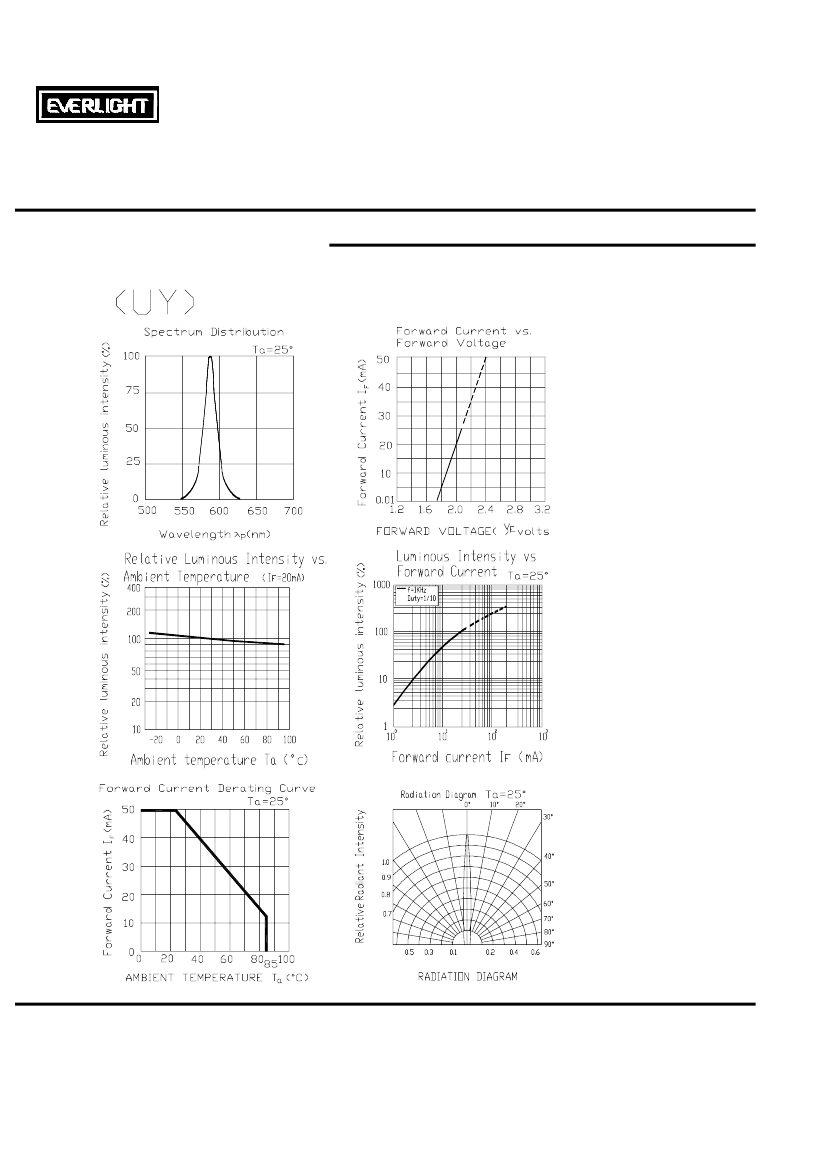

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-038-221
http : //www.everlight.com
Prepared date: 2005/6/25
Rev.:
Prepared by:
1
Page: 4 of 6
Xiuzhen Feng
Technical Data Sheet
5.0mm Round Type LED Lamps
383-2UYC/S400-A7
█
Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%
NO
Item
Test Conditions
Test
Hours/Cycle
10 SEC
Sample Size
Failure
Judgment
Criteria
Ac/Re
1
Solder Heat
TEMP : 260℃
±
5 ℃
76 PCS
0/1
2
Temperature Cycle
3
Thermal Shock
High Temperature
Storage
Low Temperature
Storage
DC Operating Life
High Temperature /
High Humidity
H : +100℃ 15min
∫ 5 min 300 CYCLES
L : -40℃ 15min
H : +100℃ 5min
∫ 10 sec
300 CYCLES
L : -10℃ 5min
TEMP : 100℃
1000 HRS
76 PCS
0/1
76 PCS
Iv≦Ivt*0.5 or
Vf≧U
or
Vf≦L
0/1
4
76 PCS
0/1
5
TEMP : -40℃
TEMP : 25℃
I
F
= 20mA
85℃ / 85% RH
1000 HRS
76 PCS
0/1
6
7
1000 HRS
1000 HRS
76 PCS
76 PCS
0/1
0/1
Note：Ivt：To test Iv value of the chip before the reliablility test
Iv：The test value of the chip that has completed the reliablility test
U：Upper Specification Limit
L： Lower Specification Limit
EVERLIGHT ELECTRONICS CO.,L
Device Number :
CDLE-038-221
http : //www.everlight.com
Prepared date:
2005/6/25
Rev.: 1
Prepared by:
Page: 5 of 6
Xiuzhen Feng
