Technical Data Sheet

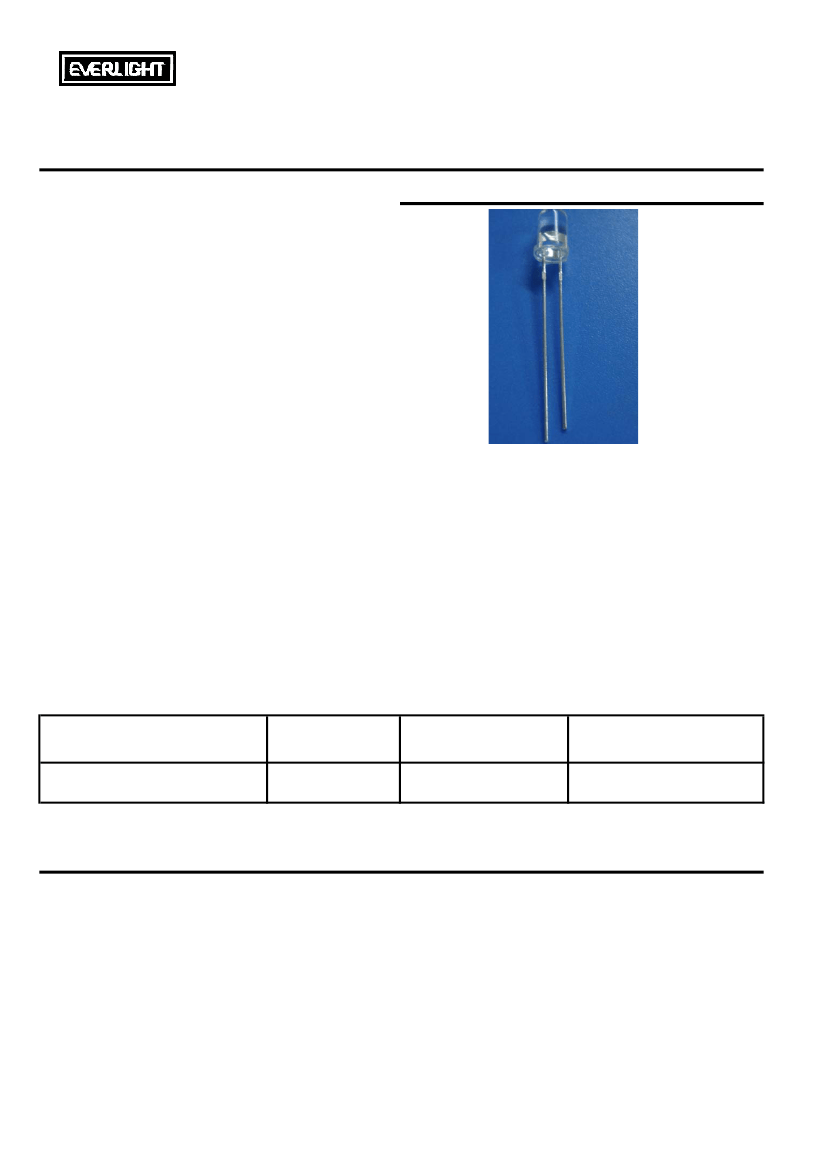

5.0mm Round Type LED Lamps
7343-2SURC/H2/S400-A6
█
Features :
●
●
●
●
Choice of various viewing angles
Available on tape and reel.
Reliable and robust
Pb free
●
The product itself will remain within RoHS compliant version.
█
Descriptions :
●
The series is specially designed for
applications requiring higher
brightness
●
The led lamps are available with
different colors, intensities.
█
Applications :
●
●
Monitor
Computer
PART NO.
7343-2SURC/H2/S400-A6
Material
AlGaInP
Emitted Color
Hyper Red
Lens Color
Water Clear
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
Prepared dat2007/5/24
0
Rev.: 1
Prepared by:
Page: 1 of 6
HuaYing Tao
Device Number :
CDLE-743-207
Technical Data Sheet
5.0mm Round Type LED Lamps
7343-2SURC/H2/S400-A6
Package Dimensions
Notes:
1. All dimensions are in millimetres
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared,the tolerance is
±0.25mm.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge
Soldering Temperature
Power Dissipation
Reverse Voltage
Symbol
I
F
Topr
Tstg
ESD
Tsol
Pd
V
R
Rating
50
-40 to +85
-40 to +100
2000
260
±
5
45
5
Unit
mA
℃
℃
V
℃
mW
V
Note:
*1:Soldering time
≦
5 seconds.
*2:I
FP
Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDLE-743-207
http : //www.everlight.com
Prepared date: 2007/5/24
Rev.:
1
Prepared by:
Page: 2 of 6
HuaYing Tao
Technical Data Sheet
5.0mm Round Type LED Lamps
7343-2SURC/H2/S400-A6
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
Forward Voltage
V
F
IF=
20
mA
／
2.0
2.4
V
Reverse Current
I
R
V
R
=
5
V
／
／
10
μA
Luminous Intensity
Iv
IF=
20
mA
1000
1600
／
mcd
Viewing Angle
2θ1/2
IF=
20
mA
／
30
／
deg
Peak Wavelength
λp
IF=
20
mA
／
632
／
nm
Dominant Wavelength
λd
IF=
20
mA
／
624
／
nm
Spectrum Radiation
Bandwidth
△λ
IF=
20
mA
／
20
／
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDLE-743-207
http : //www.everlight.com
Rev.:
1
Page: 3 of 6
HuaYing Tao
Prepared date:
2007/5/24
Prepared by:
Technical Data Sheet
5.0mm Round Type LED Lamps
7343-2SURC/H2/S400-A6
█

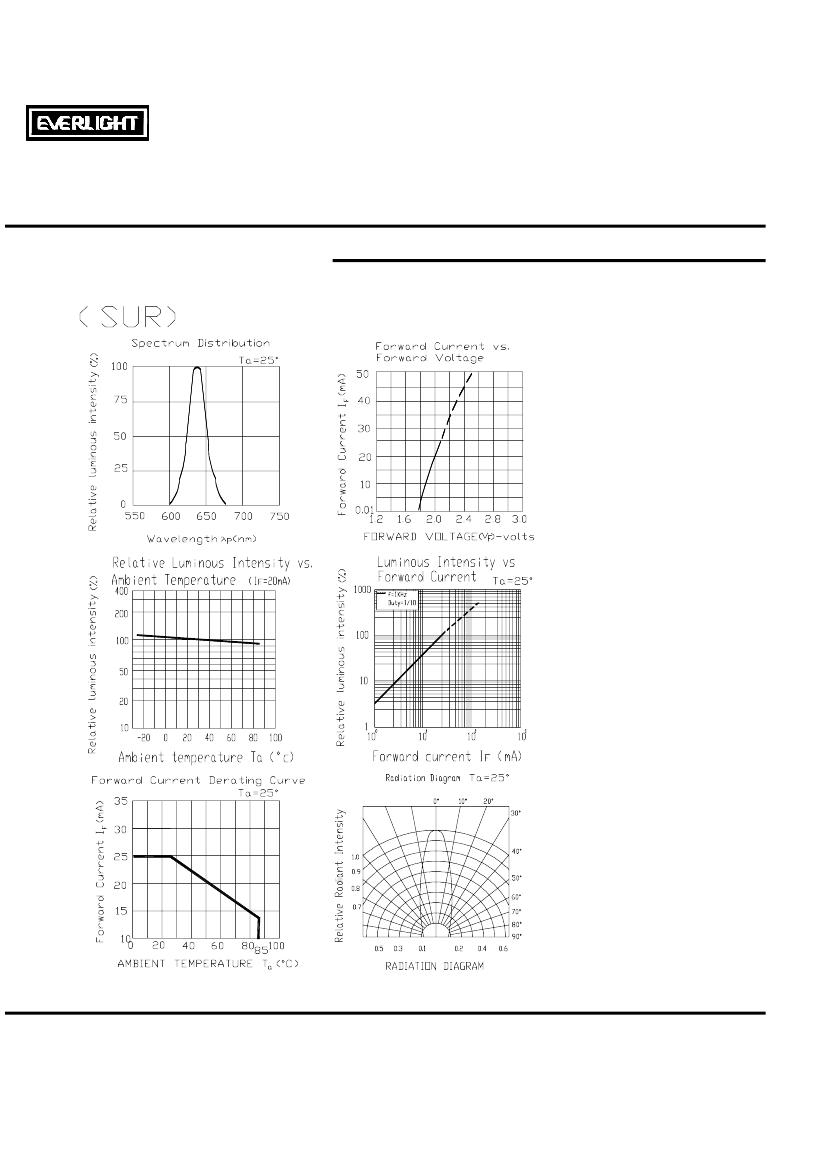

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
Prepared date:
2007/5/24
Rev.:
Device Number :
CDLE-743-207
1
Prepared by:
Page: 4 of 6
HuaYing Tao
Technical Data Sheet
5.0mm Round Type LED Lamps
7343-2SURC/H2/S400-A6
█
Reliability test items and conditions:
The reliability of products shall be satisfied with items listed below.
Confidence level：97%
LTPD：3%
NO
Item
Test Conditions
Test
Hours/Cycle
Sample Size
Failure
Judgment
Criteria
Ac/Re
1
Solder Heat
TEMP : 260℃
±
5 ℃
H : +100℃ 15min
∫ 5 min
L : -40℃ 15min
H : +100℃ 5min
∫ 10 sec
L : -10℃ 5min
TEMP : 100℃
10 SEC
76 PCS
0/1
2
Temperature Cycle
300 CYCLES
76 PCS
0/1
3
Thermal Shock
300 CYCLES
76 PCS
4
High Temperature Storage
1000 HRS
76 PCS
Iv≦
Ivt*0.5 or
Vf≧U
or
Vf≦L
0/1
0/1
5
Low Temperature Storage
TEMP : -40℃
TEMP : 25℃
I
F
= 20mA
85℃ / 85% RH
1000 HRS
76 PCS
0/1
6
7
DC Operating Life
High Temperature / High
Humidity
1000 HRS
1000 HRS
76 PCS
76 PCS
0/1
0/1
Note：Ivt：To test Iv value of the chip before the reliablility test
Iv：The test value of the chip that has completed the reliablility test
U：Upper Specification Limit
L： Lower Specification Limit
EVERLIGHT ELECTRONICS CO.,LTD.
http : //www.everlight.com
Rev.:
1
Page: 5 of 6
Device Number : CDLE-743-207
Prepared date:
2007/5/24
Prepared by:
HuaYing Tao
