PH50S2412 datasheet, PDF - EEWORLD Datasheet

PH50S2412: Descriptionconverter DC/DC 12v 50w 6-pin; Categorysemiconductor Power management; File Size1013KB，17 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PH50S2412 Overview

converter DC/DC 12v 50w 6-pin

Parameter Name	Attribute value
Datasheets

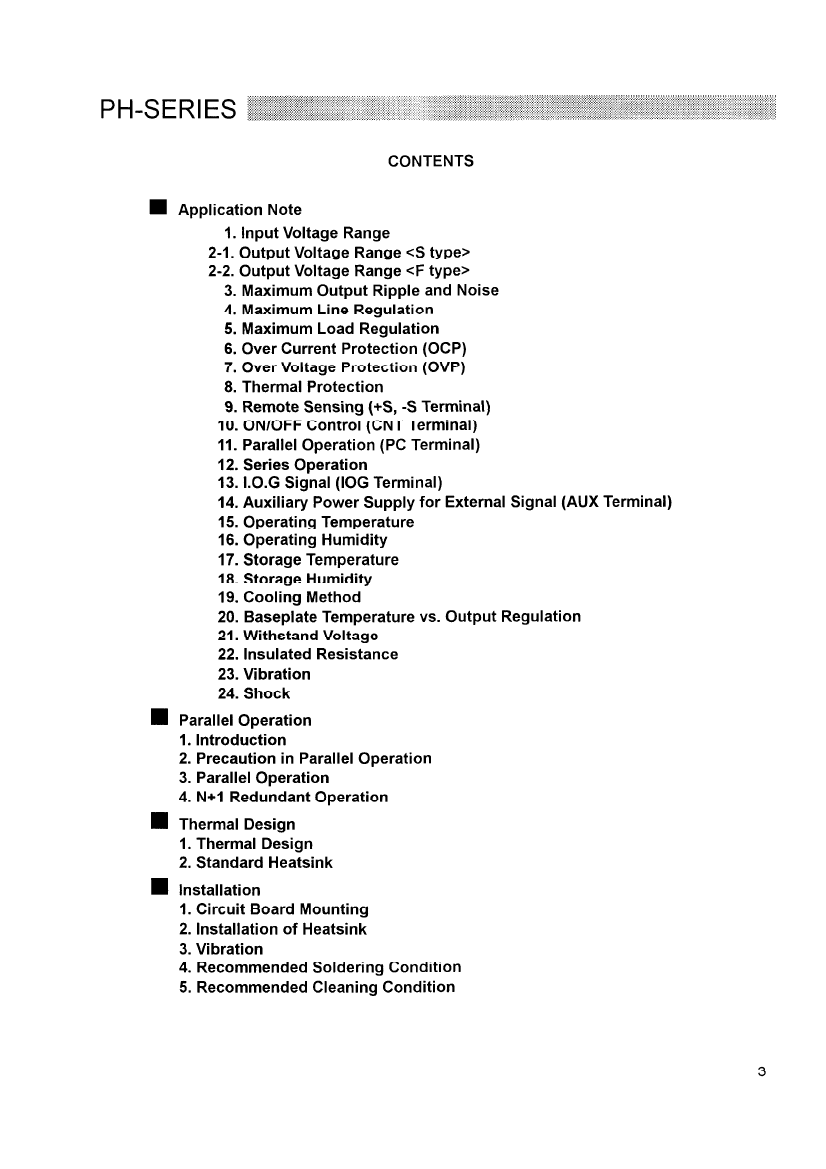

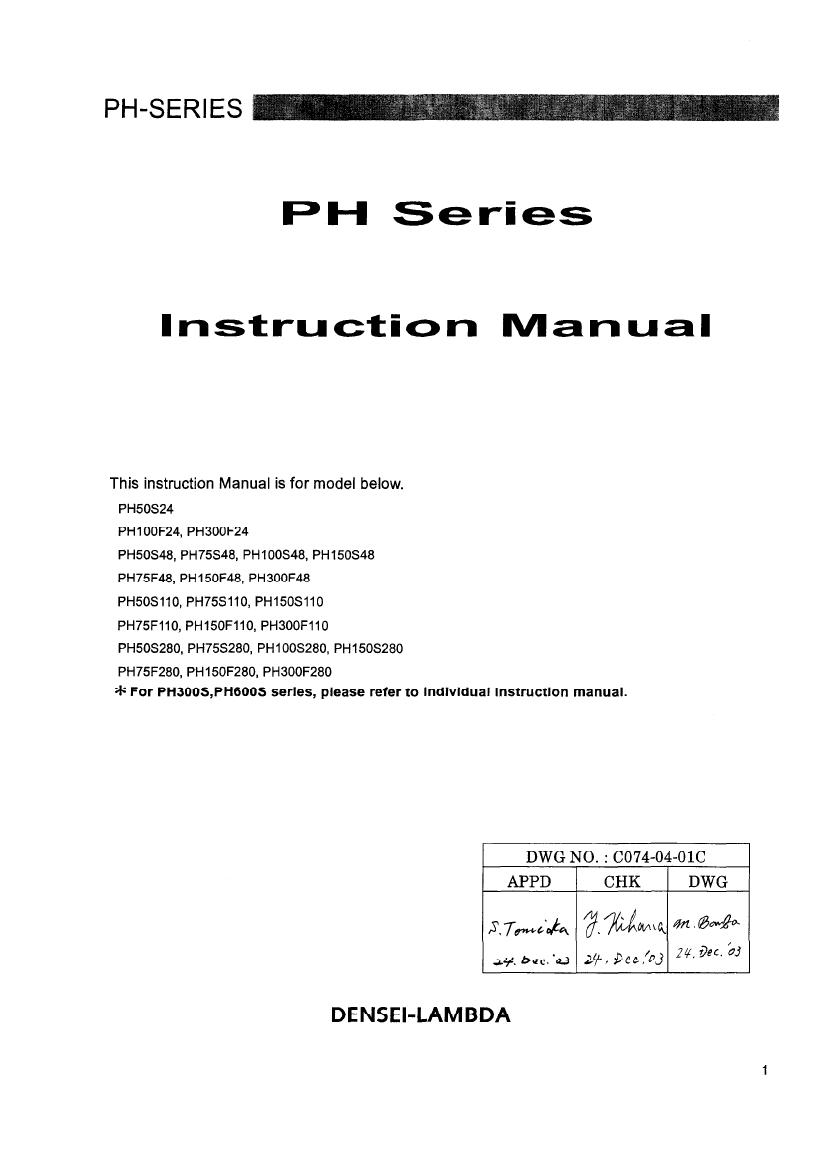

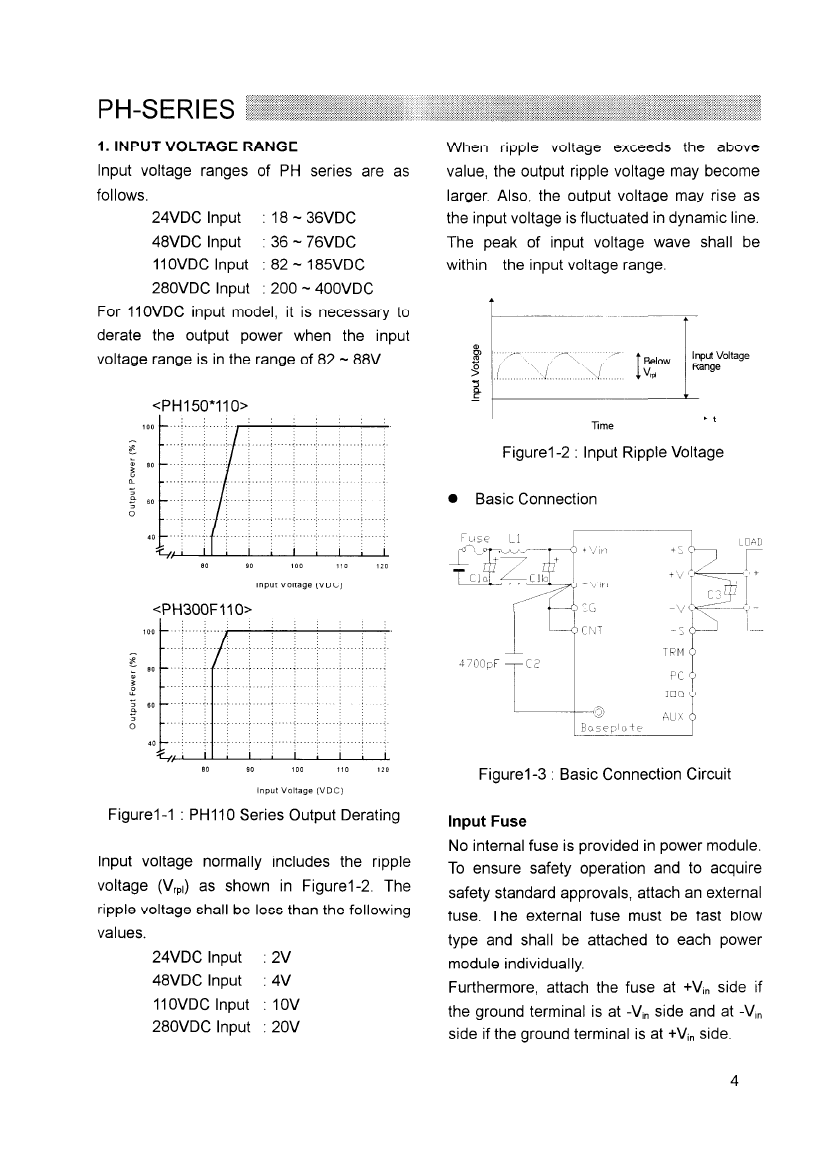

PH Series Instr Manual

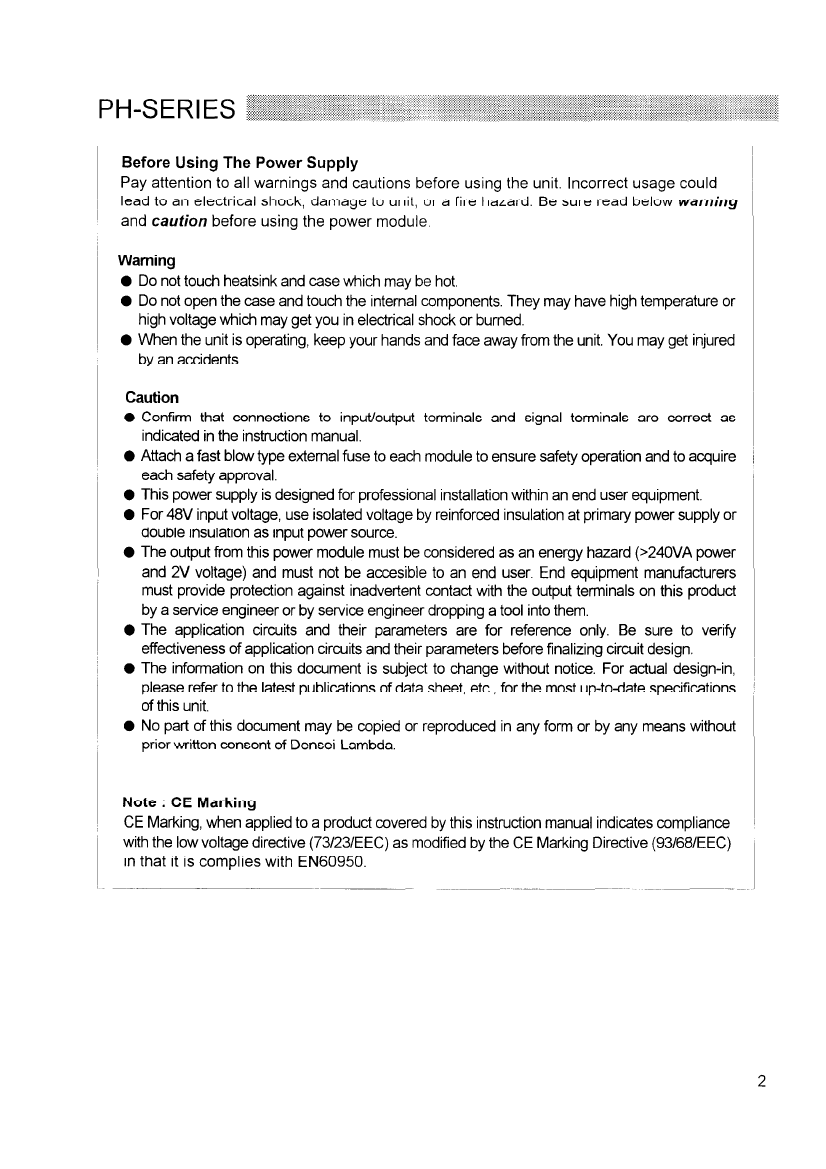

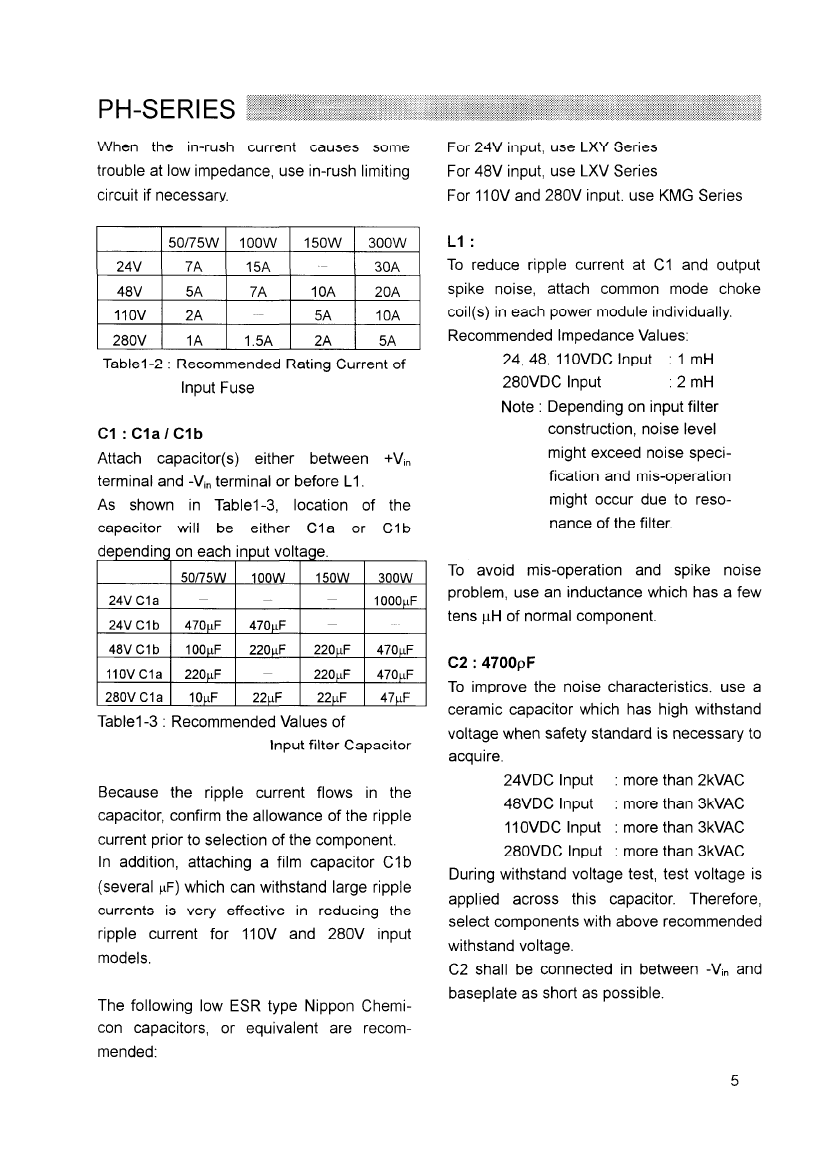

PH Series Installati
PH-S Series
PH50S24 Series Specs
Standard Package	1
Category	Power Supplies - Board Mou
Family	DC DC Converters
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (Max)	4.2A
Power (Watts) - Manufacture Series	50W
Voltage - Isolati	3kV (3000V)
Features	Remote On/Off, OCP, OTP, OVP
Mounting Type	Through Hole
Package / Case	Module
Size / Dimensi	3.85" L x 1.61" W x 0.50" H (86.0mm x 41.0mm x 12.7mm)
Operating Temperature	-20°C ~ 85°C
Efficiency	-
Power (Watts) - Max	50W
Other Names	PH50S24-12Q6381269

	PH50S2412	PH75S28024	PH50S24-5	PH50S245	PH150S280-15	PH75S110-15	PH75S280-12
Description	converter DC/DC 12v 50w 6-pin	converter DC/DC 24vdc 75w 3.2A	conv 50w 24v IN 5V out DC-DC	converter DC/DC 5V 50w 6-pin	DC-DC converter 150w 15v output	DC/DC converter 75w 15v output	DC/DC converter 100w 12vdcout
Standard Package	1	5	1	1	-	-	-
Category	Power Supplies - Board Mou	Power Supplies - Board Mou	Power Supplies - Board Mou	Power Supplies - Board Mou	-	-	-
Family	DC DC Converters	DC DC Converters	DC DC Converters	DC DC Converters	-	-	-
Type	Isolated Module	Isolated Module	Isolated Module	Isolated Module	-	-	-
Number of Outputs	1	1	1	1	-	-	-
Voltage - Input (Min)	18V	200V	18V	18V	-	-	-
Voltage - Input (Max)	36V	400V	36V	36V	-	-	-
Voltage - Output 1	12V	24V	5V	5V	-	-	-
Current - Output (Max)	4.2A	3.2A	10A	10A	-	-	-
Power (Watts) - Manufacture Series	50W	75W	50W	50W	-	-	-
Voltage - Isolati	3kV (3000V)	3kV (3000V)	3kV (3000V)	3kV (3000V)	-	-	-
Features	Remote On/Off, OCP, OTP, OVP	Remote On/Off, OCP, OTP, OVP	Remote On/Off, OCP, OTP, OVP	Remote On/Off, OCP, OTP, OVP	-	-	-
Operating Temperature	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C	-	-	-
Power (Watts) - Max	50W	77W	50W	50W	-	-	-
Other Names	PH50S24-12Q6381269	1043-PH75S28024	PH50S245Q1073533	Q6381269A	-	-	-
