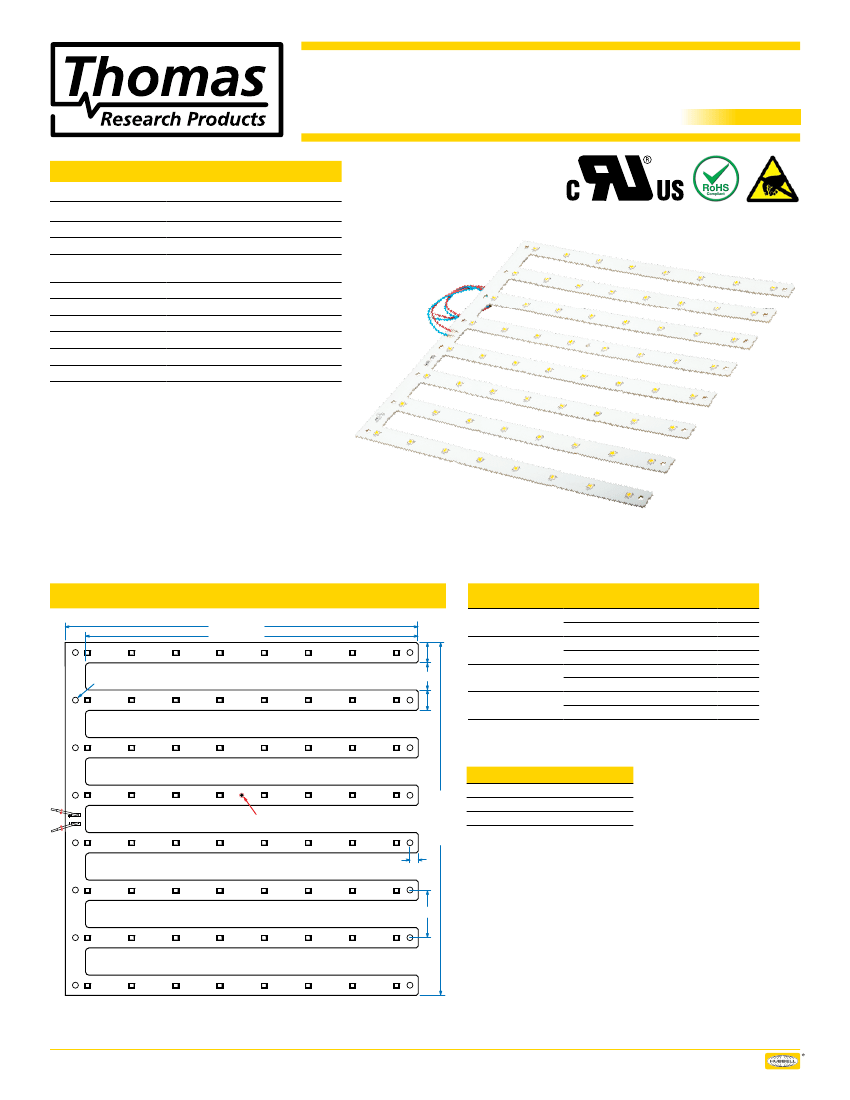

LED Light Engine with 64 Nichia LEDs
Specifications
Driver Type:
Drive Current:
Nom. Forward Voltages:
Total Board Power:
Life:
Max Junction Temp:
Max Test Point Temp:
Operating Temp:
Storage Temp:
Viewing Angle (FWHM):
CRI:
Constant-Current
700mA Nominal
22.5V
16.7W Nominal
50,000 Hrs @70% lumen maint.,
if used as specified (current & heat)
90°C
80°C
-40ºC to +60ºC Ambient
-40ºC to +80ºC
120° Lambertian distribution
83 typical
10.2” Fingerboard Module
Rev 8-10-2017
ECOSYSTEM
classic
Intelligent Device
• Constant-Current DC Array, 8 LED Series x 8 Parallel Strings
• Designed for easy use in standard luminaires
• Tight LED pitch eliminates pixelization
• Color: ¼ ANSI Binning, 3 Step MacAdam Ellipse
• Suggested Applications: Surface-mount, Recessed or Sus-
pended lighting
• Customizable: Engines can be modified to your application.
Contact us.
• Engineered by Norlux
• 5 yr. Warranty
10.2 Inch Fingerboard DC LED Module
Dimensions
10.20 [259.08]
9.61 [244.094]
LED
LED
LED
LED
LED
LED
LED
LED
Model
Color
Temp
(K)
3000
3500
4000
5000
Total
Current
(mA)
350
700
350
700
350
700
350
700
Total Board
Power
(W)
7.9
16.7
7.9
16.7
7.9
16.7
7.9
16.7
Lumens
(± 15%)
1,134
2,180
1,190
2,215
1,221
2,353
1,259
2,426
Board
LPW
144
131
151
137
155
141
159
145
0.59
[14.99]
98006
98007
98008
98033
Ø 0.17 [4.32] (16x)
LED
LED
LED
LED
LED
LED
LED
0.79 [20.07]
LED
0.59
[14.99]
LED
LED
LED
LED
LED
LED
LED
LED
Connectivity Options
Suffix
(blank)
-01
-02
Connection
12 IN, #22 AWG Stranded Leads
No Leads
Push-in Connectors
10.20 [259.08]
LED
LED
LED
LED
LED
LED
LED
LED
DC IN
Red (+) 12” #22AWG
Blue (-) 12” #22AWG
LED
LED
LED
LED
Tc
LED
LED
LED
LED
For Poke-In Connectors, use #24-18 AWG
stranded or solid wire
All holes, both sides: 0.25 [6.35] typical
LED
LED
LED
LED
LED
LED
LED
LED
1.37 [34.8] typical
LED
LED
LED
LED
LED
LED
LED
LED
Height: 0.062 [1.57] FR-4 PCB, 0.020 [0.51] LEDs, 0.082 [2.08] TOTAL
LED
LED
LED
LED
LED
LED
LED
LED
IN [mm]
Drawing N0900-0161-R02
MADE
IN USA
Of Imported And Domestic Components
© 2017 Thomas Research Products. Specifications subject to change without notice.
Pg 1 of 2
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
10.2” Fingerboard Module
LED Light Engine
4000K
3 Step Macadams Ellipse
X
0.3783
0.3909
0.3746
0.3864
ECOSYSTEM
classic
Intelligent Device
CIE Chromaticity Coordinates
3000K
3 Step Macadams Ellipse
X
0.4325
0.4452
0.4244
0.4362
3500K
3 Step Macadams Ellipse
X
0.4045
0.4189
0.3989
0.412
5000K
3 Step Macadams Ellipse
X
0.3408
0.3485
0.3416
0.3499
Y
0.4101
0.4146
0.3923
0.3965
Y
0.3975
0.4044
0.3819
0.3875
Y
0.3836
0.3906
0.3687
0.3757
Y
0.3461
0.3520
0.3585
0.3644
1.20
1.15
1.10
1.05
1.00
0.95
0.90
0.85
0.80
0
Relative Luminous Flux / Tc Temperature
Compatible TRP Drivers:
These are all compatible with this module. Choose the best driver for your application.
•
LED12W-36-C0350
• LED17W-036-C0470
• LED17W-024-C0700
• LED20W-057-C0350
• LED20W-057-C0350-D
• LED20W-43-C0460
• LED20W-43-C0460-D
• LED20W-40-C0500
• LED20W-40-C0500-D
• LED20W-36-C0550
• LED20W-36-C0550-D
• LED20W-28-C0700
• LED20W-28-C0700-D
• LED20W-40-C0350-LE
• LED20W-40-C0350-TE
• LED20W-40-C0500-LE
• LED20W-40-C0500-TE
• LDC25W-072-C0350
• LDC25W-048-C0450
• LED25W-028-C0350
• LED25W-028-C0350
• LED25W-062-C0400
• LED25W-062-C0400-D
• LED25W-056-C0450
• LED25W-056-C0450-D
• LED25W-040-C0450
• LED25W-040-C0450-D
• LED25W-040-C0620
• LED25W-040-C0620-D
• LED25W-48-C052-LE
• LED25W-48-C052-TE
• LED25W-36-C0700-HL-SD
• LED25W-36-C0700-LE
• LED25W-36-C0700-TE
• LED30W-066-C0450
• LED30W-066-C0450-D
• LED30W-42-C0700
• LED30W-42-C0700-D
• LED35W-054-C0700
• LED35W-054-C0700-D
• LED40W-054-C0700
• LED40W-054-C0700-D
• LED50W-72-C0700
• LED50W-72-C0700-D
20
40
Tc
(°C)
60
80
100
65mA/LED
120
Step Dimming:
This Light Engine can be step-dimmed, with a recommended
TRP dimmable driver and SD series step-dimming module.
See the SD2 or SD3 data sheet for wiring information.
Series/Parallel Configurations
Parallel:
The positive and negative of one board is
connected to the respective positive and
negative of the next. Current adds, so the
supply must be 2x the current
for 2 boards.
Series:
The negative of one board is connected to
the positive of the next. Voltage adds, so
the supply must be 2x the voltage
for 2 boards.
Parallel
Constant
Current
Driver
Series
Constant
Current
Driver
Maximum Run Lengths
The max number of boards wired in a chain
(series)
is limited by the max
current rating of the first board wired to the driver. The sum of the board
currents, in the chain, funnels through the first board. Multiple chains can
connect directly to the power supply in parallel. See table
for max chain length.
Product
Fingerboard
Series/Parallel
Series
Max Allowable Boards
High Current
(Nom)
Low Current
Thermal Application Notes
This board requires additional heat sinking to run above 70ºC ambient
at nominal specifications. Heat sink is also required when operated above
specified drive currents.
Maximum Current
Max Current: 1440mA
Voltage at max current: 27V, Power at max current: 38.9W
The total maximum current reflects the LED maximum forward current only,
without considering thermal needs. Driving the LEDs this hard will likely
violate their thermal limits, depending on the application.
Tc point must re-
main at or below the max temperature, or the warranty will be voided.
Temperature is directly correlated to LED current.
4
9
Mounting Notes
The LED assembly is supplied with mounting holes, per the dimensional
drawing. It is important to mount the board in such a way as to maintain the
Tc point below the max. The steady state thermals in application will dictate
if the board needs to be mounted directly to metallic housing and/or include
a thermal pad. For example fully enclosed recessed fixture will require better
thermal mounting than an open air pendant.
Static Sensitive Device
Handle only at static-safe work stations.
Packaging
50 per box standard.
Pg 2 of 2
© 2017 Thomas Research Products. Specifications subject to change without notice.
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
