7514B2-4: Descriptionlight pipe clear 4 pos; CategoryLED optoelectronic/LED; File Size180KB，1 Pages; ManufacturerCommunications; Environmental Compliance

Download Datasheet Parametric Compare View All

7514B2-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7514B2-4	-	-	View	Buy Now

7514B2-4 Overview

light pipe clear 4 pos

7514B2-4 Parametric

Parameter Name	Attribute value
Datasheets
7511G, 7514B Series
Standard Package	1,000
Category	Optoelectronics
Family	Optics - LEDs - Light Pipes
Col	Cle
Configurati	4 Wide
Type	Rigid
Mounting Type	Board Mount, Press Fit, Right Angle
Lens Style/Size	Round with Flat Top, 3mm
Other Names	L71500

Preview

Download Datasheet

View All

engineered to light up your design

www.vcclite.com

1.800.522.5546

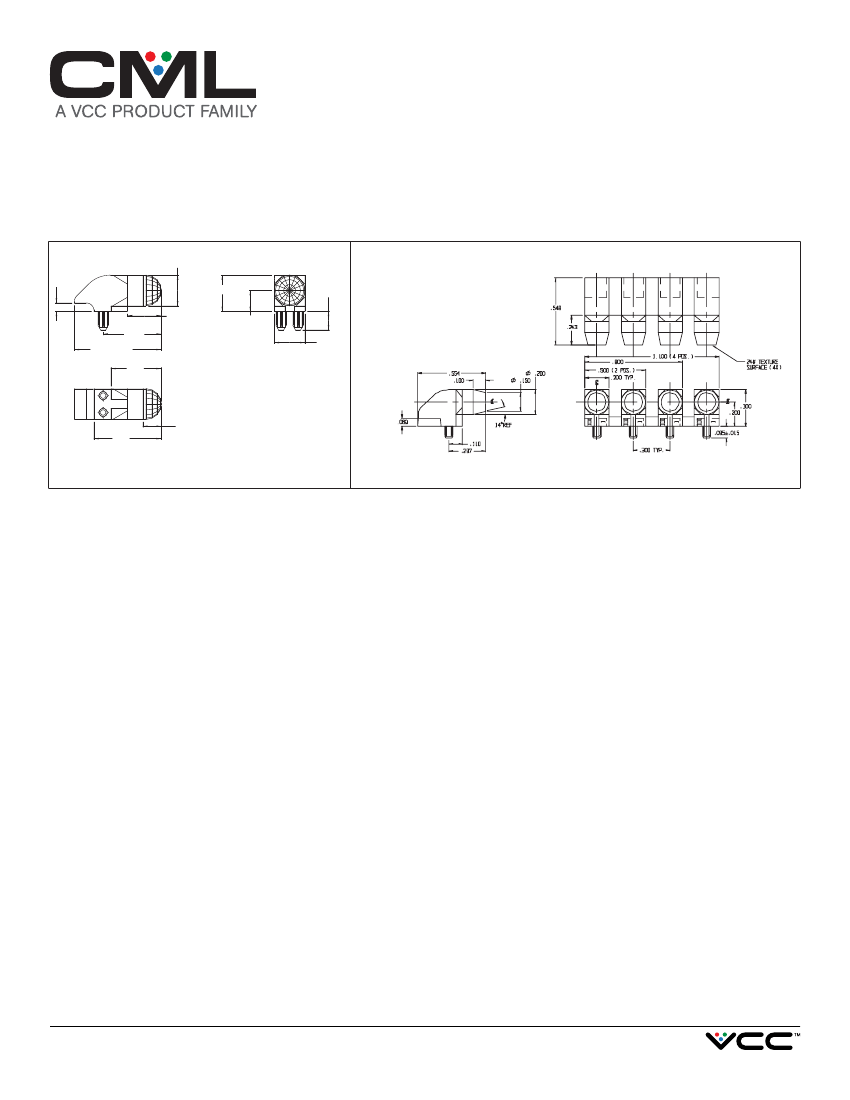

7514B/7511G Series Bright Pipes™ Optical Lightpipes

Description and Features

.200

.055

.220

.378

.565±.010

.328

C ML

.236 REF.

.136

.110 TYP.

7514B2-4

.200

.438

.120 SPHERICAL END

MATTE FINISH

CHARMILLE #24

All dimensions in inches.

7511G

• Precision engineered with

ray tracing

for bright, optically precise even

indication and attractive appearance.

• ESD protection from circuitry for exceptional reliability.

• High contrast and wide viewing angle for greater visibility.

• Available in a variety of colors for added contrast and aesthetics.

• Parts inserted after reflow to permit LED pad inspection before assembly.

• Compliance to UL94V-0.

• Low profile for height constrained applications.

• Large lens provides high visibility.

• 7511G

Series

designed for use with 7012X SMT LED.

Refer to “Mounting Hole Pattern 2.pdf”

CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

7514B2-4 Related Products

	7514B2-4	7511G2	7511G7	7514B2-2	7511G5	7511G1
Description	light pipe clear 4 pos	light pipe clear 1 pos	light pipe clear yellow	light pipe 4wide	light pipe clear green tint	light pipe clear red tint
Standard Package	1,000	1,000	100	100	1,000	1,000
Category	Optoelectronics	Optoelectronics	Optoelectronics	Optoelectronics	Optoelectronics	Optoelectronics
Family	Optics - LEDs - Light Pipes	Optics - LEDs - Light Pipes	Optics - LEDs - Light Pipes	Optics - LEDs - Light Pipes	Optics - LEDs - Light Pipes	Optics - LEDs - Light Pipes
Col	Cle	Cle	Yellow	Cle	Gree	Red
Configurati	4 Wide	Single	Single	4 Wide	Single	Single
Type	Rigid	Rigid	Rigid	Rigid	Rigid	Rigid
Mounting Type	Board Mount, Press Fit, Right Angle	Board Mount, Press Fit, Right Angle	*	*	*	*
Lens Style/Size	Round with Flat Top, 3mm	Round with Domed Top, 5mm	Round with Domed Top, 5mm	Round with Flat Top, 3mm	Round with Domed Top, 5mm	Round with Domed Top, 5mm
