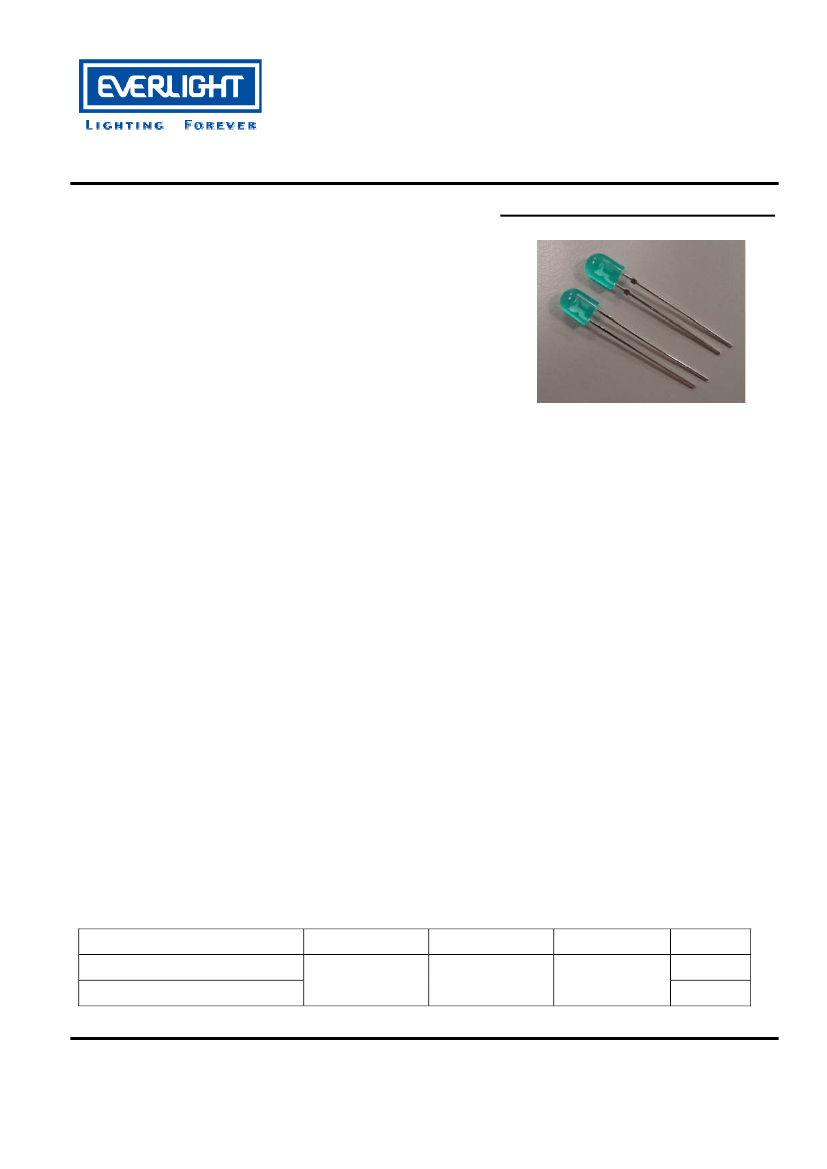

Technical Data Sheet
5484BN/BADC-AGJA/X/MS
Features
․High
luminous intensity output
․Oval
Shape
․Well
defined spatial radiation
․Wide
viewing angle (2θ
1/2
) : 110
o
/ 40
o
․UV
resistant epoxy
․The
product itself will remain within RoHS compliant version
Descriptions
․This
precision optical performance oval LED is specifically
designed for passenger information signs
․This
lamp has matched radiation patterns with red and green
mixing color applications
Applications
․Color
graphic signs
․Message
boards
․Variable
message signs (VMS)
․Commercial
outdoor advertising
Device Selection Guide
LED Part No.
5484BN/BADC-AGJA/MS
5484BN/BADC-AGJA/P/MS
Chip Material
InGaN
Emitted Color
Blue
Lens Color
Blue Diffused
Stopper
No
Yes
Everlight Electronics Co., Ltd.
Device Number : DLE-0001237
http\\:www.everlight.com
Prepared date:04-15-2009
Rev 1
Page: 1 of 9
Prepared by: Grace Shen
Technical Data Sheet
5484BN/BADC-AGJA/X/MS

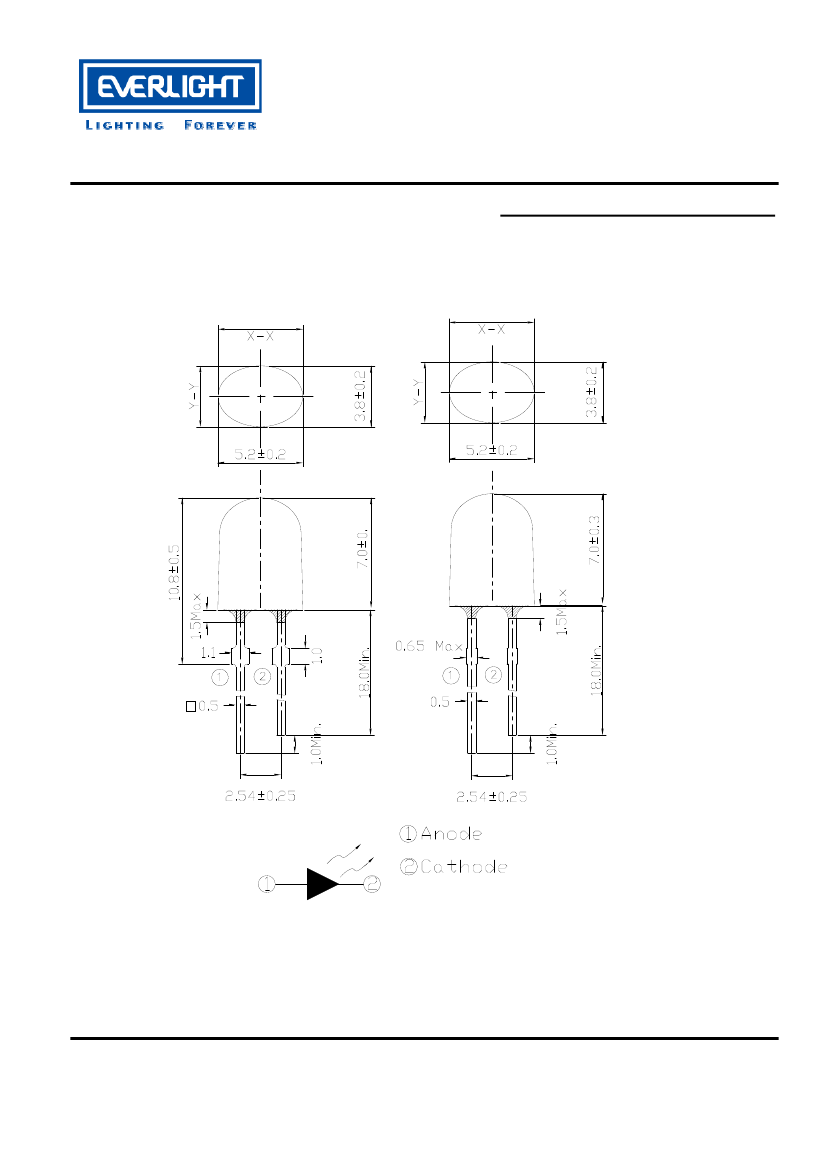

Package Dimensions
Stopper Type
No Stopper Type
Notes:
․All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
․Protruded
resin under flange is 1.5mm Max LED.
․Bare
copper alloy is exposed at tie-bar portion after cutting.
Everlight Electronics Co., Ltd.
Device Number : DLE-0001237
http\\:www.everlight.com
Prepared date:04-15-2009
3
Rev 1
Page: 2 of 9
Prepared by: Grace Shen
Technical Data Sheet
5484BN/BADC-AGJA/X/MS
Absolute Maximum Rating (T
a
=25℃)
Parameter
Forward Current
Pulse Forward Current
(Duty1/10@ 1KHz)
Operating Temperature
Storage Temperature
Soldering Temperature
Power Dissipation
Reverse Voltage
Electrostatic Discharge
Symbol
I
F
I
FP
T
opr
T
stg
T
sol
P
d
V
R
ESD
Absolute Maximum Rating
30
100
-40 ~ +85
-40 ~ +100
260
100
5
1K
Unit
mA
mA
℃
℃
℃
mW
V
V
Notes: Soldering time≦5 seconds.
Electro-Optical Characteristics (T
a
=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Half width
Forward Voltage
Reverse Current
Symbol
I
V
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
Min.
720
--
--
465
--
2.8
--
Typ.
--
X:110Y:40
468
--
26
--
--
Max.
1450
--
--
475
--
3.6
50
Unit
mcd
deg
nm
V
μA
Condition
I
F
=20mA
V
R
=5V
Rank Combination (I
F
=20mA)
Rank
Luminous Intensity
G2
720~860
H1
860~1030
H2
1030~1210
J1
1210~1450
Unit:mcd
*Measurement Uncertainty of Luminous Intensity:
±10%
Rank
Dominant Wavelength
1
2
Unit:nm
465~470
470~475
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
Everlight Electronics Co., Ltd.
Device Number : DLE-0001237
http\\:www.everlight.com
Prepared date:04-15-2009
Rev 1
Page: 3 of 9
Prepared by: Grace Shen
Technical Data Sheet
5484BN/BADC-AGJA/X/MS

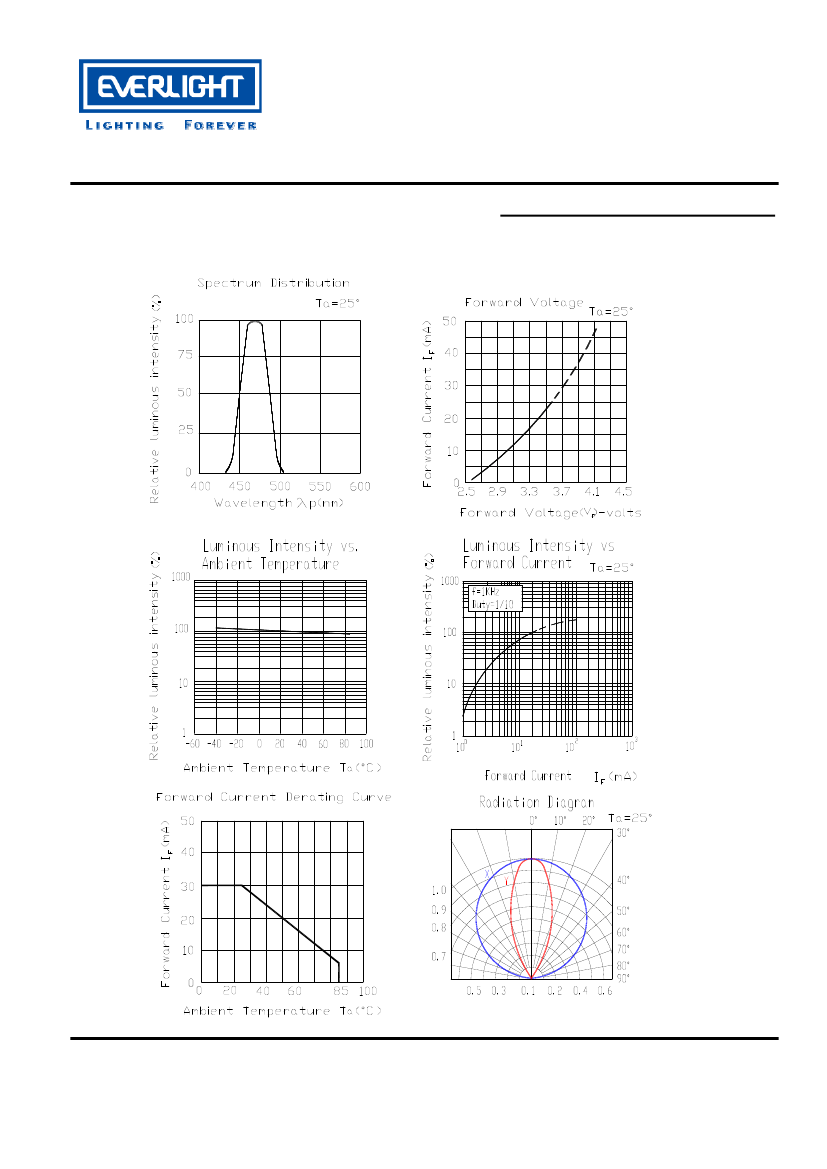

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device Number : DLE-0001237
http\\:www.everlight.com
Prepared date:04-15-2009
Rev 1
Page: 4 of 9
Prepared by: Grace Shen
Technical Data Sheet
5484BN/BADC-AGJA/X/MS

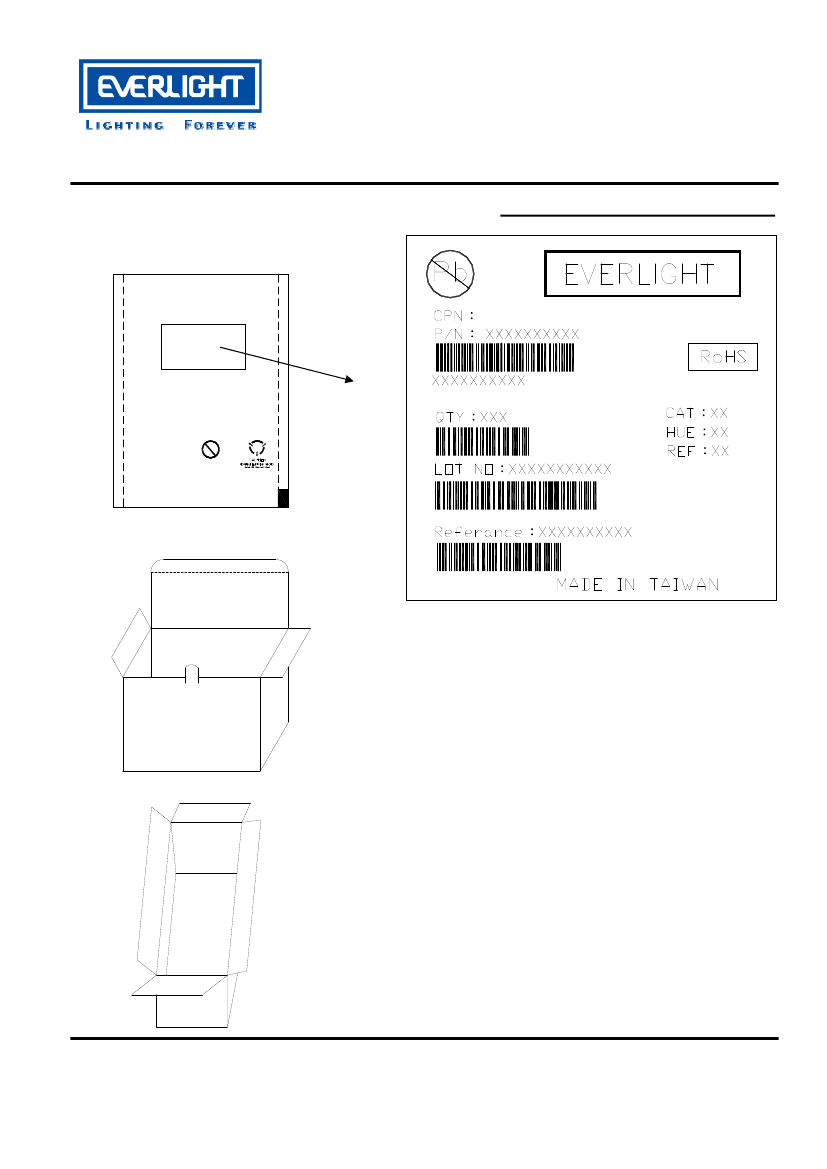

Packing Specification
■
Anti-electrostatic bag
Label
Pb
EL ECTROSTATIC ELECTRONAGNETIC
MAGNETIC OR RADIOACTIVE RELDS
anti-static for 750
■
Inner Carton
■
Label Form Specification
■
Outside Carton
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks of Luminous Intensity and Forward Voltage
HUE: Rank of Dominant Wavelength
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
■
Packing Quantity
1. 500 PCS/1 Bag，5 Bags/1 Inner Carton
2. 10 Inner Cartons/1 Outside Carton
Everlight Electronics Co., Ltd.
Device Number : DLE-0001237
http\\:www.everlight.com
Prepared date:04-15-2009
Rev 1
Page: 5 of 9
Prepared by: Grace Shen
