Part Number: XZFVG14C2
SURFACE MOUNT DISPLAY
Features
●
0.56 inch digit height
●
Robust package
●
Low power consumption
●
Standard configuration: Gray face w/ white
segments
●
Standard Package: 200pcs/ Reel
●
MSL (Moisture Sensitivity Level): 2a
●
RoHS Compliant

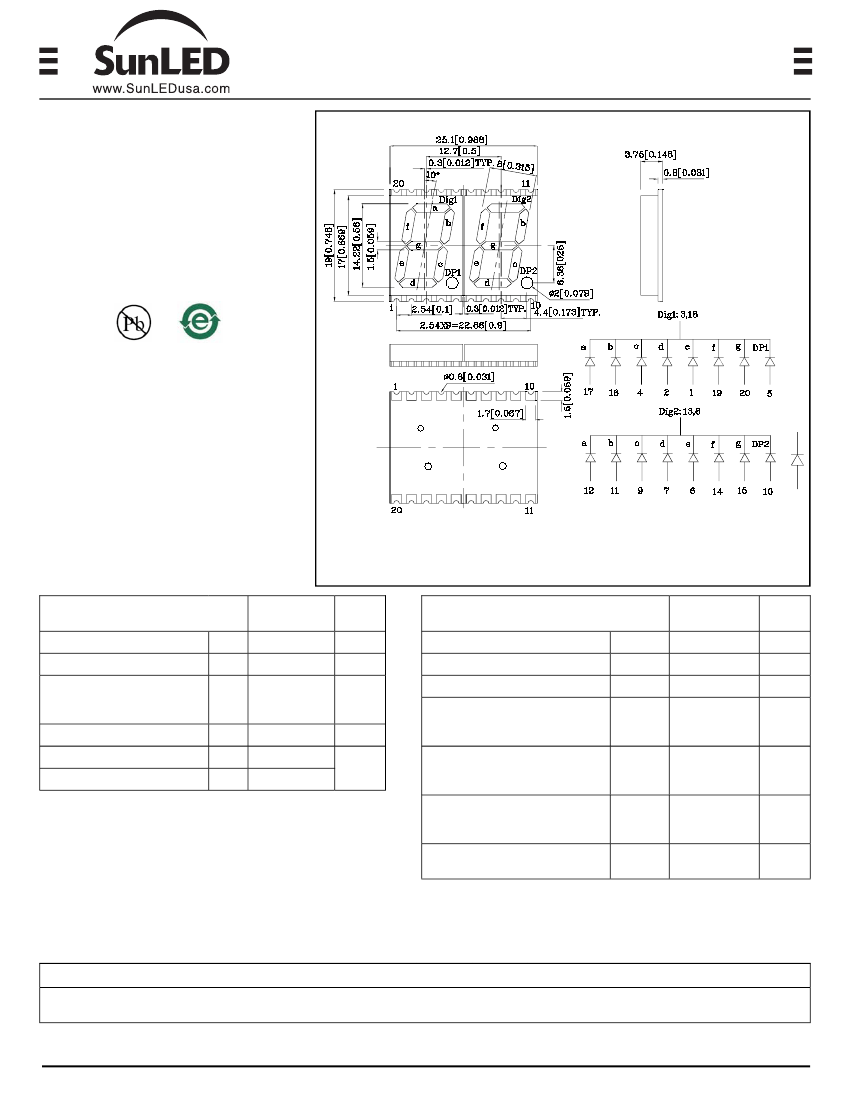

Package Schematics
VG
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. Specifications are subject to change without notice.
3.The gap between the reflector and PCB shall not exceed 0.25mm.
Absolute Maximum Ratings
(T
A
=25°C)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
D
T
A
Tstg
VG
(AlGaInP)
5
30
150
75
-40 ~ +85
-40 ~ +85
Unit
V
mA
mA
mW
°C
Operating Characteristics
(T
A
=25°C)
Forward Voltage (Typ.) (I
F
=10mA)
Forward Voltage (Max.) (I
F
=10mA)
Reverse Current (Max.) (V
R
=5V)
Wavelength of Peak
Emission CIE127-2007* (Typ.)
(I
F
=10mA)
Wavelength of Dominant
Emission CIE127-2007* (Typ.)
(I
F
=10mA)
Spectral Line Full Width
At Half-Maximum (Typ.)
(I
F
=10mA)
Capacitance (Typ.)
(V
F
=0V, f=1MHz)
V
F
V
F
I
R
λP
VG
(AlGaInP)
2
2.5
10
574*
Unit
V
V
uA
nm
λD
570*
nm
△λ
20
nm
C
15
pF
Part
Number
Emitting
Color
Emitting
Material
Luminous Intensity
CIE127-2007*
(I
F
=10mA)
ucd
min.
typ.
24990
4590*
Wavelength
CIE127-2007*
nm
λP
Description
XZFVG14C2
Green
AlGaInP
9000
2200*
574*
Common Cathode,
Rt. Hand Decimal
XDSA9128
V6-X
Layout: Maggie L.
P. 1/4
*Luminous intensity value and wavelength are in accordance with CIE127-2007 standards.
Jan 14,2014
Part Number: XZFVG14C2
SURFACE MOUNT DISPLAY
VG

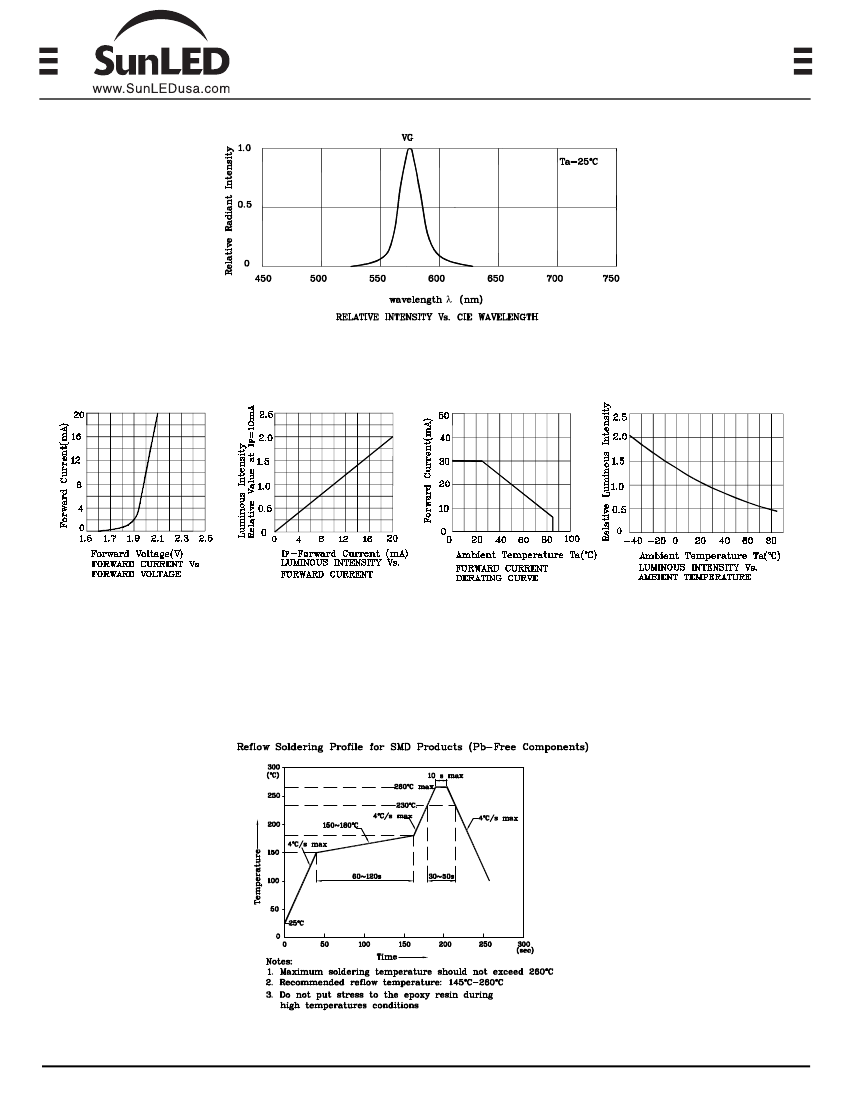

LED is recommended for reflow soldering and
soldering profile is shown below.
Jan 14,2014
XDSA9128
V6-X
Layout: Maggie L.
P. 2/4
Part Number: XZFVG14C2
SURFACE MOUNT DISPLAY

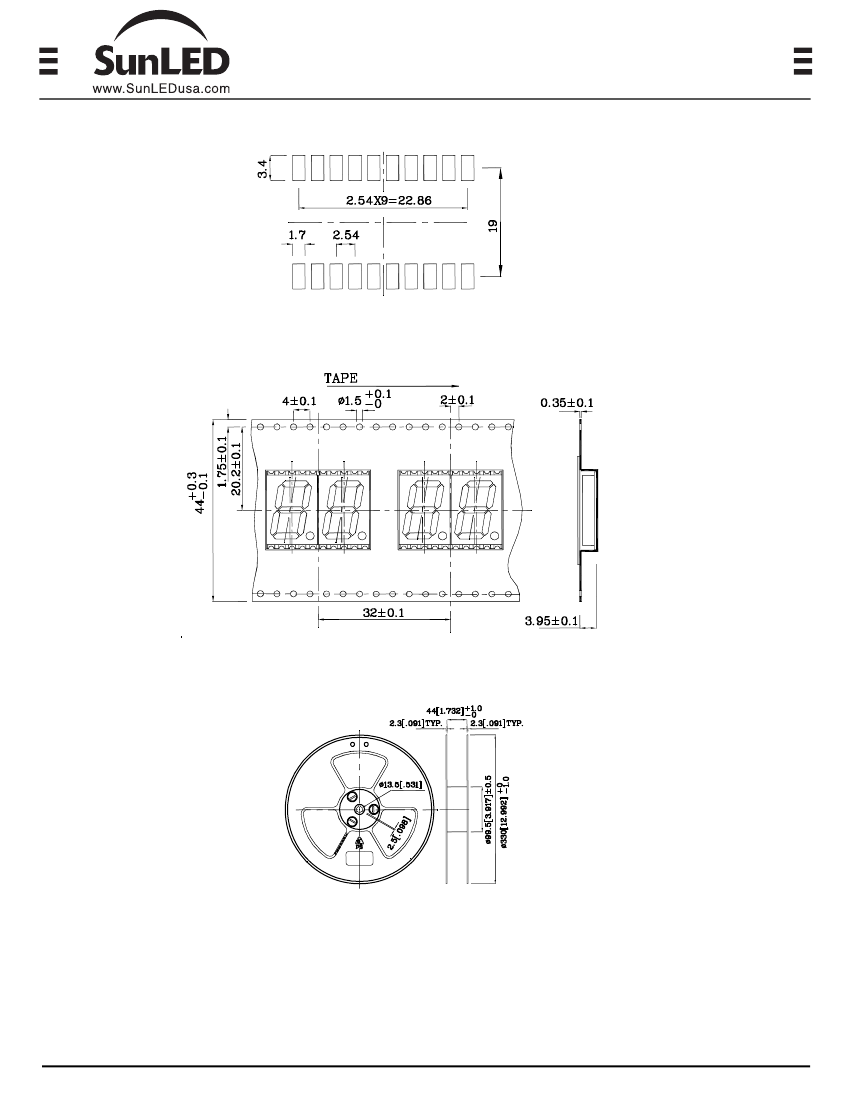

Recommended Soldering Pattern (Units : mm; Tolerance: ±0.15)
Tape Specification (Units : mm)
Reel Dimension
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength), the
typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity / luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Jan 14,2014
XDSA9128
V6-X
Layout: Maggie L.
P. 3/4
Part Number: XZFVG14C2
SURFACE MOUNT DISPLAY

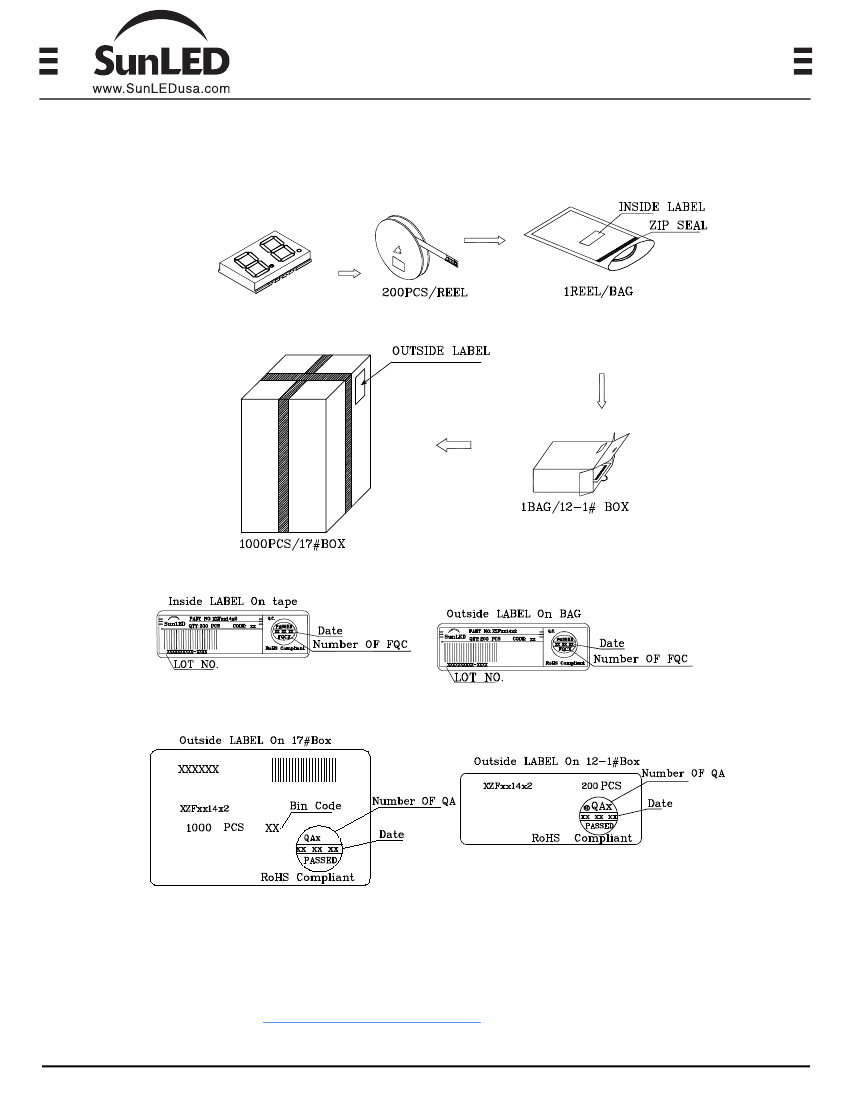

PACKING & LABEL SPECIFICATIONS
TERMS OF USE
1. Data presented in this document reflect statistical figures and should be treated as technical reference only.
2. Contents within this document are subject to improvement and enhancement changes without notice.
3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet.
User accepts full risk and responsibility when operating the product(s) beyond their intended specifications.
4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please
consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life.
5. The contents within this document may not be altered without prior consent by SunLED.
6. Additional technical notes are available at
http://www.SunLEDusa.com/TechnicalNotes.asp
Jan 14,2014
XDSA9128
V6-X
Layout: Maggie L.
P. 4/4
