PDM41024S25L32: DescriptionStandard SRAM, 128KX8, 25ns, CMOS, CQCC32; Categorystorage storage; File Size312KB，8 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

PDM41024S25L32 Overview

Standard SRAM, 128KX8, 25ns, CMOS, CQCC32

PDM41024S25L32 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Reach Compliance Code	unknown
Maximum access time	25 ns
I/O type	COMMON
JESD-30 code	R-XQCC-N32
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC32,.45X.55
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.01 A
Minimum standby current	4.5 V
Maximum slew rate	0.17 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

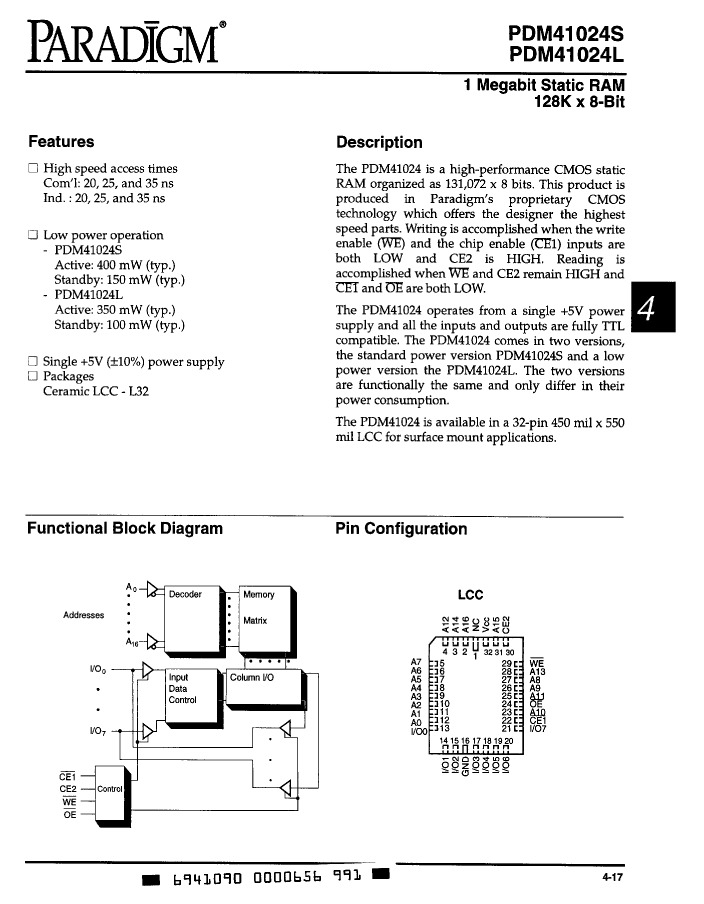

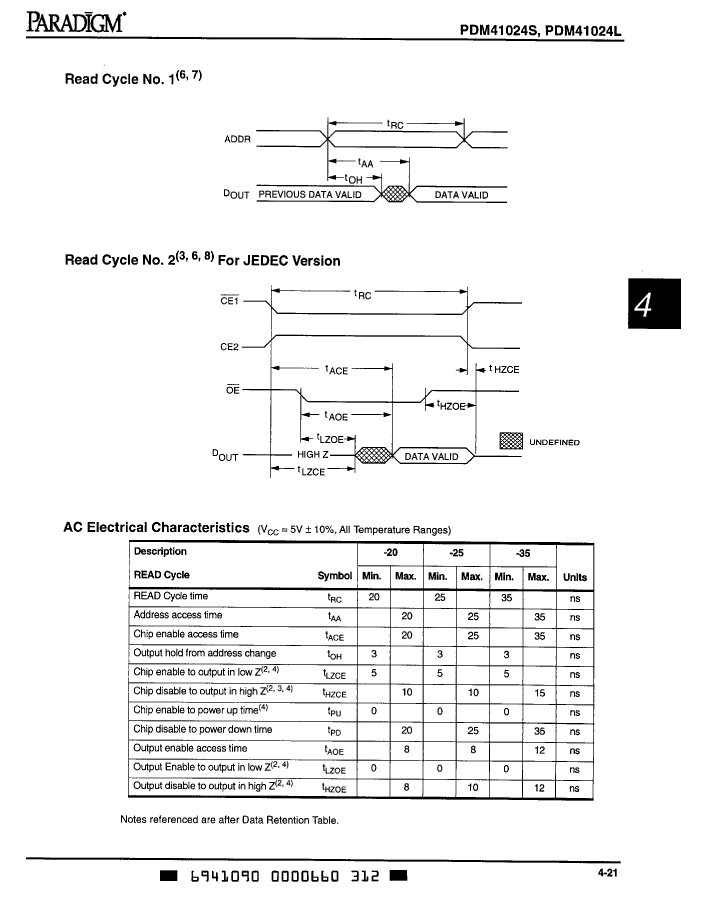

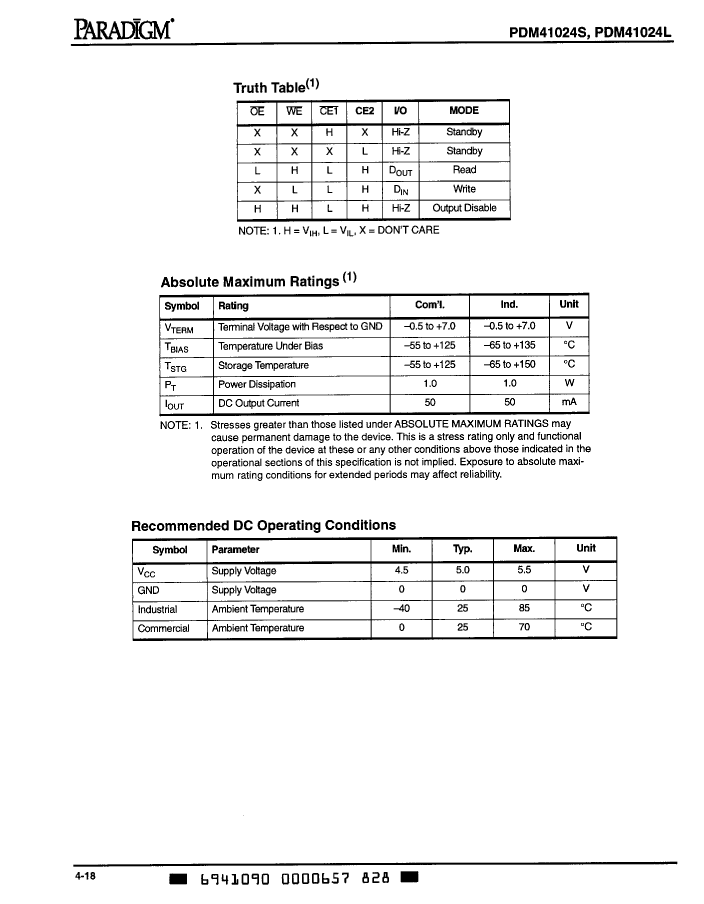

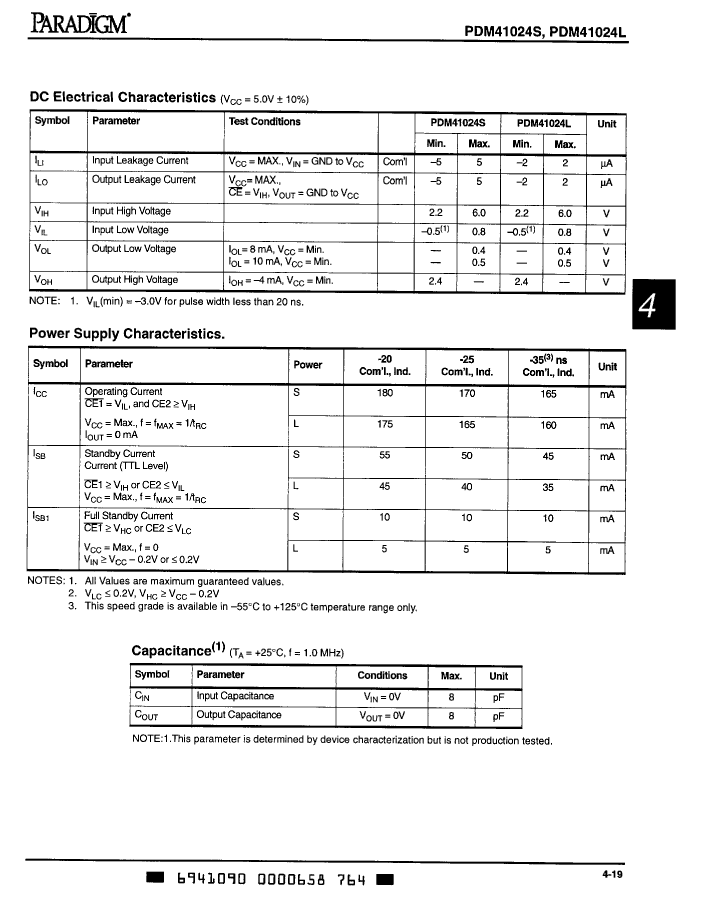

Preview

Download Datasheet

View All

PDM41024S25L32 Related Products

	PDM41024S25L32	PDM41024L20L32I	PDM41024S20L32I
Description	Standard SRAM, 128KX8, 25ns, CMOS, CQCC32	Standard SRAM, 128KX8, 20ns, CMOS, CQCC32	Standard SRAM, 128KX8, 20ns, CMOS, CQCC32
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	IXYS	IXYS	IXYS
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	25 ns	20 ns	20 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-XQCC-N32	R-XQCC-N32	R-XQCC-N32
JESD-609 code	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8
Number of terminals	32	32	32
word count	131072 words	131072 words	131072 words
character code	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-40 °C
organize	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC32,.45X.55	LCC32,.45X.55	LCC32,.45X.55
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.01 A	0.0005 A	0.01 A
Minimum standby current	4.5 V	2 V	4.5 V
Maximum slew rate	0.17 mA	0.175 mA	0.18 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD
