Technical Data Sheet

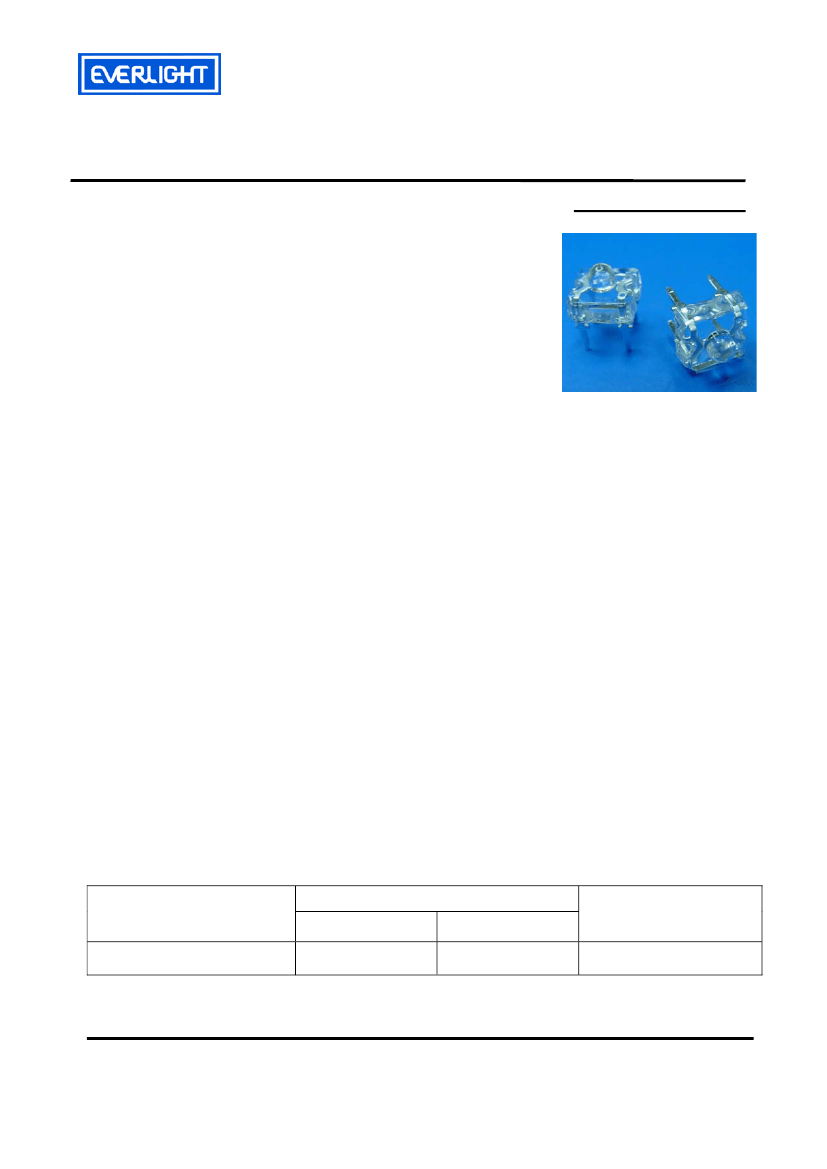

3mm POWER LED
33-01/Y5C-ARTC
Features
. High Flux Output.
. Designed for High Current Operation.
. Low Thermal Resistance.
. Low Profile.
. Packaged in Tubes for Use with Automatic
. Insertion Equipment.
. The product itself will remain within RoHS compliant version.
Descriptions
This revolutionary package design allows the light designer to reduce the number of LEDs
required and provide a more uniform and unique illuminated appearance than with other LED
solutions. This is possible through the efficient optical package design and high-current capabilities.
The low profile package can be easily coupled with reflectors or lenses to efficiently distribute
light and provide the desired light appearance.
Applications
. Automotive Lighting
. Electronic Signs and Signals
. Channel Letter
. Special Lighting application
Device Selection Guide
Chip
Emitted Color
Yellow
Lens Color
Water Clear
PART NO.
33-01/Y5C-ARTC
Material
AlGaInP
Everlight Electronics Co., Ltd.
Device number: DLE-303-010
http:\\www.everlight.com
Established date: 04-30-2007
Rev.1
Page: 1 of 7
Established by: Jim Lin
Technical Data Sheet
3mm POWER LED
33-01/Y5C-ARTC
Package Dimensions
Notes:
1.All dimensions are in millimeters
2.An epoxy meniscus may extend about 1.5mm(0.059") down the leads
3.Tolerances unless dimensions
±0.25mm
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current(Duty 1/10 @ 1KHZ)
Operating Temperature
Storage Temperature
Soldering Temperature(T=5 sec)
LED Junction Temperature
Power Dissipation
Electrostatic Discharge
Reverse Voltage
Symbol
I
F
I
FP
T
opr
T
stg
T
sol
T
j
P
d
ESD
V
R
Rating
70
160
-40 ~ +100
-40 ~ +100
260 ± 5
125
220
2000
5
Units
mA
mA
℃
℃
℃
℃
mW
V
V
Everlight Electronics Co., Ltd.
Device number: DLE-303-010
http:\\www.everlight.com
Established date: 04-30-2007
Rev.1
Page: 2 of 7
Established by: Jim Lin
Technical Data Sheet
3mm POWER LED
33-01/Y5C-ARTC
Electro-Optical Characteristics (Ta=25℃)
Parameter
Total Flux
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Φv
2θ1/2
λp
λd
△λ
V
F
I
R
Min.
4500
----
----
586
----
2.1
----
Typ.
6250
100
592
590
15
2.6
----
Max.
9000
----
----
598
----
3.1
10
Condition
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
V
R
=5V
Unit
mlm
deg
nm
nm
nm
V
µA
Rank
33-01/Y5C-ARTC
(1)
V
F
(V)
Bin
3
4
5
6
7
Min
2.10
2.30
2.50
2.70
2.90
Max
2.30
2.50
2.70
2.90
3.10
(1)
(2)
(2)
λd(nm)
(3)
(3)
Φv(mlm)
Max
590
594
598
Bin
R
S
T
Min
4500
5650
7150
Max
5650
7150
9000
Bin
1
2
3
Min
586
590
594
*Measurement Uncertainty of Forward Voltage：±0.1V
*Measurement Uncertainty of Luminous Intensity:
±15%
*Measurement Uncertainty of Dominant Wavelength
±1.0nm
Everlight Electronics Co., Ltd.
Device number: DLE-303-010
http:\\www.everlight.com
Established date: 04-30-2007
Rev.1
Page: 3 of 7
Established by: Jim Lin
Technical Data Sheet
3mm POWER LED
33-01/Y5C-ARTC

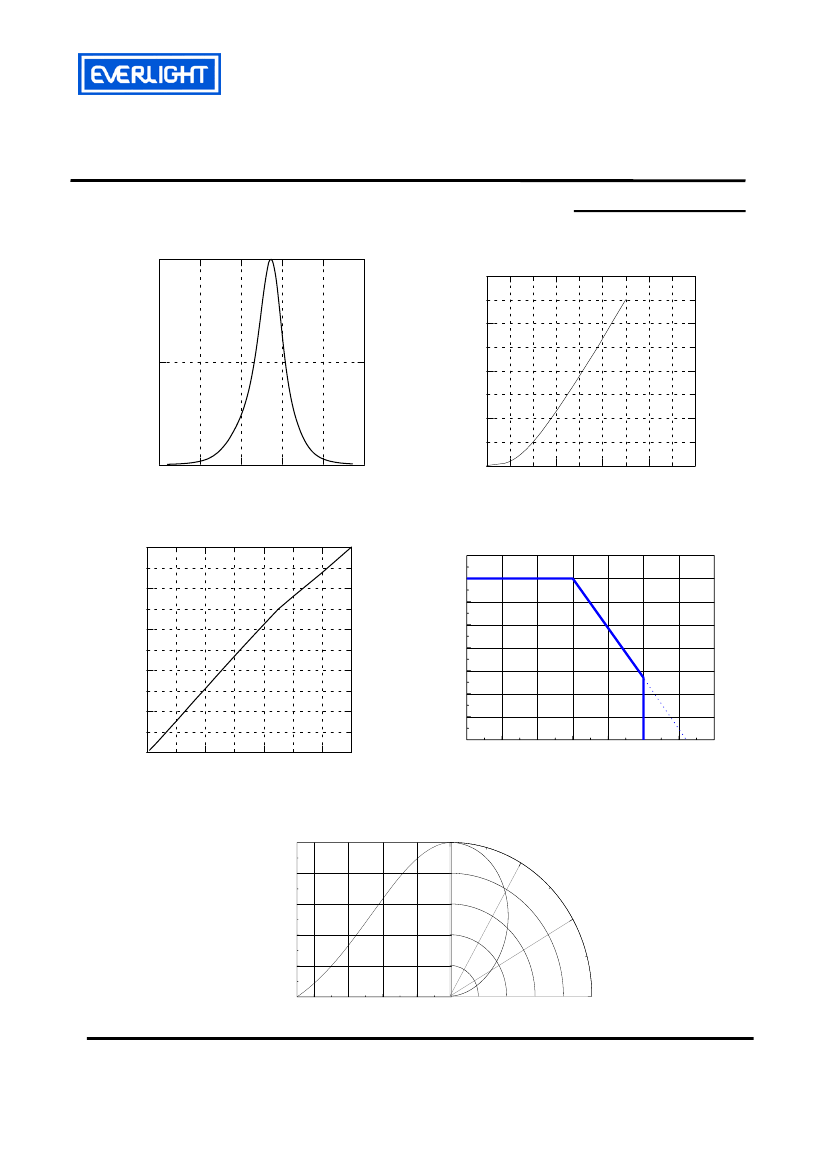

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.00
80
Forward Current vs. Forward Voltage
RELATIVE INTENSITY
FORWARD CURRENT (mA)
60
0.50
40
20
0.00
540
560
580
600
620
WAVELENGTH (nm)
640
0
1.40 1.60 1.80 2.00 2.20 2.40 2.60 2.80 3.00 3.20
FORWARD VOLTAGE (V)
Relative Intensity vs. Forward Current
1.00
Forward Current vs. Ambient Temp.
80
70
MAXMUM DC CURRENT(mA)
0.80
RELATIVE INTENSITY
60
50
40
30
20
10
0
0
20
40
60
80 100 120 140
AMBIENT TEMPERATURE (C)
0.60
0.40
0.20
0.00
0
10
20
30
40
50
60
FORWARD CURRENT (mA)
70
Relative Intensity vs. Angle Displacement
0
1.0
Relative Intensity (a.u.)
30
0.8
0.6
0.4
0.2
0.0
-80 -60 -40 -20
0
Viewing angle (degree)
90
60
Everlight Electronics Co., Ltd.
Device number: DLE-303-010
http:\\www.everlight.com
Established date: 04-30-2007
Rev.1
Page: 4 of 7
Established by: Jim Lin
Technical Data Sheet
3mm POWER LED
33-01/Y5C-ARTC
Packing Quantity Specification
(1) 60 pcs/1 tube, 30 tubes/1 small inside box, 12 small inside boxes/1 outside box
(2) 60 pcs/1 tube, 105 tubes/1 big inside box, 4 big inside boxes/1 outside box
Label Form Specification
(1)Tube Label Form
PART NO:
33-01/Y5C-ARTC
LOT NO:
QTY: 60
CAT:
(2)Box Label Form
EVERLIGHT
CPN:
P/N:
RoHS
33-01/Y5C-ARTC
QTY：
LOT NO：
MADE IN TAIWAN
CAT:
HUE:
REF:
PART NO: Everlgiht’s Production Number
QTY: Packing Quantity
LOT NO: Lot Number
CAT: Ranks of Forward Voltage, Dominant Wavelength and Total Flux
CPN: Customer’s Production Number
P/N : Production Number
HUE: Reference
REF: Reference
MADE IN TAIWAN: Production Place
Everlight Electronics Co., Ltd.
Device number: DLE-303-010
http:\\www.everlight.com
Established date: 04-30-2007
Rev.1
Page: 5 of 7
Established by: Jim Lin
