Technical Data Sheet
5.0 mm Round LED (T-1 3/4 )
3384-15UTC/S400-X10
Features
․Popular
T-1 colorless 5mm package.
․High
luminous power.
․Typical
chromaticity coordinates x=0.29, y=0.28
according to CIE1931.
․Bulk,
available taped on reel.
․Pb
free .
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
series is designed for application required
high luminous intensity.
․The
phosphor filled in the reflector converts the
blue emission of InGaN chip to ideal white.
Applications
․Outdoor
Displays
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
PART NO.
3384-15UTC/S400-X10
Chip
Material
Emitted Color
InGaN/Sapphire
White
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000359
http://www.everlight.com
Established date:
Rev: 1
Page:
Senajun
1 of 6
2008/11/18 Established by:
3384-15UTC/S400-X10

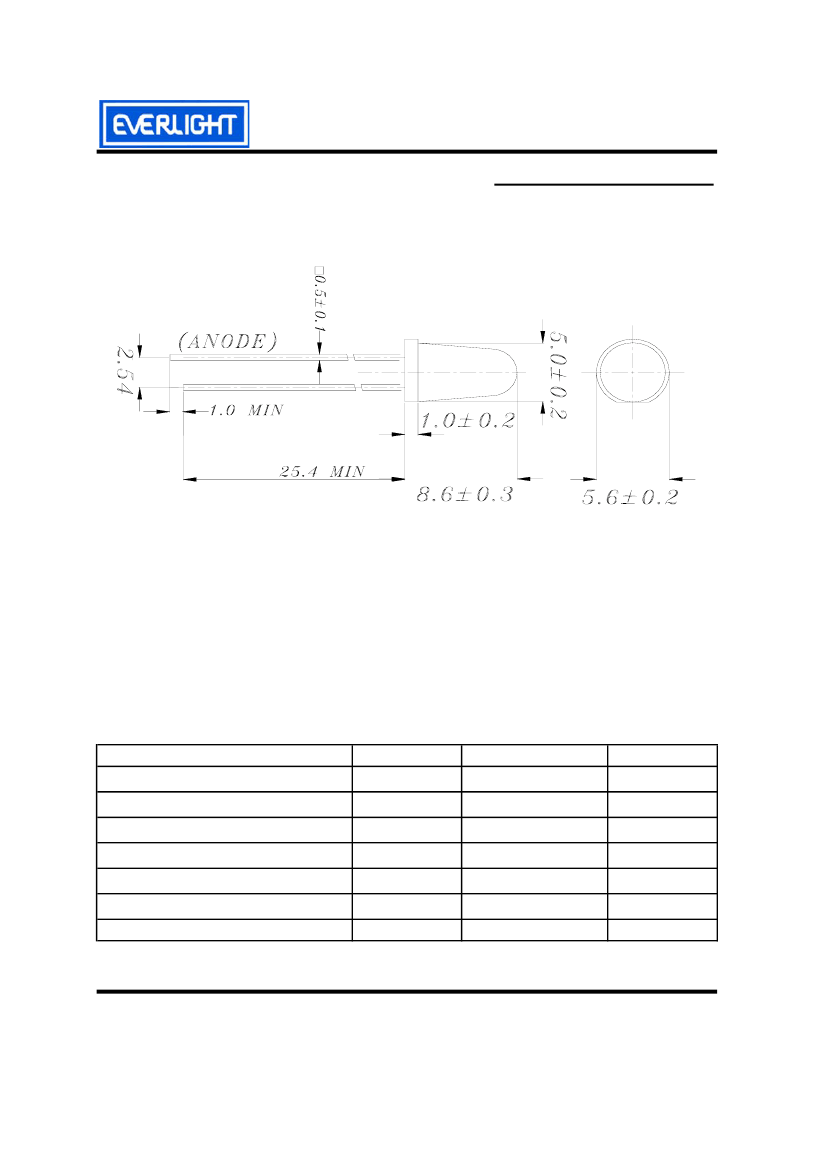

Package Dimensions
Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (T=5 sec)
Power Dissipation
Electrostatic Discharge
Symbol
I
F
V
R
T
opr
T
stg
T
sol
P
d
ESD
Rating
25
5
-30 ~ +85
-40 ~ +100
260 ± 5
110
150
Unit
mA
V
℃
℃
℃
mW
V
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000359
http://www.everlight.com
Established date:
Rev: 1
Page:
Senajun
2 of 6
2008/11/18 Established by:
3384-15UTC/S400-X10
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Chromaticity
Coordinates
Symbol
V
F
I
R
I
V
2θ
1/2
x
y
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
---
Min.
--
--
8000
--
--
--
Typ.
3.2
--
10000
20
0.29
0.28
Max.
4.0
50
--
--
--
--
Units
V
uA
mcd
deg
--
--
Luminous Intensity Combination (mcd at 20mA)
I
V
Ranks
Min.
Max.
Z1
8000
10000
Z2
10000
13000
Z3
13000
17000
Measurement Uncertainty of Luminous Intensity: ±15%
Forward Voltage Combination (V at 20mA)
V
F
Ranks
Min.
Max.
1
3.0
3.2
2
3.2
3.4
3
3.4
3.6
4
3.6
3.8
5
3.8
4.0
Measurement Uncertainty of Forward Voltage：±0.05V
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000359
http://www.everlight.com
Established date:
Rev: 1
Page:
Senajun
3 of 6
2008/11/18 Established by:
3384-15UTC/S400-X10
CIE Chromaticity Diagram (I
F
=20mA，Ta=25℃)
Measurement uncertainty of the color coordinates：±0.01
Note:
1.The setting and inspection for this device please flow the area of x y chromaticity
diagram.
2.Take the upper and lower point for x-axis and y-axis and then put it same parts,
x-axis divide into 9 section, y-axis divide into 7 section, total is 63 bins.
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000359
http://www.everlight.com
Established date:
Rev: 1
Page:
Senajun
4 of 6
2008/11/18 Established by:
3384-15UTC/S400-X10

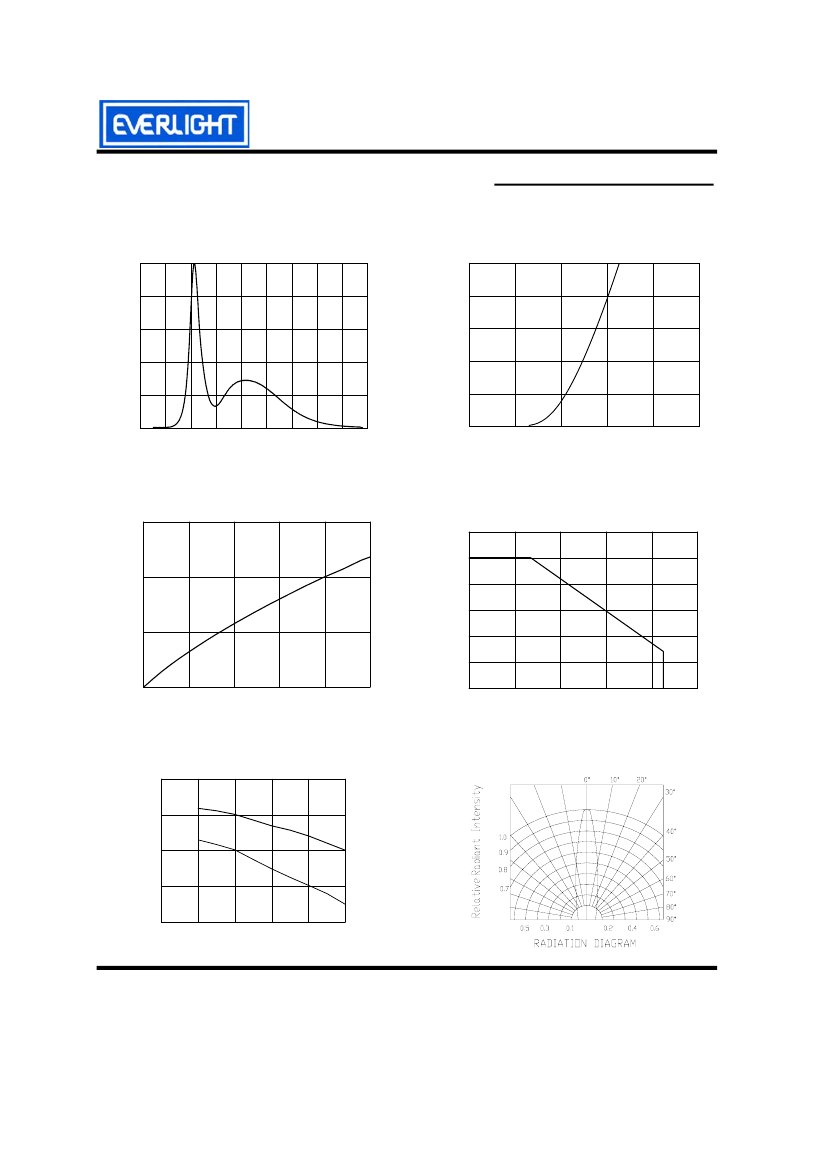

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.0
Forward Current vs. Forward Voltage
25
Relative Intensity(a.u.)
Forward Current(mA)
0.8
20
15
10
5
0
2.0
0.6
0.4
0.2
0.0
350
400
450
500
550
600
650
700
750
800
2.5
3.0
3.5
4.0
4.5
Wavelength(nm)
Forward Voltage(V)
Relative Intensity vs. Forward Current
1.5
Forward Current vs. Ambient Temp.
30
Relative Intensity(a.u.)
1.0
Forward Current(mA)
0
5
10
15
20
25
25
20
15
10
5
0
0.5
0.0
0
20
40
60
80
O
100
Forward Current(mA)
Ambient Temperature Ta( C)
Chromaticity Coordinate vs. Forward Current
0.300
Relative Intensity vs. Angle Dispacemen
Relative Intensity(a.u.)
0.290
x
y
0.280
0.270
0.260
0
10
20
30
40
50
Forward Current(mA)
Everlight Electronics Co., Ltd.
Device Number:
DLE-0000359
http://www.everlight.com
Established date:
Rev: 1
Page:
Senajun
5 of 6
2008/11/18 Established by:
