PXD3048WS15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> PXD3048WS15

PXD3048WS15: Descriptionconv DC-DC pcb 15v 2A 30w; Categorysemiconductor Power management; File Size267KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PXD3048WS15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PXD3048WS15	-	-	View	Buy Now

PXD3048WS15 Overview

conv DC-DC pcb 15v 2A 30w

PXD3048WS15 Parametric

Parameter Name	Attribute value
Datasheets
PXD30W Series
Standard Package	1
Category	Power Supplies - Board Mou
Family	DC DC Converters
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (Max)	2A
Power (Watts) - Manufacture Series	30W
Voltage - Isolati	1.6kV (1600V)
Features	Remote On/Off, OCP, OVP, SCP
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimensi	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Operating Temperature	-40°C ~ 85°C
Efficiency	91%
Power (Watts) - Max	30W

Preview

Download Datasheet

View All

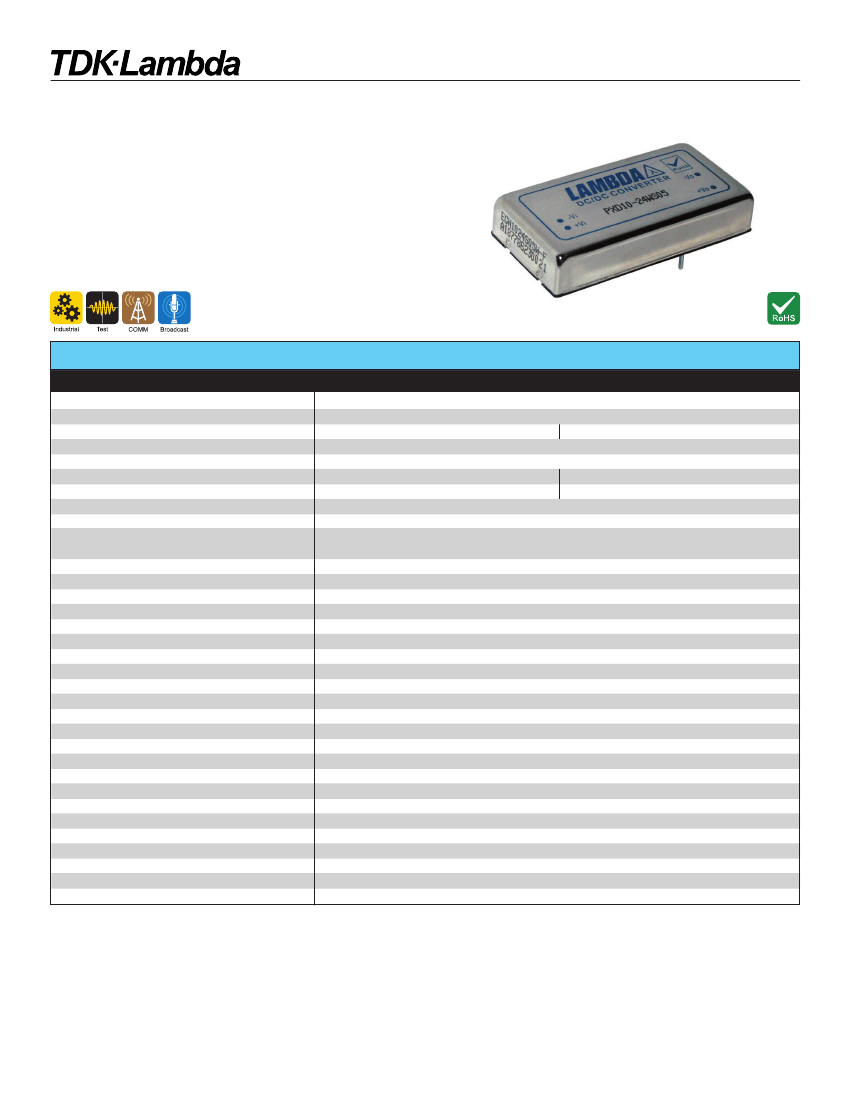

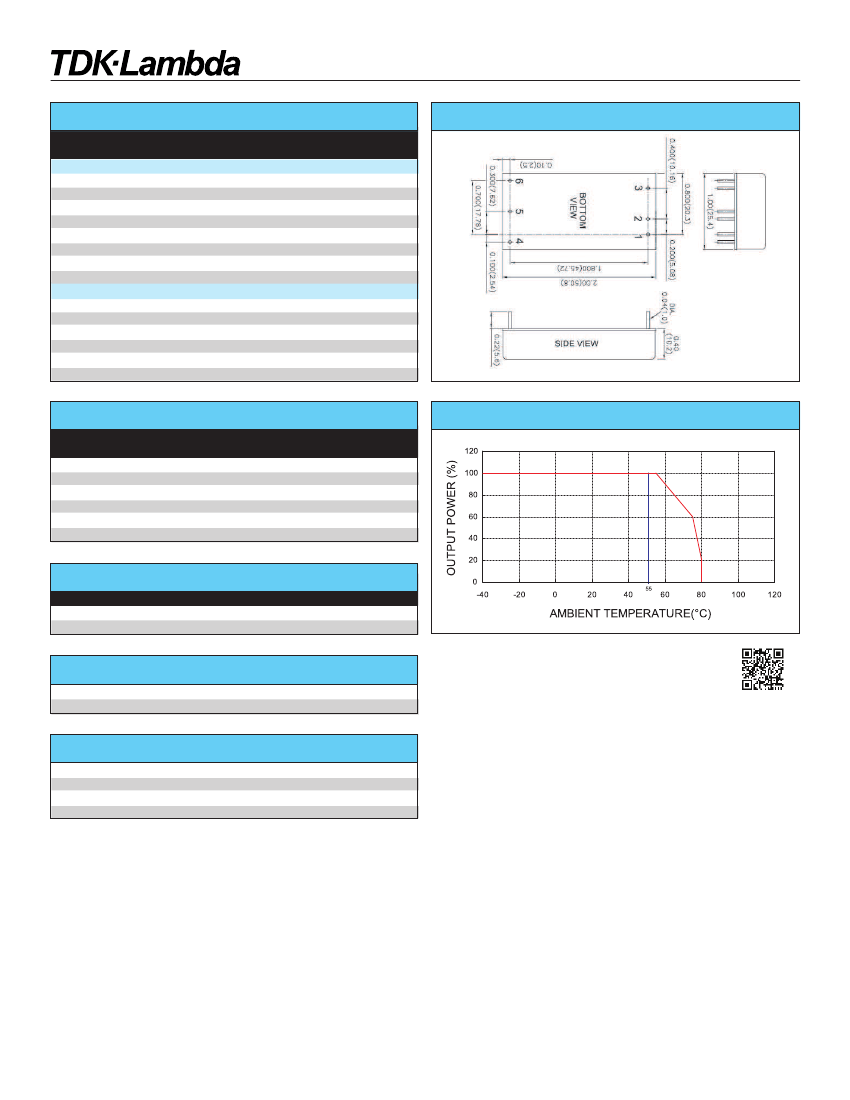

PXD30W Series

Single and Dual Output 30W DC-DC Converters

Features

Industry Standard 2” x 1” Footprint

Six Sided Shielding

Safety Agency Certiﬁcations

9-36V or 18-75VDC Input

Wide range input

Key Market Segments & Applications

Speciﬁcations

Model

Max Output Power

Voltage Accuracy

Voltage Adjustment

Minimum Load

Line Regulation

Load Regulation

Cross Regulation (25% to 100%)

Ripple and Noise (peak to peak)

Start up time

Remote on/off

Temperature Coefﬁcient

Operating Temperature

Maximum Case Temperature

Storage Temperature

Thermal Shock

Relative Humidity (non condensing)

Transient Response (25% step load change)

Overvoltage Protection (Zener clamp)

Overcurrent and Short Circuit Protection

Input Surge Voltage (Maximum for 100ms)

Reﬂected input ripple (peak to peak)

Isolation Voltage

Isolation Resistance

Isolation Capacitance (max)

Typical Switching Frequency (Fixed)

MTBF (BELLCORE TR-NWT-000332)

Vibration

Conducted and Radiated Emissions (1)

Immunity

(2)

Safety Agency Certiﬁcations

Size (L x W x H)

Weight

Warranty

Single Output

30W

±1%

±10%

None

±0.2%

±0.5%

±1%

±5%

<5.1V output: 100mV, 12-15V output: 150mV

30ms

Positive Logic: ON: Open or 3-12V, OFF Short or <1.2V

Negative Logic: ON: Short or <1.2V, OFF: Open or 3-12V

<±0.02%/°C

-40 to +85°C, derating necessary above 50°C

105°C (Overtemperature Protection 115°C)

-55 to 125°C

MIL-STD-810F

5 to 95%

250us recovery

3.3V: 3.9V, 5V: 6.2V, 12V: 15V, 15V: 18V

Typically at 150%, hiccup with self recovery

24V input: 50V, 48V input: 100V

20mA

1600VDC minimum

109 Ohms minimum

1500pF

430kHz

3,163,000 hours

MIL-STD-810F

EN55022 Level A

EN61000-4-2, -3, -4, -5, -6 Pref Criteria A

IEC60950-1, UL60950-1, EN60950-1, CE Mark

2x1x0.4”

1.07 oz (30.5g)

Two Year

None

Dual Output

Notes:

(1) With external ceramic capacitor (24V: 4.7uF, 48V: 2.2uF) connected across input pins

(2) For EN61000-4-4 & -5 compliance ﬁt external electrolytic capacitor (24V: 330uF, 48V: 220uF) connected across input pins

1-800-526-2324 • www.us.tdk-lambda.com/lp/

PXD3048WS15 Related Products

	PXD3048WS15	PXD3024WS3P3
Description	conv DC-DC pcb 15v 2A 30w	convert DC-DC 3.3V 7.5A 25w pcb
Standard Package	1	1
Category	Power Supplies - Board Mou	Power Supplies - Board Mou
Family	DC DC Converters	DC DC Converters
Packaging	Bulk	Tube
Type	Isolated Module	Isolated Module
Number of Outputs	1	1
Voltage - Input (Min)	18V	9V
Voltage - Input (Max)	75V	36V
Voltage - Output 1	15V	3.3V
Current - Output (Max)	2A	7.5A
Power (Watts) - Manufacture Series	30W	30W
Voltage - Isolati	1.6kV (1600V)	1.6kV (1600V)
Features	Remote On/Off, OCP, OVP, SCP	Remote On/Off, OCP, OVP, SCP
Mounting Type	Through Hole	Through Hole
Package / Case	6-DIP Module	6-DIP Module
Size / Dimensi	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C
Efficiency	91%	86%
Power (Watts) - Max	30W	24.75W
