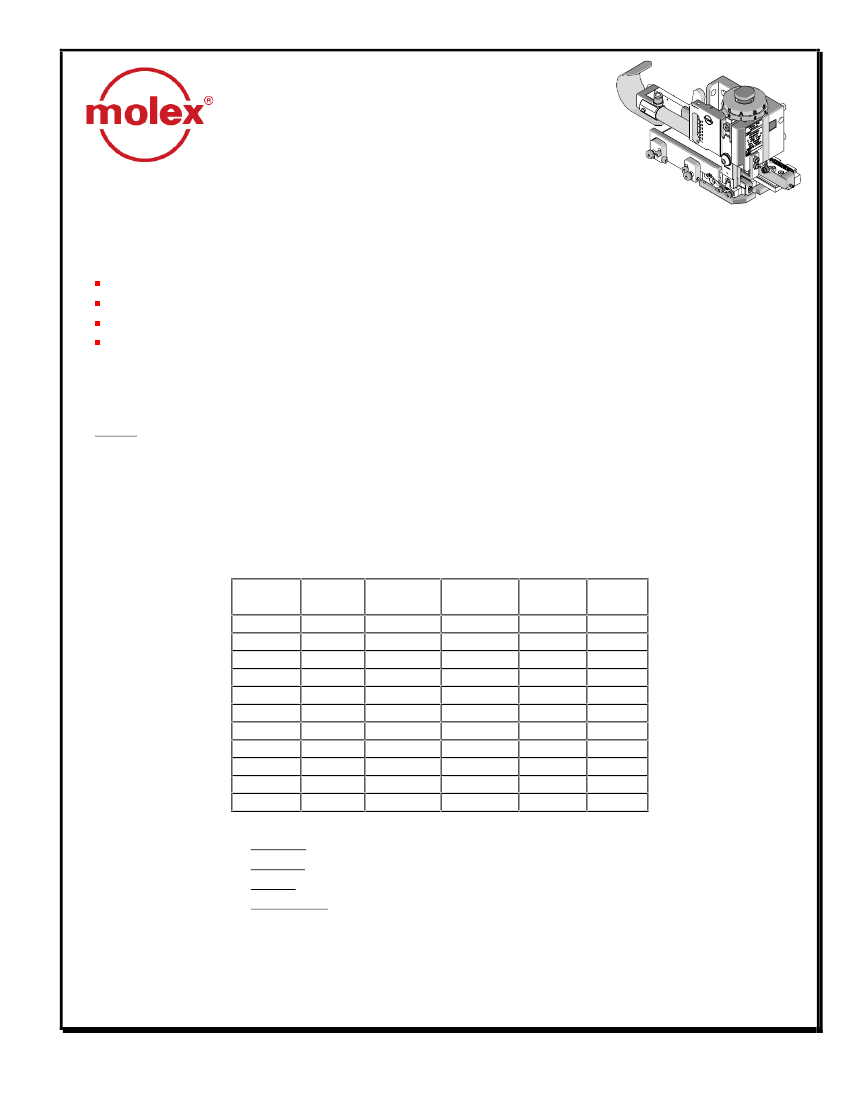

Air Feed Mylar Tape Applicator for Avikrimp Snap Plug Receptalcle
Mini-Mac Applicator
Application Tooling Specification
Air Feed-Mylar Tape
Order No. 63885-3600
FEATURES
Œ
Œ
Œ
Œ
Directly adapts to most crimp presses and automatic wire processors
Applicator designed to industry standard mounting and shut height of 135.80mm (5.346")
Conductor and insulation rings allow quick adjustment for conductor and insulation crimp height change
Quick set-up time; plus the crimp height, track and feed adjustments can be set without removing the applicator from the crimp press
SCOPE
Products: Avikrimp Snap Plug Receptacle for 18-22 AWG
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The following chart
shows the UL and government specifications (MIL-T-7928) for various wire sizes. The tensile strength is shown in pounds and
indicates the minimum acceptable force to break or separate the terminal from the conductor.
Color Code
Yellow
Yellow
Red
Red
Red
Blue
Blue
Yellow
Yellow
Red
Blue
Wire Size
(AWG)
26
24
22
20
18
16
14
12
10
8
6
*UL - 486 A
3
5
8
13
20
30
50
70
80
90
100
*UL – 486 C
N/A
N/A
8
10
10
15
25
35
40
45
50
*UL – 310
N/A
N/A
8
13
20
30
50
70
80
N/A
N/A
*Military
Class 2
7
10
15
19
38
50
70
110
150
225
300
*UL - 486 A - Terminals (Copper conductors only)
*UL - 486 C - Butt Splices, Parallel Splices, Closed End Connectors, and Wire Nuts
*UL - 310 - Quick Disconnects, Flag and Couplers
*Military Class 2- Military Approved Terminals only as listed
Doc No. 63885-3600
Revision: B
Release Date: 06-17-05
Revision Date: 10-04-05
UNCONTROLLED COPY
Page 1 of 6
