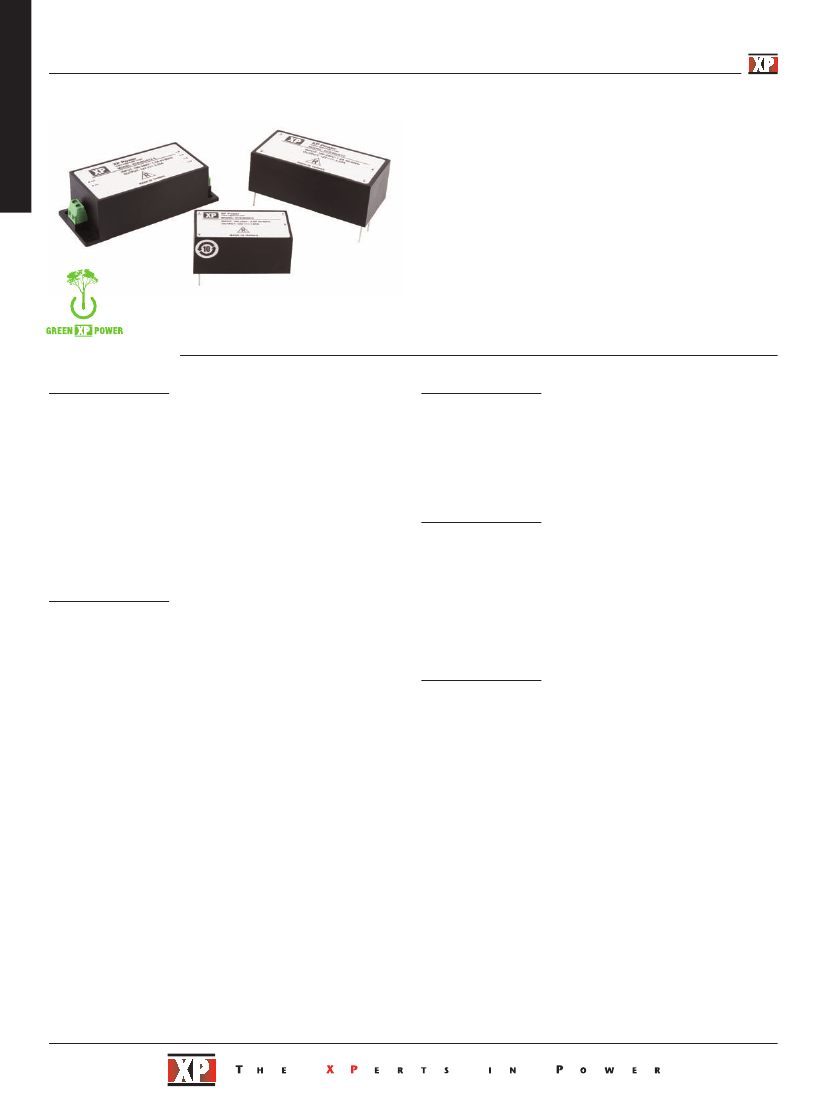

AC DC
20/40 Watts
ECE Series
•
•
•
•
•
•
•
Ultra Compact Size
xppower.com
Single Outputs from 3.3 to 48 V
Encapsulated
PCB & Chassis Mount Versions
<0.3 W No Load Input Power
Peak Load Capability
3 Year Warranty
Specification
Input
• 85-264 VAC (120-370 VDC) derate load
from 100% at 90 VAC to 90% at 85 VAC
Input Frequency
• 47-63 Hz
Input Current
• ECE20: 0.3 A rms at 230 VAC
ECE40: 0.5 A rms at 230 VAC
Inrush Current
• 20 A at 115 VAC, 40 A at 230 VAC,
cold start at 25 °C
Power Factor
• EN61000-3-2 Class A
Earth Leakage Current
• Class II construction no earth
No Load Input Power
• <0.3 W
Input Protection
• ECE20: Internal T1 A/250 VAC fuse
ECE40: Internal T2 A/250 VAC fuse
Input Voltage
General
Efficiency
Isolation
Switching Frequency
Power Density
MTBF
•
•
•
•
See tables
3000 VAC Input to Output
70 kHz typical
ECE20: 9.97 W/In
3
ECE40: 7.82 W/In
3
• >450 kHrs to MIL-HDBK-217F at 25 °C, GB
Environmental
Operating Temperature
• -25 °C to +70 °C, derate linearly from
100% at +50 °C to 50% at +70 °C
Cooling
• Convection-cooled
Operating Humidity
• 95% RH, non-condensing
Storage Temperature
• -40 °C to +85 °C
Operating Altitude
• 3000 m
Vibration
• 2 g, 10 Hz to 500 Hz, 10 mins/cycle,
60 mins each cycle
Output
Output Voltage
Initial Set Accuracy
Minimum Load
Start Up Delay
Start Up Rise Time
Hold Up Time
Line Regulation
Load Regulation
Transient Response
Ripple & Noise
•
•
•
•
•
•
•
•
•
•
See tables
±1%
No minimum load required
2 s max
16 ms max
8 ms minimum at full load & 115 VAC
±0.5% max
±1% max, ±2% max for ECE40US03/05-S
4% max deviation, recovery to within
1% in 500 µs for a 25% load change
3.3-5 V versions: 60 mV pk-pk,
3.3-5 V ‘ECE40-S’ versions: 75 mV
pk-pk (see note 5), all other models 1%
pk-pk max 20 MHz bandwidth
115-140% Vnom, 195-216% Vnom
ECE20US03 / ECE40US03
110-180%
Trip and restart (hiccup mode)
0.05%/°C
EMC & Safety
Emissions
Harmonic Currents
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Magnetic Fields
Dips & Interruptions
Safety Approvals
•
•
•
•
•
•
•
•
•
•
EN55022, level B conducted & radiated
EN61000-3-2, EN61000-3-3
EN61000-4-2, level 3 Perf Criteria A
EN61000-4-3, 10 V/m 80% mod
Perf Criteria A
EN61000-4-4, level 3 Perf Criteria A
EN61000-4-5, installation Class 3,
Perf Criteria A
EN61000-4-6, 10 Vrms Perf Criteria A
EN61000-4-8, 10 A/m Perf Criteria A
EN61000-4-11, 30% for 10 ms,
60% for 100 ms, 100% for 5000 ms
Perf Criteria A, B, B
EN60950-1, UL60950-1,
CSA22.2 No. 234 per cUL
Overvoltage Protection
•
Overload Protection
•
Short Circuit Protection
•
Temperature
•
Coefficient
AC DC
Models and Ratings
Output Power
15.0
20.0
20.0
20.0
20.0
20.0
20.0
33.0
40.0
40.0
40.0
40.0
40.0
40.0
Notes
1. Peak load lasting <30 s with a maximum duty cycle of 10%, average output
power not to exceed nominal power.
2. Add suffix -S to model number to denote chassis mount with screw terminal
type, e.g. ECE40US12-S. Only available with ECE40 models.
3. A screw terminal versions (-S) is available with DIN Clip attached.
Add suffix ‘D’, e.g. ECE40US24-SD. DIN Rail mounting clip is available as a
separate item, order code ECL25/30 DIN CLIP.
ECE20/40
Output Current
Nominal
4.55 A
4.00 A
2.22 A
1.67 A
1.33 A
0.83 A
0.42 A
10.00 A
8.00 A
4.44 A
3.33 A
2.67 A
1.67 A
0.83 A
Peak
(1)
5.85 A
5.20 A
2.89 A
2.17 A
1.73 A
1.08 A
0.55 A
13.00 A
10.40 A
5.77 A
4.33 A
3.47 A
2.17 A
1.08 A
Efficiency
(4)
73%
77%
83%
82%
83%
82%
86%
73%
77%
80%
84%
84%
85%
86%
Model Number
ECE20US03
ECE20US05
ECE20US09
ECE20US12
ECE20US15
ECE20US24
ECE20US48
ECE40US03
(2)(3)
ECE40US05
(2)(3)
ECE40US09
(2)(3)
ECE40US12
(2)(3)
ECE40US15
(2)(3)
ECE40US24
(2)(3)
ECE40US48
(2)(3)
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
VDC
Output Voltage
3.3
5.0
9.0
12.0
15.0
24.0
48.0
3.3
5.0
9.0
12.0
15.0
24.0
48.0
W
W
W
W
W
W
W
W
W
W
W
W
W
W
4. Average of efficiencies measured at 25%, 50%, 75% & 100% load with
230 VAC input.
5. 3.3 & 5 V ECE40-S versions meet 75 mV pk-pk with 20 MHz bandwidth and
0.1 µF capacitor across output terminals.
Mechanical Details
ECE20
0.80 ±0.01
(20.3 ±0.3)
0.13
(3.4)
0.40 ±0.01
(10.1 ±0.3)
ACN
1.07
(27.2)
ACL
1.80 ±0.01 (45.7 ±0.3)
2.06 (52.4)
TOP VIEW
-Vo
+Vo
1.50
(38.1)
1.18
(30.0)
0.16
(4.1)
0.59
(15.0)
TOP VIEW
-Vo
ECE40
3.10 (78.7)
0.13 (3.2)
ACN
0.13
(3.4)
ACL
2.85 (72.4)
+Vo
0.91
(23.0)
1.10
(27.9)
4 x ø0.04 (ø1.0)
0.39
(10.0)
0.39 (10.0)
4x ø 0.04 (ø1.0)
ECE40 Screw Terminal ( S)
3.43 (87.0)
4x ø0.14
(4x ø3.5)
0.44
(11.2)
ACN
1.57
(40.0)
ACL
TOP VIEW
-Vo
0.84
(21.3)
1.20
+Vo
(30.5)
3.01 (76.4)
0.39 (10.0)
1º
Notes
1. All dimensions in inches (mm).
2. Weight: ECE20: 0.13 lbs (60 g)
ECE40: 0.33 lbs (150 g)
ECE40 Optional Screw Terminal: 0.37 lbs (170 g)
3. Tolerances: x.xx = ± 0.02 (x.x = ± 0.5), x.xxx = ± 0.01 (x.xx = ± 0.25)
1.12
(28.5)
0.27
(6.8)
0.10
(2.5)
3.78 (96.0)
Optional
DIN clip
12-Nov-13
