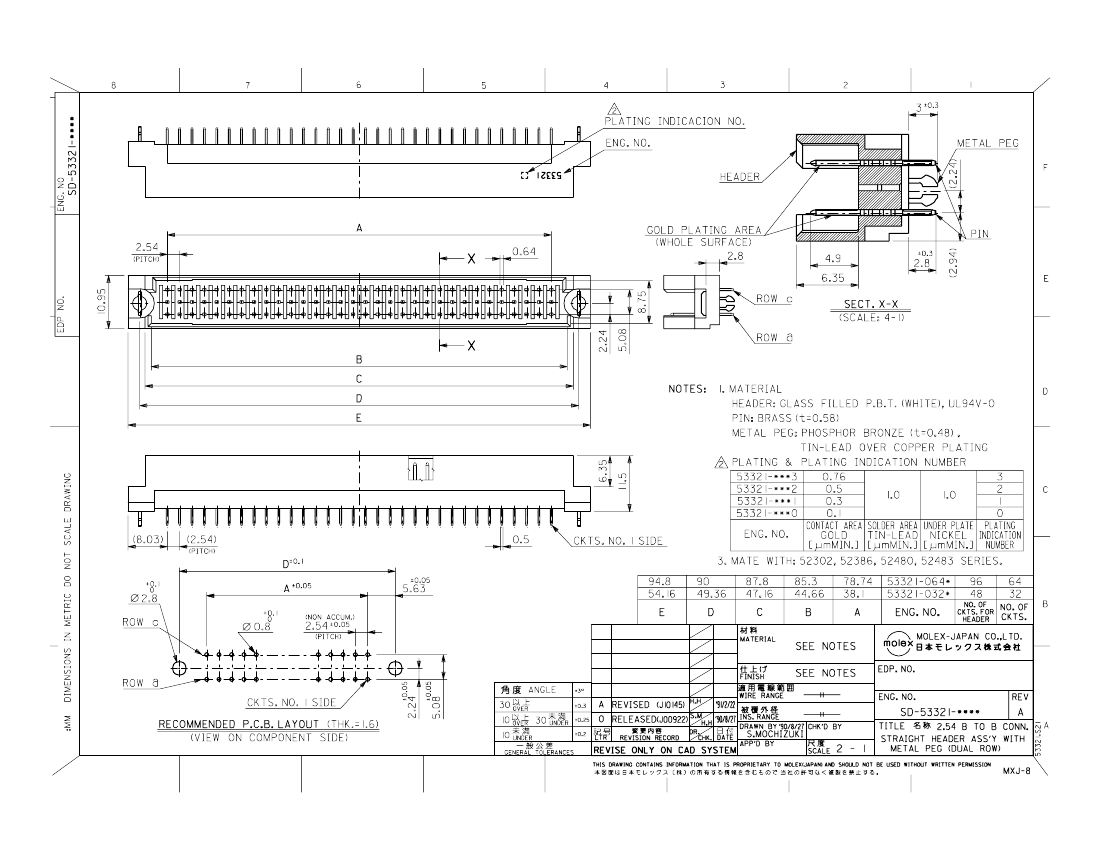

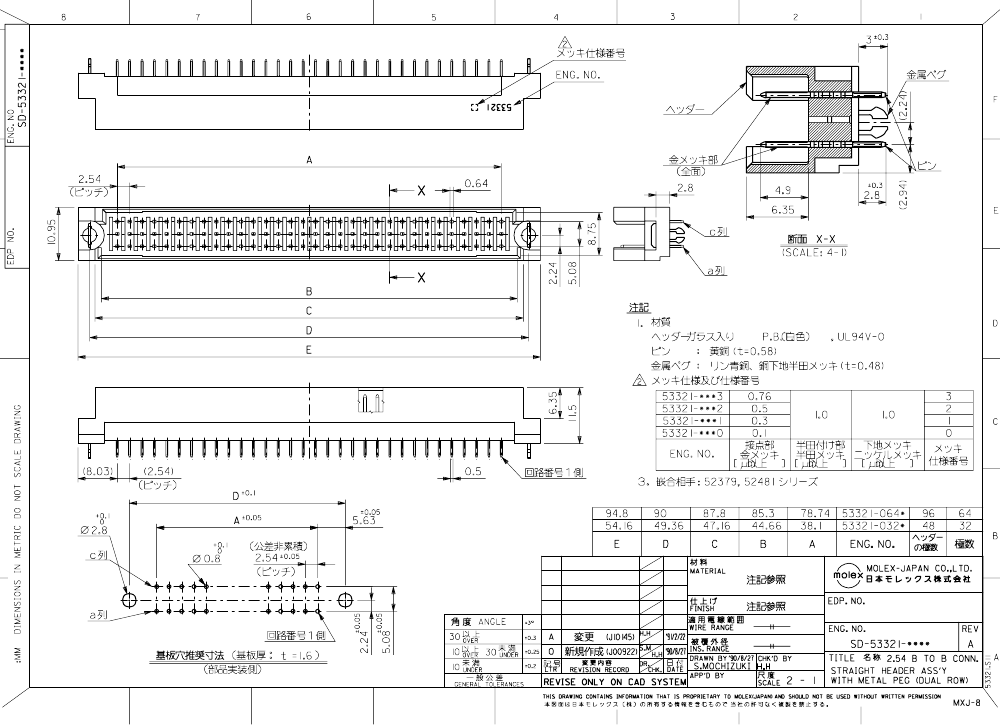

53321-0641: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size140KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53321-0641 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

53321-0641 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN LEAD (39) OVER NICKEL (39)
Contact completed and terminated	GOLD (20) OVER NICKEL (39)
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	53321
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

53321-0641 Related Products

	53321-0641	53321-0642	53321-0643	53321-0320	53321-0321	53321-0322	53321-0323	53321-0640
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Solder Terminal	Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	TIN LEAD (39) OVER NICKEL (39)	TIN LEAD (39) OVER NICKEL (39)	TIN LEAD (39) OVER NICKEL (39)	TIN LEAD (39) OVER NICKEL (39)	TIN LEAD (39) OVER NICKEL (39)	TIN LEAD (39) OVER NICKEL (39)	TIN LEAD (39) OVER NICKEL (39)	TIN LEAD (39) OVER NICKEL (39)
Contact completed and terminated	GOLD (20) OVER NICKEL (39)	GOLD (12) OVER NICKEL (39)	GOLD (4) OVER NICKEL (39)	GOLD (30) OVER NICKEL (39)	GOLD (20) OVER NICKEL (39)	GOLD (12) OVER NICKEL (39)	GOLD (4) OVER NICKEL (39)	GOLD (30) OVER NICKEL (39)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	53321	53321	53321	53321	53321	53321	53321	53321
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	64	64	64	32	32	32	32	64
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
