NOTES
1
1. MATERIAL:
PLASTIC: HIGH TEMP LCP,
UL94V-0
PINS: COPPER ALLOY.
2. REGULATORY INFORMATION:
ROHS COMPLIANT. SEE THE REGULATORY
INFORMATION APPENDIX (RIA) IN THE
"ROHS COMPLIANCE" SECTION OF
WWW.3MCONNECTORS.COM FOR COMPLIANCE
INFORMATION (RIA E1 & C1 APPLY)
3 IN THE EVENT OF CONFLICT
BETWEEN THIS DATA AND THAT
CONTAINED IN THE PRODUCT
SPECIFICATION, THE PRODUCT
SPECIFICATION TAKES PRECEDENT.
3M
TM

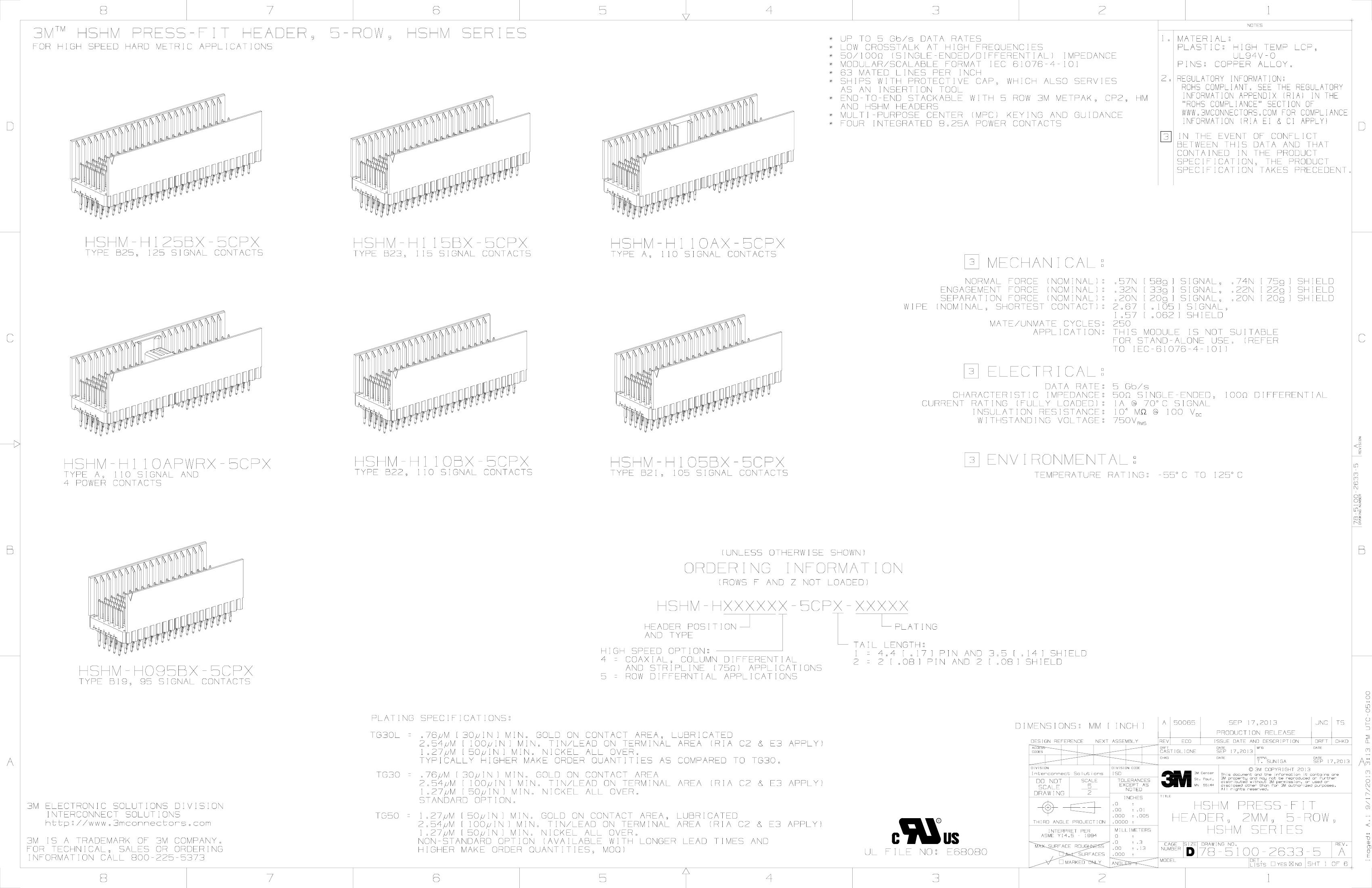

HSHM PRESS-FIT HEADER, 5-ROW, HSHM SERIES
FOR HIGH SPEED HARD METRIC APPLICATIONS
D
UP TO 5 Gb/s DATA RATES
LOW CROSSTALK AT HIGH FREQUENCIES
50/100 (SINGLE-ENDED/DIFFERENTIAL) IMPEDANCE
MODULAR/SCALABLE FORMAT IEC 61076-4-101
63 MATED LINES PER INCH
SHIPS WITH PROTECTIVE CAP, WHICH ALSO SERVIES
AS AN INSERTION TOOL
* END-TO-END STACKABLE WITH 5 ROW 3M METPAK, CP2, HM
AND HSHM HEADERS
* MULTI-PURPOSE CENTER (MPC) KEYING AND GUIDANCE
* FOUR INTEGRATED 8.25A POWER CONTACTS
D
HSHM-H125BX-5CPX
TYPE B25, 125 SIGNAL CONTACTS
HSHM-H115BX-5CPX
TYPE B23, 115 SIGNAL CONTACTS
HSHM-H110AX-5CPX
TYPE A, 110 SIGNAL CONTACTS
3
MECHANICAL:
.57N [58g] SIGNAL, .74N [75g] SHIELD
.32N [33g] SIGNAL, .22N [22g] SHIELD
.20N [20g] SIGNAL, .20N [20g] SHIELD
2.67 [.105] SIGNAL,
1.57 [.062] SHIELD
MATE/UNMATE CYCLES: 250
APPLICATION: THIS MODULE IS NOT SUITABLE
FOR STAND-ALONE USE. (REFER
TO IEC-61076-4-101)
NORMAL FORCE (NOMINAL):
ENGAGEMENT FORCE (NOMINAL):
SEPARATION FORCE (NOMINAL):
WIPE (NOMINAL, SHORTEST CONTACT):
C
3
C
ELECTRICAL:
5 Gb/s
50 SINGLE-ENDED, 100
1A @ 70 C SIGNAL
10
4
MO @ 100 V
DC
750V
RMS
DIFFERENTIAL
DATA RATE:
CHARACTERISTIC IMPEDANCE:
CURRENT RATING (FULLY LOADED):
INSULATION RESISTANCE:
WITHSTANDING VOLTAGE:
TYPE A, 110 SIGNAL AND
4 POWER CONTACTS
TYPE B22, 110 SIGNAL CONTACTS
TYPE B21, 105 SIGNAL CONTACTS
TEMPERATURE RATING: -55 C TO 125 C
78-5100-2633-5
JNC
DRFT
DATE
HSHM-H110APWRX-5CPX
HSHM-H110BX-5CPX
HSHM-H105BX-5CPX
3
ENVIRONMENTAL:
B
(UNLESS OTHERWISE SHOWN)
B
ORDERING INFORMATION
(ROWS F AND Z NOT LOADED)
HSHM-HXXXXXX-5CPX-XXXXX
HEADER POSITION
AND TYPE
HIGH SPEED OPTION:
4 = COAXIAL, COLUMN DIFFERENTIAL
AND STRIPLINE (75 ) APPLICATIONS
5 = ROW DIFFERNTIAL APPLICATIONS
PLATING
TAIL LENGTH:
1 = 4.4 [.17] PIN AND 3.5 [.14] SHIELD
2 = 2 [.08] PIN AND 2 [.08] SHIELD
HSHM-H095BX-5CPX
TYPE B19, 95 SIGNAL CONTACTS
DRAWING NUMBER
REVISION
A
PLATING SPECIFICATIONS:
DIMENSIONS: MM [INCH]
TG30L = .76
M
[30 IN] MIN. GOLD ON CONTACT AREA, LUBRICATED
2.54
M
[100 IN] MIN. TIN/LEAD ON TERMINAL AREA (RIA C2 & E3 APPLY)
1.27
M
[50 IN] MIN. NICKEL ALL OVER.
TYPICALLY HIGHER MAKE ORDER QUANTITIES AS COMPARED TO TG30.
TG30 = .76
M
[30 IN] MIN. GOLD ON CONTACT AREA
2.54
M
[100 IN] MIN. TIN/LEAD ON TERMINAL AREA (RIA C2 & E3 APPLY)
1.27
M
[50 IN] MIN. NICKEL ALL OVER.
STANDARD OPTION.
TG50 = 1.27
M
[50 IN] MIN. GOLD ON CONTACT AREA, LUBRICATED
2.54
M
[100 IN] MIN. TIN/LEAD ON TERMINAL AREA (RIA C2 & E3 APPLY)
1.27
M
[50 IN] MIN. NICKEL ALL OVER.
NON-STANDARD OPTION (AVAILABLE WITH LONGER LEAD TIMES AND
HIGHER MAKE ORDER QUANTITIES, MOQ)
R
A
REV
DRFT
50065
ECO
SEP 17,2013
PRODUCTION RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
TS
CHKD
DESIGN REFERENCE
ACCESS
CODES
NEXT ASSEMBLY
CASTIGLIONE
CHKD
SEP 17,2013
DATE
APPVL
DATE
A
T. SUNIGA
DIVISION
DIVISION CODE
SEP 17,2013
A
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2013
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
DO NOT
SCALE
DRAWING
SCALE
5
2
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
3M ELECTRONIC SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
UL FILE NO: E68080
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HSHM PRESS-FIT
HEADER, 2MM, 5-ROW,
HSHM SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
78-5100-2633-5
DET.
LISTS
YES
NO
A
SHT 1 OF 6
8
7
6
5
4
3
2
1
Imaged: A.1 9/17/2013 3:13 PM UTC-05:00
8
7
6
5
4
3
2
NOTES
1
1 CAPS TO BE REMOVED AFTER
PRESS-FIT INSTALLATION PROCESS.
2
DENOTES SHIELD COLUMN
(TAIL ONLY) OMITTED FOR THE
ROW
DIFFERENTIAL PAIR PART.
3M
TM

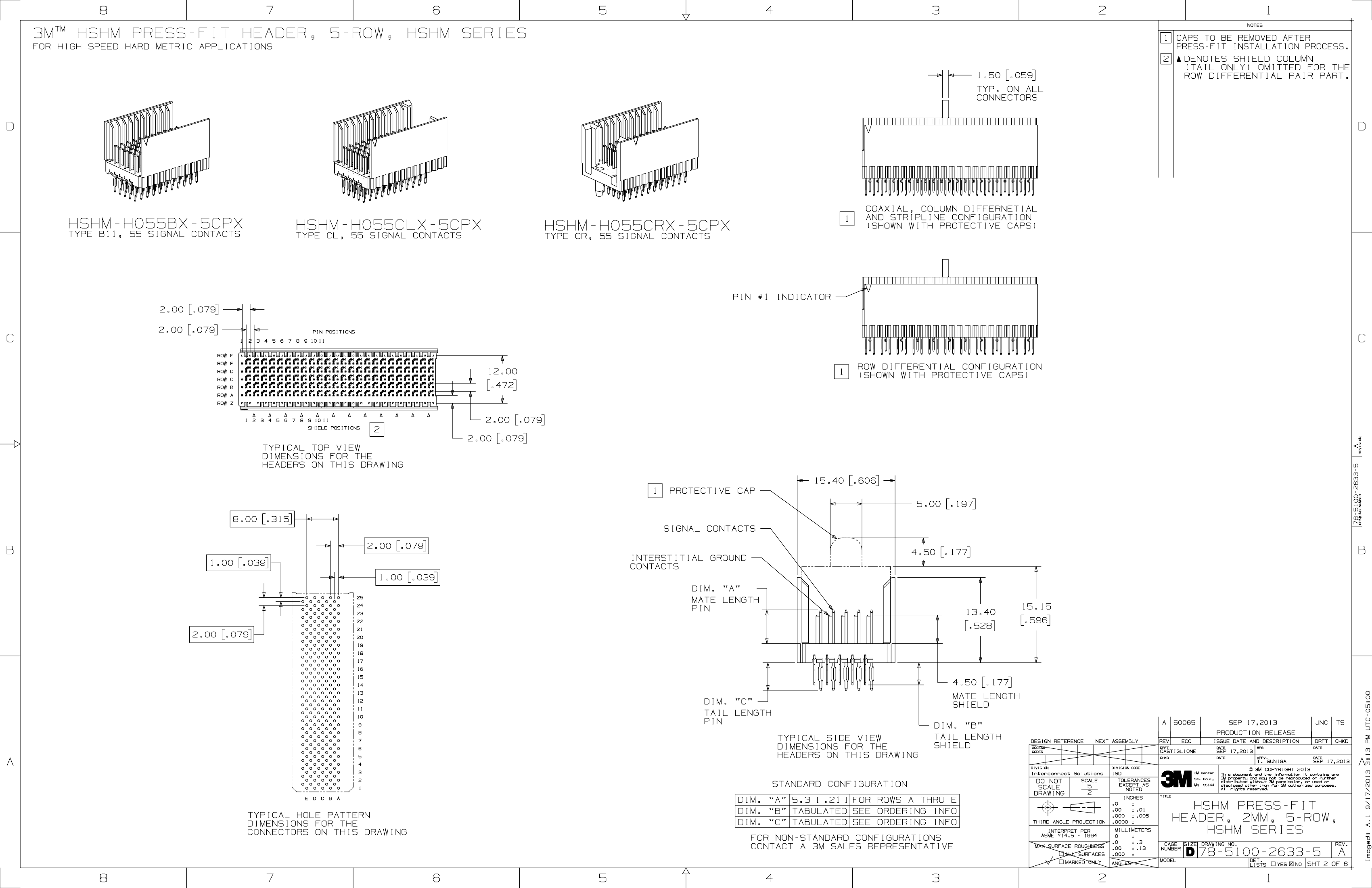

HSHM PRESS-FIT HEADER, 5-ROW, HSHM SERIES
1.50 .059
TYP. ON ALL
CONNECTORS
FOR HIGH SPEED HARD METRIC APPLICATIONS
D
D
HSHM-H055BX-5CPX
TYPE B11, 55 SIGNAL CONTACTS
HSHM-H055CLX-5CPX
TYPE CL, 55 SIGNAL CONTACTS
HSHM-H055CRX-5CPX
TYPE CR, 55 SIGNAL CONTACTS
1
COAXIAL, COLUMN DIFFERNETIAL
AND STRIPLINE CONFIGURATION
(SHOWN WITH PROTECTIVE CAPS)
PIN #1 INDICATOR
2.00 .079
2.00 .079
1
2
3
4
5
6
7
8
PIN POSITIONS
9 10 11
C
C
12.00
.472
1
ROW
DIFFERENTIAL CONFIGURATION
(SHOWN WITH PROTECTIVE CAPS)
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
1
2
3
4
5
6
7
8
9 10 11
SHIELD POSITIONS
2.00 .079
2
REVISION
DRAWING NUMBER
2.00 .079
TYPICAL TOP VIEW
DIMENSIONS FOR THE
HEADERS ON THIS DRAWING
15.40 .606
1
PROTECTIVE CAP
5.00 .197
8.00 .315
SIGNAL CONTACTS
2.00 .079
1.00 .039
1.00 .039
25
24
23
22
B
INTERSTITIAL GROUND
CONTACTS
DIM. "A"
MATE LENGTH
PIN
4.50 .177
13.40
.528
15.15
.596
2.00 .079
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
4.50 .177
DIM. "C"
TAIL LENGTH
PIN
TYPICAL SIDE VIEW
DIMENSIONS FOR THE
HEADERS ON THIS DRAWING
MATE LENGTH
SHIELD
DIM. "B"
TAIL LENGTH
SHIELD
A
DESIGN REFERENCE
ACCESS
CODES
78-5100-2633-5
50065
ECO
A
SEP 17,2013
PRODUCTION RELEASE
NEXT ASSEMBLY
REV
DRFT
B
JNC
DRFT
DATE
TS
CHKD
ISSUE DATE AND DESCRIPTION
DATE
MFG
CASTIGLIONE
CHKD
SEP 17,2013
DATE
APPVL
DATE
A
5
4
T. SUNIGA
DIVISION
DIVISION CODE
SEP 17,2013
A
3
2
1
E
D
C
B
A
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2013
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
STANDARD CONFIGURATION
DIM. "A" 5.3 [.21] FOR ROWS A THRU E
DIM. "B" TABULATED SEE ORDERING INFO
DIM. "C" TABULATED SEE ORDERING INFO
FOR NON-STANDARD CONFIGURATIONS
CONTACT A 3M SALES REPRESENTATIVE
DO NOT
SCALE
DRAWING
SCALE
5
2
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
TYPICAL HOLE PATTERN
DIMENSIONS FOR THE
CONNECTORS ON THIS DRAWING
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HSHM PRESS-FIT
HEADER, 2MM, 5-ROW,
HSHM SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
78-5100-2633-5
DET.
LISTS
YES
NO
A
SHT 2 OF 6
8
7
6
5
4
3
2
1
Imaged: A.1 9/17/2013 3:13 PM UTC-05:00
8
7
6
5
4
3
2
1
3M
TM
HSHM PRESS-FIT HEADER, 5-ROW, HSHM SERIES
FOR HIGH SPEED HARD METRIC APPLICATIONS
49.85 1.963
48.00 1.890
PIN POSITIONS
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
45.85 1.805
44.00 1.732
PIN POSITIONS
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
1
2
3
4
5
6
7
8
49.85 1.963
48.00 1.890
PIN POSITIONS
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
D
D
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
SHIELD POSITIONS
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22
SHIELD POSITIONS
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
SHIELD POSITIONS
9.60
.378
HSHM-HXXXXX-5XXX-XXXXX
REV X
XXYY
HSHM-HXXXXX-5XXX-XXXXX
REV X
XXYY
HSHM-HXXXXX-5XXX-XXXXX
REV X
XXYY
C
C
HSHM-H125BX-5CPX
HSHM-H115BX-5CPX
HSHM-H110AX-5CPX
48.00 1.890
PIN POSITIONS
42.00 1.654
PIN POSITIONS
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22
B
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
1
2
3
4
5
6
7
8
9 10 11
P1 P2
15 16 17 18 19 20 21 22 23 24 25
B
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
P3 P4
1
2
3
4
5
6
7
8
9 10
15 16 17 18 19 20 21 22 23 24
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21
SHIELD POSITIONS
SHIELD POSITIONS
11.78
.464
REV X
XXYY
REV X
XXYY
A
DESIGN REFERENCE
ACCESS
CODES
50065
ECO
SEP 17,2013
PRODUCTION RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
TS
CHKD
NEXT ASSEMBLY
REV
DRFT
CASTIGLIONE
CHKD
SEP 17,2013
DATE
APPVL
DATE
A
2.00 .079
T. SUNIGA
SEP 17,2013
HSHM-H110APWRX-5CPX
HSHM-H110BX-5CPX
DIVISION
DIVISION CODE
A
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2013
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
DO NOT
SCALE
DRAWING
SCALE
5
2
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HSHM PRESS-FIT
HEADER, 2MM, 5-ROW,
HSHM SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
78-5100-2633-5
DET.
LISTS
YES
NO
A
SHT 3 OF 6
8
7
6
5
4
3
2
1
Imaged: A.1 9/17/2013 3:13 PM UTC-05:00
HSHM-HXXXXX-5XXX-XXXXX
HSHM-HXXXXX-5XXX-XXXXX
DRAWING NUMBER
49.85 1.963
43.85 1.726
78-5100-2633-5
REVISION
A
8
7
6
5
4
3
2
1
3M
TM

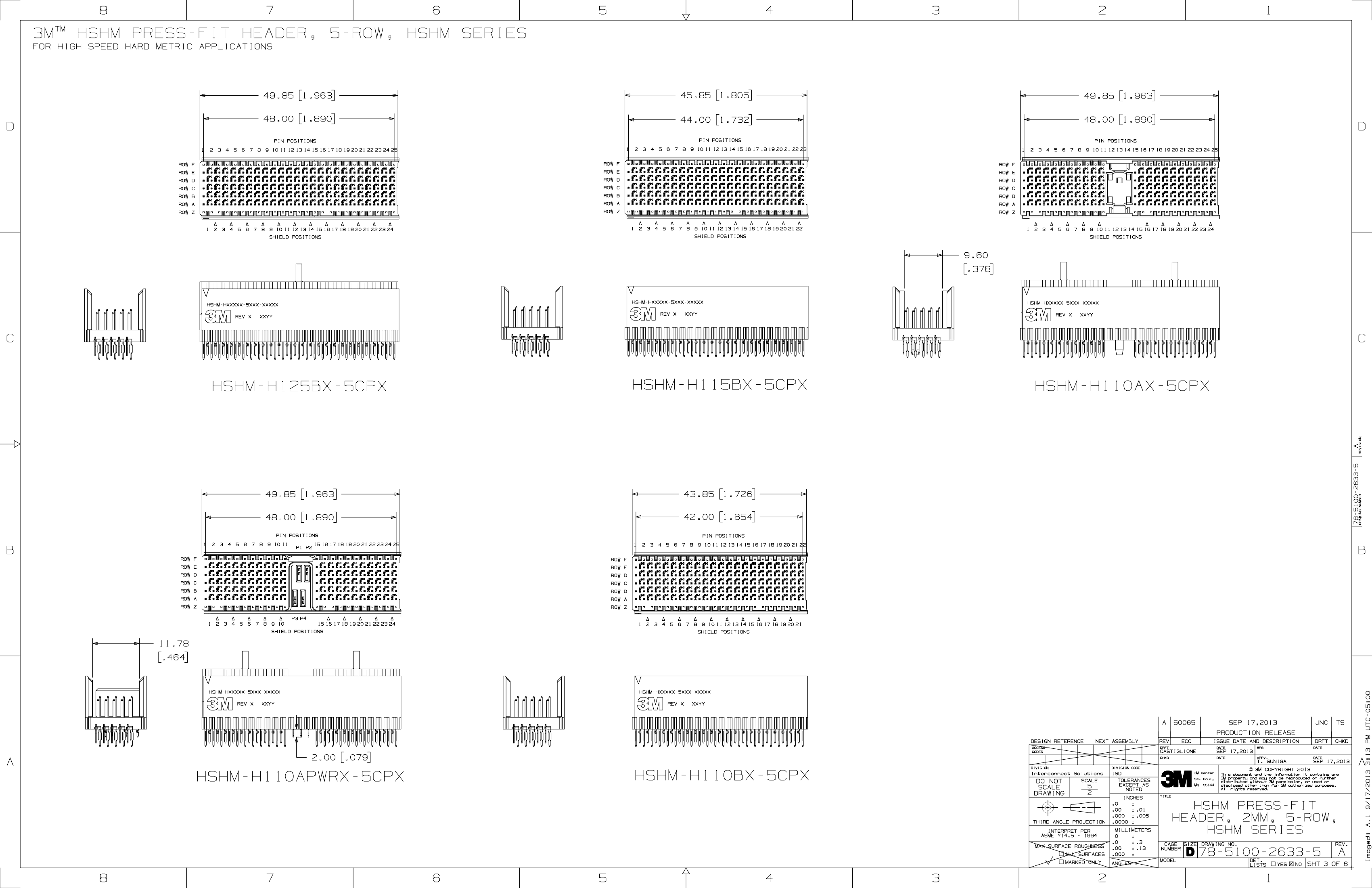

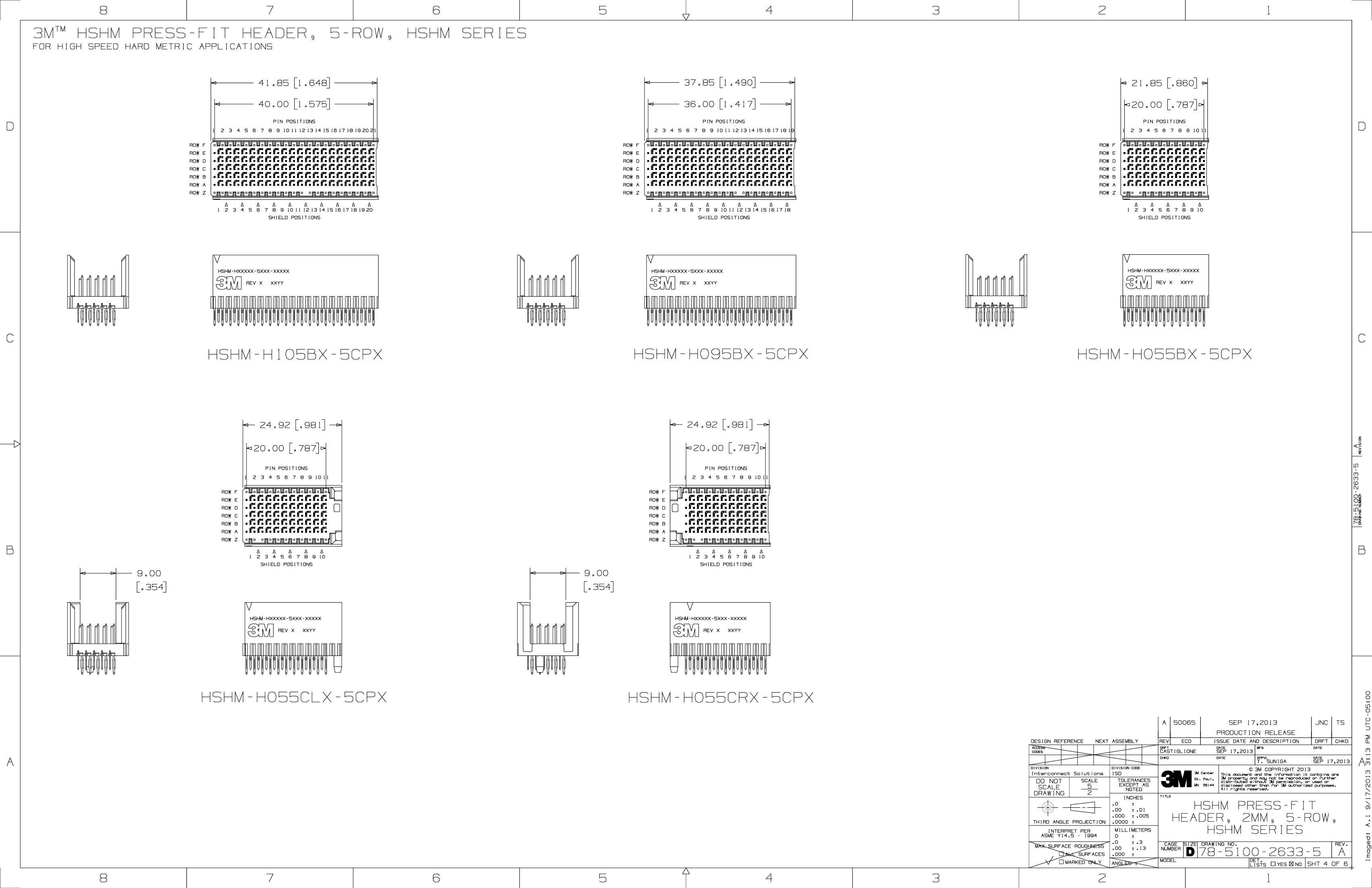

HSHM PRESS-FIT HEADER, 5-ROW, HSHM SERIES
FOR HIGH SPEED HARD METRIC APPLICATIONS
41.85 1.648
40.00 1.575
37.85 1.490
36.00 1.417
PIN POSITIONS
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19
1
21.85 .860
20.00 .787
PIN POSITIONS
2
3
4
5
6
7
8
9 10 11
D
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
PIN POSITIONS
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21
D
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18
1
2
3
4
5
6
7
8
9 10
SHIELD POSITIONS
SHIELD POSITIONS
SHIELD POSITIONS
HSHM-HXXXXX-5XXX-XXXXX
REV X
XXYY
HSHM-HXXXXX-5XXX-XXXXX
REV X
XXYY
HSHM-HXXXXX-5XXX-XXXXX
REV X
XXYY
C
C
HSHM-H105BX-5CPX
HSHM-H095BX-5CPX
HSHM-H055BX-5CPX
24.92 .981
20.00 .787
PIN POSITIONS
1
2
3
4
5
6
7
8
9 10 11
1
24.92 .981
20.00 .787
PIN POSITIONS
2
3
4
5
6
7
8
9 10 11
REVISION
DRAWING NUMBER
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
ROW
F
ROW
E
ROW
D
ROW
C
ROW
B
ROW
A
ROW
Z
B
9.00
.354
1
2
3
4
5
6
7
8
9 10
1
2
3
4
5
6
7
8
9 10
SHIELD POSITIONS
SHIELD POSITIONS
9.00
.354
HSHM-HXXXXX-5XXX-XXXXX
REV X
XXYY
HSHM-HXXXXX-5XXX-XXXXX
REV X
XXYY
78-5100-2633-5
A
DESIGN REFERENCE
ACCESS
CODES
A
50065
ECO
B
HSHM-H055CLX-5CPX
HSHM-H055CRX-5CPX
SEP 17,2013
PRODUCTION RELEASE
NEXT ASSEMBLY
REV
DRFT
JNC
DRFT
DATE
TS
CHKD
ISSUE DATE AND DESCRIPTION
DATE
MFG
CASTIGLIONE
CHKD
SEP 17,2013
DATE
APPVL
DATE
A
T. SUNIGA
DIVISION
DIVISION CODE
SEP 17,2013
A
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2013
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
DO NOT
SCALE
DRAWING
SCALE
5
2
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HSHM PRESS-FIT
HEADER, 2MM, 5-ROW,
HSHM SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
78-5100-2633-5
DET.
LISTS
YES
NO
A
SHT 4 OF 6
8
7
6
5
4
3
2
1
Imaged: A.1 9/17/2013 3:13 PM UTC-05:00
8
7
6
5
4
3
2
1
3M
TM
HSHM PRESS-FIT HEADER, 5-ROW, HSHM SERIES
FOR HIGH SPEED HARD METRIC APPLICATIONS
HOLE PLATING TABLE
HOLE
(FINISHED HOLE)
Cu THICKNESS
SnPb THICKNESS
DRILLED HOLE DIA.
DIM. "D" .457-.559 [.0180-.0220] .025-.045 [.0010-.0018] .008-.018 [.0003-.0007] .584-.625 [.0230-.0246]
B
DIM. "D"
.10
A B
PLATED THRU HOLE
25
24
23
22
21
20
19
18
17
16
15
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
E
D
C
B
A
23
22
21
20
19
18
17
16
15
14
D
DIM. "D"
B
.10
A B
PLATED THRU HOLE
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
E
D
C
B
A
D
48.00
1.890
14
13
12
11
10
9
8
7
6
5
4
44.00
1.732
13
12
11
10
9
8
7
6
5
4
3
2
1
C
A
E
D
C
B
A
3
2
1
A
C
E
D
C
B
A
HSHM-H125B4-5CPX
COAXIAL, COLUMN DIFFERENTIAL
AND STRIPLINE APPLICATIONS
HSHM-H125B5-5CPX
ROW
DIFFERENTIAL APPLICATIONS
(SAME GEOMETRY AS LEFT VIEW
WITHOUT THE GROUND VIAS)
HSHM-H115B4-5CPX
COAXIAL, COLUMN DIFFERENTIAL
AND STRIPLINE APPLICATIONS
HSHM-H115B5-5CPX
ROW
DIFFERENTIAL APPLICATIONS
(SAME GEOMETRY AS LEFT VIEW
WITHOUT THE GROUND VIAS)
6.50 .256
1.50 .059
DIM. "D"
B
.10
A B
PLATED THRU HOLE
25
24
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
11
10
9
11
10
DIM. "D"
25
24
23
22
21
20
.10
A B
PLATED THRU HOLE
25
24
23
22
21
20
19
18
17
16
B
4.00
.157
48.00
1.890
4.00
.157
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
B
48.00
1.890
19
18
17
16
15
2X
2.00 .079
15
+.05
2.00
.00
+.002
.079
-.000
10
9
8
7
6
5
4
23.90
.941
22.10
.870
8
7
6
5
4
3
2
1
4X
1.50 .059
9
8
7
6
4
3
2
1
E
D
C
B
A
.10
A B
UNPLATED THRU HOLE
E
D
C
B
A
3
2
1
A
E
D
C
B
A
A
A
DESIGN REFERENCE
ACCESS
CODES
50065
ECO
SEP 17,2013
PRODUCTION RELEASE
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
TS
CHKD
E
D
C
B
A
A
HSHM-H110A4-5CPX
COAXIAL, COLUMN DIFFERENTIAL
AND STRIPLINE APPLICATIONS
HSHM-H110A5-5CPX
ROW
DIFFERENTIAL APPLICATIONS
(SAME GEOMETRY AS LEFT VIEW
WITHOUT THE GROUND VIAS)
HSHM-H110APWR4-5CPX
COAXIAL, COLUMN DIFFERENTIAL
AND STRIPLINE APPLICATIONS
HSHM-H110APWR5-5CPX
ROW
DIFFERENTIAL APPLICATIONS
(SAME GEOMETRY AS LEFT VIEW
WITHOUT THE GROUND VIAS)
NEXT ASSEMBLY
REV
DRFT
CASTIGLIONE
CHKD
SEP 17,2013
DATE
APPVL
DATE
T. SUNIGA
DIVISION
DIVISION CODE
SEP 17,2013
A
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2013
Interconnect Solutions
ISD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
DO NOT
SCALE
DRAWING
SCALE
5
2
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
THIRD ANGLE PROJECTION

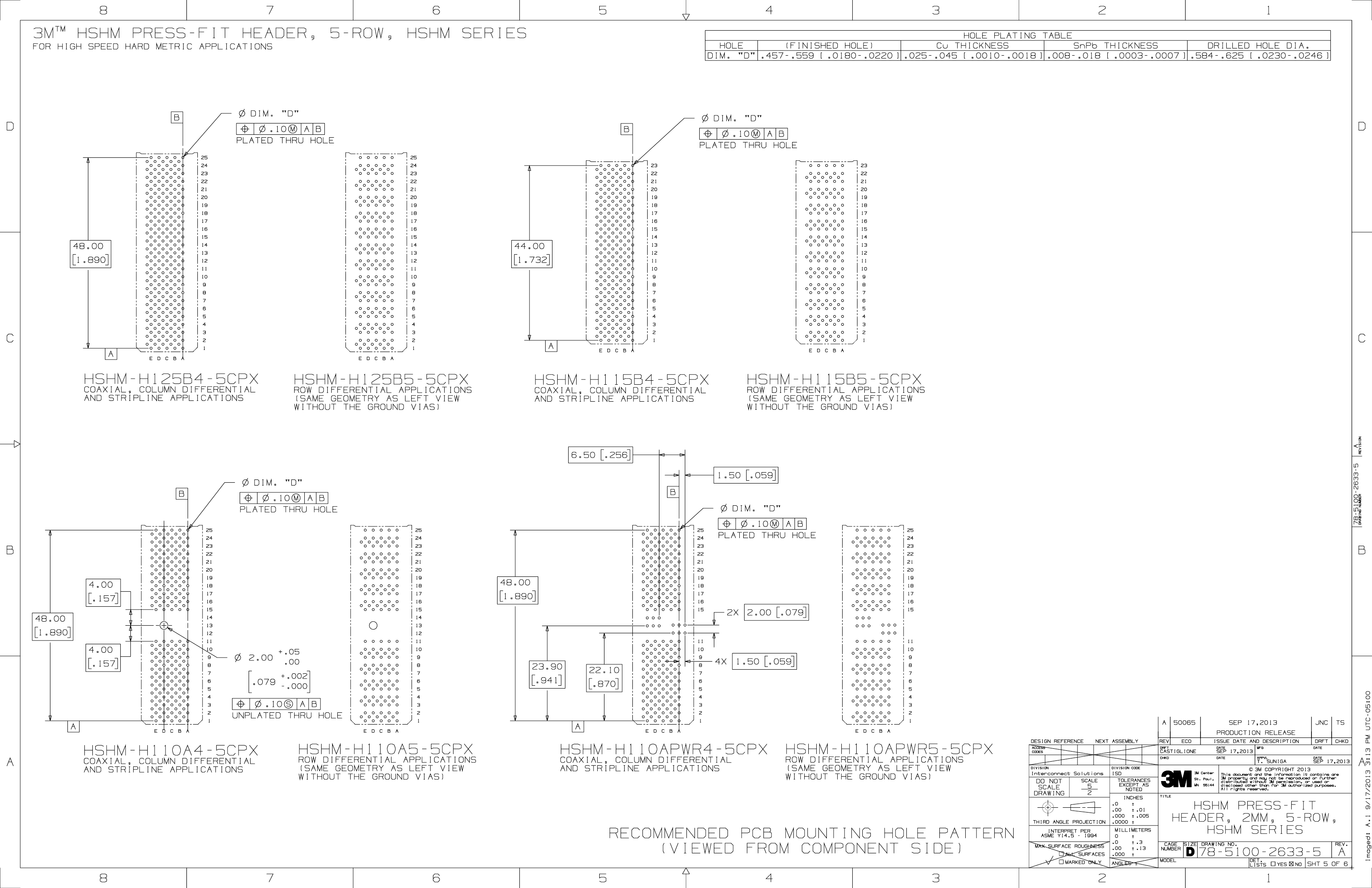

RECOMMENDED PCB MOUNTING HOLE PATTERN
(VIEWED FROM COMPONENT SIDE)
8
7
6
5
4
3
INTERPRET PER
ASME Y14.5 - 1994
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HSHM PRESS-FIT
HEADER, 2MM, 5-ROW,
HSHM SERIES
CAGE SIZE
NUMBER
MODEL
DRAWING NO.
REV.
78-5100-2633-5
DET.
LISTS
YES
NO
A
SHT 5 OF 6
2
1
Imaged: A.1 9/17/2013 3:13 PM UTC-05:00
5
DRAWING NUMBER
B
78-5100-2633-5
REVISION
A
京公网安备 11010802033920号
EEWORLD
