RDER72H103K2K1C11B: Descriptioncap cer 10000pf 500v 10% radial; CategoryPassive components capacitor; File Size586KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

RDER72H103K2K1C11B Overview

cap cer 10000pf 500v 10% radial

RDER72H103K2K1C11B Parametric

Parameter Name	Attribute value
Maker	Murata
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.01 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	3.5 mm
length	5 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	500 V
surface mount	NO
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	WIRE
width	3.15 mm

Preview

Download Datasheet

View All

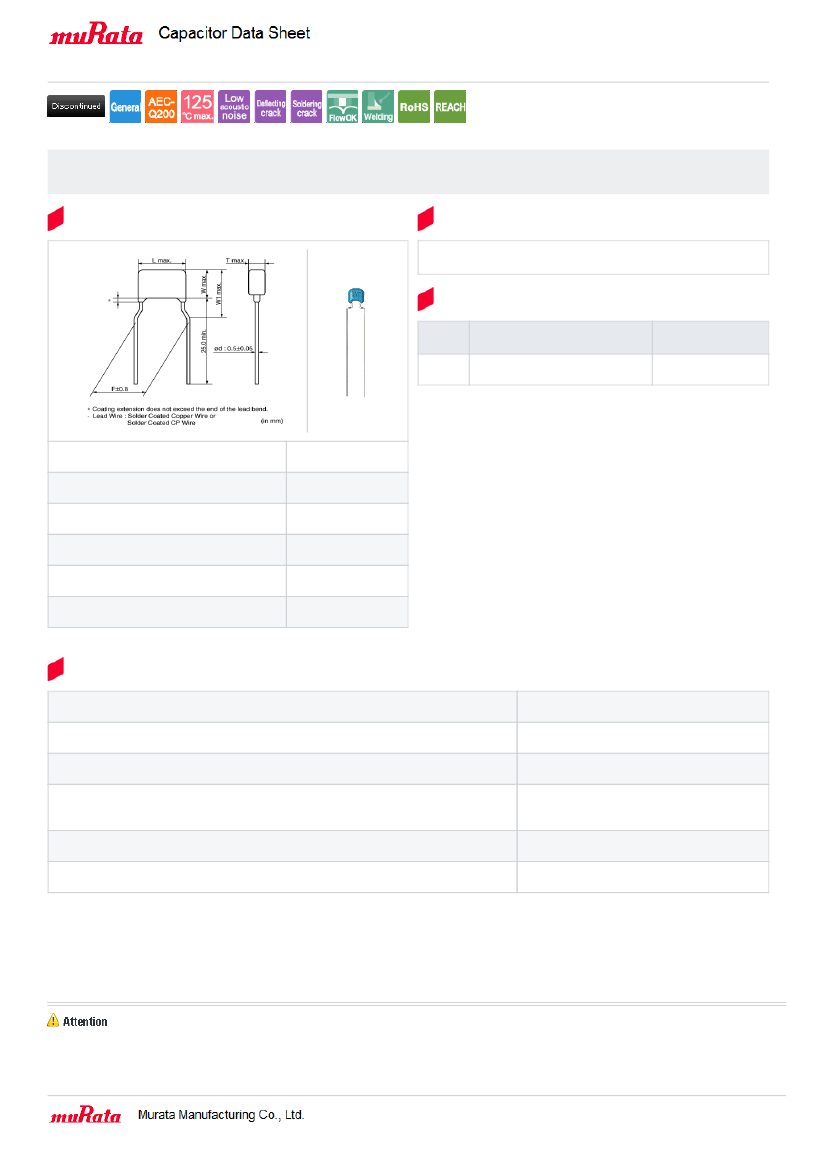

RPE5C1H562J2K1A03B

Date of discontinuation: 31 Dec 2016

< List of part numbers with package codes >

“#” indicates a package specification code.

RPE5C1H562J2K1A03B

Shape

Notes

In case of automotive use, alternative part is RCE series.　

References

Packaging

B

Specifications

Packing in bulk

Minimum quantity

500

L size or outer diameter D (mm)

W size

T size

Lead spacing F

Lead diameter d

W1 size (max.)

5.0 mm max.

3.5 mm max.

3.15 mm max.

5.0 ±0.8mm

0.5 ±0.05mm

5.0mm

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

5600pF ±5%

50Vdc

C0G(EIA)

25 to 125℃: 0±30ppm/℃

-55 to 25℃: 0+30/-72ppm/℃

-55 to 125℃

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/10/22
