Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
SV : Watertight / Vacuum-tested, special potting

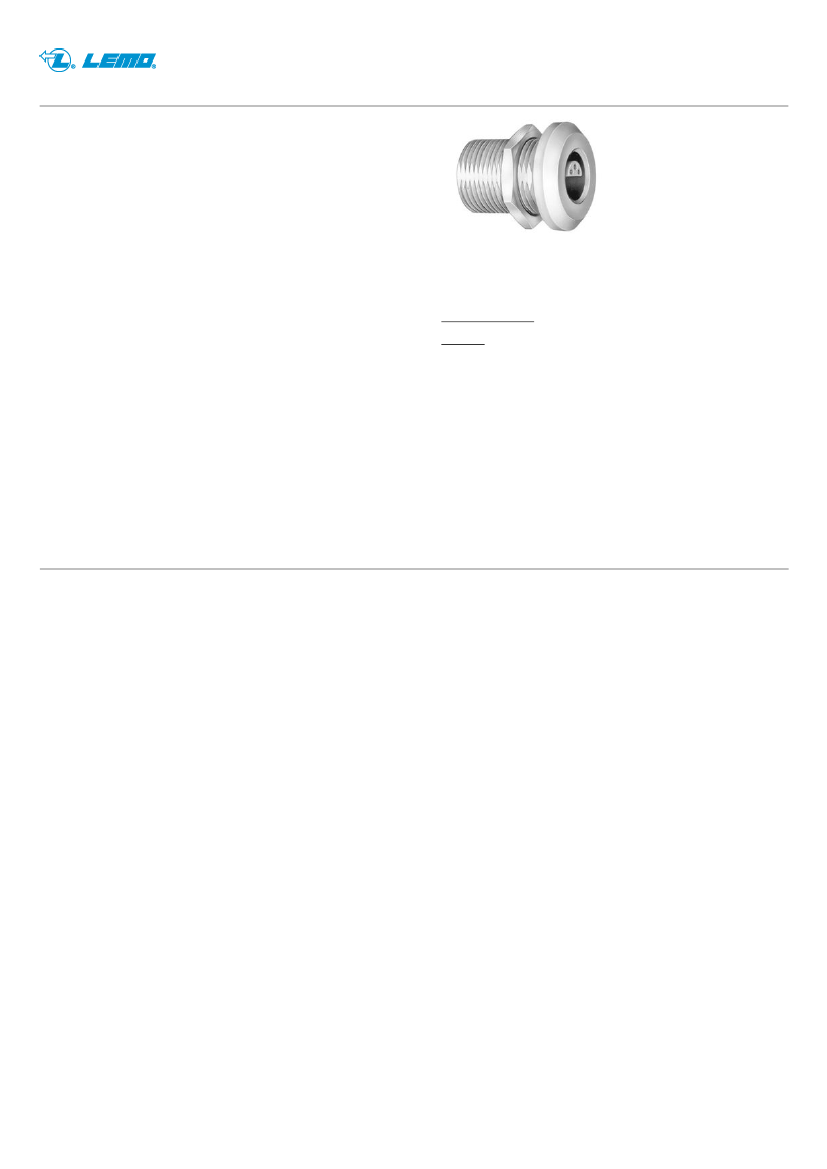

HGP*: Fixed receptacle, nut fixing, watertight or vacuum-tight, special potting
Performance
Configuration
Insulator
Rated Current
5S.336 : 36 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
7 Amps
Specifications
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 1.3 mm (0.051in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Bucket Dia.: 1 mm (0.039in)
Max. Solid Conductor: 0.5 mm^2 (AWG 20)
Max. Stranded Conductor: 0.5 mm^2 (AWG 20)
R (max): 3.6 mOhm
Vtest: 1800 V (AC), 2400 V (DC)
Others
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 20/80/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
R leak (He) (max): 0.0000001 mbar*l/s (if vacuum-tested)
IP Rating: 68

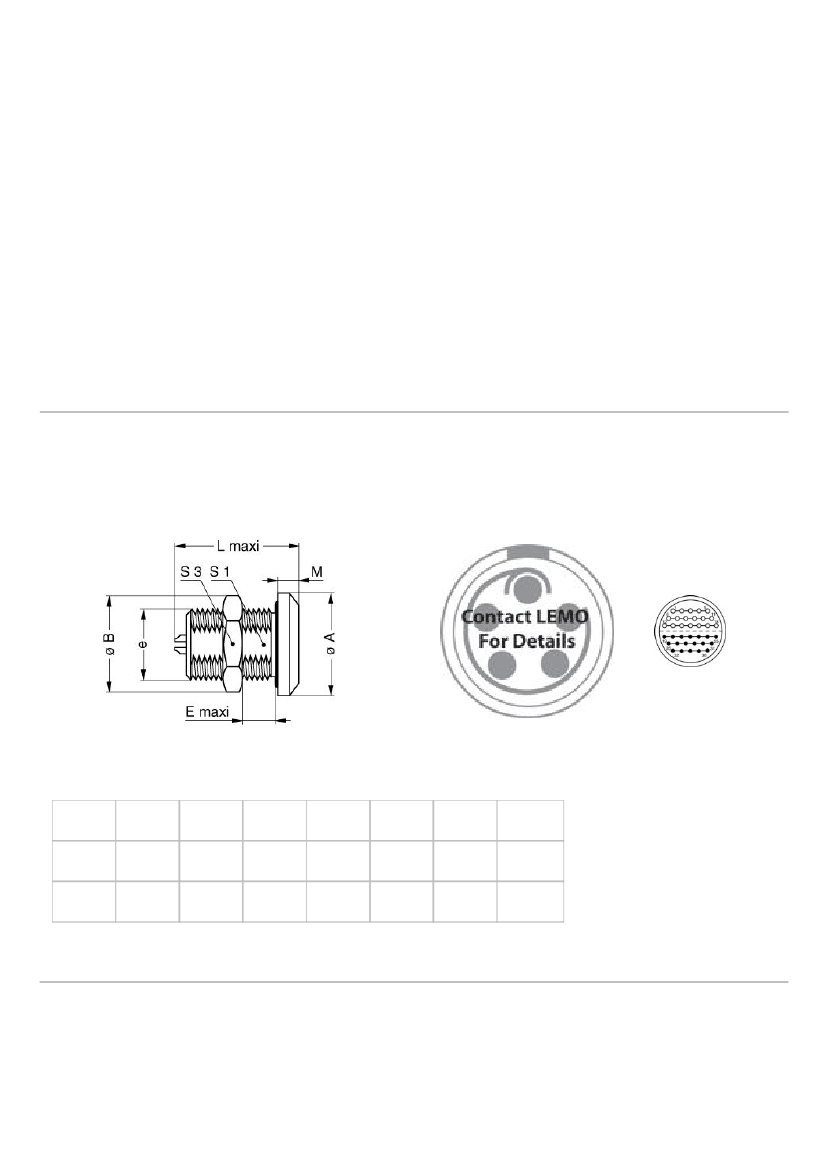

DRAWINGS
Draws
Dimensions
A
mm.
in.
45
1,77
B
40
1,57
E
28
1,10
L
50.5
1,99
M
7.5
0,30
S1
33.5
1,32
e
M35x1.0
RECOMMENDED BY LEMO
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
Tools
None
Cables
336 240
336 260
436 200
536 500
536 750
PVC
PVC
PVC
PVC
PVC
Black
Black
Black
Grey
Grey
