P170N-QC12BR500K

Description
pot rotary 500k ohm 17mm solder
CategoryPassive components
File Size139KB，6 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Environmental Compliance
Download Datasheet Parametric View All

P170N-QC12BR500K Online Shopping

Suppliers Part Number Price MOQ In stock
P170N-QC12BR500K - - View Buy Now

P170N-QC12BR500K Overview

pot rotary 500k ohm 17mm solder

P170N-QC12BR500K Parametric

Parameter NameAttribute value
Datasheets
Model P170
Product Photos
P170N-QC12BR500K
Product Training Modules
Panel Potentiomete
Standard Package300
CategoryPotentiometers, Variable Resistors
FamilyRotary Potentiometers - Line
PackagingTray
Resistance (Ohms)500k
Power (Watts)0.1W, 1/10W
Tolerance±20%
Temperature Coefficie-
Number of TurnsSingle
Rotati260°
Adjustment TypeSide Adjustme
Resistive MaterialConductive Plastic
Termination StyleSolder Lug
Actuator Length0.472" (12.00mm)
Actuator TypeKnurled Shaf
Actuator Diamete0.236" (6.00mm)
Size - BodyRound - 0.669" Dia x 0.315" L (17.00mm x 8.00mm)
Mounting TypePanel Mou
Dynamic CatalogP170 Series
Associated Produc226-4155-ND - KNOB BLK/MATTE.925"DIA 6MM SHAFT226-3155-ND - KNOB CLR/MATTE.925"DIA 6MM SHAFT226-1155-ND - KNOB BLK GLOSS.925"DIA 6MM SHAFT226-2155-ND - KNOB CLR GLOSS.925"DIA 6MM SHAFT226-4154-ND - KNOB BLK/MATTE .75"DIA 6MM SHAFT226-3154-ND - KNOB CLR/MATTE .75"DIA 6MM SHAFT226-1154-ND - KNOB BLK GLOSS .75"DIA 6MM SHAFT226-2154-ND - KNOB CLR GLOSS .75"DIA 6MM SHAFT226-4153-ND - KNOB BLK/MATTE.625"DIA 6MM SHAFT226-3153-ND - KNOB CLR/MATTE.625"DIA 6MM SHAFT226-1153-ND - KNOB BLK GLOSS.625"DIA 6MM SHAFT226-2153-ND - KNOB CLR GLOSS.625"DIA 6MM SHAFT226-4152-ND - KNOB BLK/MATTE .50"DIA 6MM SHAFT226-3152-ND - KNOB CLR/MATTE .50"DIA 6MM SHAFT226-1152-ND - KNOB BLK GLOSS .50"DIA 6MM SHAFT226-2152-ND - KNOB CLR GLOSS .50"DIA 6MM SHAFT226-4143-ND - KNOB BLK/MATTE.925"DIA 6MM SHAFT226-3143-ND - KNOB CLR/MATTE.925"DIA 6MM SHAFT226-1143-ND - KNOB BLK GLOSS.925"DIA 6MM SHAFT226-2143-ND - KNOB CLR GLOSS.925"DIA 6MM SHAFT226-4142-ND - KNOB BLK/MATTE .75"DIA 6MM SHAFT226-3142-ND - KNOB CLR/MATTE .75"DIA 6MM SHAFT226-1142-ND - KNOB BLK GLOSS .75"DIA 6MM SHAFT226-2142-ND - KNOB CLR GLOSS .75"DIA 6MM SHAFT226-4141-ND - KNOB BLK/MATTE.625"DIA 6MM SHAFT226-3141-ND - KNOB CLR/MATTE.625"DIA 6MM SHAFT226-1141-ND - KNOB BLK GLOSS.625"DIA 6MM SHAFT226-2141-ND - KNOB CLR GLOSS.625"DIA 6MM SHAFT226-4140-ND -

Preview

Download Datasheet
Model P170

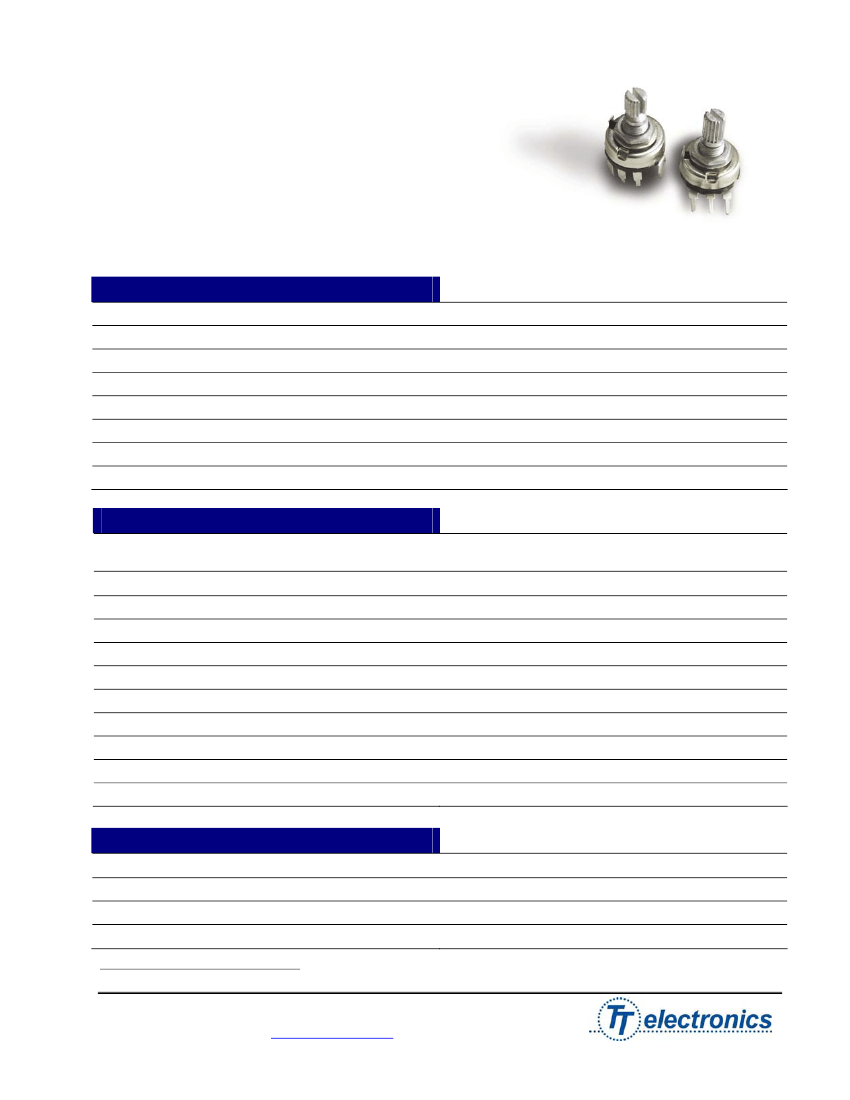

17mm Rotary Potentiometer
Metal Shaft / Bushing
Conductive Plastic Element
100,000 Cycle Life
Switch Option
RoHS Compliant
MODEL STYLES
Side Adjust, Solder Lugs
Side Adjust , Solder Lugs with Switch
Side Adjust , PCB pins
Side Adjust , PCB pins, with Switch
Top Adjust, PCB pins
Top Adjust, PCB pins, with Switch
Rear Adjust, PCB pins
Rear Adjust, PCB pins, with Switch
P170N
P170S
P170N2
P170S2
P170NP1
P170SP1
P170NPD
P170SPD
ELECTRICAL
1
Resistance Range, Ohms
Standard Resistance Tolerance
Residual Resistance
Input Voltage, maximum
Power rating, Watts
Dielectric Strength
Insulation Resistance, Minimum
Sliding Noise
Actual Electrical Travel, Nominal
Switch Contact Resistance
Switch Power Rated
100-1M (for “B” taper)
5K-1M (for other tapers)
±
20%
10 ohms max.
200 Vac max.
0.1W- B taper, 0.05W- others
500Vac, I minute
50M ohms at 500Vdc
100mV max.
240°
50 m ohms max.
1.0A at 12Vdc
MECHANICAL
Total Mechanical Travel
Static Stop Strength
Rotational Torque
Switch Rotational Angle
260°± 10°
40 oz-in
0.5 to 1.25 oz-in
30°±10°
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
February 10, 2010
Website:
www.bitechnologies.com
page 1 of 6
