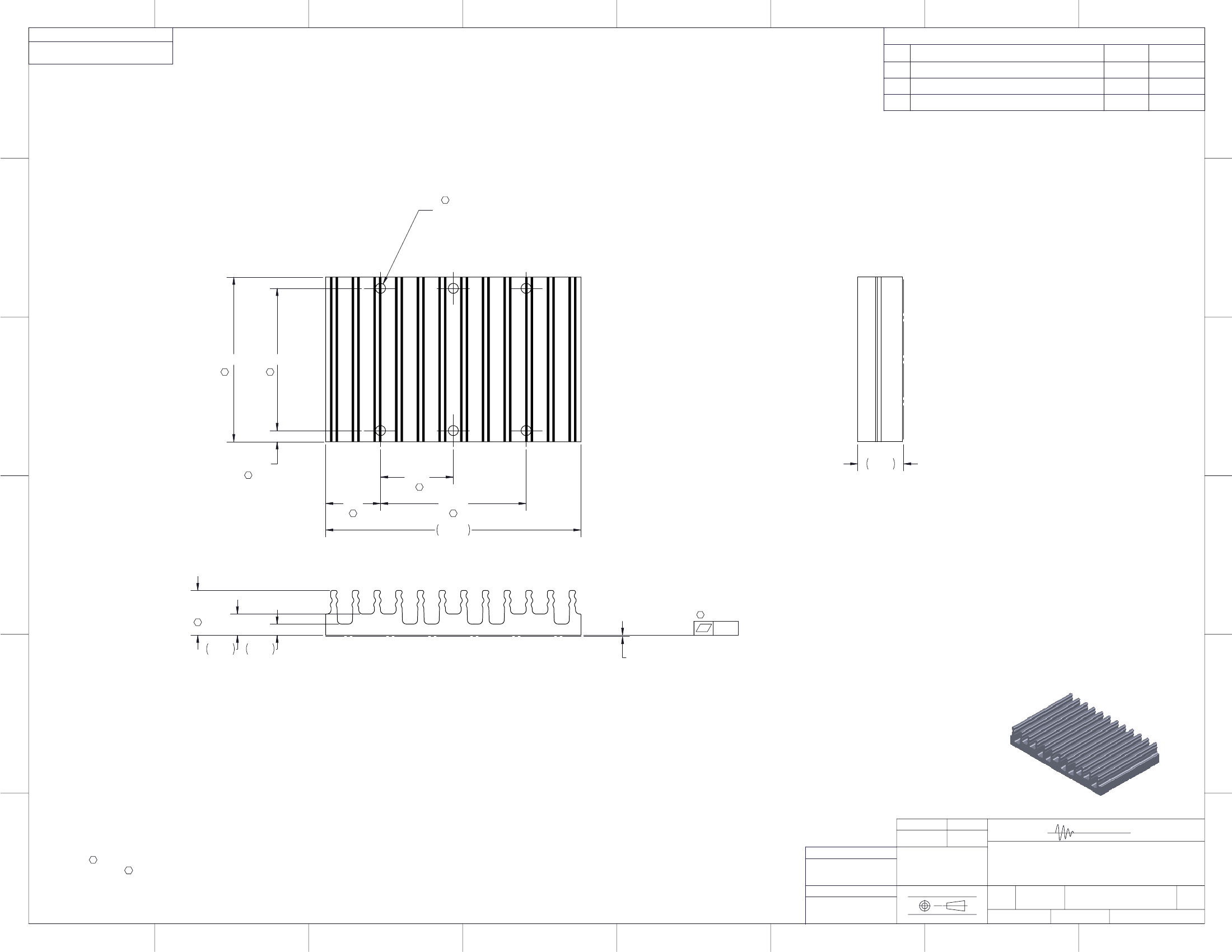

F
PEI
01/04/06
08/19/09
DOCUMENT REVISED PER E091418
JS
F
DCS
7/14/10
E
#4-40 UNC-2B COLD FORM TAP
.120 DP MIN. FROM FAR SIDE
DO NOT BREAK THRU
(6) PL.
E
1.47
D
1.270
D
.100±.010
.650
.49
1.300
2.280
C
.410
C
.40
.005
.190
.100
.010
MATL TO BE
REMOVED
B
B
A
NOTES:
1.
MATERIAL: EXTRUSION SEE SHEET 2 OF 2.
2.
REMOVE ALL BURRS AND SHARP EDGES.
3.
CLEAR FINISH, RoHS COMPLIANT, CHROMIUM FREE PER CST-0001 LATEST REVISION.
"
4.
" DENOTES CRITICAL CHARACTERISTIC FOR LOT INSPECTION.
5.
DIMENSIONS ARE INCHES ONLY.
DRAWN
P.E. IENI
MATERIAL
SEE NOTES
DATE
12/01/05
VICOR
SWD
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE INCH [MM]
TOLERANCES ARE:
DECIMALS
ANGLES
X.XX [X.X] = ±0.01 [0.25]
±1°
X.XXX [X.XX] = ±0.005 [0.127]
THIRD ANGLE PROJECTION
HS CFG "C" X-FLOW, .4H
LOW FLOW, THREADED
SIZE
CAGE CODE
DWG NO
REV
A
FINISH
SEE NOTES
C
DO NOT SCALE DRAWING
67131
32173
SHEET 1 OF 2
3
1
SCALE 2 : 1
8
7
6
5
4
3
2

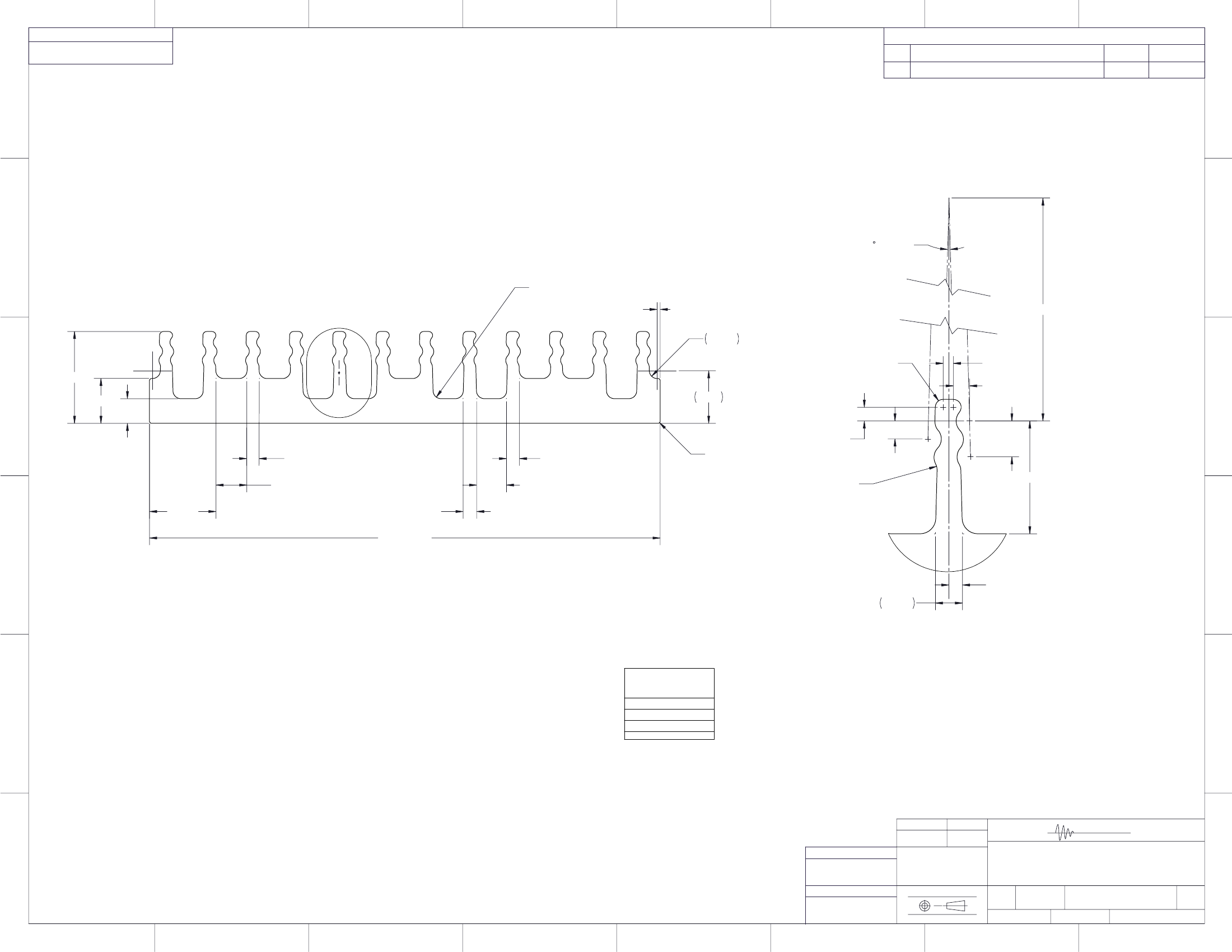

8
VICOR CONFIDENTIAL
THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR
HEREWITH IS NOT TO BE REPRODUCED, USED OR
DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT
THE PERMISSION OF VICOR CORP.
7
6
5
4
3
2
REVISIONS
REV
DESCRIPTION
SEE SHEET 1 OF 2
DATE
1
APPROVED
F
F
E
3°
1.5 EACH
SIDE OF VERT
R.035
(24) PL.
SEE DETAIL
A
E
.014
(2) PL.
R.035
R.018
(2) PL.
.023
.036
1.756
.410
D
.200
.235
.110
.031
.040
D
* .056
(2) PL.
* .138
(5) PL.
* .297
* .060
(2) PL.
+.020
2.280
- .000
* .058
(8) PL.
* .133
(6) PL.
R.010
(4) PL.
.080
R.030
(8) PL.
.252
C
C
* .030
* .060
DETAIL A
SCALE 8 : 1
TYP
PROFILE COMMON
FOR
B
30722
32173
30721
30184
B
A
NOTES:
1.
MATL: ALUMINUM 6063-T5
2.
*DENOTES DIMENSIONS TO THEORETICAL SHARP CORNER
3.
ALL DIMENSIONS ARE CRITICAL CHARACTERISTICS.
4.
RoHS COMPLIANT PER CST-0001 LATEST REVISION.
5.
WORKMANSHIP STANDARDS WS-0004, WS-0006 AND WS-0007 APPLY TO THIS PART.
6.
DIMENSIONS ARE INCHES ONLY.
DRAWN
JSARIPELLA
MATERIAL
SEE NOTES
DATE
08/19/09
VICOR
SWD
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE INCH [MM]
TOLERANCES ARE:
DECIMALS
ANGLES
X.XX [X.X] = ±0.01 [0.25]
±1°
X.XXX [X.XX] = ±0.005 [0.127]
THIRD ANGLE PROJECTION
HS CFG "C" X-FLOW, .4H
LOW FLOW, THREADED,
EXTRUSION
SIZE
CAGE CODE
DWG NO
REV
A
FINISH
SEE NOTES
C
DO NOT SCALE DRAWING
67131
32173
SHEET 2 OF 2
3
1
SCALE 4 : 1
