JCA0648S15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> JCA0648S15

JCA0648S15: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 6W, Hybrid, PACKAGE-23/7; CategoryPower/power management The power supply circuit; File Size144KB，2 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/; Environmental Compliance

Download Datasheet Parametric View All

JCA0648S15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JCA0648S15	-	-	View	Buy Now

JCA0648S15 Overview

DC-DC Regulated Power Supply Module, 1 Output, 6W, Hybrid, PACKAGE-23/7

JCA0648S15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1154943288
package instruction	PACKAGE-23/7
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Manufacturer	XP POWER
Samacsys Modified On	2020-06-03 15:13:37
YTEOL	6.75
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-MDMA-P7
length	25.4 mm
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Maximum output current	0.4 A
Maximum output voltage	15.15 V
Minimum output voltage	14.85 V
Nominal output voltage	15 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP8/20,.6
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	10.5 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	6 W
Fine-tuning/adjustable output	NO
width	20.3 mm

Preview

Download Datasheet

View All

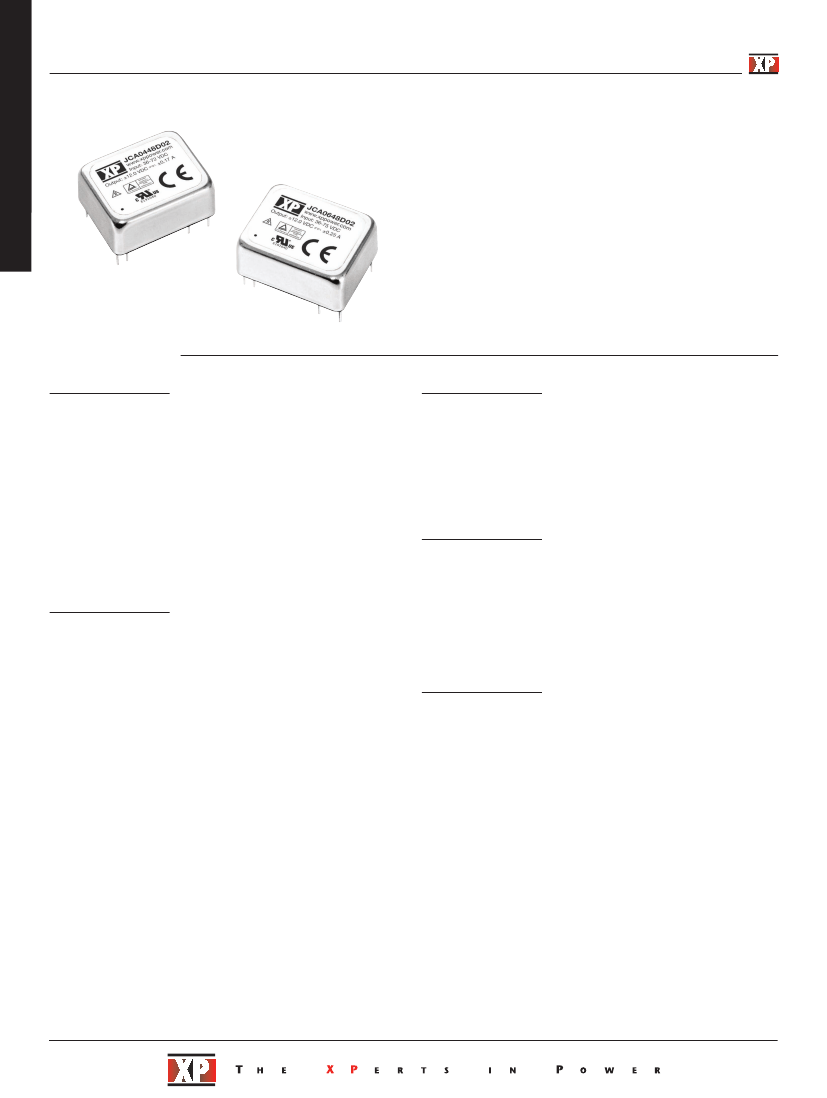

DC DC

4/6 Watts

JCA Series

•

Industry Standard Pin Out

2:1 Input Range

Single & Dual Outputs

xppower.com

Compact 1.0” x 0.8” Metal Package

Operating Temperature 40 °C to +100 °C

UL & TUV Approved

3 Year Warranty

Specification

Input

• 5 V (4.5-9.0 VDC), 12 V (9-18 VDC)

24 V (18-36 VDC), 48 V (36-75 VDC)

Input Current

• See table

Input Filter

• Pi network

Undervoltage Lockout

• Turn On at >90-95% of rated input

Turn Off at <80% of rated input

Input Surge

• 5 V models 10 V for 1 s max,

12 V models 25 V for 1 s max,

24 V models 50 V for 1 s max,

48 V models 100 V for 1 s max

Input Reflected Ripple

• 80 mA for 5 V models

30 mA for all other models

Input Voltage Range

General

Efficiency

Isolation

• See table

• 1500 VDC Input to Output, basic insulation

500 VDC Input to Case

500 VDC Output to Case

• 300 kHz typical

• JCA04: 12.5 W/in

, JCA06: 18.8 W/in

• 1.0 MHrs to MIL-HDBK-217F at 25 °C, GB

Switching Frequency

Power Density

MTBF

Environmental

Operating Temperature

• -40 °C to +100 °C output power derates

from 100% load at +75 °C linearly to

0% load at +100 °C

Case Temperature

• +100 °C max

Storage Temperature

• -55 °C to +125 °C

Cooling

• Convection cooled

Operating Humidity

• Up to 95% RH, non-condensing

Output

Output Voltage

Initial Set Accuracy

Start Up Delay

Start Up Rise Time

Minimum Load

Line Regulation

Load Regulation

Cross Regulation

Transient Response

•

See table

±1% max

200 ms max

3.5 ms typical

No minimum load required

±0.3%

±1%

±5% on dual output models

4% max deviation, recovery to within

1% in <500 µs for a 25% load change

at 1 A/µs

50 mV pk-pk, 20 MHz bandwidth

150% typical, trip & restart

(hiccup mode)

Continuous with auto recovery

150% typical, Recycle input to reset

±0.05%/°C

EMC & Safety

Emissions

• EN55022, level A conducted & radiated

(level B with external components,

see application note)

• EN61000-4-2, level 2 Perf Criteria A

• EN61000-4-3 3 V/m Perf Criteria A

• EN61000-4-6 3 V rms Perf Criteria A

• EN61000-4-8, 10 A/m, Perf Criteria A

• EN60950-1, UL60950-1,

CSA C22.2 No. 60950-1-03,

CE Mark LVD

Ripple & Noise

•

Overcurrent Protection

•

Short Circuit Protection

•

Overvoltage Protection

•

Temperature

•

Coefficient

ESD Immunity

Radiated Immunity

Conducted Immunity

Magnetic Fields

Safety Approvals
