Philips Semiconductors
Preliminary specification
Single-chip 8-bit microcontroller
P83CE558/P80CE558/P89CE558
1. FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
80C51 central processing unit
32 K
×
8 ROM respectively FEEPROM (Flash-EEPROM),
expandable externally to 64 Kbytes
ROM/FEEPROM Code protection
1024
×
8 RAM, expandable externally to 64 Kbytes
Two standard 16-bit timer/counters
An additional 16-bit timer/counter coupled to four capture
registers and three compare registers
A 10-bit ADC with eight multiplexed analog inputs and
programmable autoscan
Two 8-bit resolution, pulse width modulation outputs
Five 8-bit I/O ports plus one 8-bit input port shared with analog
inputs
I
2
C-bus serial I/O port with byte oriented master and slave
functions
Full-duplex UART compatible with the standard 80C51
On-chip watchdog timer
15 interrupt sources with 2 priority levels (2 to 6 external sources
possible)
Extended temperature range (–40 to +85°C
)
4.5 to 5.5 V supply voltage range
Frequency range for 80C51-family standard oscillator:
3.5 MHz to 16 MHz
PLL oscillator with 32 kHz reference and software-selectable
system clock frequency
Seconds Timer
Software enable/disable of ALE output pulse
Electromagnetic compatibility improvements
Wake-up from Power-down by external or seconds interrupt
2. GENERAL DESCRIPTION
The P80CE558/P83CE558/P89CE558 (hereafter generically
referred to as P8xCE558) single-chip 8-bit microcontroller is
manufactured in an advanced CMOS process and is a derivative of
the 80C51 microcontroller family. The P8xCE558 has the same
instruction set as the 80C51. Three versions of the derivative exist:
•
•
•
P83CE558 — 32 Kbytes mask programmable ROM
P80CE558 — ROMless version of the P83CE558
P89CE558 — 32 Kbytes FEEPROM (Flash-EEPROM)
The P8xCE558 contains a non-volatile 32 Kbytes mask
programmable ROM (P83CE558) or electrically erasable FEEPROM
respectively (P89CE558), a volatile 1024
×
8 read/write data
memory, five 8-bit I/O ports, one 8-bit input port, two 16-bit
timer/event counters (identical to the timers of the 80C51), an
additional 16-bit timer coupled to capture and compare latches, a
15-source, two-priority-level, nested interrupt structure, an 8-input
ADC, a dual DAC pulse width modulated interface, two serial
interfaces (UART and I
2
C-bus), a “watchdog” timer, an on-chip
oscillator and timing circuits. For systems that require extra
capability the P8xCE558 can be expanded using standard TTL
compatible memories and logic.
In addition, the P8xCE558 has two software selectable modes of
power reduction — Idle Mode and power-down mode. The Idle
Mode freezes the CPU while allowing the RAM, timers, serial ports,
and interrupt system to continue functioning. The power-down mode
saves the RAM contents but freezes the oscillator, causing all other
chip functions to be inoperative.
The device also functions as an arithmetic processor having
facilities for both binary and BCD arithmetic as well as bit-handling
capabilities. The instruction set consists of over 100 instructions: 49
one-byte, 45 two-byte, and 17 three- byte. With a 16 MHz system
clock, 58% of the instructions are executed in 0.75
µs
and 40% in
1.5
µs.
Multiply and divide instructions require 3
µs.
1996 Aug 06
2
Philips Semiconductors
Preliminary specification
Single-chip 8-bit microcontroller
P83CE558/P80CE558/P89CE558
3. ORDERING INFORMATION
EXTENDED TYPE
NUMBER
ROMless
P80CE558EBB
P80CE558EFB
ROM coded
P83CE558EBB/YYY
1
P83CE558EFB/YYY
1
FEEPROM
P89CE558EBB
P89CE558EFB
QFP80
QFP80
Plastic Quad Flat Pack; 80 leads
Plastic Quad Flat Pack; 80 leads
SOT318-1
SOT318-1
3.5 to 16
3.5 to 16
0 to +70
–40 to +85
QFP80
QFP80
Plastic Quad Flat Pack; 80 leads
Plastic Quad Flat Pack; 80 leads
SOT318-1
SOT318-1
3.5 to 16
3.5 to 16
0 to +70
–40 to +85
QFP80
QFP80
Plastic Quad Flat Pack; 80 leads
Plastic Quad Flat Pack; 80 leads
SOT318-1
SOT318-1
3.5 to 16
3.5 to 16
0 to +70
–40 to +85
PACKAGE
NAME
DESCRIPTION
CODE
FREQUENCY RANGE
(MHz)
TEMPERATURE
RANGE (°C)
NOTE:
1.
YYY denotes the ROM code number
T0
3
T1
3
INT0
3
INT1
3
V
DD
V
SS
PWM0 PWM1 AV
SS
AV
REF
ADC0-7 SDA
5
SCL
+ –
AV
DD
ADEXS
SELXTAL1
6
7
DATA
MEMORY
256 x 8 RAM
+
768 x 8 RAM
DUAL
PWM
I
2
C
SERIAL
I/O
RSTIN
XTAL1
XTAL2
EA
ALE
PSEN
3 WR
3
RD
T0, T1
TWO 16-BIT
TIMER/EVENT
COUNTERS
CPU
PROGRAM
MEMORY
32 K x 8 ROM
/FEEPROM,
1Kx8
boot ROM
ADC
80C51 CORE
EXCLUDING
ROM/RAM
8-BIT INTERNAL BUS
0
AD0-7
2
A8-15
PARALLEL I/O
PORTS AND
EXTERNAL BUS
SERIAL
UART
PORT
8-BIT
PORTS
FOUR
16-BIT
CAPTURE
LATCHES
16
T2
16-BIT
TIMER/
EVENT
COUNT-
ERS
T2
16-BIT
COMPARA-
TORS
WITH
REGISTERS
16
COMPARA-
TOR
OUTPUT
SELECTION
T3
WATCH–
DOG
TIMER
PLL
oscillator
+
”seconds”
timer
3
P0
P1
P2
P3
TxD
3
RxD
P5
P4
1
CT0I-CT3I
1
T2
RT2
1
4
EW XTAL3 XTAL4
CMSR0-CMSR5
RSTOUT
CMT0, CMT1
0
1
2
ALTERNATE FUNCTION OF PORT0
ALTERNATE FUNCTION OF PORT1
ALTERNATE FUNCTION OF PORT2
3
4
5
ALTERNATE FUNCTION OF PORT 3
ALTERNATE FUNCTION OF PORT 4
ALTERNATE FUNCTION OF PORT 5
6
7
NOT PRESENT IN P80CE558
ONLY PRESENT IN P89CE558

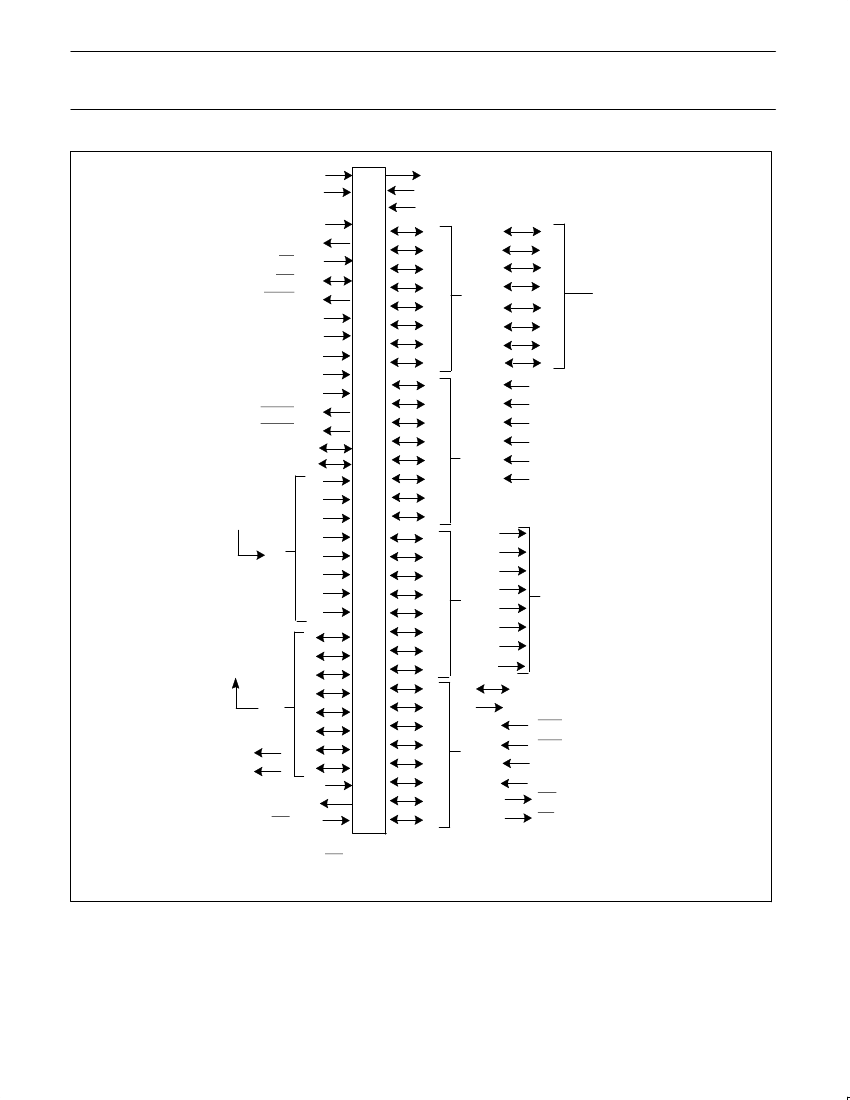

Figure 1. Block diagram P8xCE558
1996 Aug 06
3
