VSORC20AB150251T5

Description
Resistor/Capacitor Network, RC NETWORK, BUSSED, 1.2W, 15ohm, 0.00025uF, SURFACE MOUNT, SOIC-20, SOIC
CategoryPassive components    RC network
File Size90KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

VSORC20AB150251T5 Overview

Resistor/Capacitor Network, RC NETWORK, BUSSED, 1.2W, 15ohm, 0.00025uF, SURFACE MOUNT, SOIC-20, SOIC

VSORC20AB150251T5 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
Reach Compliance Codeunknown
capacitance0.00025 µF
Capacitor Negative Tolerance20%
Capacitor positive tolerance20%
Capacitor temperature coefficient200ppm/Cel
The first element resistor15 Ω
JESD-609 codee3
length12.7 mm
Manufacturer's serial numberVSORC20AB
Installation featuresSURFACE MOUNT
Network TypeBUSSED
Number of capacitor elements16
Number of functions1
Number of RC components32
Number of resistor elements16
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature
Package shapeRECTANGULAR PACKAGE
method of packingTR
Rated power dissipation(P)1.2 W
Rated temperature70 °C
Resistor tolerance10%
Resistor temperature coefficient200 ppm/°C
Resistor/Capacitor Network TypeRC NETWORK
Maximum seat height2.59 mm
surface mountYES
technologyTHIN FILM
Temperature coefficient tracking10 ppm/°C
Terminal surfaceMatte Tin (Sn)
Terminal pitch1.27 mm
Terminal shapeGULL WING
width7.44 mm
Base Number Matches1

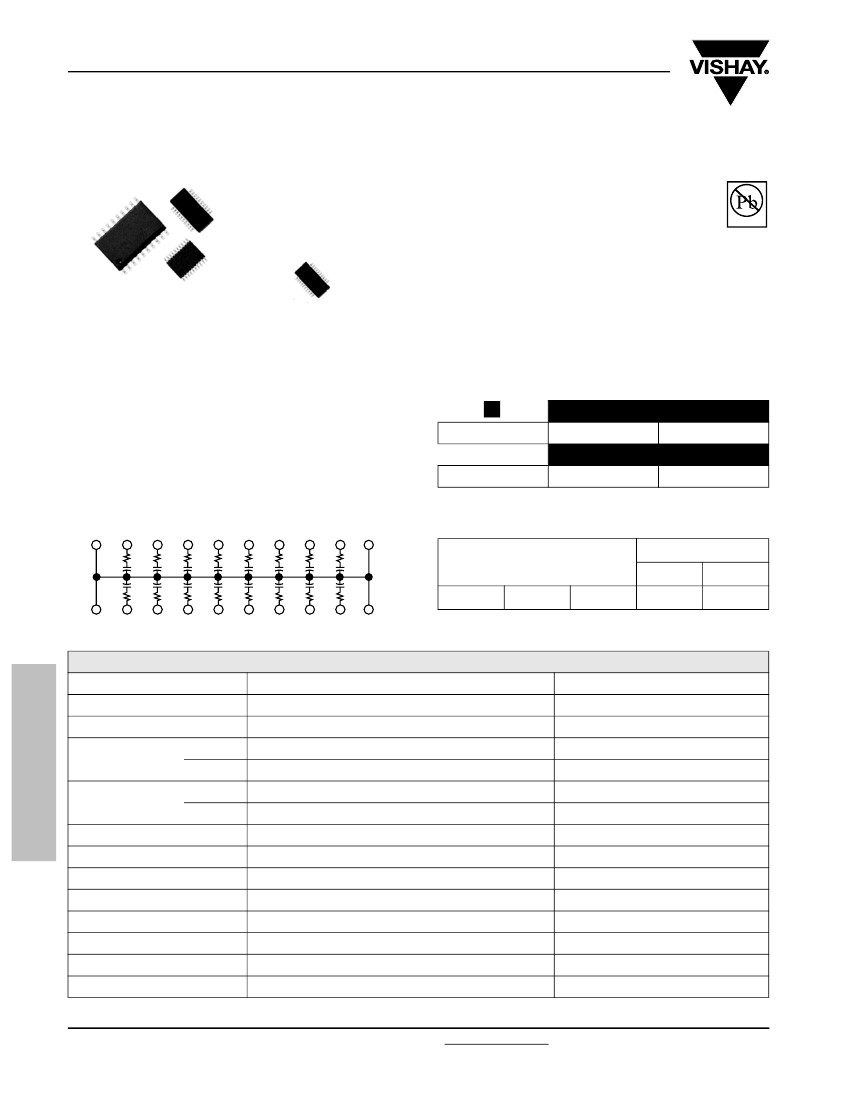

VTSRC, VSSRC, VSORC-AB
Vishay Thin Film
25 or 50 Mil Pitch, Termination Resistor/Capacitor Networks
FEATURES
Lead (Pb)-free available
Resistors and capacitors on a single chip
Saves board space
Reduces total assembly costs
Actual Size
Small Outline, Surface Mount, EMI/RFI Reduction
Pb-free
Available
RoHS*
COMPLIANT
Uniform performance characteristics
Compatible with automatic surface mounting equipment
UL 94V-0 flame resistant
Rugged, molded case construction
If your design calls for the elimination of transmission line
effects on high speed data lines Vishay Thin Film’s integrated
RC network, schematic AB is the answer. The planar design
of our single die thin film networks offer low noise and
predictable component behavior over a wide frequency
range. Care must be taken when choosing matching
networks that their frequency response matches that of the
transmission line. Our product will reduce total assembly
costs through surface mount technology, reduced
component count and improved performance characteristics.
Available packages SOIC, SSOP and TSSOP.
TYPICAL PERFORMANCE
TCR
RESISTOR
200
TCC
CAPACITOR
200
TOLERANCE
10 %
TOLERANCE
20 %
SCHEMATIC AB
20 19 18 17
16
15
14
13
12
11
MODELS
VSORC
VSSRC
X
VTSRC
STANDARD VALUES
R (Ohms)
47
C (pF)
33
1
2
3
4
5
6
7
8
9
10
STANDARD ELECTRICAL SPECIFICATIONS
TEST
MATERIAL
SPECIFICATIONS
TANTALUM NITRIDE ON SILICON
10 Ohms to 750 Ohms
Tracking
TCR:
Absolute
Absolute
Tolerance:
Absolute
Power Rating:
Capacitance Range
Stability:
ESD Protection
Breakdown Voltage
Operating Temperature Range
Storage Temperature Range
Power Rating/Resistor
ΔR
Ratio
Package
± 20 % Standard (C)
1 W - (T)SSOP. 1.2 W - SOIC
10 pF to 150 pF - TSSOP/10 pF to 250 pF - SOIC and SSOP
±2%
> 2 kV
35 - 50 V
0 °C to + 70 °C
- 55 °C to + 125 °C
100 mW
1000 hrs. at + 70 °C
MIL-STD-883, Method 3015
at 1 MHz & V
RMS
over + 10 °C to + 70 °C
See Derating Curve
± 200 ppm/°C
± 10 % Standard (R)
0 °C to + 70 °C
± 10 ppm/°C
CONDITION
RC NETWORKS
Resistance Range
* Pb containing terminations are not RoHS compliant, exemptions may apply
www.vishay.com
94
For technical questions contact thin-film@vishay.com
Document Number: 60084
Revision: 10-May-06
