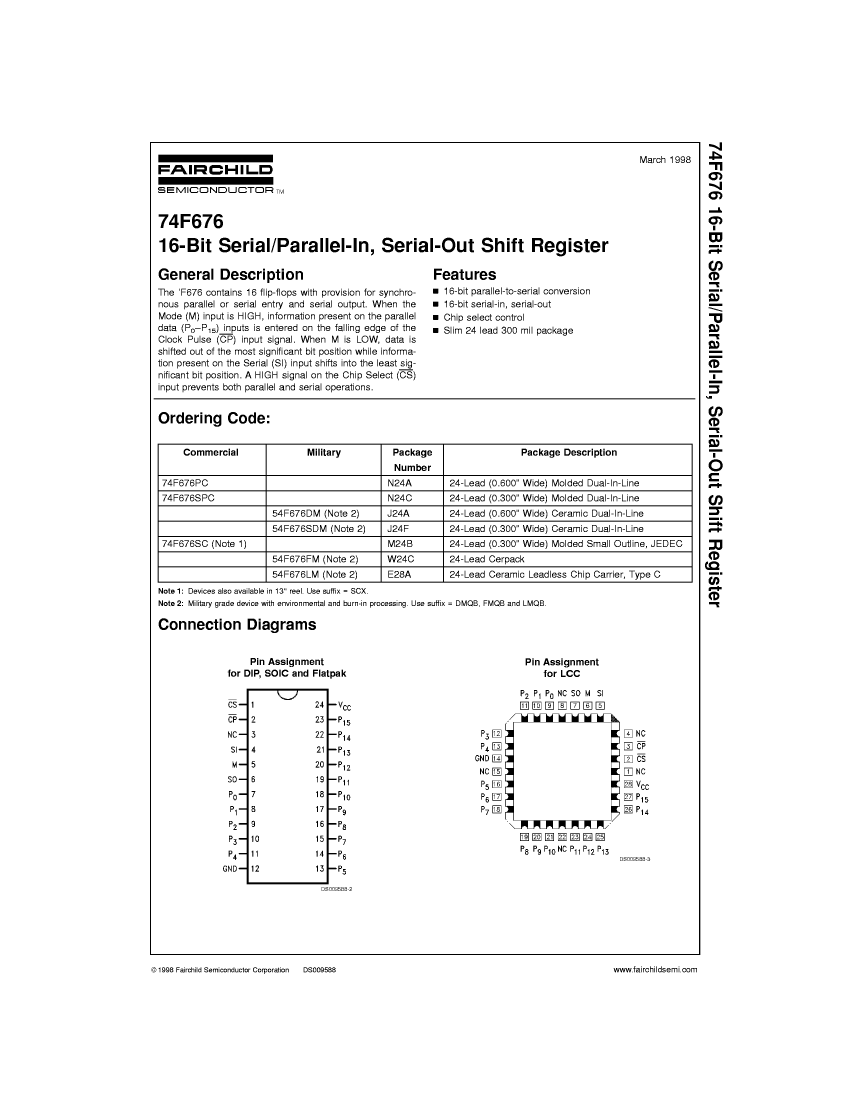

Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, 0.600 INCH, CERAMIC, DIP-24

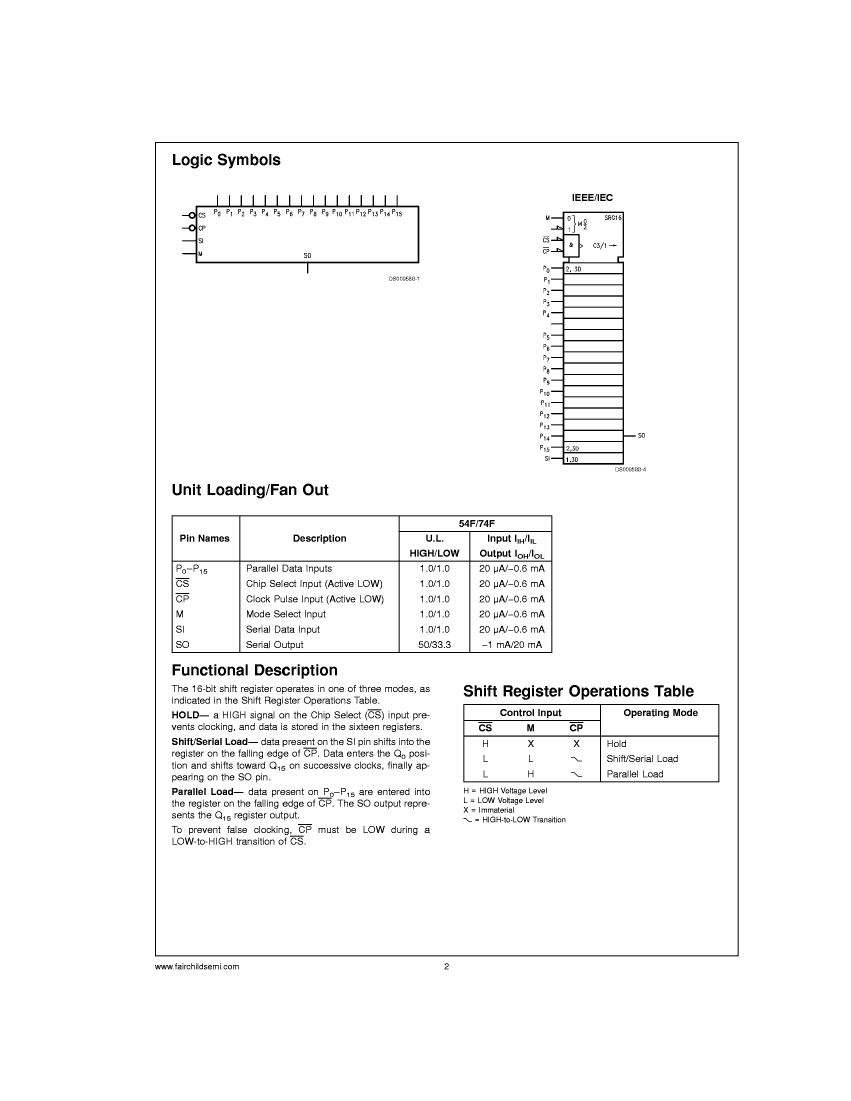

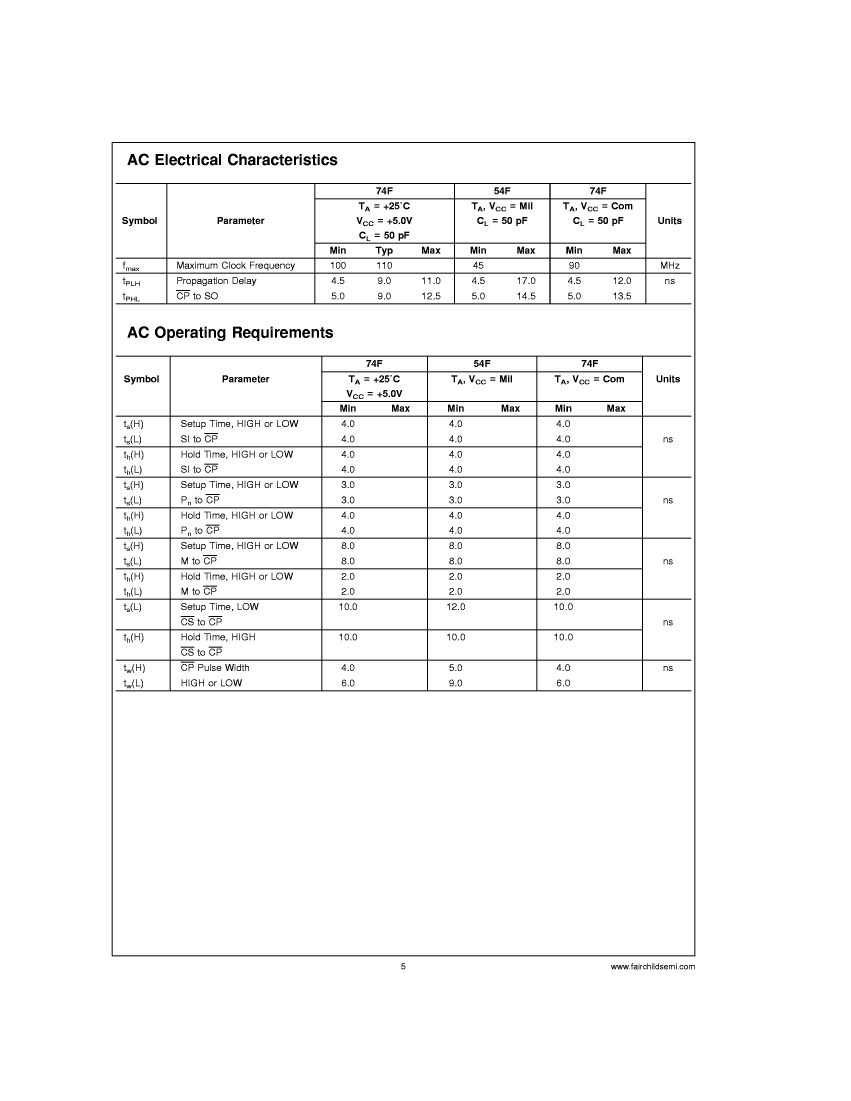

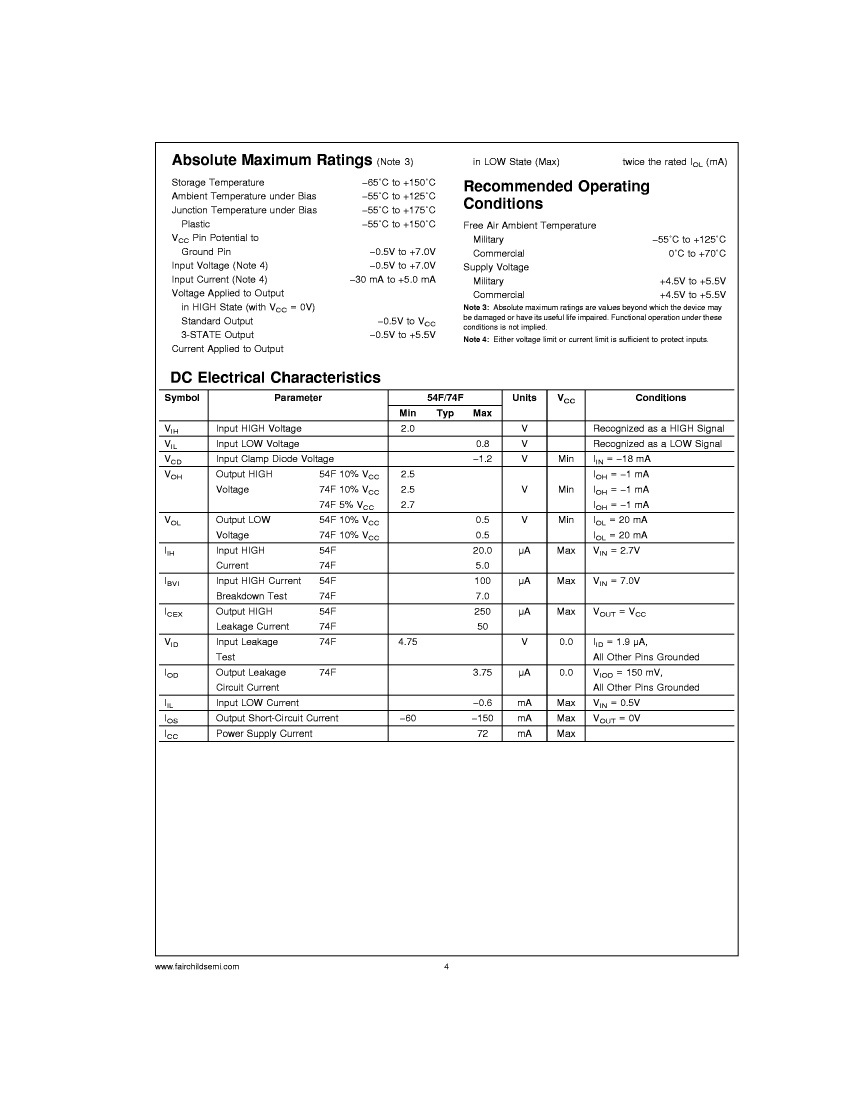

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP24,.6 |
| Contacts | 24 |
| Reach Compliance Code | unknow |
| Other features | HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS |
| Counting direction | RIGHT |
| series | F/FAST |
| JESD-30 code | R-GDIP-T24 |
| JESD-609 code | e0 |
| Logic integrated circuit type | PARALLEL IN SERIAL OUT |
| Maximum Frequency@Nom-Su | 45000000 Hz |
| Number of digits | 16 |
| Number of functions | 1 |
| Number of terminals | 24 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP24,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| propagation delay (tpd) | 14.5 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 4.572 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | NEGATIVE EDGE |
| width | 15.24 mm |
| minfmax | 110 MHz |
| Base Number Matches | 1 |
| 54F676DMQB | 54F676DM | 54F676FMQB | 54F676LM | 54F676LMQB | 54F676FM | 54F676SDMQB | 54F676SDM | |
|---|---|---|---|---|---|---|---|---|
| Description | Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, 0.600 INCH, CERAMIC, DIP-24 | Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, 0.600 INCH, CERAMIC, DIP-24 | Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDFP24, CERPACK-24 | Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CQCC28, CERAMIC, LCC-28 | Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CQCC28, CERAMIC, LCC-28 | Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDFP24, CERPACK-24 | Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24 | Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CDIP24, 0.300 INCH, SLIM, CERAMIC, DIP-24 |
| Parts packaging code | DIP | DIP | DFP | QLCC | QLCC | DFP | DIP | DIP |
| package instruction | DIP, DIP24,.6 | DIP, DIP24,.6 | DFP, FL24,.4 | CERAMIC, LCC-28 | CERAMIC, LCC-28 | DFP, FL24,.4 | DIP, DIP24,.3 | DIP, |
| Contacts | 24 | 24 | 24 | 28 | 28 | 24 | 24 | 24 |
| Reach Compliance Code | unknow | unknow | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS | HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS | CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS | CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS | CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS | CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS | HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS | HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS |
| Counting direction | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT | RIGHT |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDIP-T24 | R-GDIP-T24 | R-GDFP-F24 | S-CQCC-N28 | S-CQCC-N28 | R-GDFP-F24 | R-GDIP-T24 | R-GDIP-T24 |
| Logic integrated circuit type | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT | PARALLEL IN SERIAL OUT |
| Number of digits | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 24 | 24 | 24 | 28 | 28 | 24 | 24 | 24 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DFP | QCCN | QCCN | DFP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | FLATPACK | CHIP CARRIER | CHIP CARRIER | FLATPACK | IN-LINE | IN-LINE |
| propagation delay (tpd) | 14.5 ns | 14.5 ns | 14.5 ns | 14.5 ns | 14.5 ns | 14.5 ns | 14.5 ns | 14.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.572 mm | 4.572 mm | 2.286 mm | 1.905 mm | 1.905 mm | 2.286 mm | 5.72 mm | 5.72 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | YES | YES | YES | NO | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | FLAT | NO LEAD | NO LEAD | FLAT | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | QUAD | QUAD | DUAL | DUAL | DUAL |
| minfmax | 110 MHz | 110 MHz | 45 MHz | 45 MHz | 45 MHz | 45 MHz | 110 MHz | 110 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | - | incompatible | incompatible | incompatible | - |
| JESD-609 code | e0 | e0 | e0 | - | e0 | e0 | e0 | - |
| Encapsulate equivalent code | DIP24,.6 | DIP24,.6 | FL24,.4 | - | LCC28,.45SQ | FL24,.4 | DIP24,.3 | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| power supply | 5 V | 5 V | 5 V | - | 5 V | 5 V | 5 V | - |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Trigger type | NEGATIVE EDGE | - | NEGATIVE EDGE | - | NEGATIVE EDGE | - | NEGATIVE EDGE | NEGATIVE EDGE |
| width | 15.24 mm | 15.24 mm | - | 11.43 mm | 11.43 mm | - | 7.62 mm | 7.62 mm |
