5962-8601506ZA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8601506ZA

5962-8601506ZA: DescriptionLCC-22, Tube; Categorystorage storage; File Size197KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-8601506ZA Overview

LCC-22, Tube

5962-8601506ZA Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	LCC
package instruction	QCCN, LCC22,.3X.5
Contacts	22
Manufacturer packaging code	LC22
Reach Compliance Code	_compli
ECCN code	3A001.A.2.C
Maximum access time	55 ns
I/O type	SEPARATE
JESD-30 code	R-CQCC-N22
JESD-609 code	e0
length	12.3952 mm
memory density	65536 bi
Memory IC Type	STANDARD SRAM
memory width	1
Humidity sensitivity level	1
Number of functions	1
Number of ports	1
Number of terminals	22
word count	65536 words
character code	64000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	64KX1
Output characteristics	3-STATE
Exportable	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC22,.3X.5
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.54 mm
Maximum standby current	0.001 A
Minimum standby current	2 V
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.366 mm
Base Number Matches	1

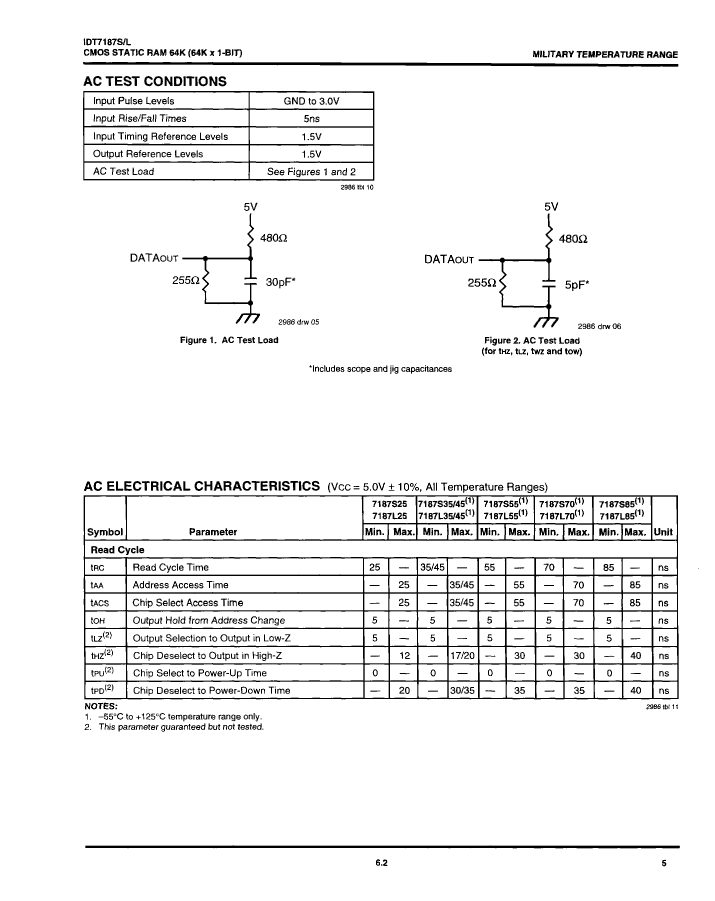

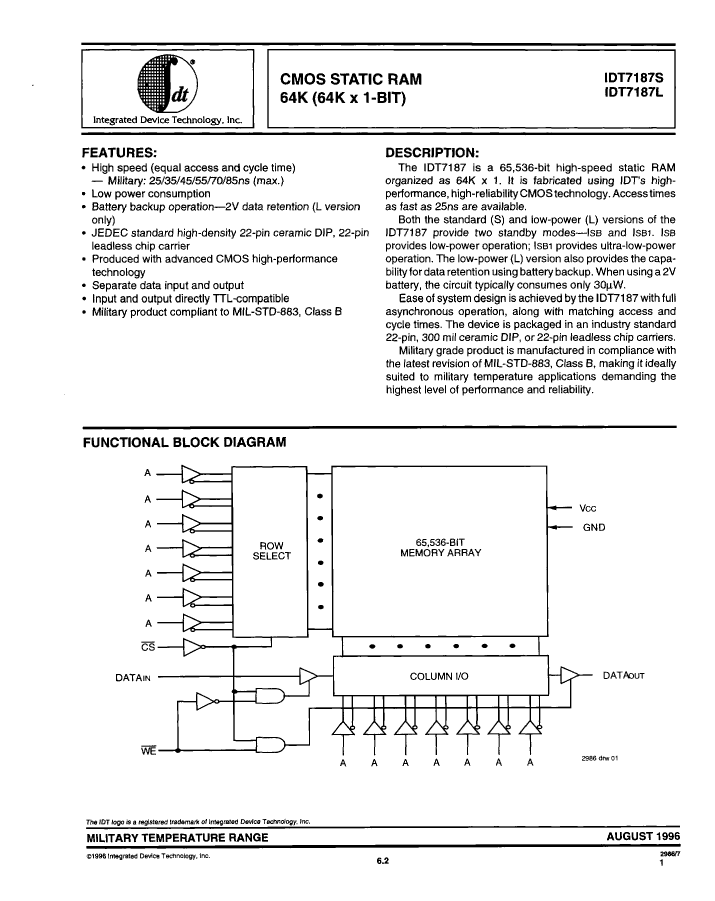

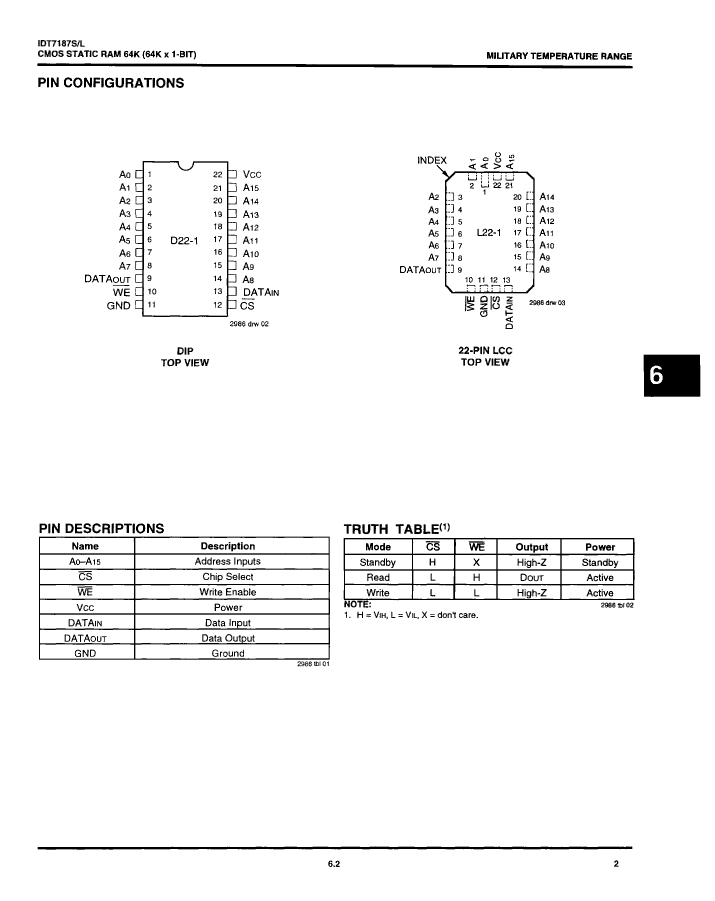

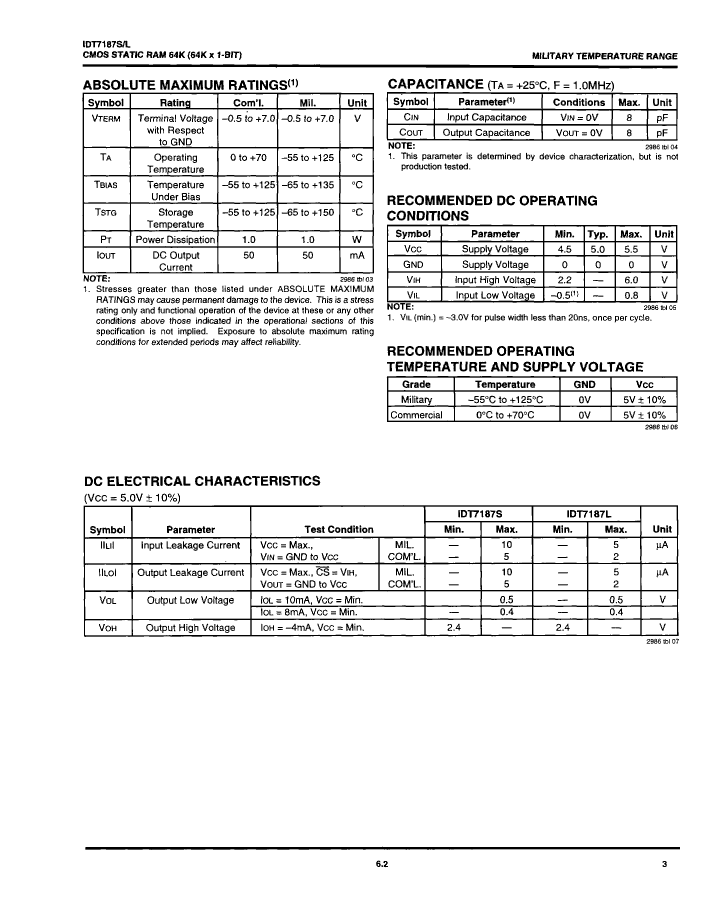

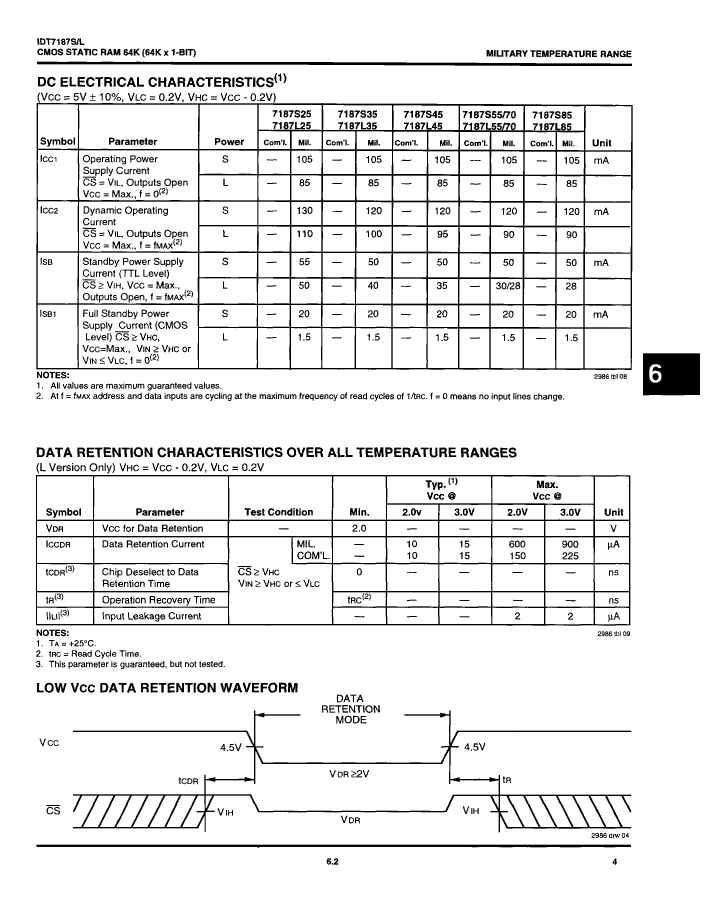

Preview

Download Datasheet

View All

5962-8601506ZA Related Products

	5962-8601506ZA	5962-8601503ZA	5962-8601505ZA	5962-8601501ZA	5962-8601504ZA	5962-8601508ZA	5962-8601507ZA
Description	LCC-22, Tube	LCC-22, Tube	LCC-22, Tube	LCC-22, Tube	LCC-22, Tube	LCC-22, Tube	LCC-22, Tube
Brand Name	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	LCC	LCC	LCC	LCC	LCC	LCC
package instruction	QCCN, LCC22,.3X.5	QCCN, LCC22,.3X.5	QCCN, LCC22,.3X.5	LCC-22	LCC-22	QCCN, LCC22,.3X.5	QCCN, LCC22,.3X.5
Contacts	22	22	22	22	22	22	22
Manufacturer packaging code	LC22	LC22	LC22	LC22	LC22	LC22	LC22
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	55 ns	45 ns	55 ns	35 ns	45 ns	70 ns	70 ns
I/O type	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE
JESD-30 code	R-CQCC-N22	R-CQCC-N22	R-CQCC-N22	R-CQCC-N22	R-CQCC-N22	R-CQCC-N22	R-CQCC-N22
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	12.3952 mm	12.3952 mm	12.3952 mm	12.3952 mm	12.3952 mm	12.3952 mm	12.3952 mm
memory density	65536 bi	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1	1	1
Humidity sensitivity level	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1
Number of terminals	22	22	22	22	22	22	22
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	64KX1	64KX1	64KX1	64KX1	64KX1	64KX1	64KX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN	QCCN
Encapsulate equivalent code	LCC22,.3X.5	LCC22,.3X.5	LCC22,.3X.5	LCC22,.3X.5	LCC22,.3X.5	LCC22,.3X.5	LCC22,.3X.5
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Maximum standby current	0.001 A	0.02 A	0.02 A	0.02 A	0.001 A	0.001 A	0.02 A
Minimum standby current	2 V	4.5 V	4.5 V	4.5 V	2 V	2 V	4.5 V
Maximum slew rate	0.09 mA	0.105 mA	0.105 mA	0.09 mA	0.09 mA	0.095 mA	0.12 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.366 mm	7.366 mm	7.366 mm	7.366 mm	7.366 mm	7.366 mm	7.366 mm
Base Number Matches	1	1	1	1	1	1	1
