Radial Box Metallized Polyester Capacitors for Automatic Insertion
Type 168/185
Metallized Polyester Radial Lead Capacitors
The Type 168/185 series radial lead metallized polyester
box capacitors are available in bulk (Type 168) or on
ammo pack or tape and reel (Type 185). These capacitors
are constructed in rugged rectangular plastic cases and
all come with 5.0 mm (0.197
“
) lead spacing. They are
good for general purpose applications such as bypass,
decoupling, energy storage/discharge and arc suppres-
sion.
Highlights
•
•
•
•
•
•
•
Case and epoxy fill meets UL94V-0
5.0 mm (0.197
“
) lead spacing
Bulk, tape and reel or ammo pack
Non-inductively wound
Non-polar
Low leakage
Lead material: Tinned copper wire
Specifications
Capacitance Range:
Voltage Range:
Capacitance Tolerance:
Operating Temperature Range:
Dielectric Withstand Voltage:
Dissipation Factor (DF):
RoHS Compliant
0.001 µF to 1.0 µF
50 Vdc to 400 Vdc (30 Vac to 200 Vac, 60 Hz)
±5%, ±10%, ±20%
–55 ºC to +125 ºC (with 50% Vdc derating >85 ºC)
1.6 x rated voltage for 2 sec @ +25 ºC ±5 ºC
tanδ
x 10
–4
at 25 ºC ±5 ºC
kHz
1
10
100
C
≤0.1
µF C > 0.1 µF
≤100
≤150
≤300
≤100
≤150
Total Self Inductance (L):
Approximately 7 nH
Long Term Stability (after two years):
Capacitance change
∆C/C ≤
±3% under stan-
dard environmental conditions
Maximum Pulse Rise Time (dv/dt):
Vn
50
63
100
250
400
V/µs
250
250
300
400
600
If the working voltage (V) is less than the nominal voltage
(Vn), the capacitor can work at higher dv/dt. In this case, the
maximum value allowed is obtained by multiplying the above
value with the ratio Vn/V.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 168/185
Metallized Polyester Radial Lead Capacitors
Capacitor Outline Drawing
L
Max
H
Max
.
217 ±.039
(5.5 ±1.0 mm)
Test Method and Performance
Test Conditions
Insulation Resistance
Temperature:
25 ºC ±5 ºC
Voltage Charge Time:
1 minute
Voltage Charge:
10 Vdc for Vn < 100 Vdc
100 Vdc for Vn
≥
100 Vdc
Performance
For Vn > 100 Vdc:
C ≤ 0.33 µF, ≥15,000 MΩ
C > 0.33 µF, ≥ 5,000 S
For Vn
≤100
Vdc:
C ≤ 0.33 µF, 30,000 MΩ
C > 0.33 µF, ≥ 10,000 S
Damp Heat Test
Test Conditions
Temperature:
+40 ºC
Relative Humidity:
95%
Test Duration:
21 days
Performance
Capacitance Change
∆C/C:
±5%
DF Change
∆tgδ: ≤
0.005 (10 KHz)
Insulation Resistance:
≥
50% of limit value
Life Test
Test Conditions
REF
Temperature:
+85 ºC
Test Duration:
2000 hrs
Voltage Applied:
1.25 x Vn
Performance
Capacitance Change
∆C/C: ≤
±2%
DF Change
∆tgδ: ≤30
x 10
–4
at 10 kHz
Insulation Resistance:
≥
50% of limit value
Max
T
S
±.015
(±0.4 mm)
Ød ±.003
(±0.076)
Lead length shown is as supplied on the 168 Series
Soldering
Test Conditions
Soldering Temperature:
260 ºC ±5 ºC
Soldering Duration:
10 sec ±1 sec
Performance
Capacitance Change
∆C/C: ≤
±2%
DF Change
∆tgδ: ≤30
x 10
–4
at 10 kHz
Insulation Resistance:
≥
limit value
Ratings
Catalog
Part Number
168104*50A-F
168154*50A-F
168224*50C-F
168334*50C-F
168474*50H-F
168684*50F-F
168824*50G-F
168105*50G-F
168473*63A-F
168563*63A-F
168683*63A-F
168823*63A-F
168104*63A-F
168154*63C-F
168184*63C-F
168224*63C-F
168274*63C-F
168334*63H-F
168474*63H-F
168684*63F-F
Tape & Reel
Ammo Pack
185104*50#A>-F
185154*50#A>-F
185224*50#C>-F
185334*50#C>-F
185474*50#H>-F
185684*50#F>-F
185824*50#G>-F
185105*50#G>-F
185473*63#A>-F
185563*63#A>-F
185683*63#A>-F
185823*63#A>-F
185104*63#A>-F
185154*63#C>-F
185184*63#C>-F
185224*63#C>-F
185274*63#C>-F
185334*63#H>-F
185474*63#H>-F
185684*63#F>-F
Cap
(µF)
0.10
0.15
0.22
0.33
0.47
0.68
0.82
1.00
0.047
0.056
0.068
0.082
0.10
0.15
0.18
0.22
0.27
0.33
0.47
0.68
L
T
Inches
H
S
Ød
L
50 Vdc / 30 Vac
Millimeters
T
H
S
Ød
RoHS
Compliant
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
6.5 5.0 0.5
6.5 5.0 0.5
7.5 5.0 0.5
7.5 5.0 0.5
7.5 5.0 0.5
0.283 0.236 0.433 0.197 0.024 7.2 6.0 11.0 5.0 0.6
0.283 0.236 0.433 0.197 0.024 7.2 6.0 11.0 5.0 0.6
0.283 0.236 0.433 0.197 0.024 7.2 6.0 11.0 5.0 0.6
63 Vdc / 40 Vac
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.177 0.374 0.197 0.024 7.2 4.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
7.5 5.0 0.5
7.5 5.0 0.5
7.5 5.0 0.5
6.5 5.0 0.5
7.5 5.0 0.5
7.5 5.0 0.5
9.5 5.0 0.6
168105*63G-F
185105*63#G>-F
1.00
0.283 0.236 0.433 0.197 0.024 7.2 6.0 11.0 5.0 0.6
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Indicates packaging type: R = Tape and Reel, A = Ammo Pack
> Indicates tooling code: A = 16.5 mm, B = 18.5 mm (See H dimension in taping specifications)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 168/185
Metallized Polyester Radial Lead Capacitors
Catalog
Part Number
168102*100A-F
168152*100A-F
168222*100A-F
168272*100A-F
168332*100A-F
168392*100A-F
168472*100A-F
168562*100A-F
168682*100A-F
168822*100A-F
168103*100A-F
168153*100A-F
168183*100A-F
168223*100A-F
168273*100A-F
168333*100C-F
168393*100C-F
168473*100C-F
168683*100H-F
168104*100H-F
168154*100F-F
168224*100G-F
168332*250A-F
168472*250A-F
168682*250A-F
168103*250A-F
168153*250A-F
168223*250C-F
168333*250C-F
168473*250F-F
168683*250F-F
168104*250G-F
168102*400A-F
168152*400A-F
168222*400A-F
168332*400C-F
168472*400C-F
168682*400C-F
168103*400F-F
168153*400F-F
168223*400G-F
Tape & Reel
Ammo Pack
Cap
(µF)
L
T
Inches
H
S
Ød
L
100 Vdc / 63 Vac
185102*100#A>-F 0.0010 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185152*100#A>-F 0.0015 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185222*100#A>-F 0.0022 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185272*100#A>-F 0.0027 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185332*100#A>-F 0.0033 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185392*100#A>-F 0.0039 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185472*100#A>-F 0.0047 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185562*100#A>-F 0.0056 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185682*100#A>-F 0.0068 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185822*100#A>-F 0.0082 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185103*100#A>-F
185153*100#A>-F
185183*100#A>-F
185223*100#A>-F
185273*100#A>-F
185333*100#C>-F
185393*100#C>-F
185473*100#C>-F
185683*100#H>-F
185104*100#H>-F
185154*100#F>-F
185224*100#G>-F
0.010
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.068
0.10
0.15
0.22
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.177 0.374 0.197 0.024 7.2 4.5
250 Vdc / 160 Vac
185332*250#A>-F 0.0033 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185472*250#A>-F 0.0047 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185682*250#A>-F 0.0068 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185103*250#A>-F
185153*250#A>-F
185223*250#C>-F
185333*250#C>-F
185473*250#F>-F
185683*250#F>-F
185104*250#G>-F
185102*400#A>-F
0.010
0.015
0.022
0.033
0.047
0.068
0.100
0.001
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.098 0.256 0.197 0.020 7.2 2.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.177 0.374 0.197 0.024 7.2 4.5
0.283 0.177 0.374 0.197 0.024 7.2 4.5
0.283 0.197 0.394 0.197 0.024 7.2 5.0
400 Vdc / 200 Vac
0.283 0.098 0.256 0.197 0.020 7.2 2.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
7.5 5.0 0.5
7.5 5.0 0.5
9.5 5.0 0.6
10
5.0 0.6
185152*400#A>-F 0.0015 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185222*400#A>-F 0.0022 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185332*400#C>-F 0.0033 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185472*400#C>-F 0.0047 0.283 0.098 0.256 0.197 0.020 7.2 2.5
185682*400#C>-F 0.0068 0.283 0.138 0.295 0.197 0.020 7.2 3.5
185103*400#F>-F
185153*400#F>-F
185223*400#G>-F
0.010
0.015
0.022
0.283 0.138 0.295 0.197 0.020 7.2 3.5
0.283 0.177 0.374 0.197 0.024 7.2 4.5
0.283 0.197 0.394 0.197 0.024 7.2 5.0
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
7.5 5.0 0.5
7.5 5.0 0.5
9.5 5.0 0.6
9.5 5.0 0.6
10
5.0 0.6
Millimeters
T
H
S
RoHS
Ød
Compliant
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
6.5 5.0 0.5
9.5 5.0 0.6
0.283 0.197 0.394 0.197 0.024 7.2 5.0 10.0 5.0 0.6
* Indicates capacitance tolerance: J = ±5%, K = ±10%, M = ±20%
# Indicates packaging type: R = Tape and Reel, A = Ammo Pack
> Indicates tooling code: A = 16.5 mm, B = 18.5 mm (See H dimension in taping specification)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type 168/185
Metallized Polyester Radial Lead Capacitors

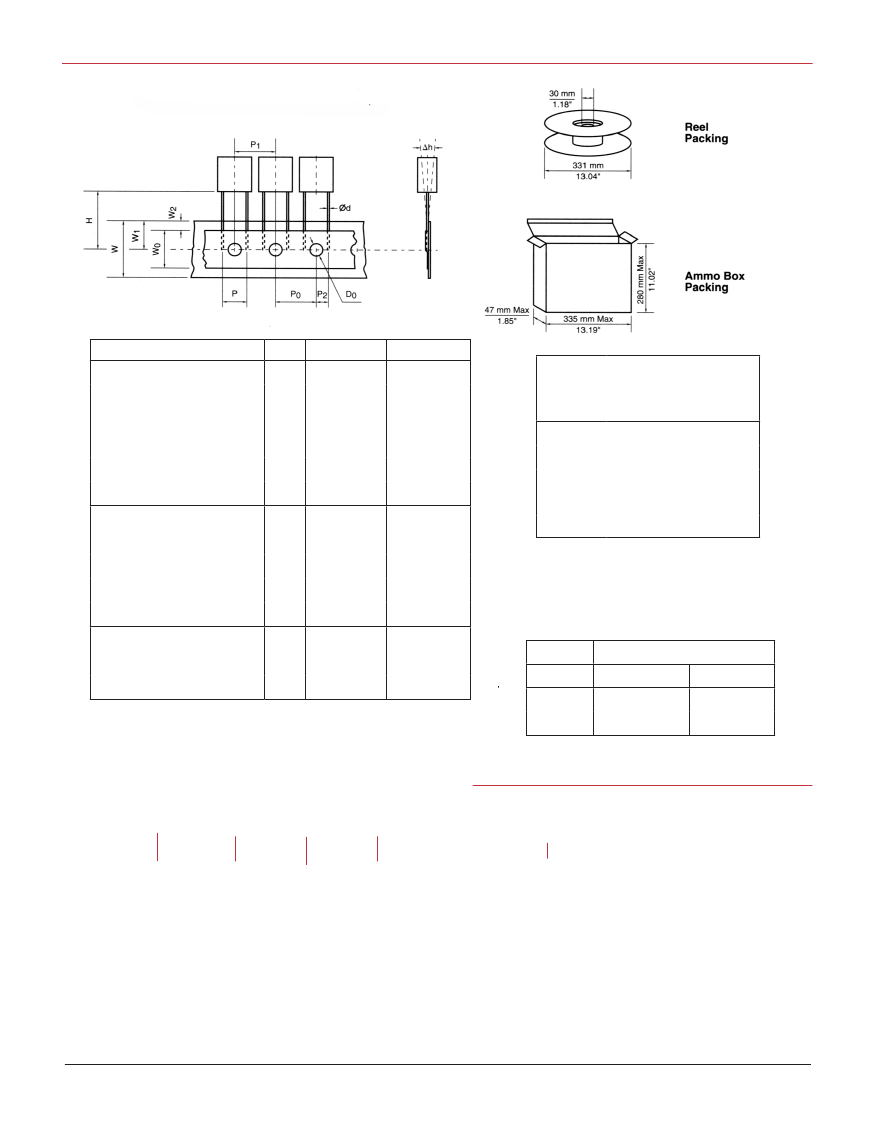

Tape Specification - 5.0 mm Lead Spacing
Standard EIA-468-B
Item
Lead-to-Lead Distance
Feed Hole Pitch
Pitch of Component
Hole Center to Lead
Feed Hole Center to
Component Center
Component Alignment, F-R
Tape Width
Hold-down Tape Width
Hole Position
Hold-down Tape Position
Height of Component
from Tape Center
Feed Hole Diameter
Code Millimeters
P
P
0
P
1
P
2
P
3
5.0
+0.6 –0.2
12.7
±0.3
12.7
±1.0
2.54
±0.7
6.35
±1.3
±2.0
+1.0 –0.1
Inches
.197
+.024 –.040
.5
±.012
.5
±.039
.100
±.028
.250
±.051
0
±.079
+.039 –.004
Case
Thickness Quantity Quantity
T
Reeled Ammo Pack
2.5
3.5
4.5
5
6
2500
1800
1400
1200
1000
2000
1500
1300
1000
800
∆h
0
W
18
.709
W
0
6.0 min
W
1
9.0
+0.75 –0.05
W
2
3.0 Max
H
D
0
>
4.0
±0.3
.236 min
.355
+.030 –.001
.118 Max
>
.157
±.012
> The H dimension depends on the
insertion equipment used. Specify
the proper tooling code as indicated
below.
Tooling
Code
A
B
H Dimensions
Millimeters
16.5
±0.75
18.5
±0.75
Inches
.679
±0.030
.728
±0.030
Part Numbering System for Auto Insertion
168/185
104
K
100
R
Packaging
Type
Series
185
Capacitance
102 = .001 µF
103 = .01 µF
104 = .1 µF
105 = 1.0 µF
Tolerance
J = ±5%
K = ±10%
M = ±20%
Voltage
50 = 50 Vdc
63 = 63 Vdc
100 = 100 Vdc
250 = 250 Vdc
400 = 400 Vdc
(#)
A = Ammo
R = Tape & Reel
Internal
Code
Letter
H
B
*Tooling
Code
(>)
A
B
–F
RoHS
Compliant
Designation
* Tooling code (>) depends on the users insertion equipment requirements. See table for available options.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
/185473j250rfa-f_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/185473j250rfa-f_pdf/1.png)
/185473j250rfa-f_pdf/2.png)
/185473j250rfa-f_pdf/3.png)
/185473j250rfa-f_pdf/4.png)
/185473j250rfa-f_pdf/pg_0002.png)
/185473j250rfa-f_pdf/pg_0003.png)
/185473j250rfa-f_pdf/pg_0004.png)
