RC324-100-313-4600 datasheet, PDF

Datasheet> All Categories > The connector> The connector> RC324-100-313-4600

RC324-100-313-4600: DescriptionBoard Connector,; CategoryThe connector The connector; File Size195KB，1 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

RC324-100-313-4600 Overview

Board Connector,

RC324-100-313-4600 Parametric

Parameter Name	Attribute value
Objectid	1286255000
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR

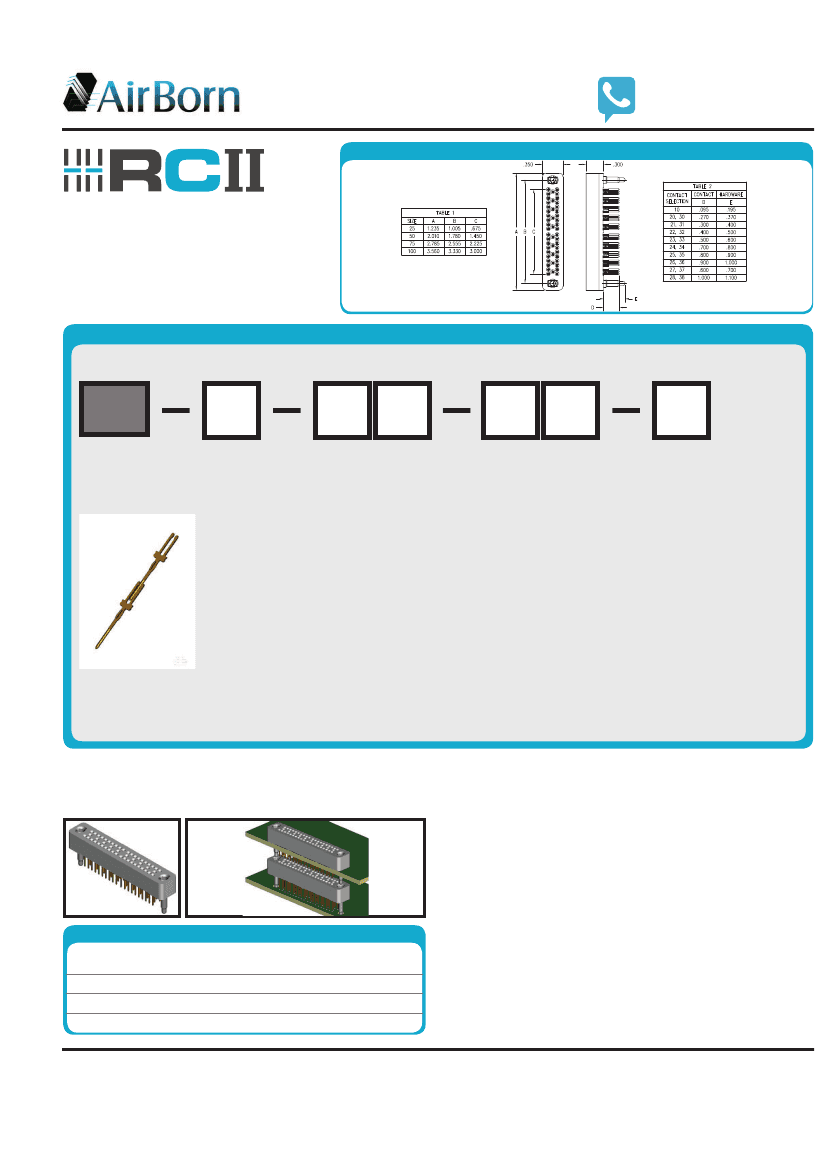

Preview

Download Datasheet

View All

CONTACT CUSTOMER SERVICE

CALL 512-863-5585

x6464

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

RC324

SERIES

Stackable

Compliant

3 Row

CONFIGURATION

1 - 50µin. Au

3 - 30µin. Au

5 - 10µin. Au

CONTACT

HARDWARE

00 - None

FT - Female Thread

MT - Male Thread

VARIATION

Blank - None

XXX - Consult Factory

selected by approximately the difference in pin length. See Table 2.

Contact:. . . . . . . .

Contact Finish: . .

Molded Insulator:

Hardware: . . . . . .

. . . . BeCu per ASTM-B768 (BeCu C17410 Brush Alloy 174)

. . . . . Gold per MIL-G-45204 over Nickel per IAW QQ-N-290

...

REQUIREMENTS

Diff. Insertion Loss

Diff. Return Loss

FEXT

ACTUAL

6.0 Ghz @ -3 dB

4.6 Ghz @ -20 dB

4.0 Ghz @ -50 dB

4.0 Ghz @ -48 dB

Contact Rating: . . . . . . . . . .

Operating Temperature: . . . .

Insulation Resistance: . . . . .

Durability: . . . . . . . . . . . . . . .

Contact Resistance: . . . . . . .

Contact Engagement Force: .

Contact Separation Force: . .

Compliant Insertion Force: . .

Compliant Removal Force: . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Amperes

. . . . . . . . . . . . . . . . . . . . . . .-65° C to +125° C

. . . . . 5,000 megaohms minimum @ 500 VDC

. . . . . . . . . . . . 500 connector mating cycles

3 to 5 milliohms (contact length dependent)

...

. . . . . . 22.5 lb. (10.21 Kg.) max. per contact

. . . . . . . . . 4.5 lb. (2.04 Kg.) min. per contact

www.AIRBORN.com

( 512 ) 863-5585
