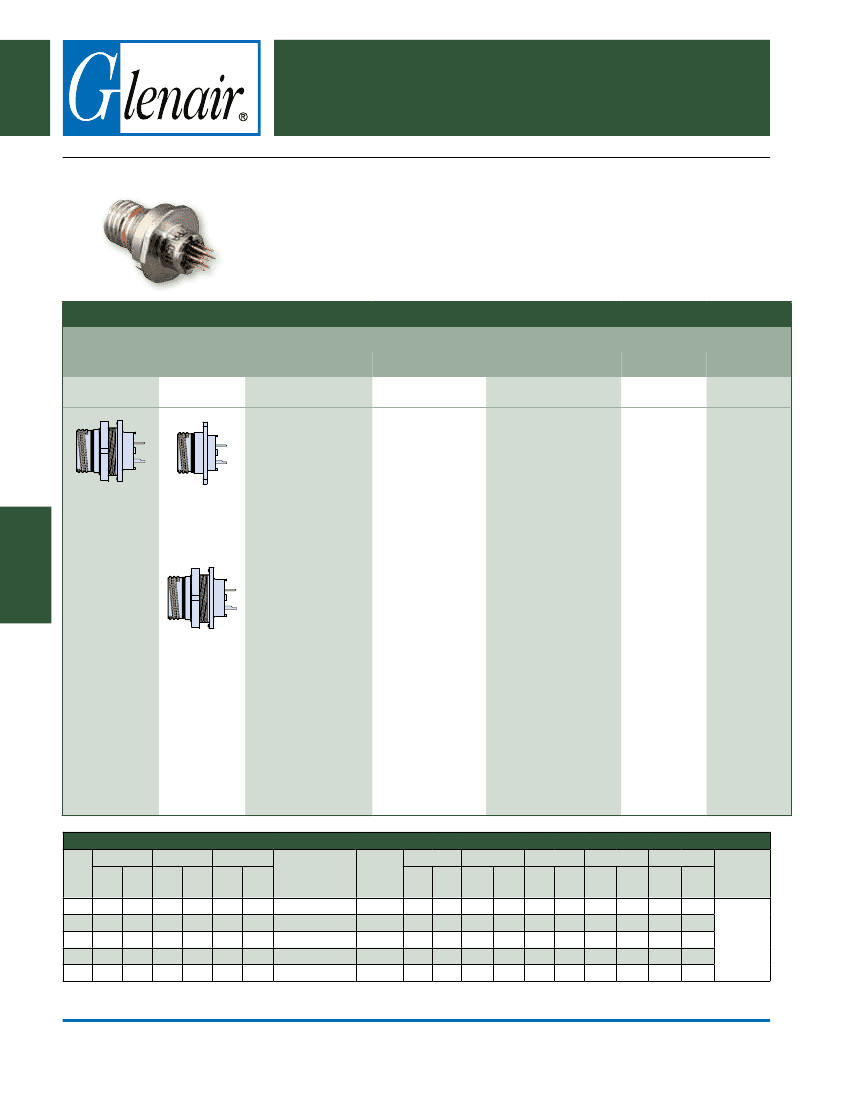

Series 80 Miniature Connectors

with Size #12 Ultra-Twinax Contacts

Series 801 PCB Receptacles

Ultra-Twinax

SERiES 801 PCB RECEPTAClE CONNECTORS WiTH SiZE #12 CONTACTS

New Mighty Mouse contact arrangements accept size #12 Ultra-Twinax contacts for

multi-gigabit datarate applications. Series 801 Mighty Mouse PCB receptacles are

aluminum or stainless steel, with thermoplastic insulators, fluorosilicone rubber seals,

and double-start ACME mating threads. Available for rear panel jam nut mounting or

square flange styles, these receptacles are supplied with #12 Twinax PC Tail contacts

(contact types UXPP or UXPS).

How to Order

Sample Part Number

801-011

Series

-02

Shell Style

Shell Material / Finish

17-7

Shell Size- Insert

Arrangement

UXPS

Contact Type

Shell Key

Position

-688

Mod Code

Aluminum /

Electroless Nickel

RoHS Compliant

7-1

10-2

16-5

17-7

21-12

10-201

10-200

13-201

13-200

Connector supplied

with size #12 Ultra-

Twinax PC Tail contacts

Normal

Alternate Key

Positions:

UXPP

With #12 Ultra-Twinax

PC Tail Pin contacts

801-011

PCB Receptacle

with Accessory

Thread

-02

Square

Flange

Aluminum /

Cadmium with Olive

Drab Chromate

UXPS

With #12 Ultra-Twinax

PC Tail Socket contacts

Connector

insulators

supplied

with keyways

for use

with keyed

contacts

Aluminum /

Zinc-Nickel with

Non-Reflective Black

Chromate

RoHS Compliant

-07

For Rear Panel

Mounting

Jam Nut

Aluminum / Nickel-

PTFE

RoHS Compliant

Stainless Steel /

Passivated

RoHS Compliant

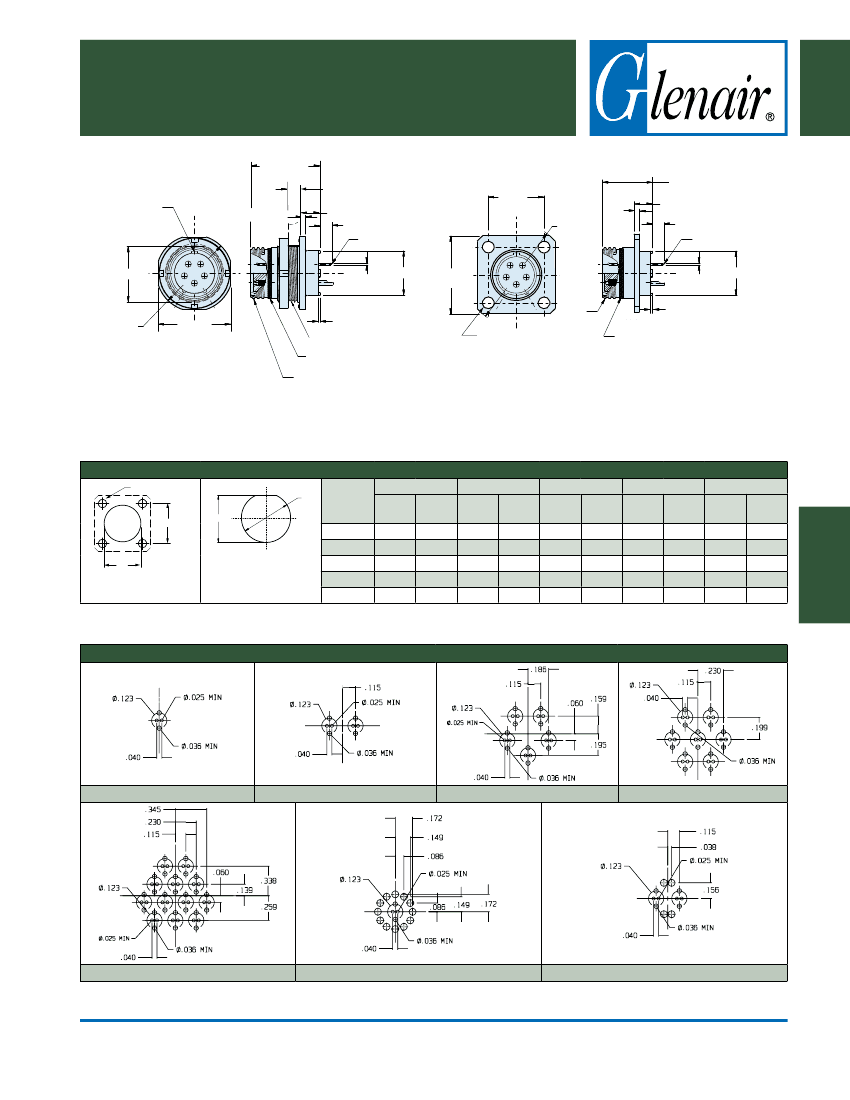

Dimensions

Shell

Size

Ø A

in.

mm.

B Flat

in.

mm.

C Flat

in.

mm.

Thread

E Thread

UN-2A

ØF

in.

mm.

15.75

21.92

23.16

29.72

G Sq.

in.

mm.

H BSC

in.

mm.

in.

ØJ

mm.

ØK

in.

±.003

.093

.128

mm.

±0.08

2.36

3.25

ØL

Tail Dia.

.755 19.18 .536 13.61 .723 18.36 .4375-.05P-1l2A .5625-32 .432

.890 22.61 .658 16.71 .855 21.72 .6250-.05P-.1l-2A .6875-28 .620

1.264 32.11 1.022 25.96 1.230 31.24 1.000-.1P-.2l-2A 1.0625-20 .863

1.325 33.66 1.096 27.84 1.290 32.77 1.062-.1P-.2l-2A 1.125-28 .912

1.625 41.28 1.345 34.16 1.577 40.06 1.3125-.1p-.2l-2a 1.375-28 1.170

10.97 .650

16.51 .483 12.27

.890 22.61 .670 17.02

1.219 30.96 .981 24.92

1.280 32.51 1.060 26.92

1.565 39.75 1.322 33.58

.850 21.59

1.188 30.18

1.625 41.28

1.700 43.18

2.100 53.34

#12

.092/.096

(2.34/2.44)

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

D-16

E-Mail: sales@glenair.com
